Multi-Circuit Measurement Solution for Data Center Metering

  • Easy set up with auto detection of modules on the MCS-Bus
  • Auto-Address of each module
  • Alarm for high voltage, over current, addressing conflicts,etc.
  • Higher Measurement accuracy Class 0.5s
  • Flexibity, Labour saving
  • Plug In Technology, removing any potential wiring errors
  • Space saving, multi-circuits from one centralized point

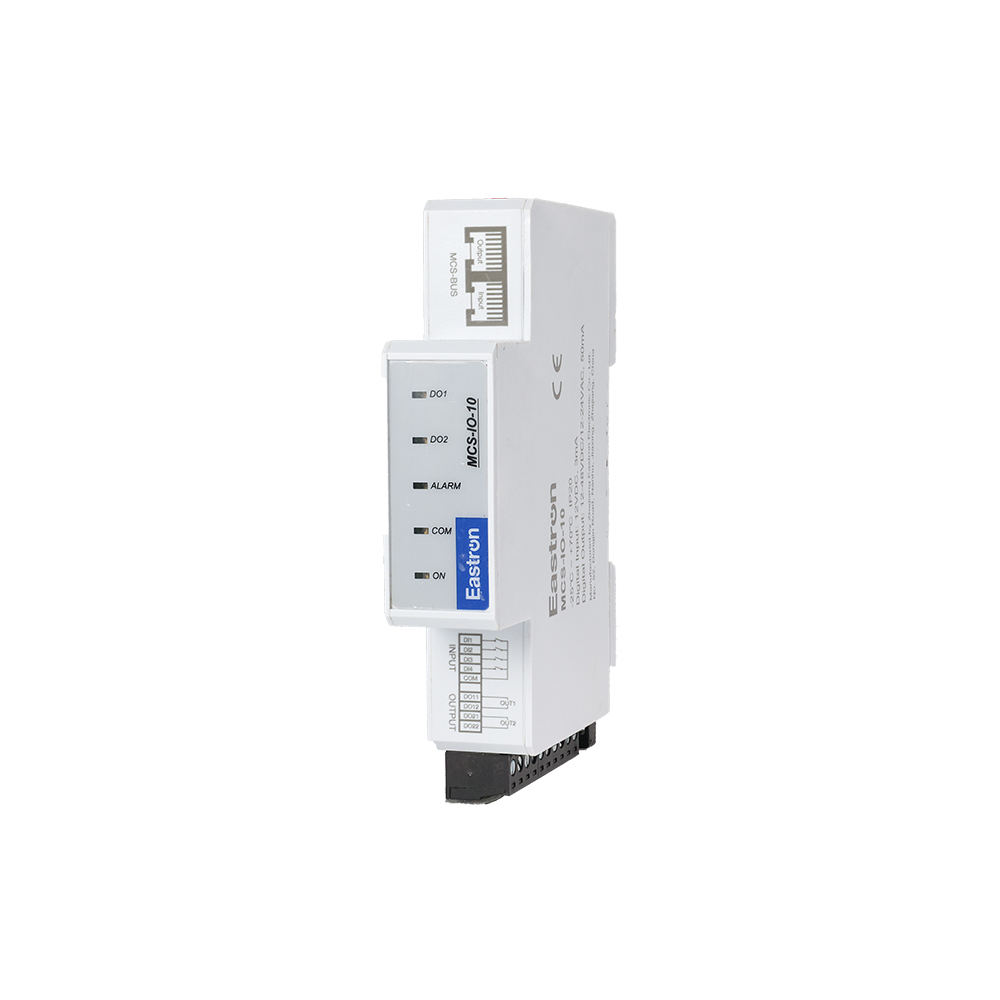

MCS

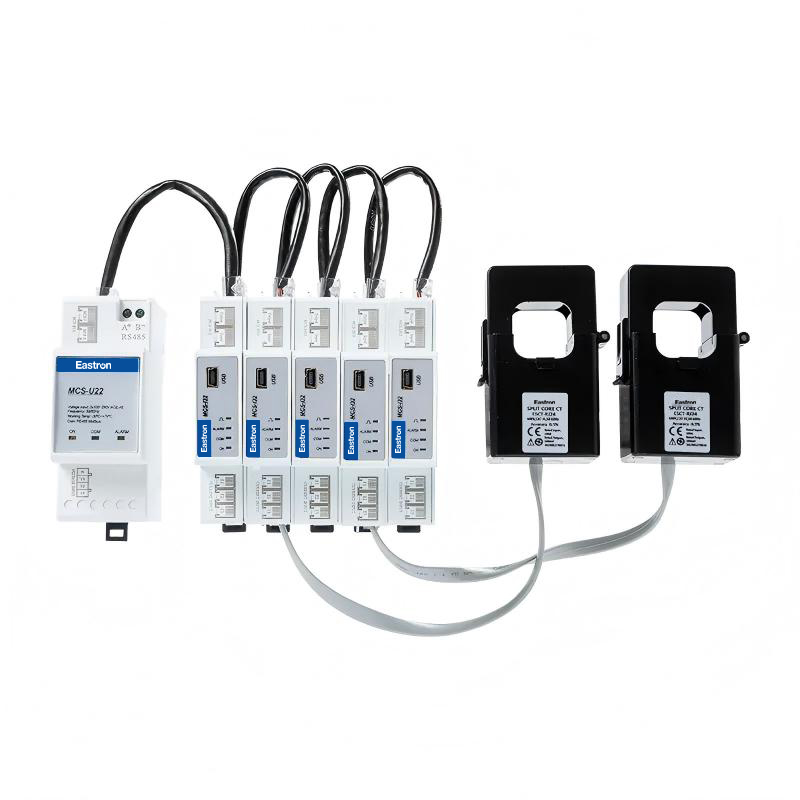

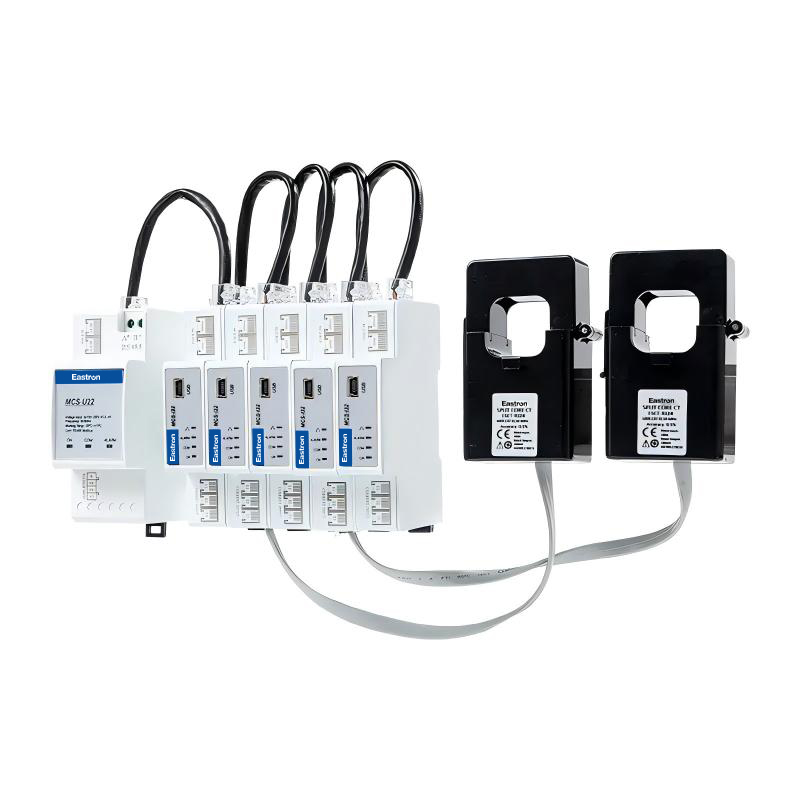

The MCS solution is an ideal Multi-Circuit measurement solution for data center metering. It measures 32x three phase circuits or 96x single phase circuits.

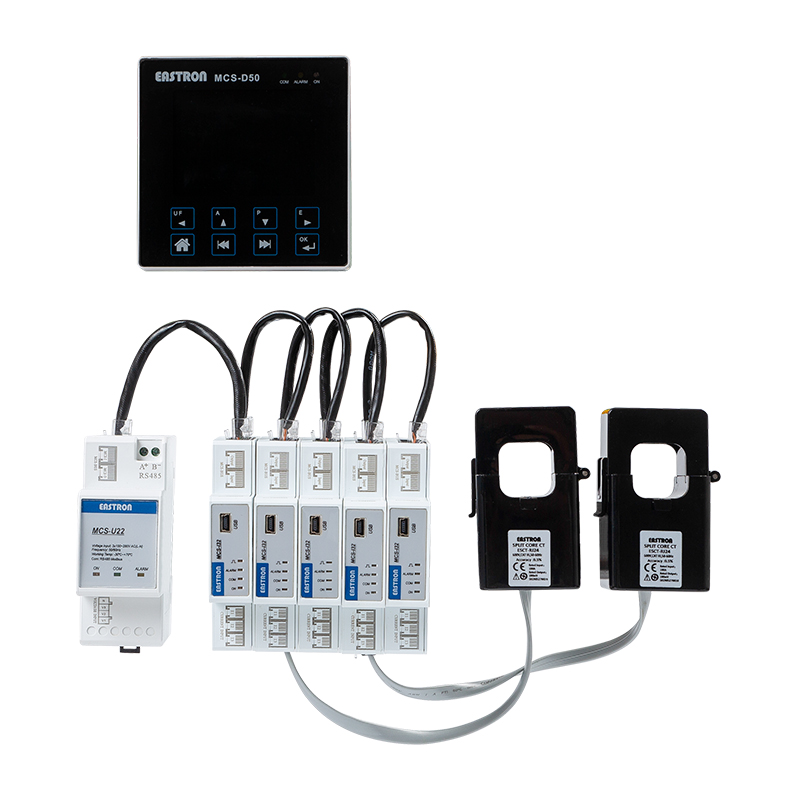

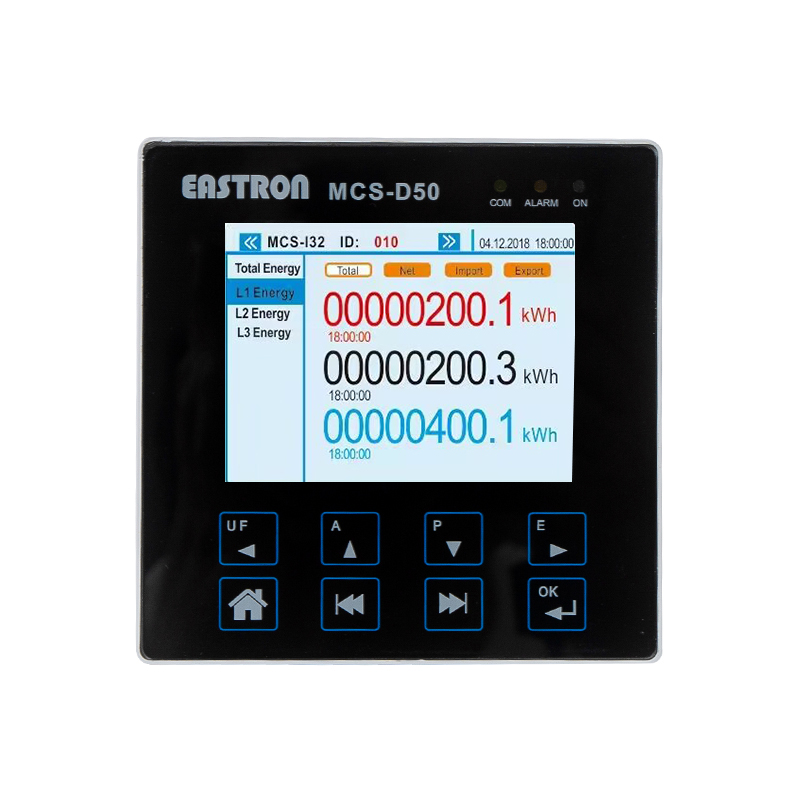

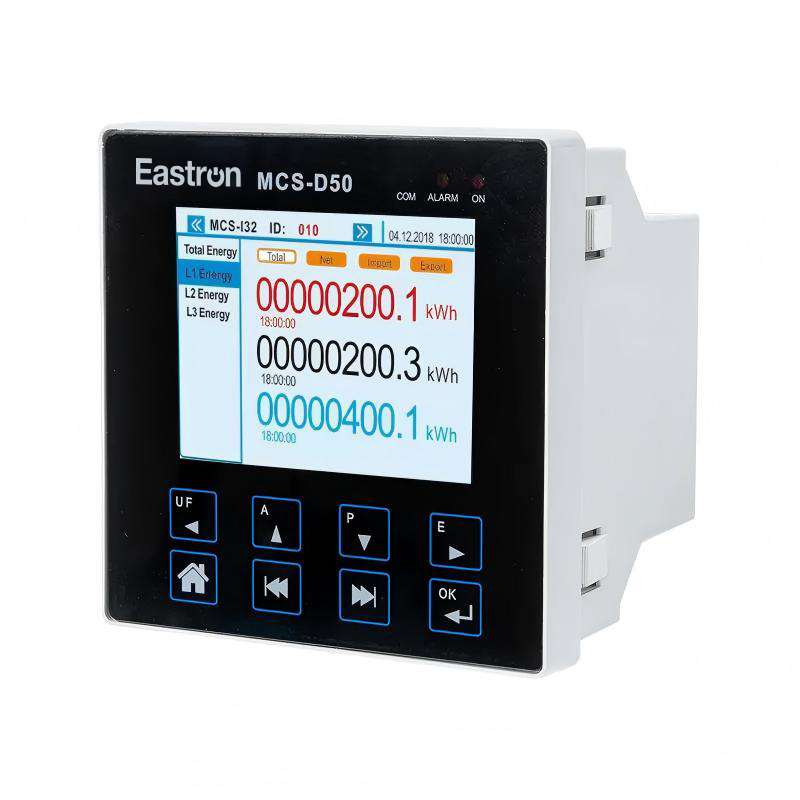

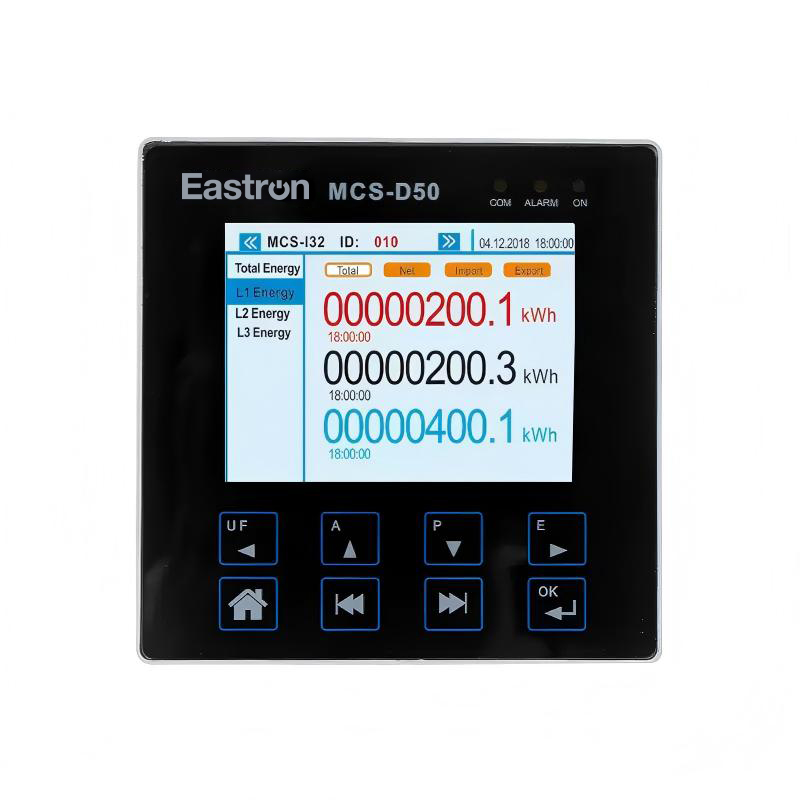

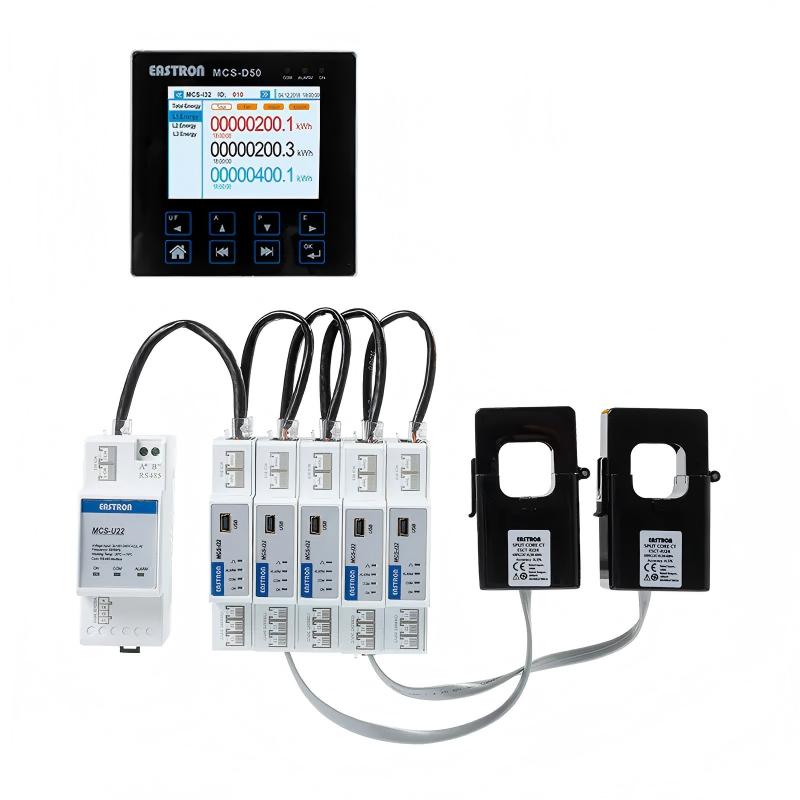

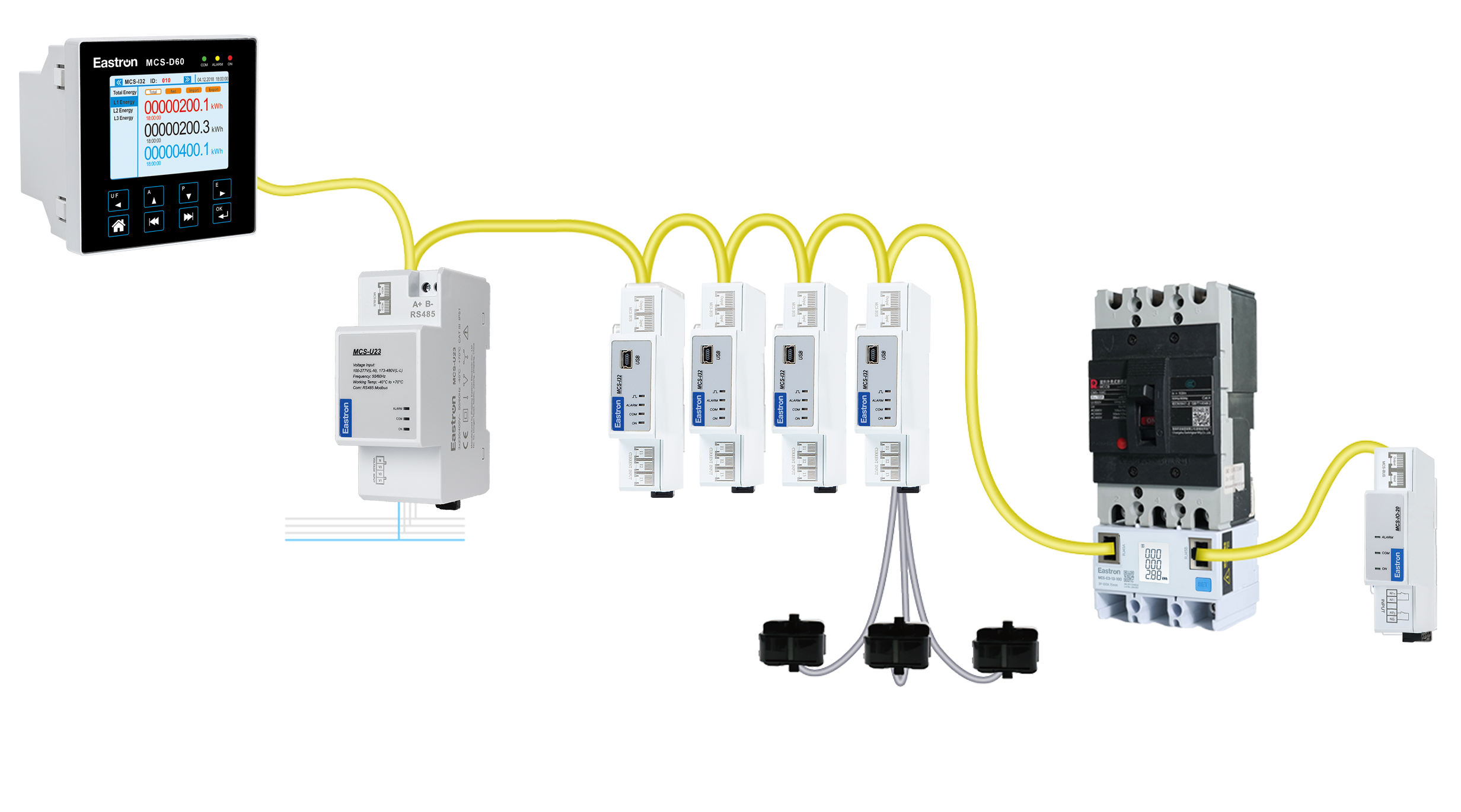

The MCS solution is combined by a centralized measurement display with 1G of memory, a voltage and communication module and up to 32pcs current measurement modules. The three phase current sensors could up to 1200A, or you can use our split core sensors 50-600A, or even higher current for retrofit applications. An RS485 RTU output from the communication module allows the connection into any remote monitoring solution. With the MCS-D display module, it allows eithter an ethernet or embedded web server option for power and energy monitoring.

Electrical characteristics

Type of measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement accuracy

Power

IEC 61557-12 Class 0.5

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

±0.1%

Current

±0.2%

Voltage

±0.2%

Power Factor

±0.01



Terminals

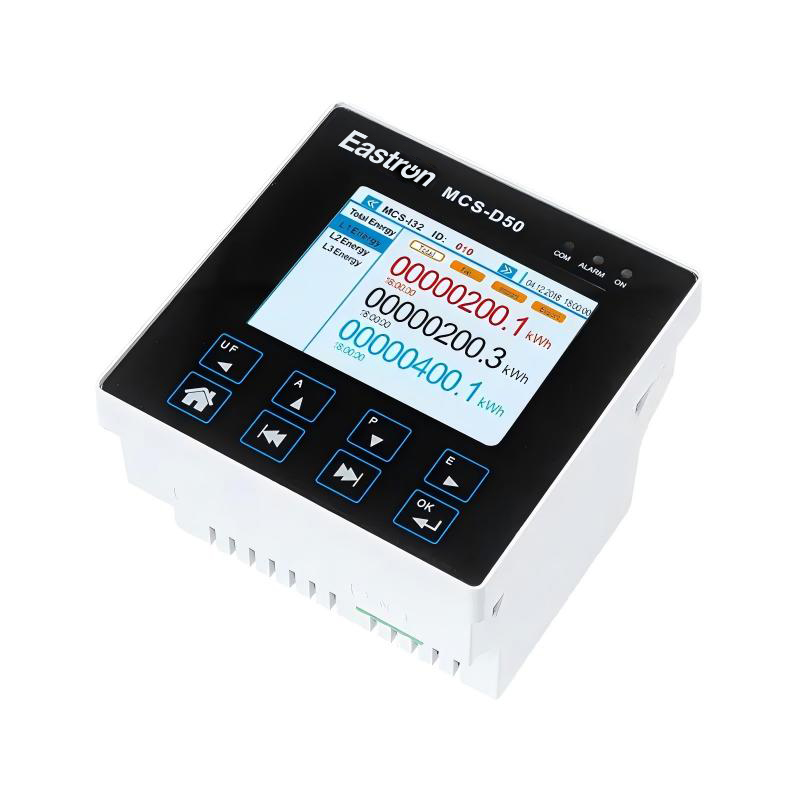

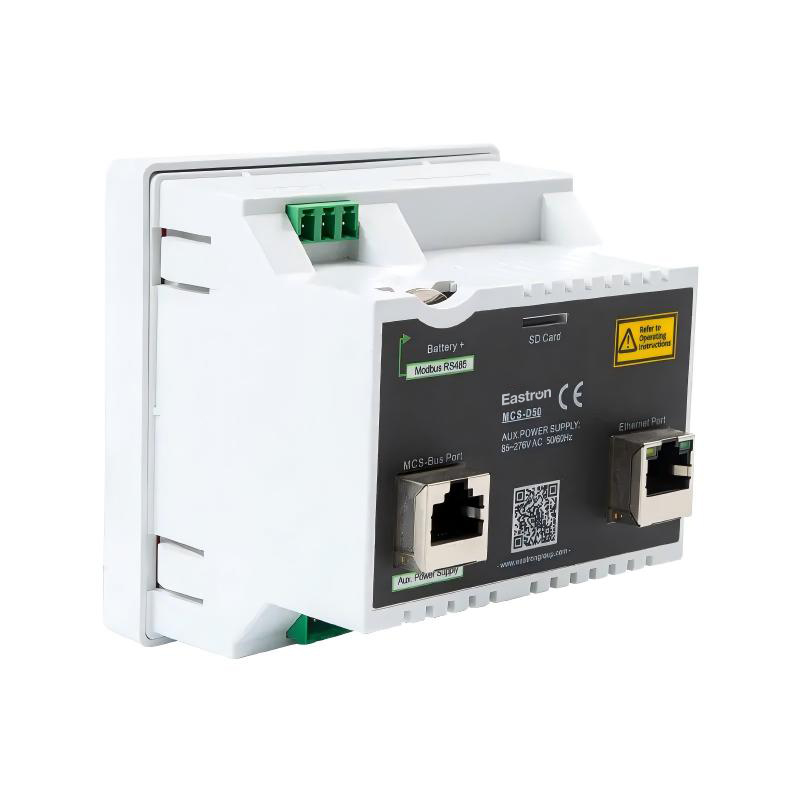

MCS-D

Type

Quantity

Description

MCS-BUS (RJ45 connection)

1 port

interconnection with MCS-D module and the MCS-U modules

Ethernet Port

1 port

Ethernet Modbus TCP/ Gateway

RS485 Modbus port

1 port

RS485 Modbus communication

Aux. power supply

1 port

85~276V AC power supply

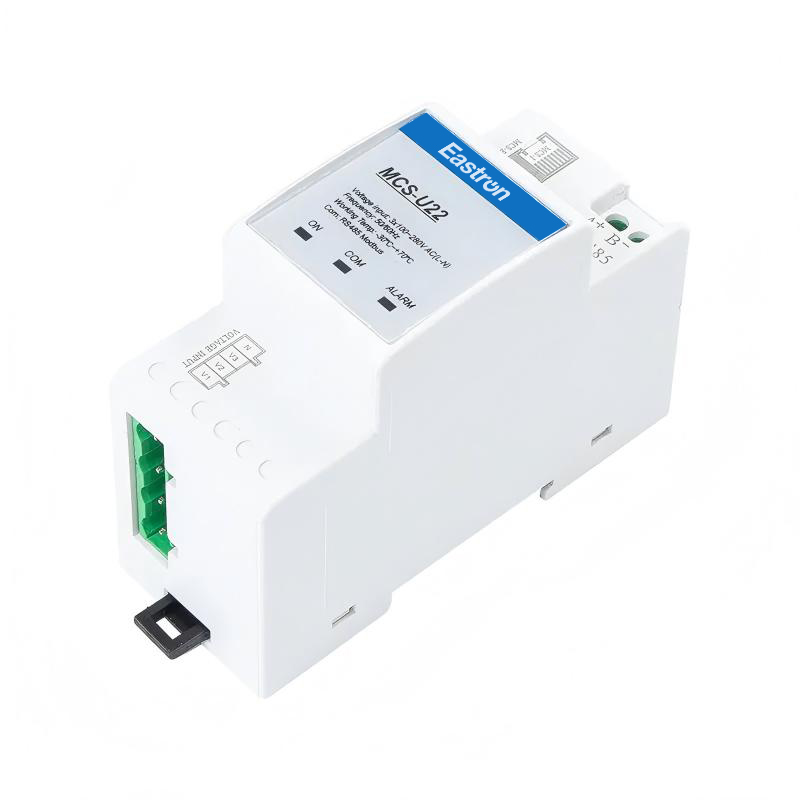

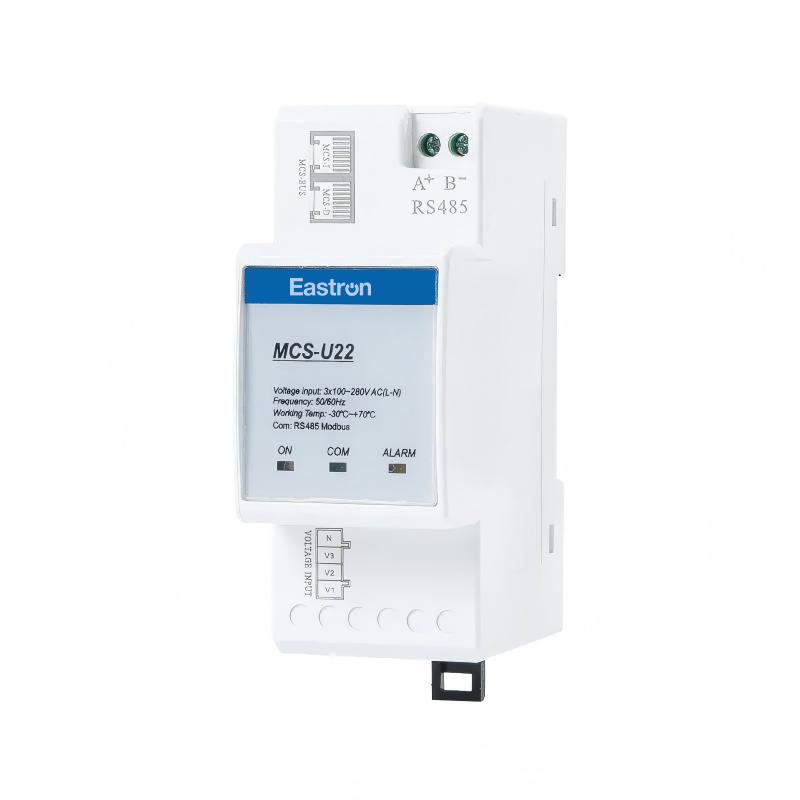

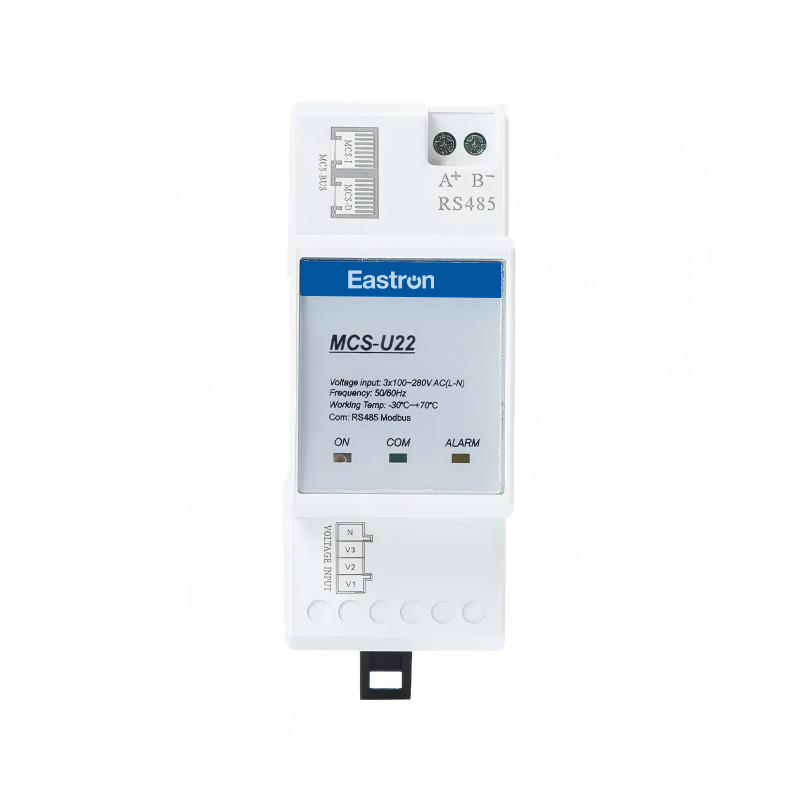

MCS-U

Type

Quantity

Descrption

MCS-BUS (RJ45 connection)

2 ports

interconnection with MCS-D module and the next MCS-I modules

Voltage input

1 port

Power Supply

RS485 Modbus port

1 port

RS485 Modbus communication

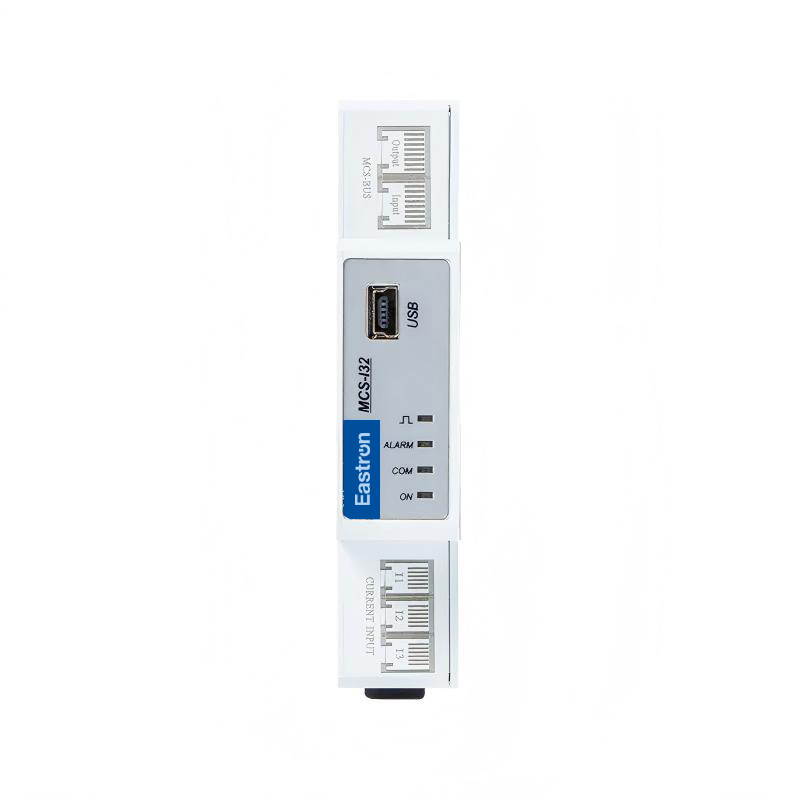

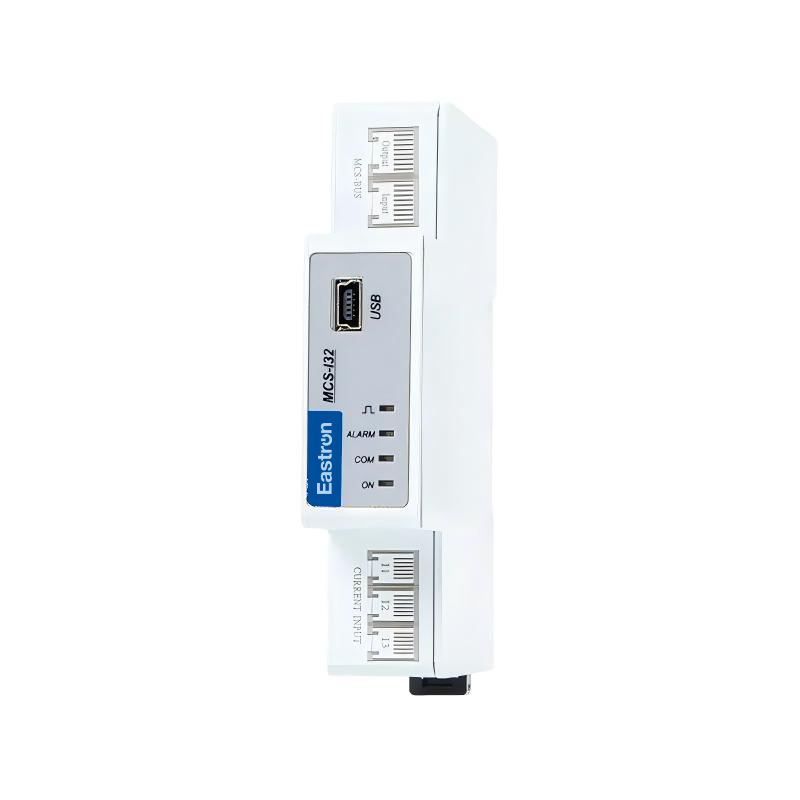

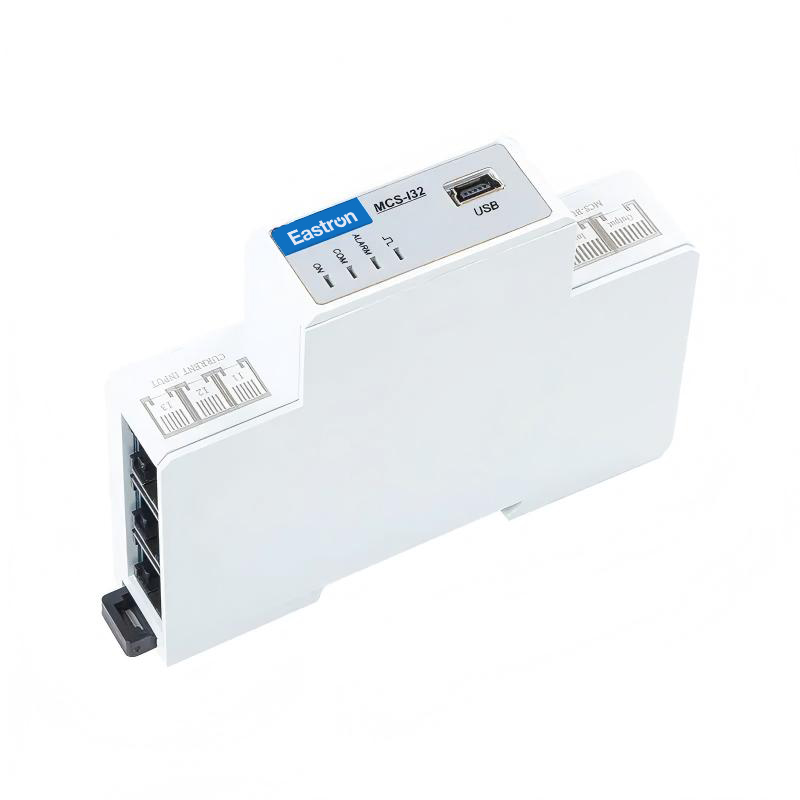

MCS-I

Micro-USB Type B

1 port

Connect to a PC for programming and reading

MCS-BUS (RJ45 connection)

2 ports

interconnection with MCS-U module and MCS-I modules

CURRENT INPUTS (RJ12 connection)

3 ports

Connect with 1x three phase current transformer or 3x single phase current transformers



RS485 Modbus Communications

Communication address

1~247

Max. Bus loading

32pcs MCS-I

Transmission distance

1000m Maximum

Baud Rate

1200/2400/4800/9600 (in default)19200/38400 bps

Parity

None (default), Odd, Even

Data bit

8

Stop bit

1 or 2



Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

MCS-D

Wiring and Dimension [mm:]

MCS-U

Wiring and Dimension [mm:]

MCS-I
