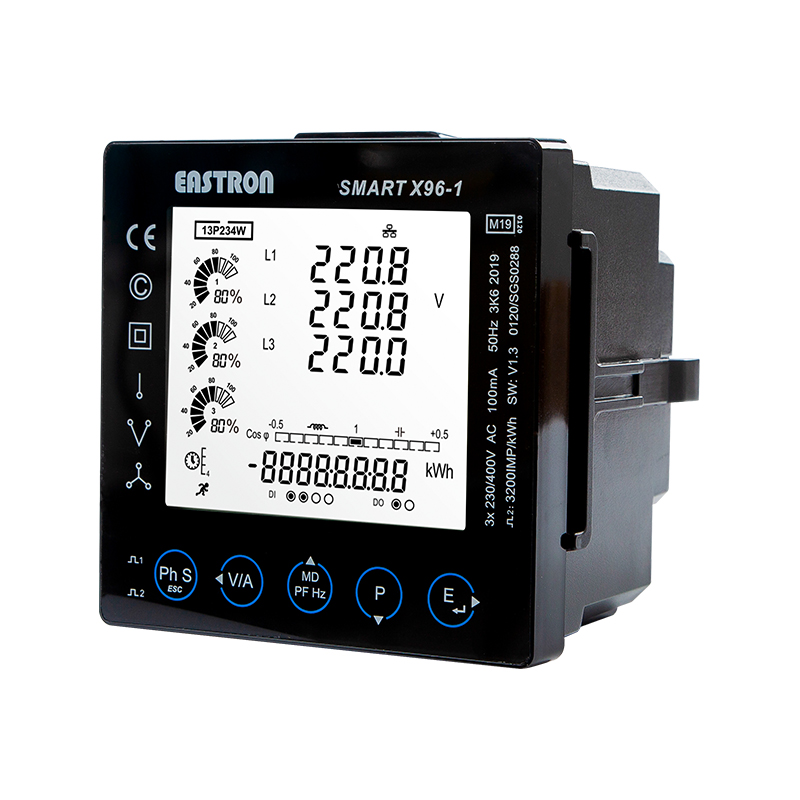

MID approved power analyzer is designed for the measurement of active, reactive and apparent energy, voltage, current, frequency, power factor, and other electrical parameters in compliance with the Measuring Instruments Directive (MID). Its main functions include:
Accurate energy measurement: MID approved power analyzer provides precise measurement of active, reactive and apparent energy, enabling accurate billing and monitoring of energy consumption.
Real-time monitoring: With its ability to measure various electrical parameters such as voltage, current, and power factor, the power analyzer allows for real-time monitoring of energy usage and quality of power.
Load management: The power analyzer can help to manage loads by providing information on the energy usage of individual appliances and equipment, allowing for more efficient energy consumption and reducing energy costs.
Power quality analysis: By measuring and analyzing various parameters such as voltage and current harmonics, THD, and inter-harmonics, the power analyzer can provide insights into the quality of power being delivered to a facility, allowing for early detection of potential issues and optimization of power quality.
Data logging: The power analyzer can log data on energy consumption and other electrical parameters, providing valuable insights into energy usage patterns and identifying areas for potential energy savings.
MID (Measuring Instruments Directive) approved power analyzers are used for accurate measurement of electrical parameters in compliance with European Union (EU) regulations. Here are the steps to use an MID approved power analyzer:
Connect the analyzer to the power source: Plug in the analyzer to the power source and ensure that the voltage and current terminals are properly connected.
Configure the settings: The MID approved power analyzer comes with a user interface that allows you to configure the settings as per your requirements. Set the type of electrical parameters you want to measure, the range of values to be measured, and the sampling rate.
Start the measurement: Once the settings are configured, start the measurement by pressing the appropriate button on the analyzer. The analyzer will start measuring the electrical parameters such as voltage, current, power, energy, and frequency.
Record the data: The MID approved power analyzer will display the measured values on the user interface. You can also record the data on a separate device such as a computer or data logger by connecting the analyzer to it.
Analyze the data: Once the data is recorded, you can use software tools to analyze the data and draw insights from it. This can help in identifying areas of energy wastage, detecting anomalies in the electrical system, and optimizing energy consumption.
Repeat the process: You can repeat the measurement process as many times as required to monitor the electrical parameters over time and track changes in energy consumption.
