Smart X96-1A

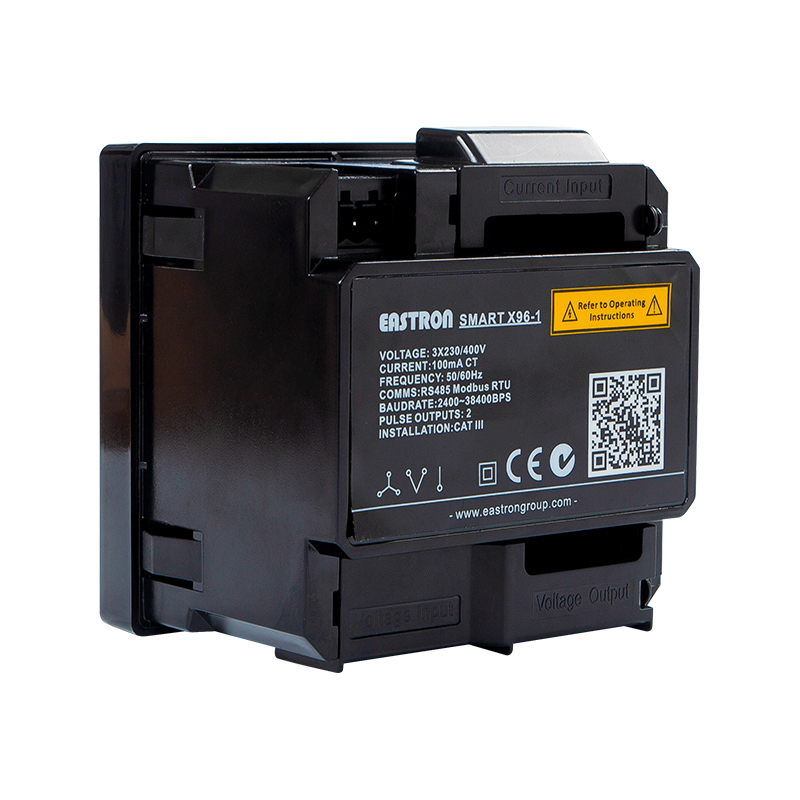

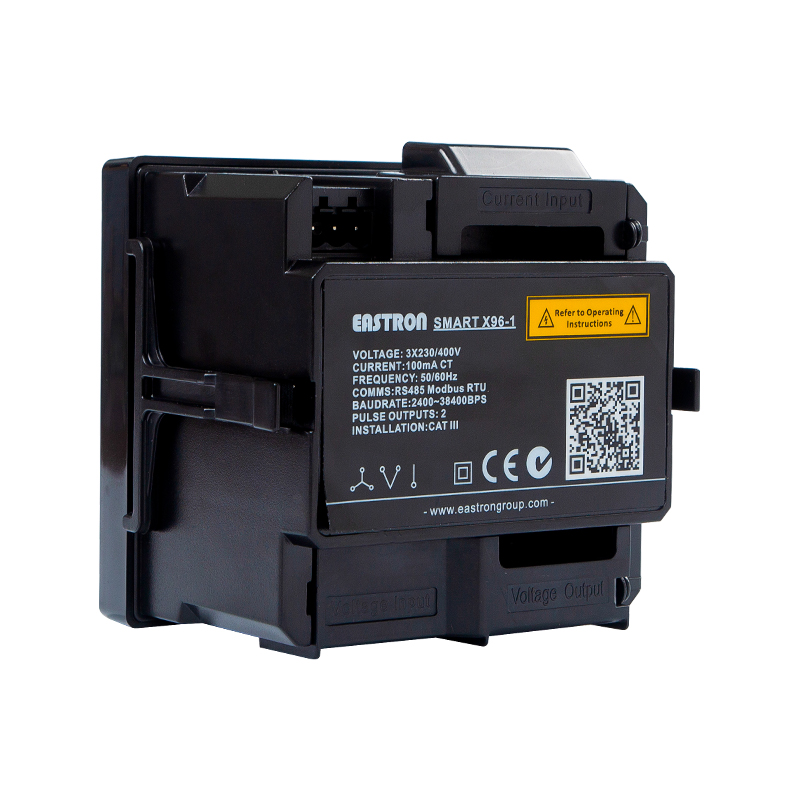

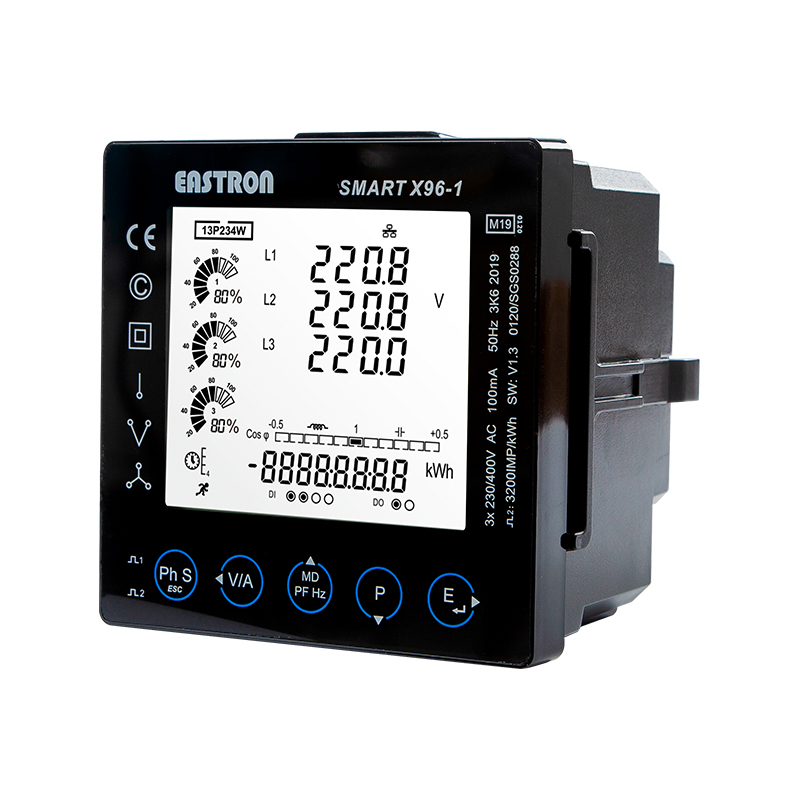

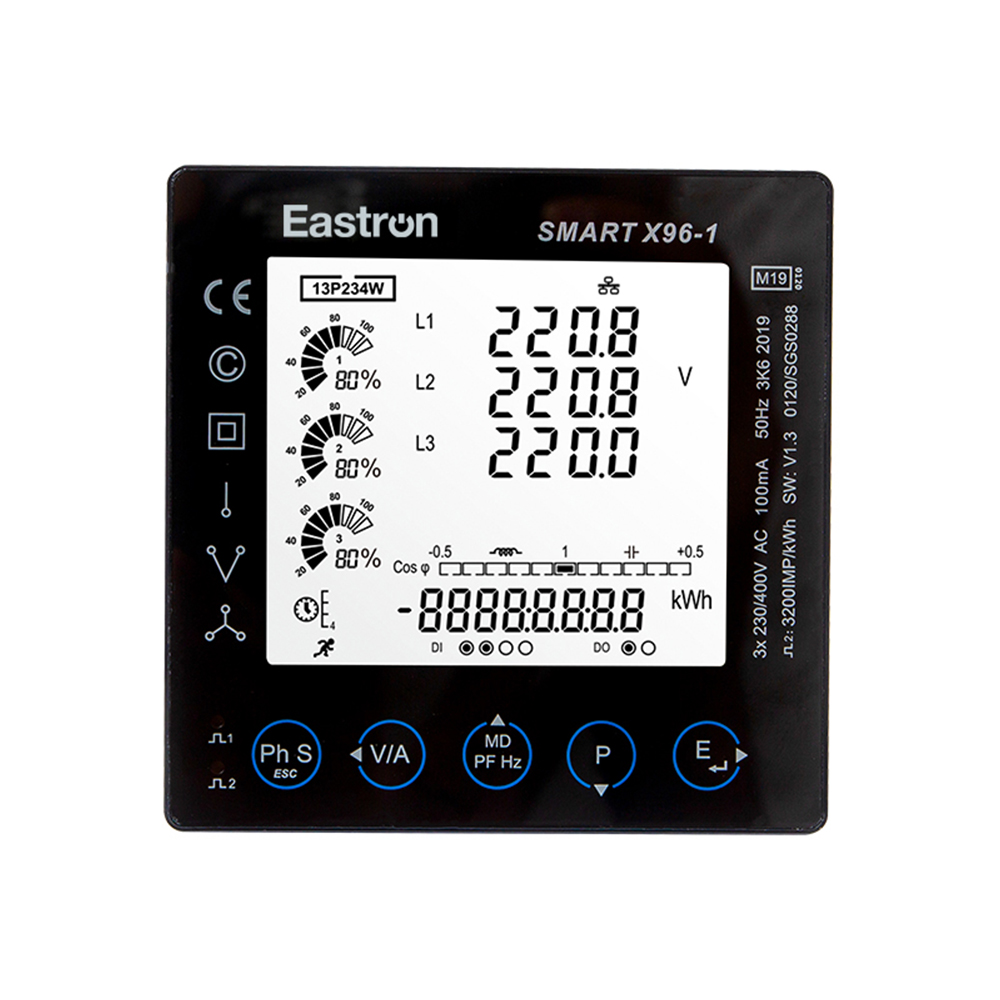

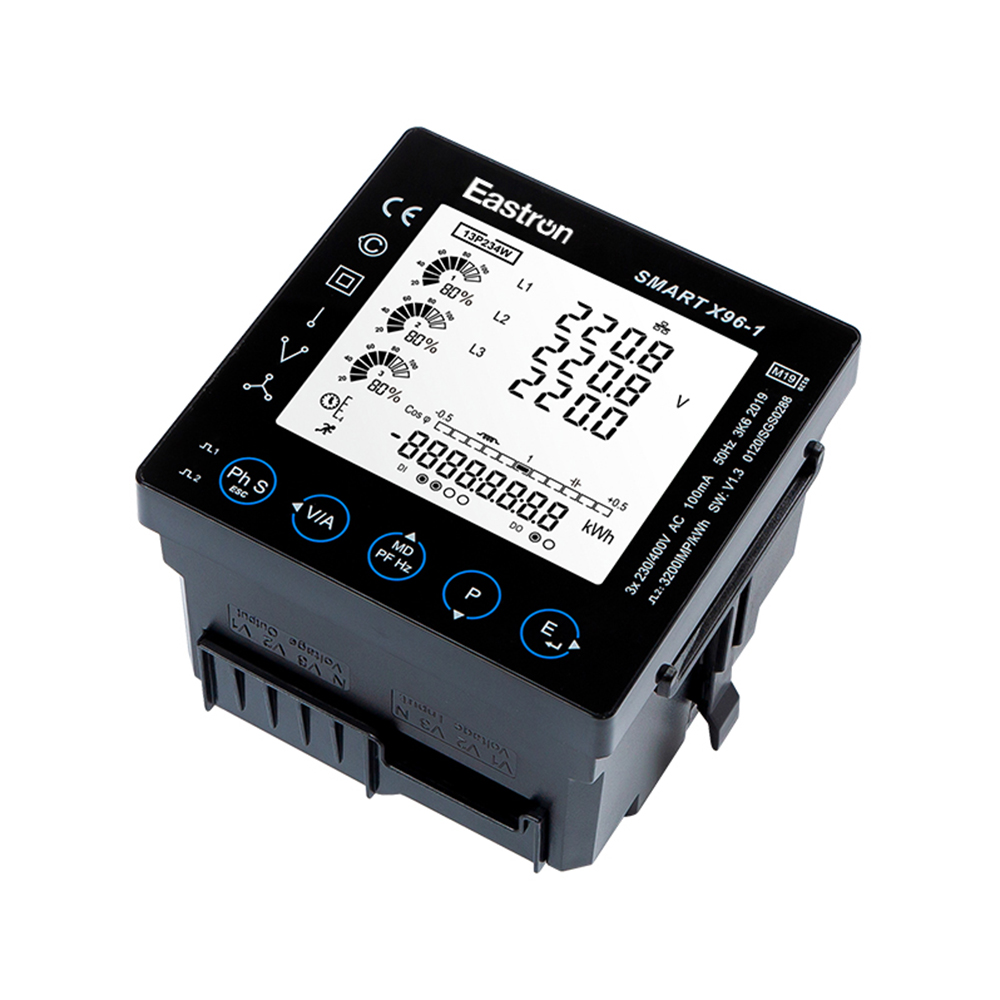

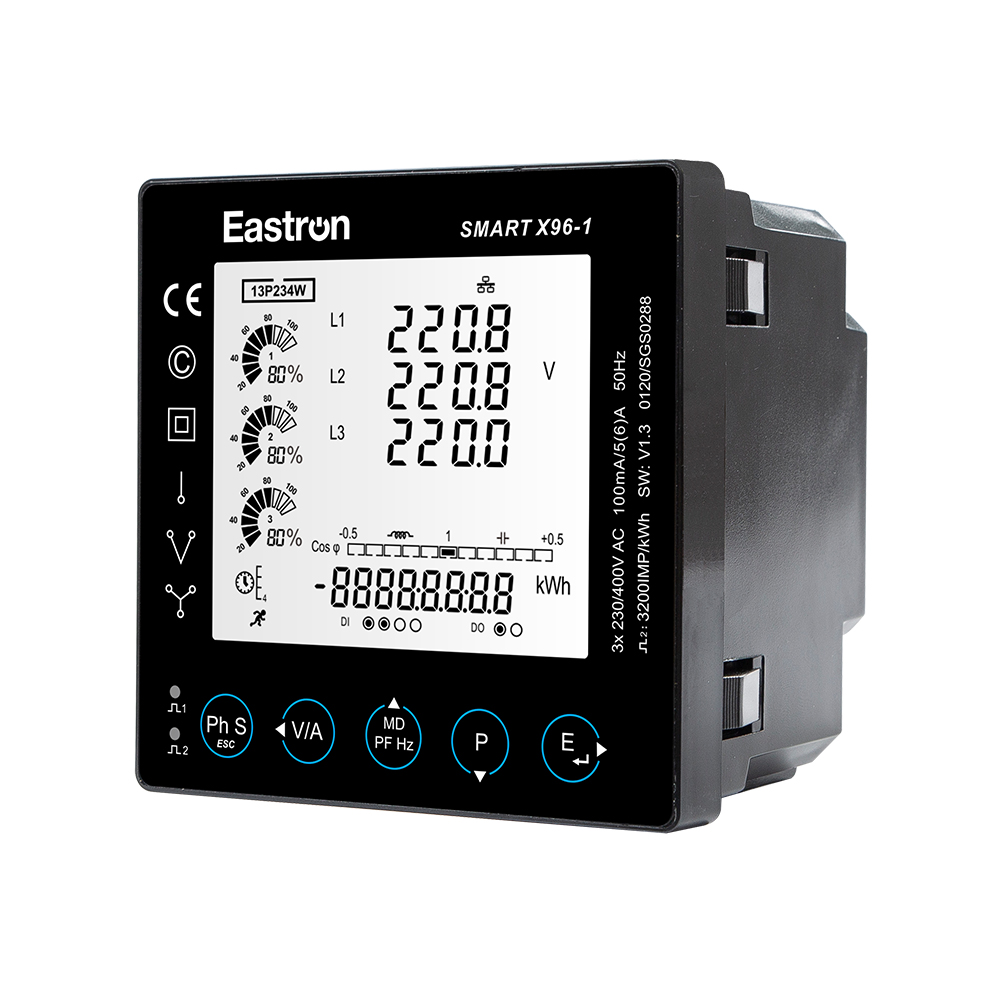

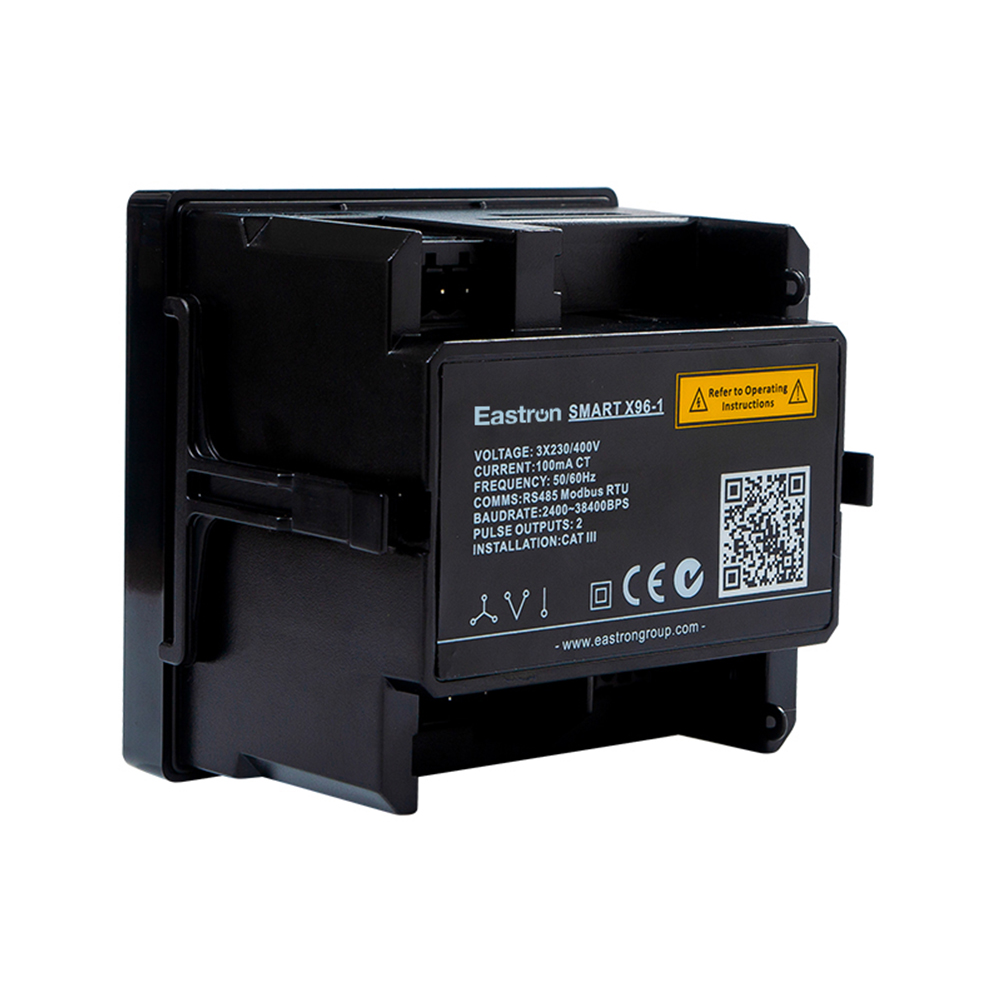

RJ CT Type RS485 Modbus Panel Mounted MID Approved Power Analyzer

  • RJ12 type 100mA CT connection
  • Self-Power Supply
  • Multi-parameters measurement
  • Up to 63rd THD and IHD
  • RS485 Modbus RTU and Pulse outputs
  • High Accuracy of Class 0.5s
  •  Bar graph for power indication
  • Backlit LCD display for full viewing angles
  • Push-in installation and plug-in connection

Eastron Smart X96-1A is a RJ CT Type  RS485 Modbus Panel Mounted MID Approved Power Analyzer. The meter measures and displays the characteristics of 1p2w, 3p4w and 3p3w suppliers, including voltage, current, frequency, power, active and reactive energy, imported and exported, harmonics, demanda máxima, etc.

The meter support self-powered from any of the three phases. It uses a high definition screen with programmable backlight for high visibility in dark area and from all viewing angles. New sector icons shows the percentage of the power load on 3 phases. R485 Modbus RTU and 2 pulse outputs are equipped for remote communication.

The meter Smart X96-1A with a 3-in-1 Current Sensor provides a simple and fast installation solutions. With pre-cut wiring looms, the meters and CTs can be easily connected.

The Smart X96-1A power meter has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. The instrument traceable number is 0120/SGS0288.

Electrical characteristics

Type of measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement accuracy

Active power

1.0% of range maximum

Reactive power

1.0% of range maximum

Apparent power

1.0% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

1.0% of range maximum to IEC 62053-24

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



THD

2% to 63rd harmonic



Input & Output

Input-Current

Rated Current

100mA

Max Current

9999A

Output

Contact Rating current

2-27mA at 27V DC

Contact Rating voltage

5-27V DC

Pulse Width

60 / 100 / 200 ms

Pulse constant of S0 1

0.01 / 0.1 / 1 / 10 / 100 kWh/kVArh

Pulsed constant of S0 2

3200 IMP/kWh ((non-configurable))

Communication

RS485 port

Modbus RTU (RS485)

Type

2-wire half duplex

Baud rate

2400,4800, 9600, 19200, 38400 bps

Address

1 to 247

Pariy

None (default), Even, Odd

Stop Bit

1 or 2



Mechanical Characteristics

Weight

420g

IP Degree of Protection (IEC 60529)

IP51 front display

Dimensions (WxHxD)

96x96X92mm

Panel cut-out

Vertical

Material of meter case

Self-extinguishing UL 94 V-0

Terminals

Voltage: Shrouded screw-clamp. Current: RJ12 terminal



Environmental Characteristics

Operating Temperature

-25 to 55°C

Storage Temperature

-40 to  70°C

Humidity Rating

<95% RH at 50 °C (non-condensing)

Pollution Degree

2

Altitude

2000m

Wiring and Dimension [mm:]

Installation and Dimension [mm:]

Installation

Installation and Dimension [mm:]

Dimensions
