MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering

  • MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering
  • MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering
  • MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering
  • MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering
  • MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering
  • MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering

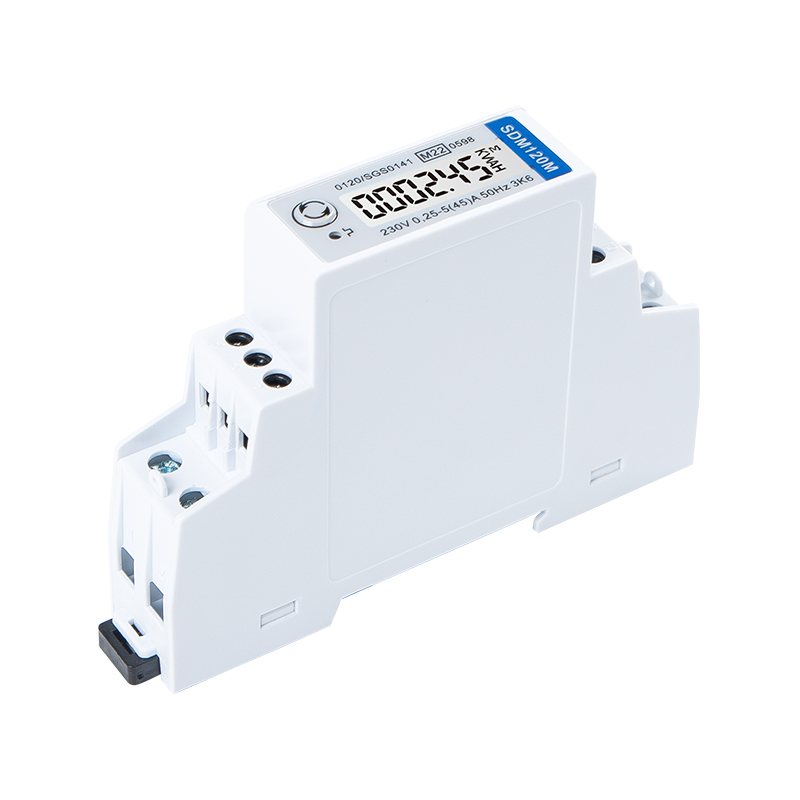

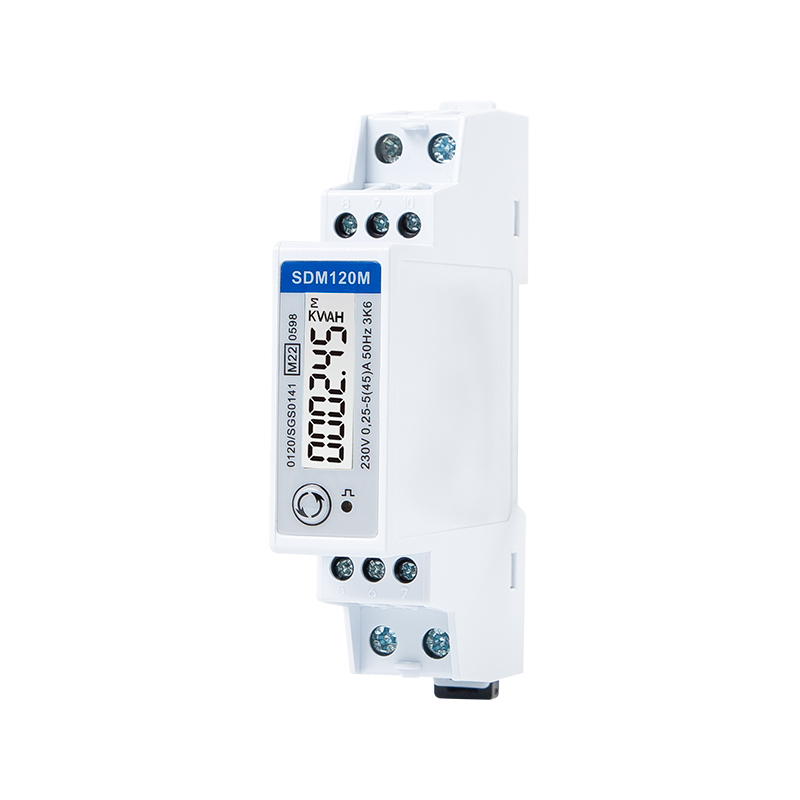

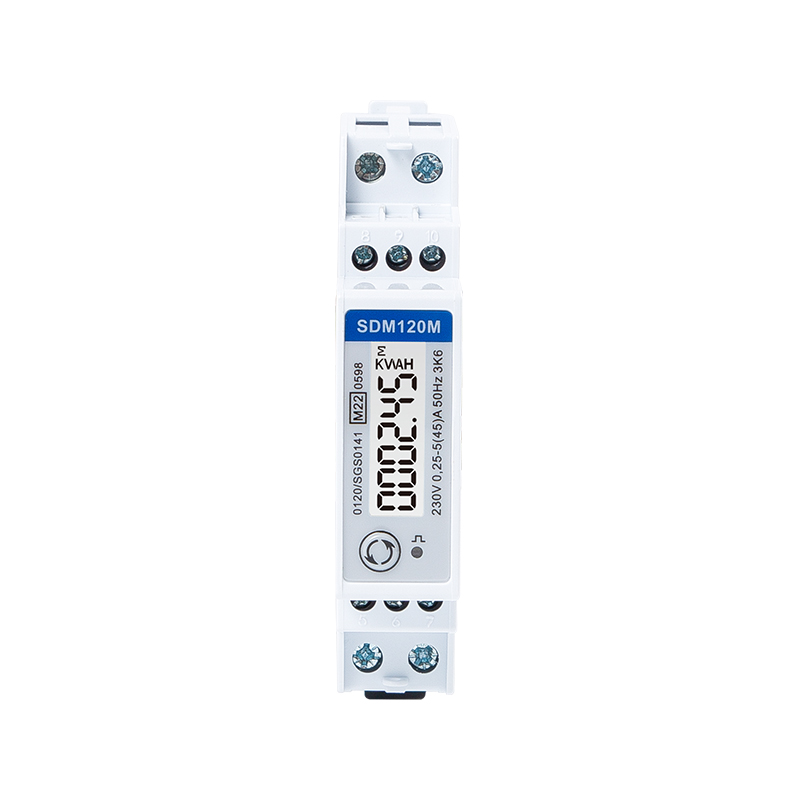

SDM120M

MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • For 7 KW AC EV Charging Piles
  • 2 Pulse Output +Modbus
  • Bi-directional Measurement
  • Max. 45A Direct Load
  • 1 Module 18mm Width
  • MID approved
  • 1P2W

SDM120 Modbus / Mbus / Pulse

SINGLE PHASE MULTI-FUNCTION ENERGY METER

The SDM120M is a MID Din Rail type Single Phase Multi-function energy meter for EV Charging metering.  It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc.  The units support Max. 45A direct connection, saving the cost and avoiding the trouble to connect external CTs. Two pulse outputs and 1 communication port (Modbus) are provided for remote monitoring and setting,

This unit is one of ideal choices for 7kW AC EV Charging Piles.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

5A

Max Current(Imax.)

45A

Min Current(Imin.)

0.25A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

Output

SDM120P

2 Pulse Output for imp/exp. energy

SDM120M

2 Pulse Output + RS485 Modbus

SDM120MB

2 Pulse Output + M-bus EN13757



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Transmission Speed

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

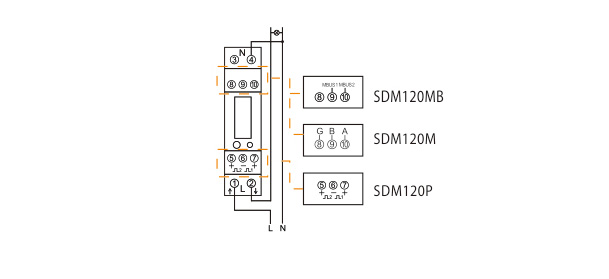

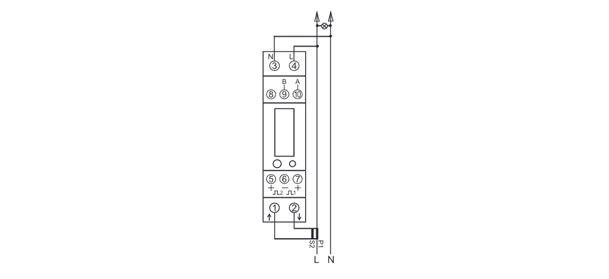

Wiring diagram

Wiring and Dimension [mm:]

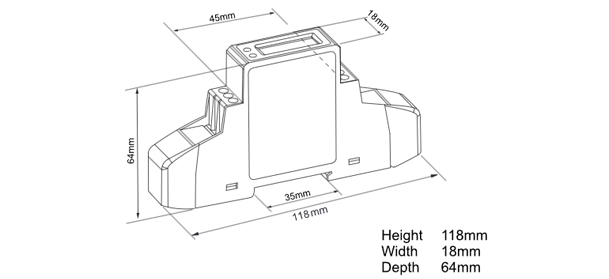

Dimensions
