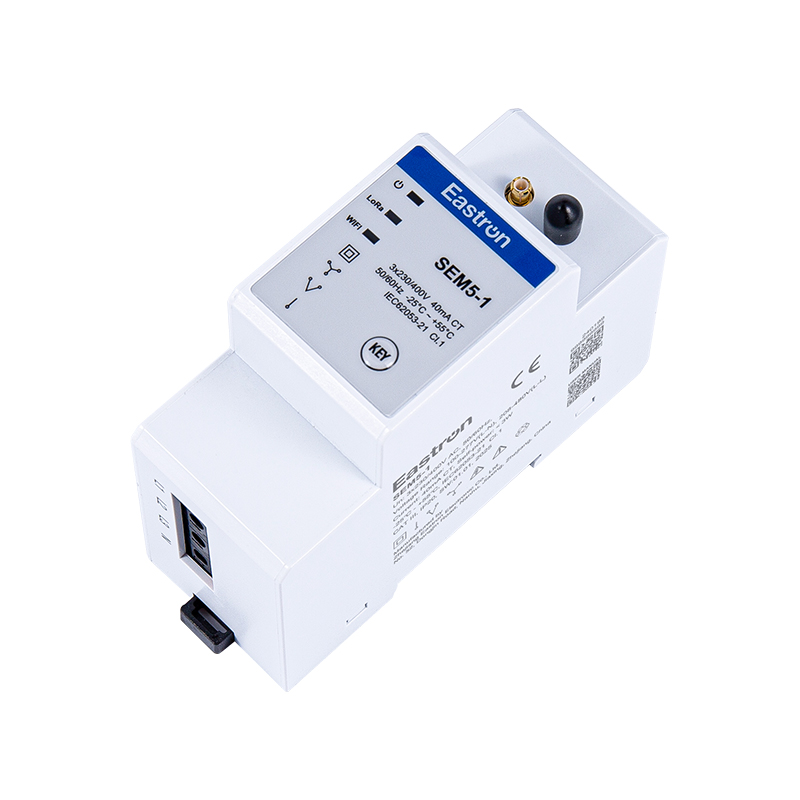

SEM5-1

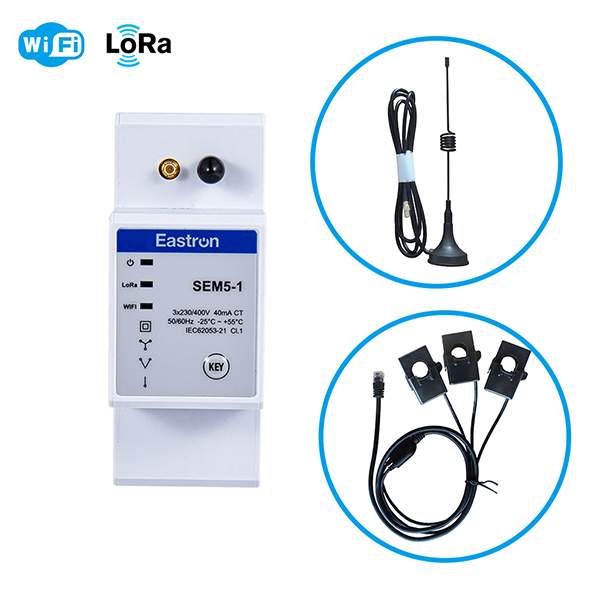

Wireless Remote Control Three Phase Din Rail Energy Meter with Wi-Fi & LoRa Communication

1P2W/3P3W/3P4W
Compact design
Wifi & LoRa wireless communication
Easy connection solution
Multi-parameter measurements
Accuracy Class 1.0 active energy
PV modes available
Support 1x3-ph or 3x1-ph load measurements

400-996-9296

The SEM5-1 is the new generation of intelligent DIN rail mounted meters by Eastron. It integrates Wi-Fi & Lora communication. With multi parameters

measurement, SEM5-1 wireless energy meter can be used for energy monitoring of various applications, such as PV energy management, smart building, industrial equipment, etc. The meter can be used as 1x 3phase energy meter or 3x single phase energy meter.

Eastron SEM5-1 wireless energy meter measures the characteristics of 1P2W, 3P4W and 3P3W supplies, including voltage, frequency, current, power and active and reactive energy, imported or exported, power factor, Max. demand etc. Energy is measured in terms of kWh, kVArh and kVAh.

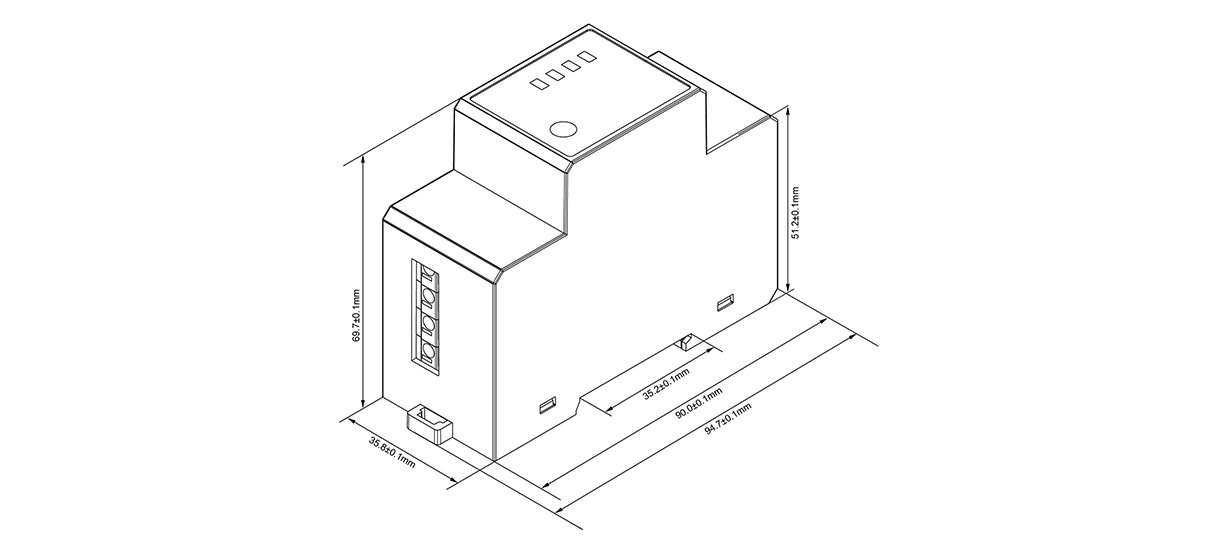

Eastron SEM5-1 wireless energy meter is designed in compact size. To save installation and maintenance cost, all terminals of SEM5-1 wireless energy meter adopt spring terminals or RJ terminals for easy connection.

Eastron SEM5-1 wireless energy meter provides two measurement modes: Total mode and PV mode. In total mode, import and export energy will be measured separately. In PV mode, import and export energy will be balanced first, and the balanced value will be counted in import or export energy.

Electrical Characteristics
Type of Measurement	RMS Including Harmonics on Three Phase AC System (3P, 3P+N)
Measurement Accuracy	Power	±1% IEC 61557-12 Class 1
	Active Energy	±1%
	Reactive Energy	±2%
	Frequency	±0.2%
	Current	± 0.5% (4A to 120A) ± 1% (1A to 4A) ± 3% (0.06A to 1A)
	Voltage	±0.5%
	Power Factor	±0.01
Date Update Rate		Active Power:50mS(RS485), 100mS(Wi-Fi)
Input-Voltage	Un	3*230V(L-N)/400V(L-L)
	Working Voltage Range	100 to 277 V ac L-N 208 to 480 V ac L-L
	Frequency Range	50/60 Hz

Wi-Fi Communications
Protocol	MODBUS TCP
Data Type	Floating Point
RF Band	2.4 GHz to 2.5 GHz
Max. RF Power	<20 dBm
Wi-Fi Protocol	802.11 b/g/n
Wi-Fi Range	Up to 30m / 100ft indoors and 50m / 160ft outdoors (Depends on local conditions)

LoRa Communications
Frequency	EU868/AS923...(customizable)
Communication Distance	3000M in an open area
