RS485 Modbus Din Rail Single Phase MID Energy Meter

  • RS485 Modbus Din Rail Single Phase MID Energy Meter
  • RS485 Modbus Din Rail Single Phase MID Energy Meter
  • RS485 Modbus Din Rail Single Phase MID Energy Meter
  • RS485 Modbus Din Rail Single Phase MID Energy Meter
  • RS485 Modbus Din Rail Single Phase MID Energy Meter
  • RS485 Modbus Din Rail Single Phase MID Energy Meter

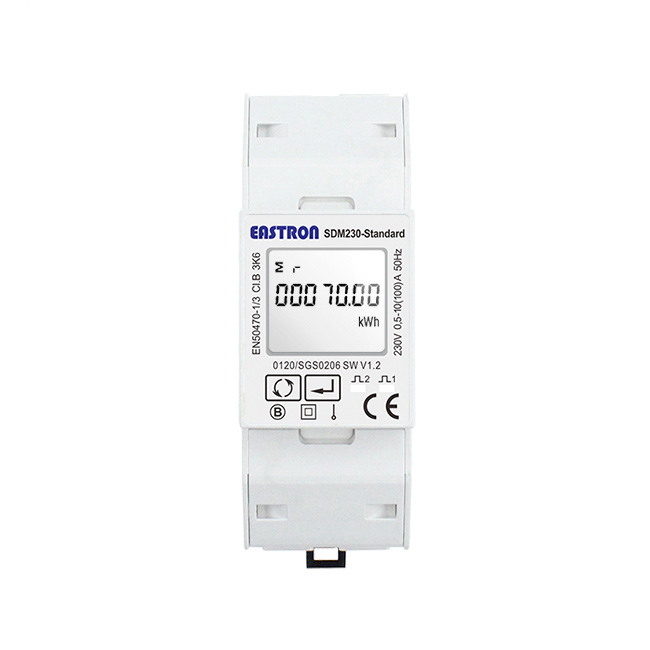

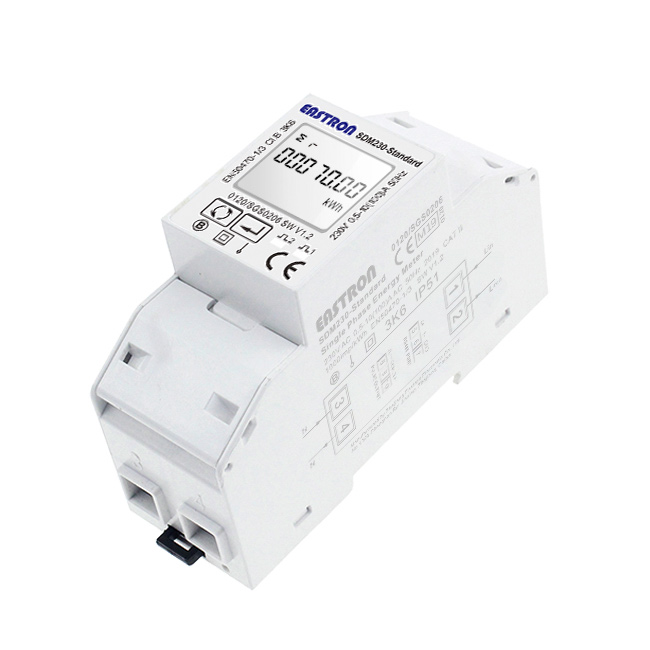

SDM230-Std

RS485 Modbus Din Rail Single Phase MID Energy Meter

  • kWh&W measured.
  • LCD with backlit
  • 2 Pulse Output + Modbus
  • Bi-directional Measurement
  • Max. 100A Direct Load
  • 2 Module 36mm Width
  • MID approved
  • 1P2W

SDM230 Modbus / Mbus / 2T / Std / Pulse

SINGLE PHASE MULTI-FUNCTION ENERGY METER

The SDM230-Std is a RS485 modbus din rail single phase MID energy meter.  It measures active energy and power.  The units support Max. 100A direct connection, saving the cost and avoiding the trouble to connect external CTs. Two pulse outputs and 1 communication port (RS485 Modbus/DLT645) are provided for remote monitoring and setting, suitable for monitoring energy consumption in residential, solar PV, EV Charging system, industrial and utility applications.

The unit has been approved to meet the requirements of EU Directive 2014/32/EU.

Input & Output

Input-Current

Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

20mA

Output

SDM230A/D/DR/BI

Pulse Output for active energy

SDM230-Std/ Modbus/2T

2 Pulse Output + RS485 Modbus

SDM230-Mbus

2 Pulse Output + Mbus

SDM230-LoRa

2 Pulse Output + LoRaMESH/LoRaWAN


Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1-247

Transmission Mode

Half Duplex

Data Type

Floating Point

Transmission Distance

1000m Maximum

Transmission Speed

1200bps〜19200bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
