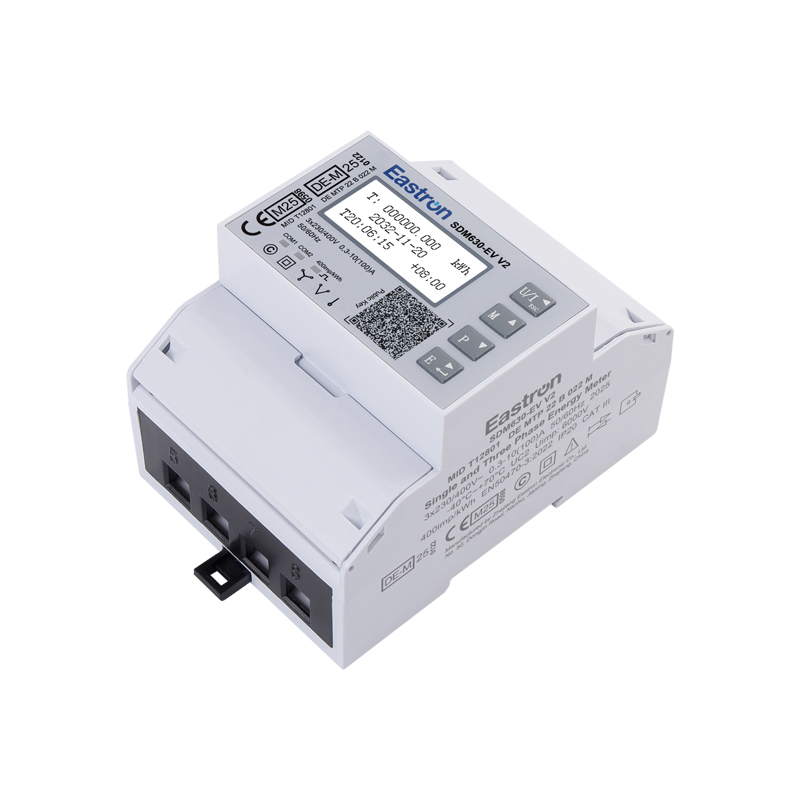

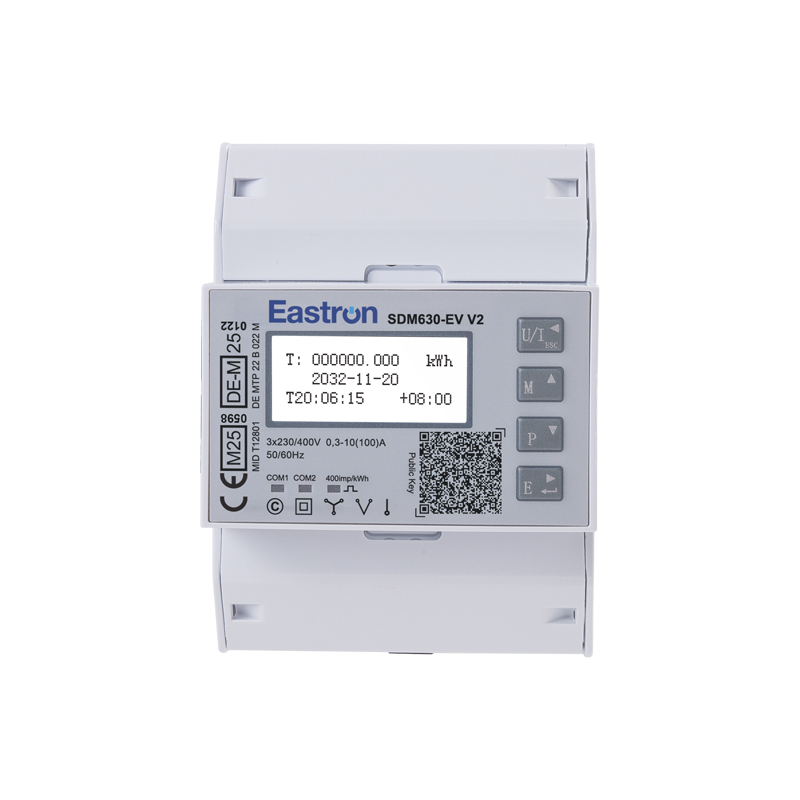

SDM630-EV

Eichrecht Approved Three Phase Multi-function Energy Meter for EV Charging Metering

  • Eichrecht Approved Meter for EV Chargers
  • Multi-Parameters: kWh, W, V, A, PF, Hz, dmd, etc.
  • Bi-directional Measurement
  • Max. 100A Direct Load
  • 2*RS485 Modbus RTU
  • 3P4W

SDM630-EV is an Eichrecht & MID approved three phase multi-function energy meter for EV charging metering.

The SDM630-EV  measures and displays the characteristics of single phase two wires (1p2w), three phase three wires (3p3w,) and three phase four wires(3p4w) supplies, including voltage, frequency, current, power, active and reactive energy, imported or exported. Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset periods of up to 60 minutes. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the product.

SDM630-EV supports max. 100A direct connection, saves the cost and avoid the trouble to connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces provides pulse and RS485 Modbus RTU outputs. Configuration is password protected.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-21 Class 1.0

EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

100A

Min Current(Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630-EV

2x RS485 Modbus



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1st: 2400bps~38400bps

2nd:9600bps

Parity

1st: None (default), Odd, Even

2nd: None

Stop Bits

1

Response Time

<100 mS



Certifications

MID /PTB: EN50470-1/3

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

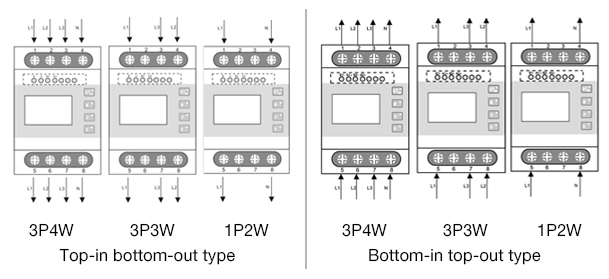

Wiring diagram

Wiring and Dimension [mm:]

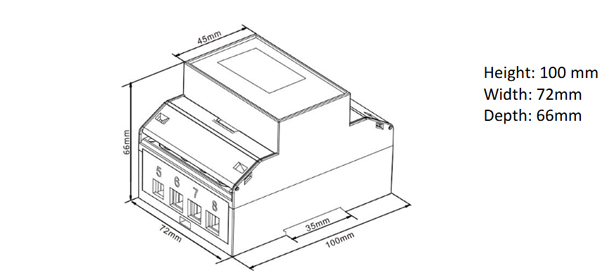

Dimensions
