Residual Current Operated Protective Sensor for EV Charger

  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger
  • Residual Current Operated Protective Sensor for EV Charger

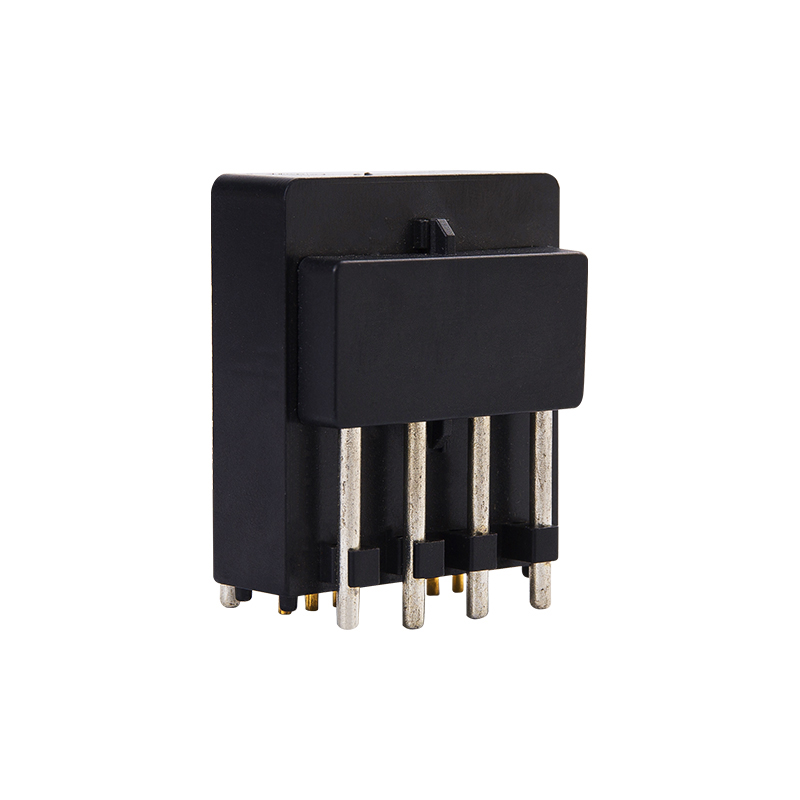

ESCS-D1-E1/E3

Residual Current Operated Protective Sensor for EV Charger

  • DC 6mA Current Alarm
  • Type B PCB mounting type optional
  • Integrated Digital Residual Current Indication
  • Application for EV Charger

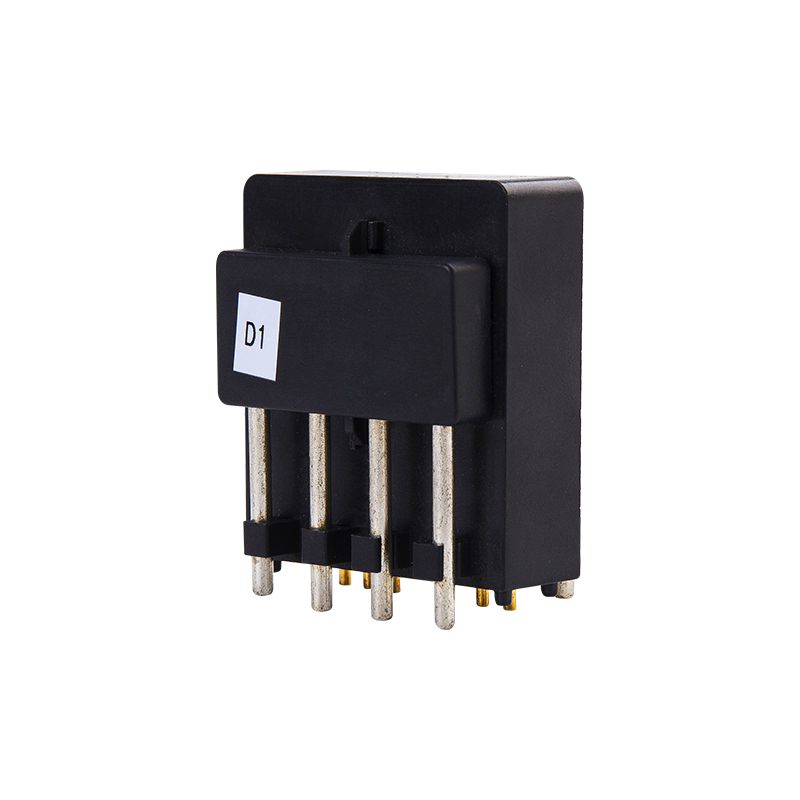

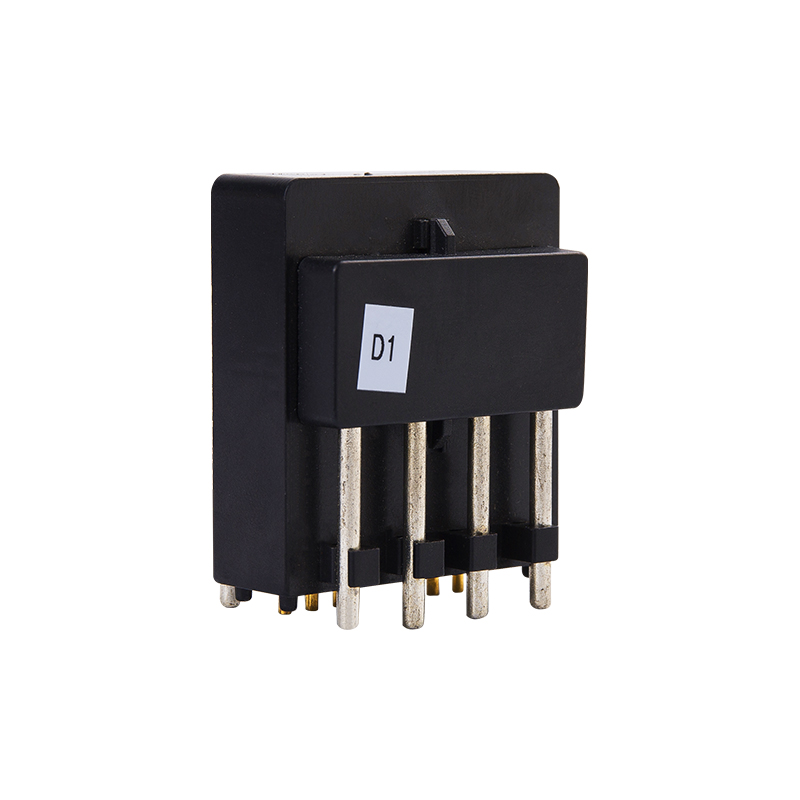

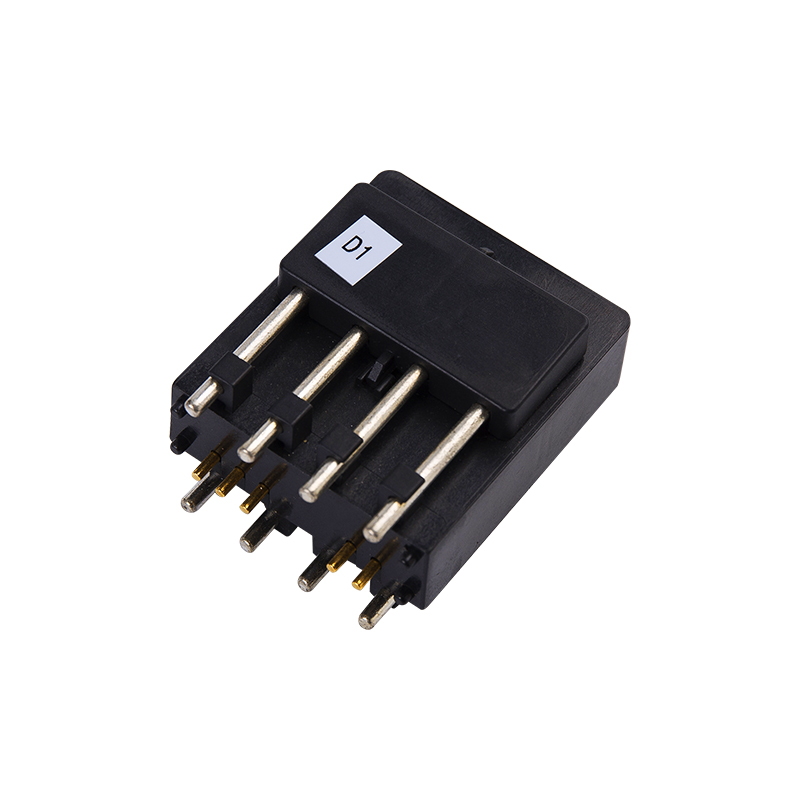

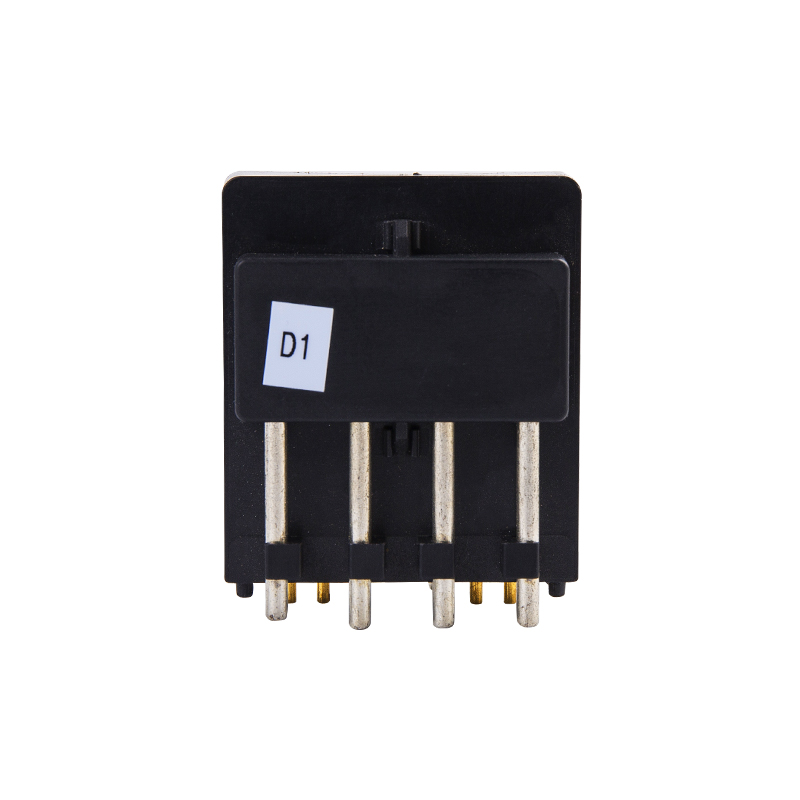

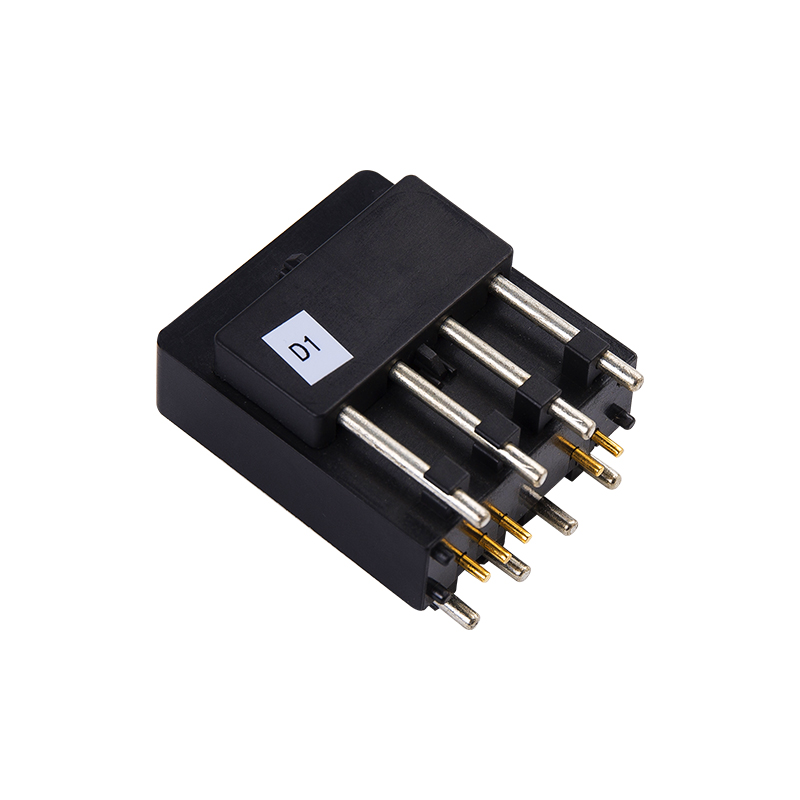

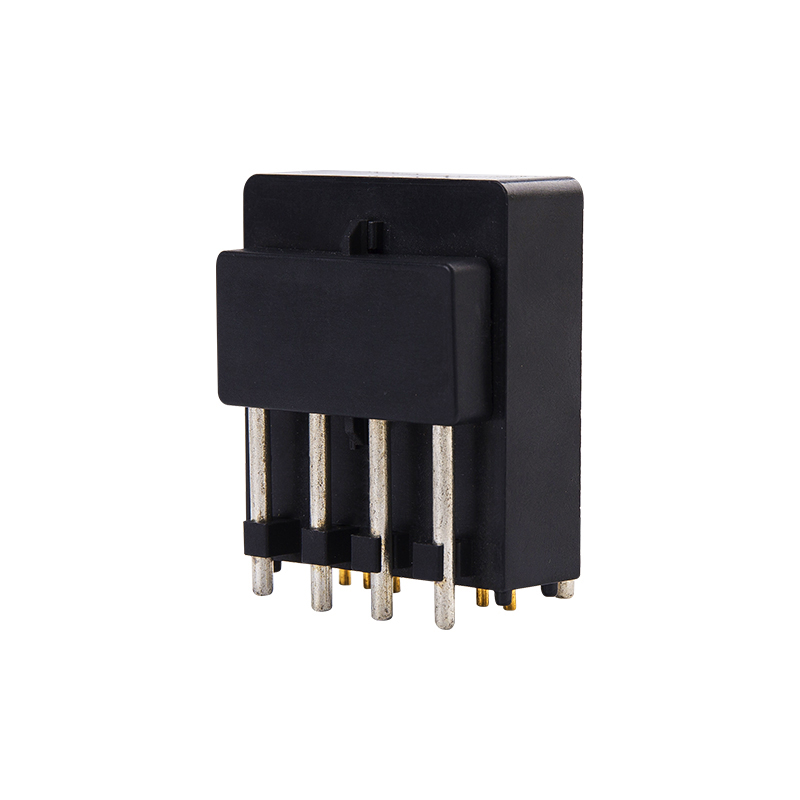

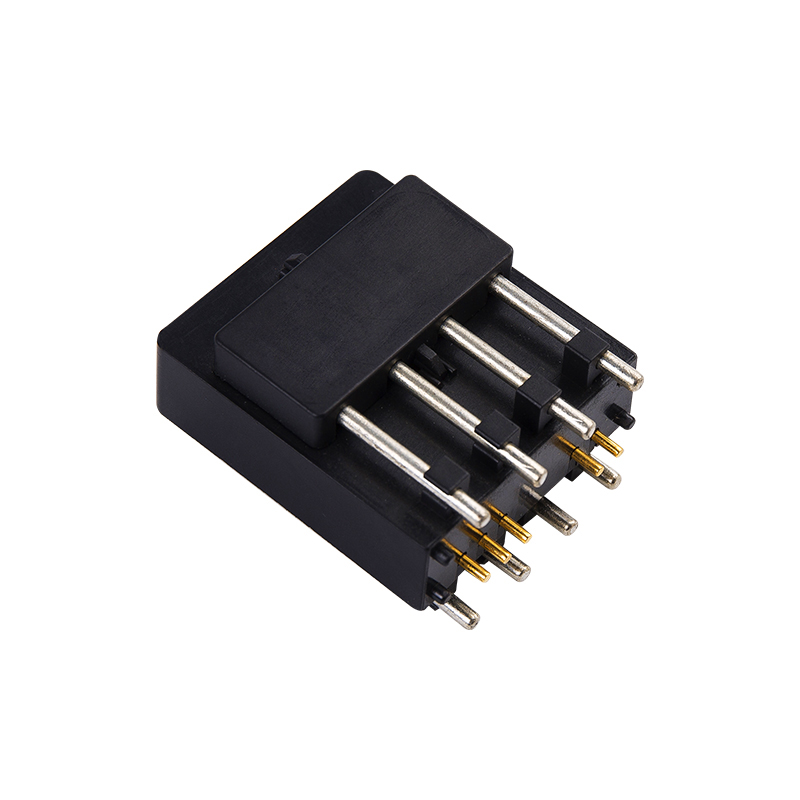

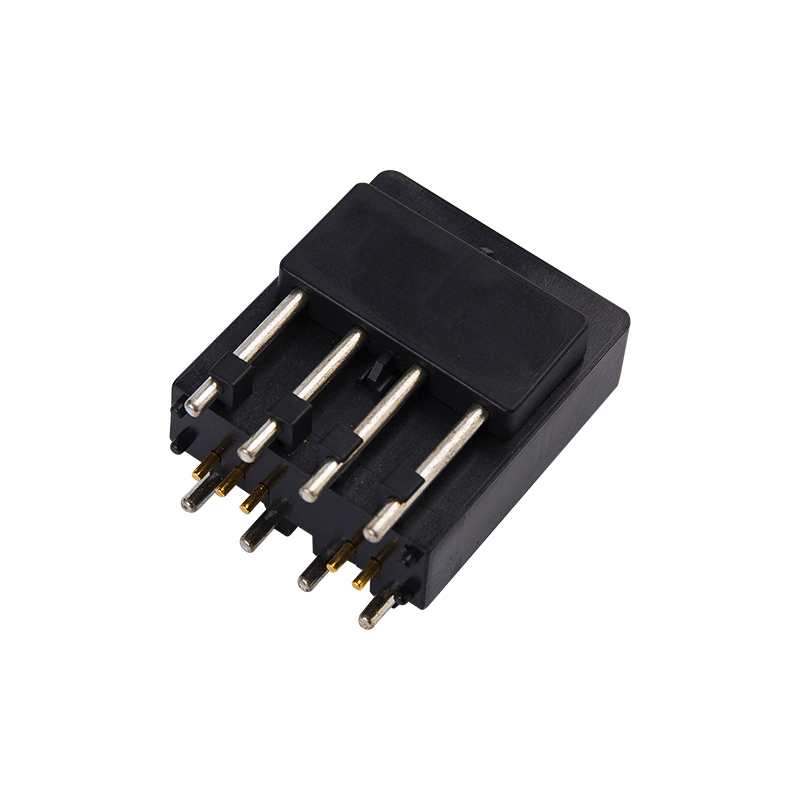

ESCS-D1 is residual current operated protective sensor for EV charger.

It's to avoid hazardous situations in cases where the vehicle battery (DC) is connected to the home power supply (AC). Generally, AC/DC sensitive residual current sensors can be used where direct current and alternating current circuits are directly connected and therefore AC/DC leakage currents can occur.

It meets the standards of IEC 62955 RDC-PD related residual current operating characteristics requirements and GB/T 22794 basic residual current operating characteristics requirements, adapting to DC 6mA test requirements.

Product Features:

●Type-A+6mA residual current module for EV charging pile protection

●Mounted on PCB board

●All-in-One highly integrated digital residual current action indication

●1-phase/3-phase rated current capacity on module (typ . 32A)

 ●High level of safety, providing a way of effectively identificating of failures*

 ●Residual current value reported , achieving refined management*

 ●Ingrated with self-test and calibration functions, saving hadware resources*

 ●Primary conductors on module (single/three phase) 32A*

International Standards:

●IEC 62955 residual current requirements for RDC-PD

●GB/T 22794 basic residual current requirements , adapting to DC 6mA test requirements

Order code

Current Input

Digital Input

Digital Input

Standard

ESCS-D1-E1

DC 6mA/ AC 30mA

0V/5V

/

IEC62955 RDC-PD

ESCS-D2-E3

DC 6mA/ AC 30mA

0V/5V

IEC62955 RDC-PD

Wiring and Dimension [mm:]
