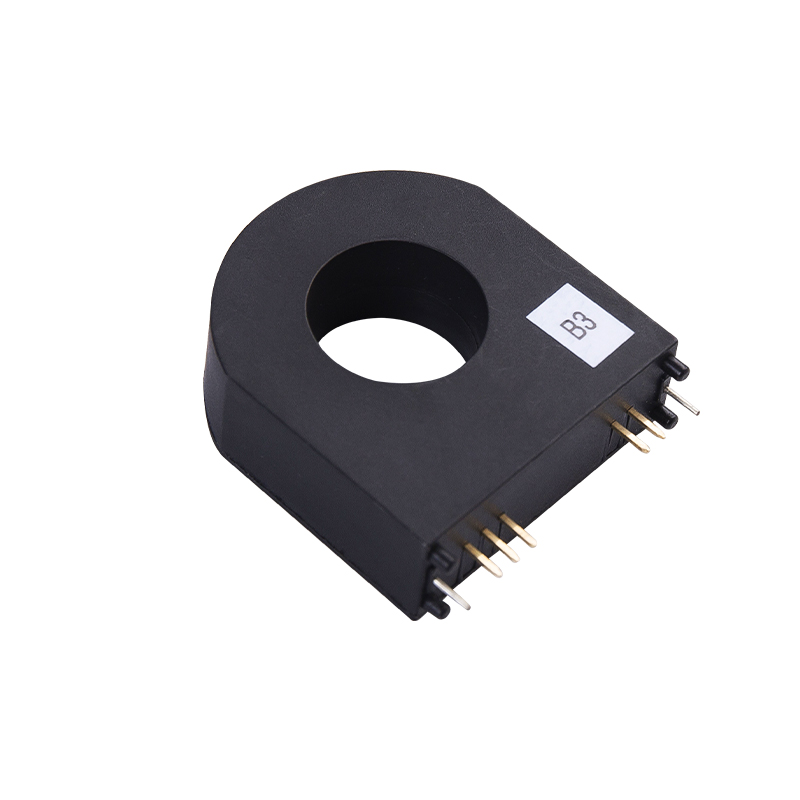

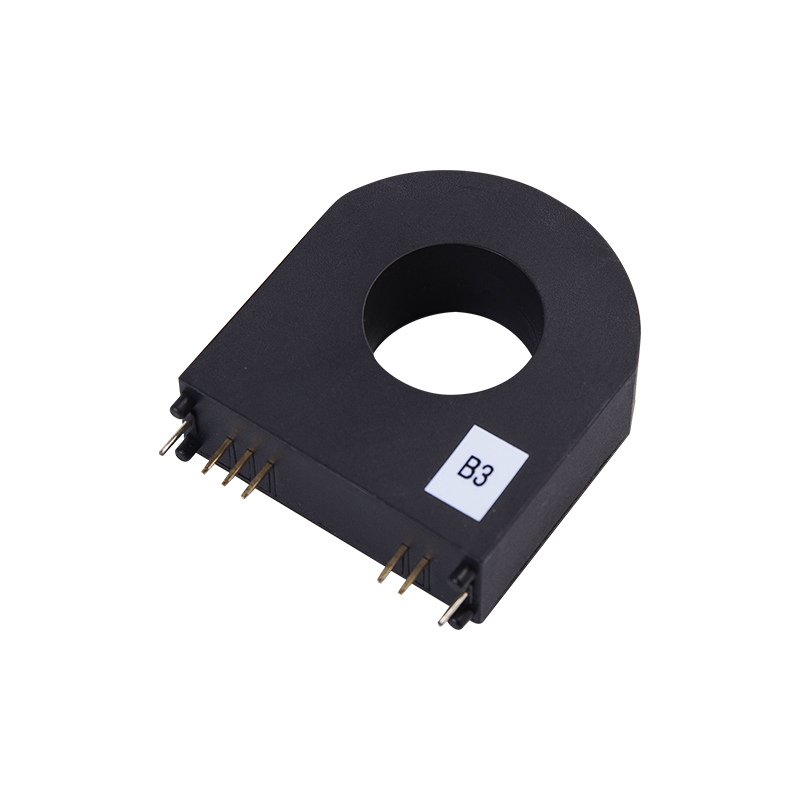

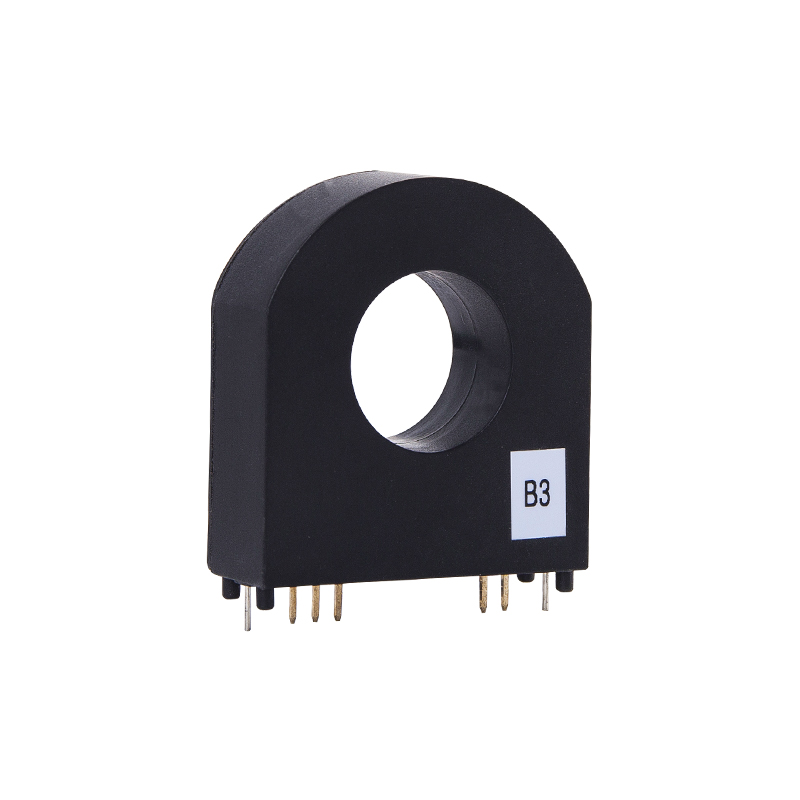

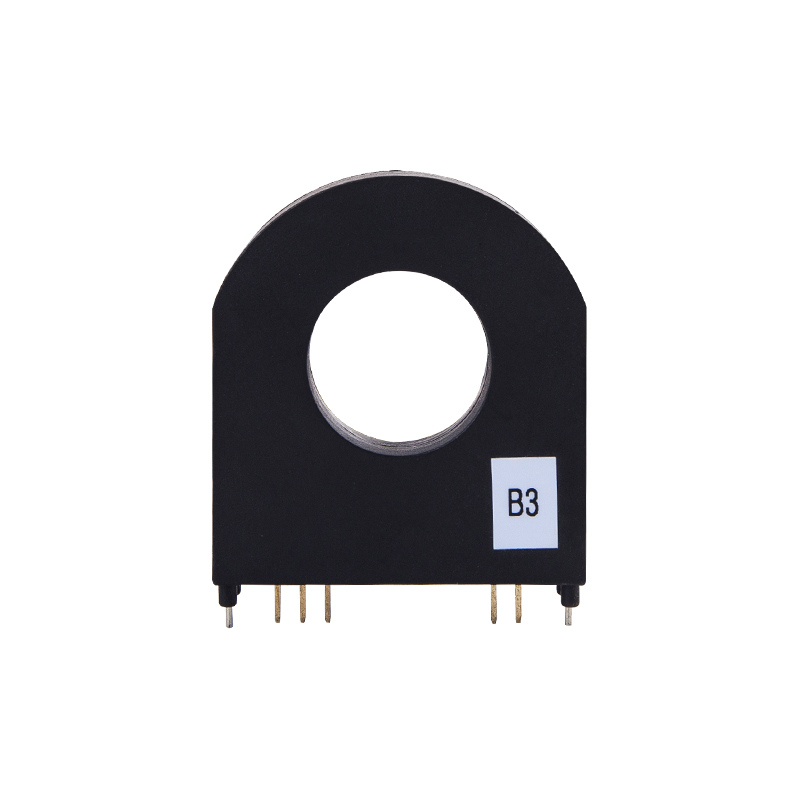

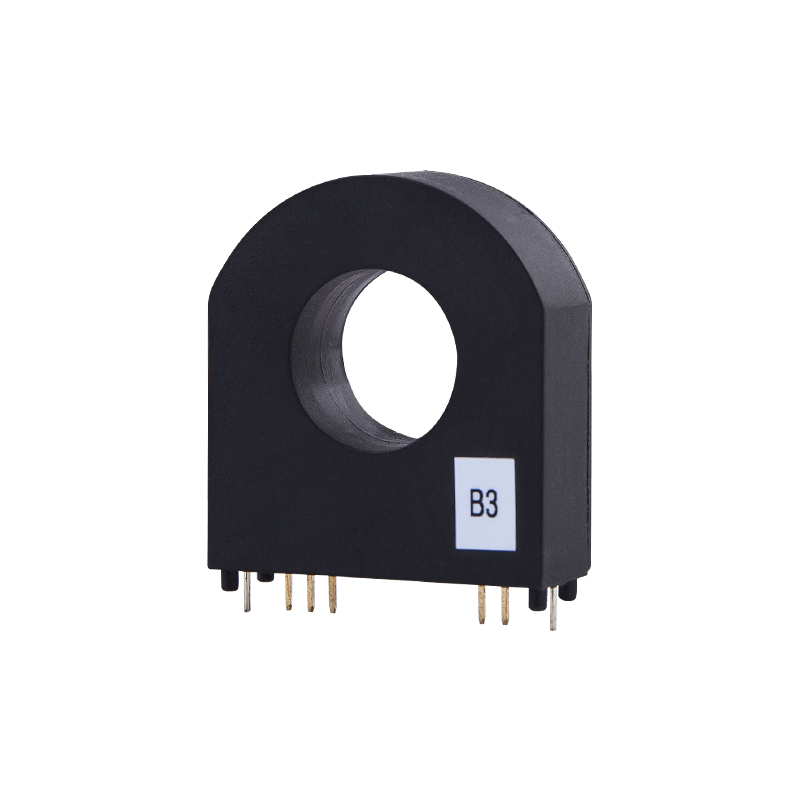

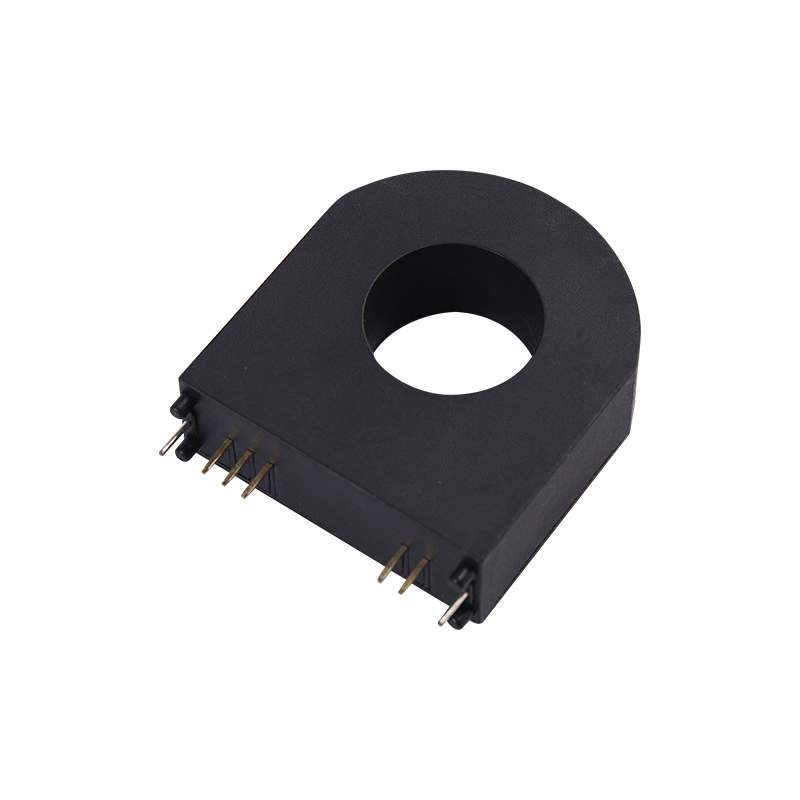

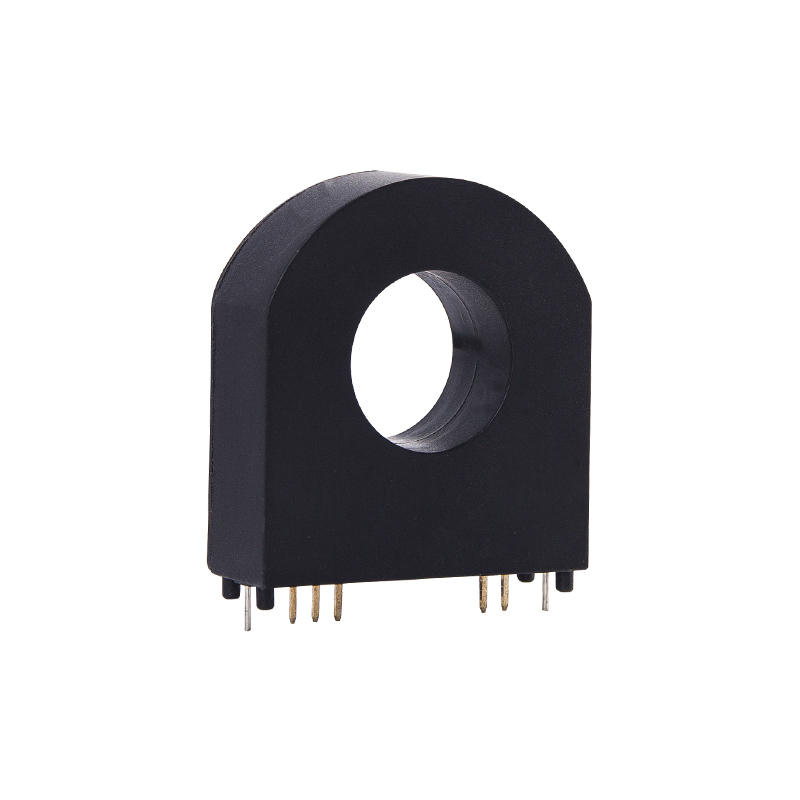

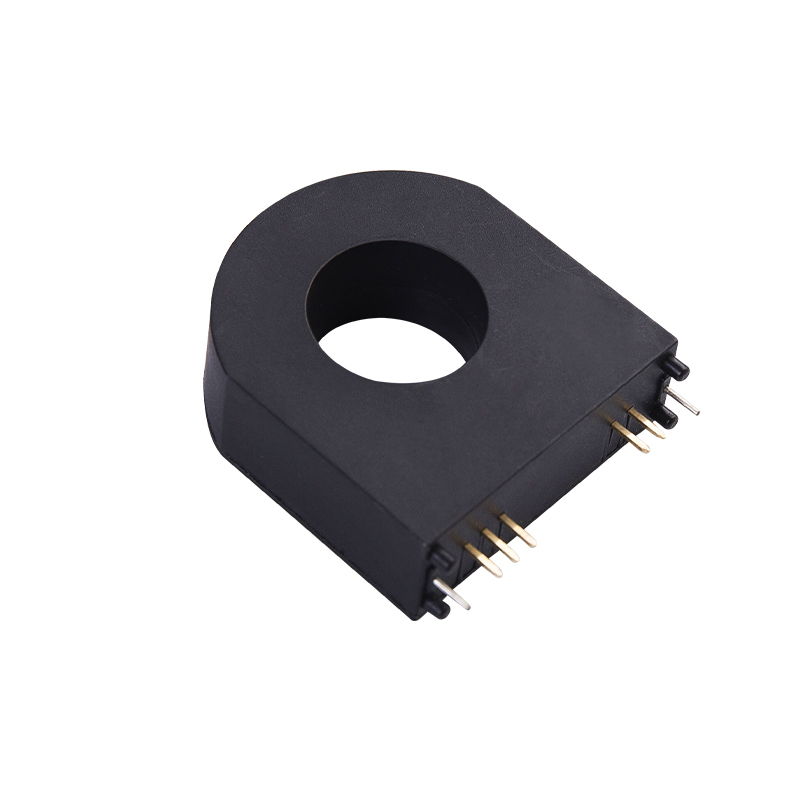

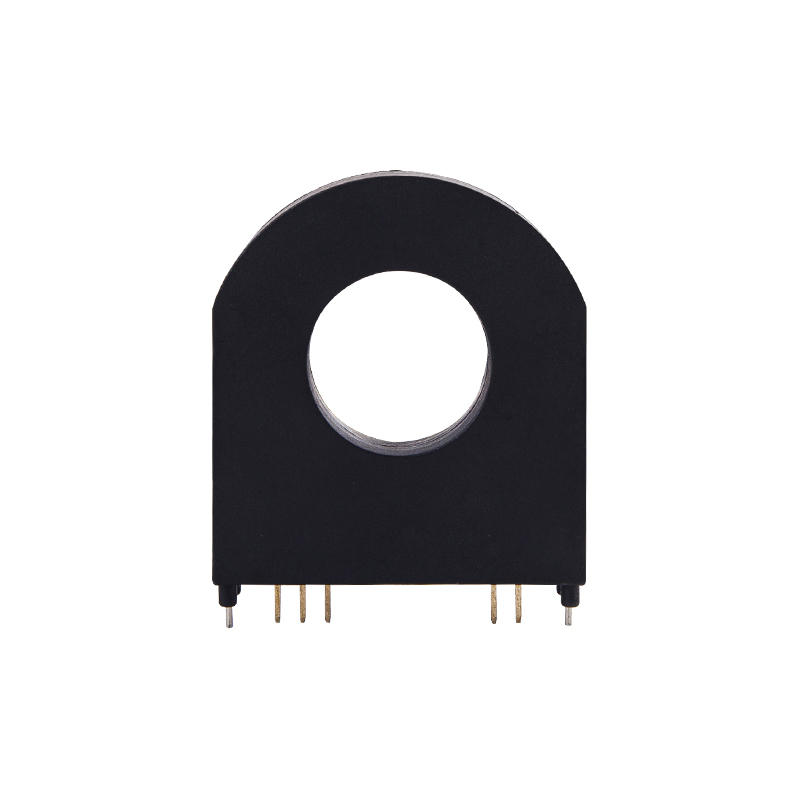

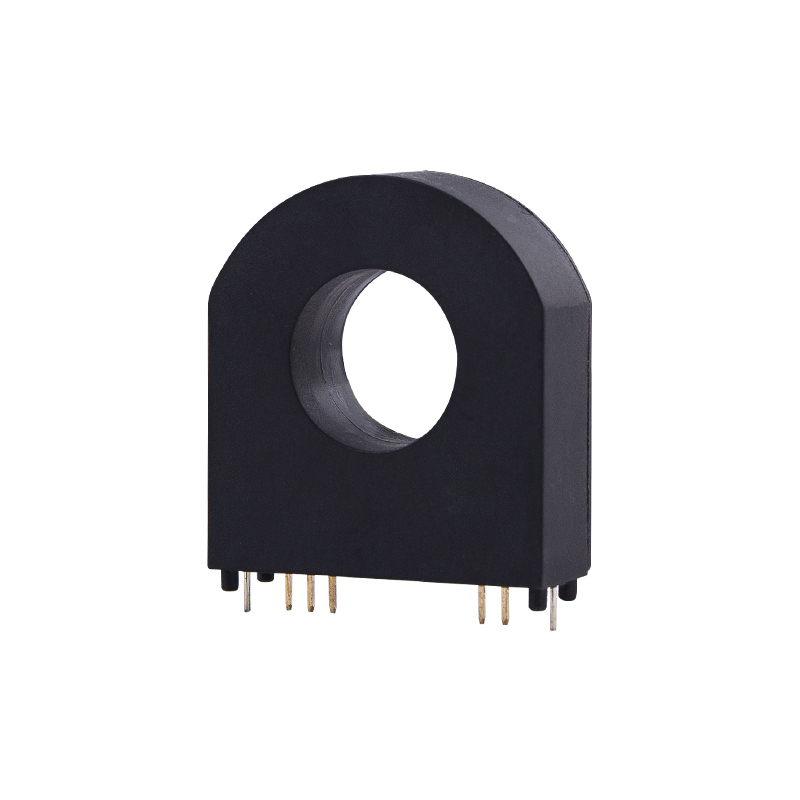

ESCS-B3

Residual Current Operated Protective Sensor for EV Charger

  • DC 6mA Current Alarm
  • Mounted on PCB Board
  • Integrated Digital Residual Current Indication
  • Application for EV Charger

ESCS-B3 is residual current operated protective sensor for EV charger.

It's to avoid hazardous situations in cases where the vehicle battery (DC) is connected to the home power supply (AC). Generally, AC/DC sensitive residual current sensors can be used where direct current and alternating current circuits are directly connected and therefore AC/DC leakage currents can occur.

It meets the standards of IEC 62955 RDC-PD related residual current operating characteristics requirements and GB/T 22794 basic residual current operating characteristics requirements, adapting to DC 6mA test requirements.

Product Features:

●Type-A+6mA/ DC 6mA/CCID20 residual current module for EV charging pile protection

●Mounted on PCB board

●All-in-One highly integrated digital residual current action indication

International Standards:

●IEC 62955-2018 residual current requirements for RDC-PD

●GB/T 22794 basic residual current requirements, adapting to DC 6mA test requirements

Voltage

VDD

 4.85-5.15 VDC ( recommend 4.9-5.10VDC)

Voltage input/output

 Low level: 0-0.6V DC

 High level: 4.2-5V DC



Environment



Operating Temperature

 -40℃… +105℃

Storage Temperature

 -40℃…+105℃

Humidity

 ≤95% non-condensing

FIT

 B1/B2: 25℃= 48.755, 80℃= 213.13

 B3: 25℃= TBD, 80℃= TBD

MTBF

 ≥ 20 years

Altitude

 ≤ 4000m



Order code

Current Input

Digital Input

Standard

ESCS-B1/B2-E1

DC 6mA/ AC 30mA

0V/5V

IEC62955 RDC-PD

ESCS-B1/B2-E2

DC 6mA

0V/5V

IEC62955 RDC-MD

ESCS-B1/B2-U3

DC 6mA/AC 20mA

/

Ul2231

ESCS-B3

DC 6mA/ AC 30mA

0V/5V

IEC62955 RDC-PD

Wiring and Dimension [mm:]
