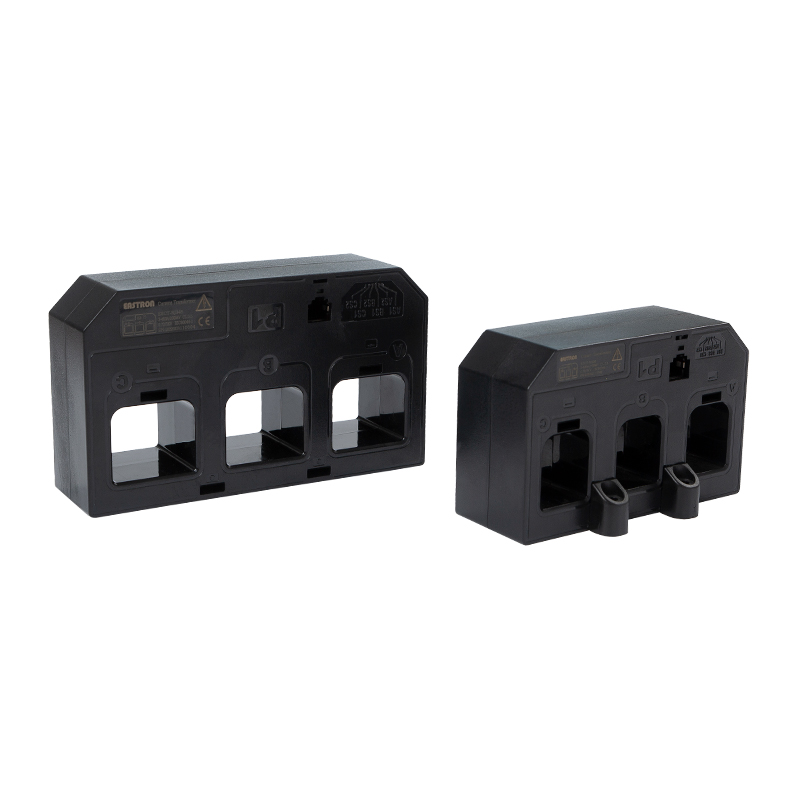

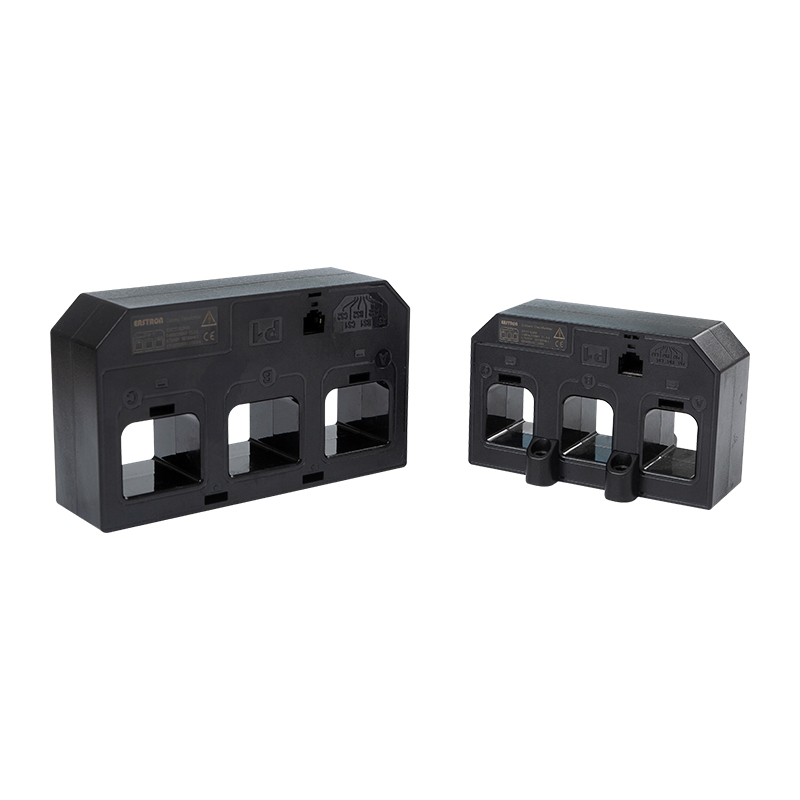

ESCT-3RJ Series (3-in-1)

Three Phase RJ12-3 mV/mA output 3-in-1 Current Sensor for Easy Click System

  • RJ12 plug in technology
  • Easy Installation & Error Free
  • Wide range of Primary Current
  • Cost effective three phase moulded case
  • Available for both busbar and Din Rail Mounting
Contact Us Inquiry PDF Download

400-996-9296

[email protected]

The Eastron ESCT-RJ-3 Series is three phase RJ12 mV/mA output 3-in-1 Current Sensor for easy click system. It including 4 types CT size:  ESCT-RJ325, ESCT-RJ335,ESCT-RJ345和 ESCT-RJ370. Primary current range for the 3-in-1 solid core type CTs are from 60A to 1200A.
Compared with the traditional screw terminals, the ESCT-RJ-3 series CTs are using RJ12 socket for quick connection and to eliminate wiring error, enables fast and easy installation.
Model Primary Current Secondary Output Accuracy
ESCT-RJ325 60A 100mA / 100mV / 333mV Clase 0.5 or 1
100A 100mA / 100mV / 333mV Clase 0.5 or 1
120A 100mA / 100mV / 333mV Clase 0.5 or 1
125A 100mA / 100mV / 333mV Clase 0.5 or 1
150A 100mA / 100mV / 333mV Clase 0.5 or 1
160A 100mA / 100mV / 333mV Clase 0.5 or 1
200A 100mA / 100mV / 333mV Clase 0.5 or 1
ESCT-RJ335 60A 100mA / 100mV / 333mV Clase 0.5 or 1
125A 100mA / 100mV / 333mV Clase 0.5 or 1
150A 100mA / 100mV / 333mV Clase 0.5 or 1
200A 100mA / 100mV / 333mV Clase 0.5 or 1
250A 100mA / 100mV / 333mV Clase 0.5 or 1
ESCT-RJ345 250A 100mA / 100mV / 333mV Clase 0.5 or 1
300A 100mA / 100mV / 333mV Clase 0.5 or 1
400A 100mA / 100mV / 333mV Clase 0.5 or 1
500A 100mA / 100mV / 333mV Clase 0.5 or 1
600A 100mA / 100mV / 333mV Clase 0.5 or 1
630A 100mA / 100mV / 333mV Clase 0.5 or 1
ESCT-RJ370 600A 100mA / 100mV / 333mV Clase 0.5 or 1
630A 100mA / 100mV / 333mV Clase 0.5 or 1
800A 100mA / 100mV / 333mV Clase 0.5 or 1
1000A 100mA / 100mV / 333mV Clase 0.5 or 1
1200A 100mA / 100mV / 333mV Clase 0.5 or 1

Wiring and Dimension [mm:]

Dimension [mm:]

Dimensions

Dimension [mm:]

Dimensions
