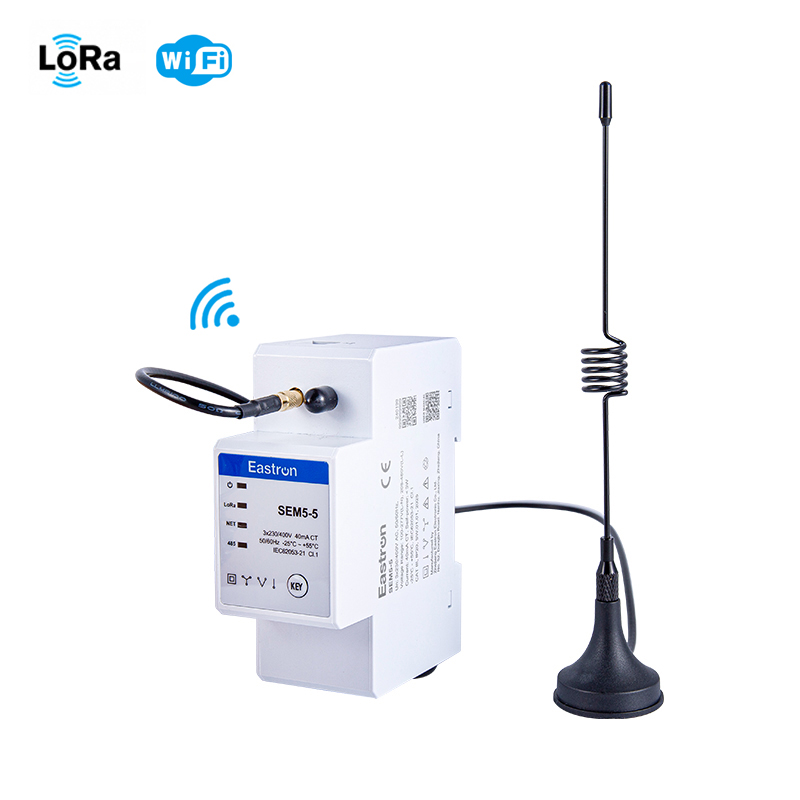

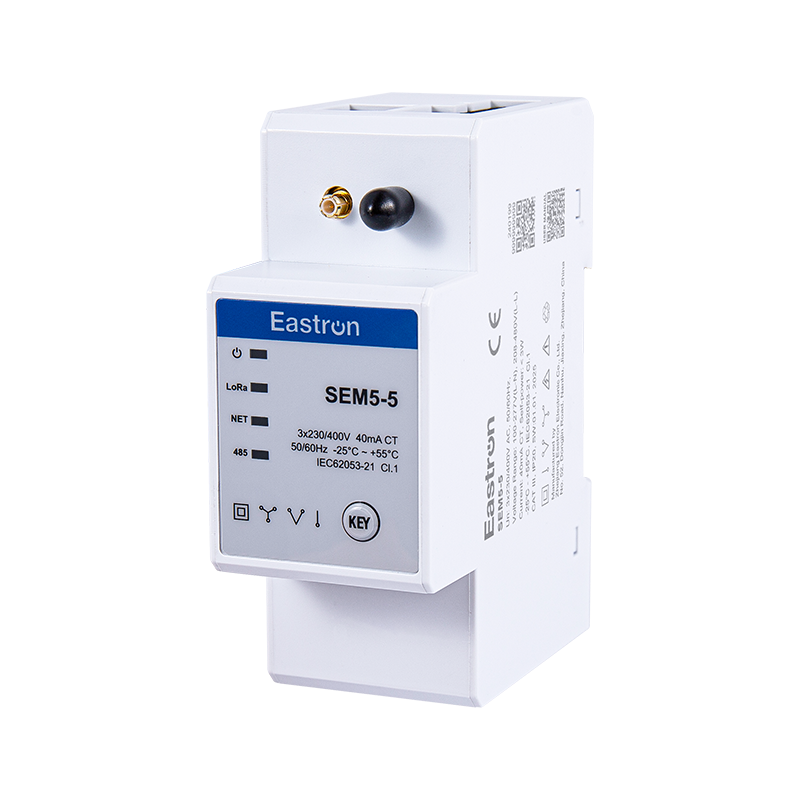

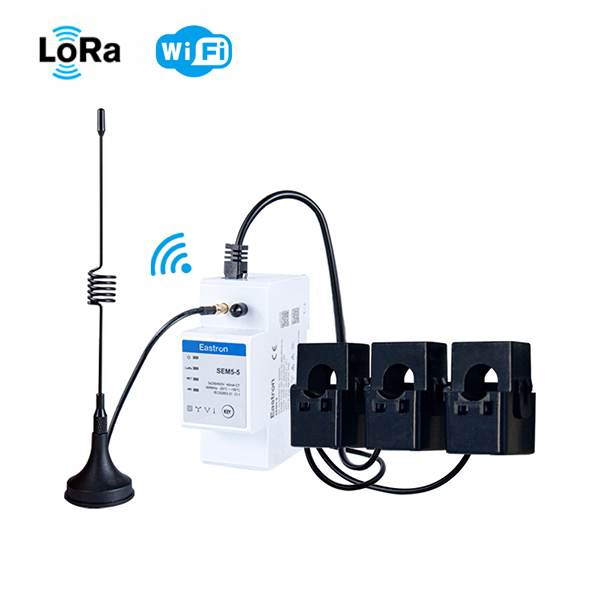

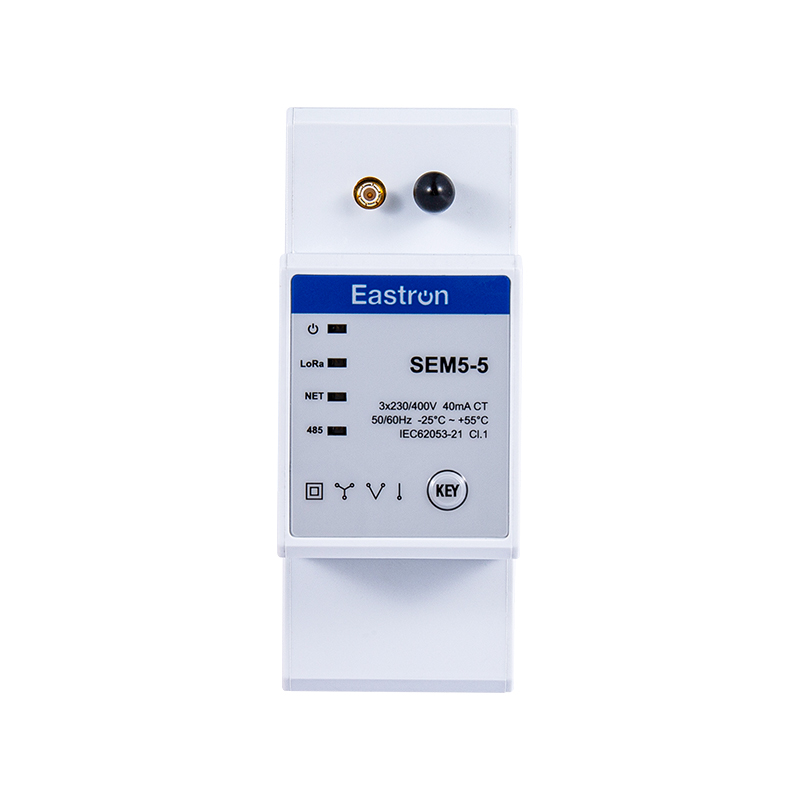

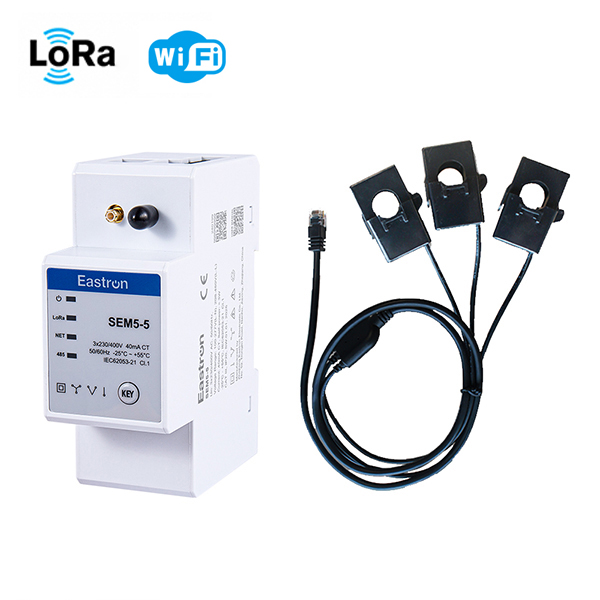

The SEM5-5 is the new generation of intelligent DIN rail mounted meters by Eastron. The product integrates Wi-Fi & Lora & RS485 Modbus communication. In addition, the SEM5-5 wireless energy meter also supports Ethernet Modbus TCP communication. With multi parameters measurement, SEM5-5 wireless energy meter can be used for energy monitoring of various applications, such as PV energy management, smart building, industrial equipment, etc. The meter can be used as 1x 3phase energy meter or 3x single phase energy meter.
Eastron SEM5-5 wireless energy meter measures the characteristics of 1P2W, 3P4W and 3P3W supplies, including voltage, frequency, current, power and active and reactive energy, imported or exported, power factor, Max. demand etc. Energy is measured in terms of kWh, kVArh and kVAh.

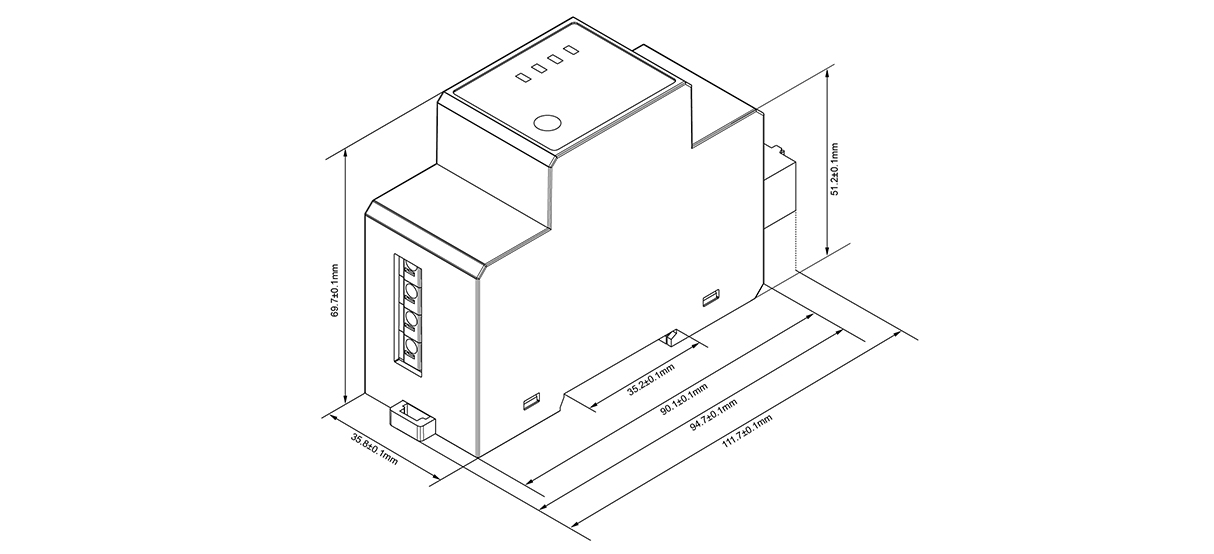

Eastron SEM5-5 wireless energy meter is designed in compact size. To save installation and maintenance cost, all terminals of SEM5-5 wireless energy meter adopt spring terminals or RJ terminals for easy connection.
Eastron SEM5-5 wireless energy meter provides two measurement modes: Total mode and PV mode. In total mode, import and export energy will be measured separately. In PV mode, import and export energy will be balanced first, and the balanced value will be counted in import or export energy.
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS Including Harmonics on Three Phase AC System (3P, 3P+N) |
|
|
Measurement Accuracy |
Power |
±1% IEC 61557-12 Class 1 |
|
Active Energy |
±1% |
|
|
Reactive Energy |
±2% |
|
|
Frequency |
±0.2% |
|
|
Current |
± 0.5% (4A to 120A) ± 1% (1A to 4A) ± 3% (0.06A to 1A) |
|
|
Voltage |
±0.5% |
|
|
Power Factor |
±0.01 |
|
|
Data Update Rate |
Active Power:50mS(RS485), 100mS(Wi-Fi) |
|
|
Input-Voltage |
Un |
3*230V(L-N)/400V(L-L)
|
|
Working Voltage Range |
100 to 277 V ac L-N
208 to 480 V ac L-L
|
|
|
Frequency Range |
50/60 Hz |
|
|
RS485 Communications |
|
|
Protocol |
MODBUS RTU |
|
Communication Address |
1~247 |
| Transmission Mode |
Half duplex |
|
Data Type |
Floating point |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps~115200bps |
|
Parity |
None (default)/ Odd/ Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
＜50mS |
|
Wi-Fi Communications |
|
|
Protocol |
MODBUS TCP |
|
Data Type |
Floating Point |
|
RF Band |
2.4 GHz to 2.5 GHz |
|
Max. RF Power |
<20 dBm |
|
Wi-Fi Protocol |
802.11 b/g/n |
|
Wi-Fi Range |
Up to 30m / 100ft indoors and 50m / 160ft outdoors (Depends on local conditions) |
|
LoRa Communications |
|
|
Frequency |
EU868/AS923...(customizable) |
|
Communication Distance |
3000M in an open area |
|
Ethernet Communications |
|
|
Protocol |
Modbus-TCP |
|
Modbus Address Range |
1-247 |
|
IP |
192.168.1.200 (default) |
|
Port |
502 |
|
Mask |
255.255.255.0 |
|
Gateway |
192.168.1.1 |
|
DHCP |
OFF (default) |
