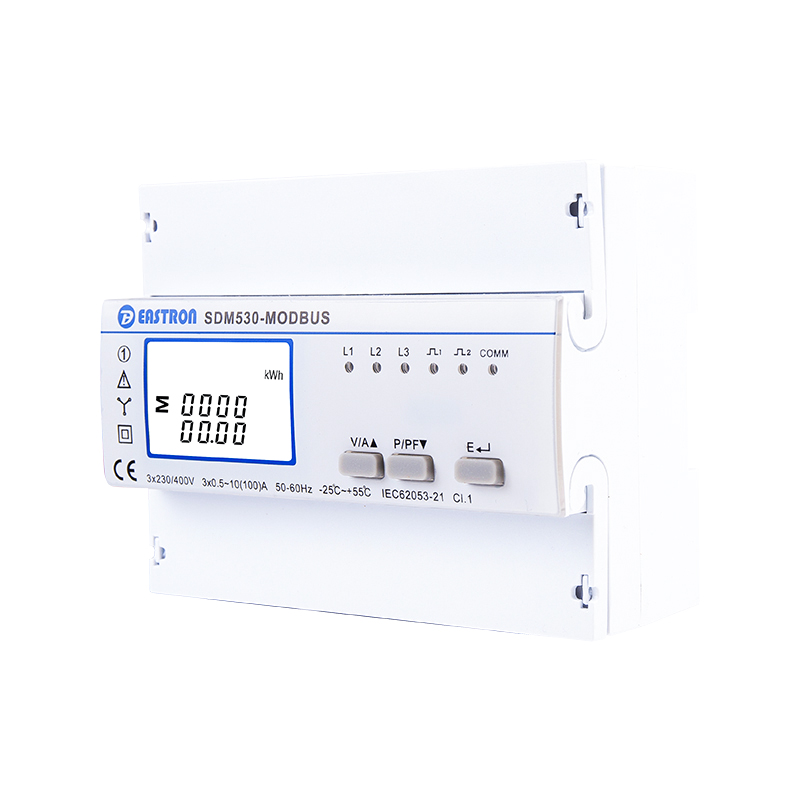

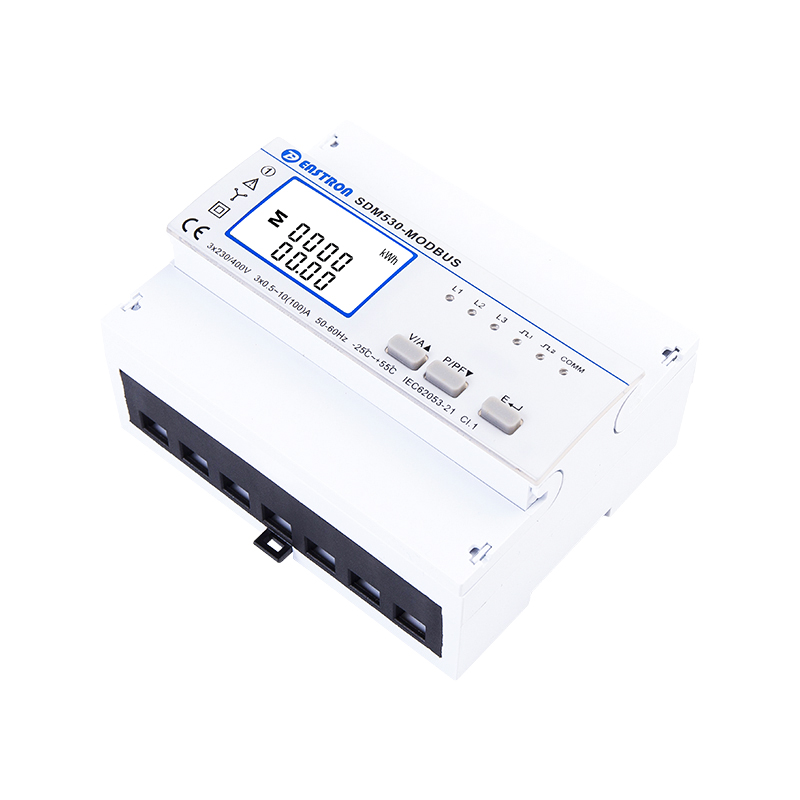

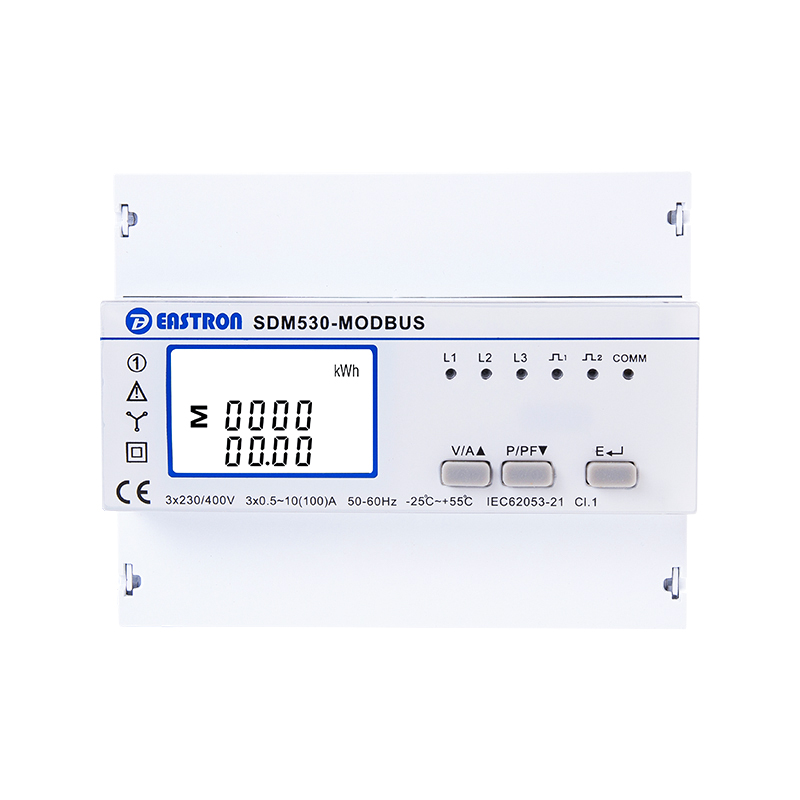

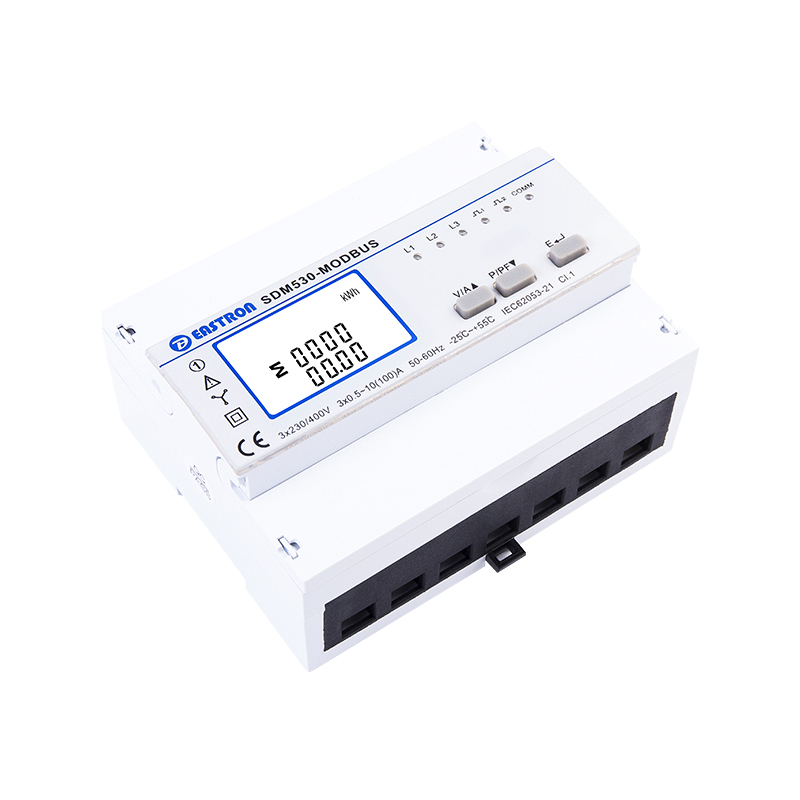

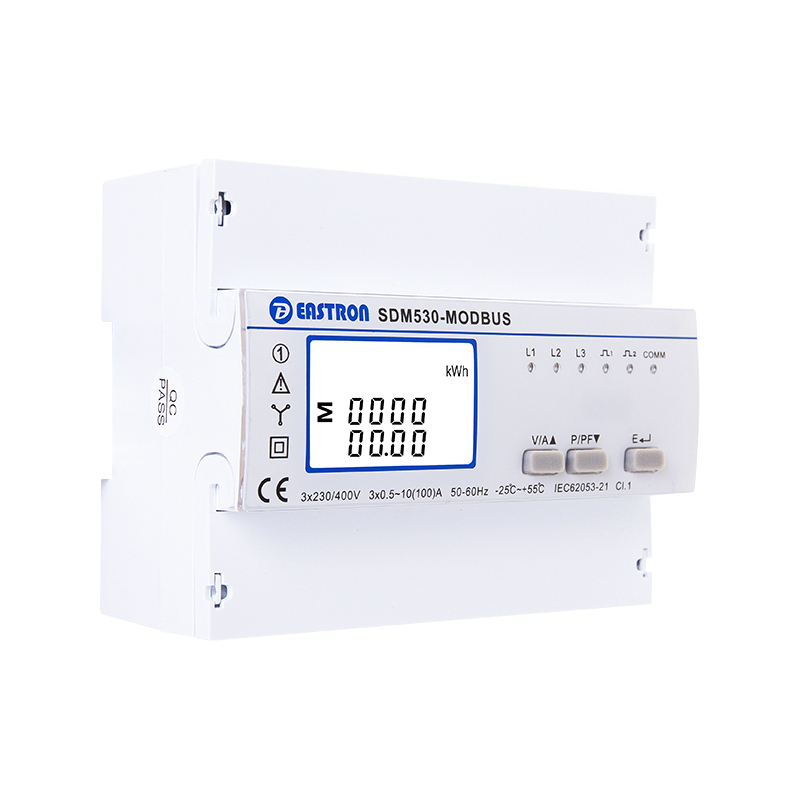

SDM530-Modbus

Three Phase Multi-function Energy Meter with RS485 Modbus RTU

  • Max. 100A Direct Load
  • 7 Module Size
  • Multi-parameters Measurement
  • Bi-directional Mesurement
  • 2 Pulse Outputs
  • RS485 Modbus RTU

The model SDM530-Modbus is a three phase multi-function energy meter with RS485 Modbus RTU. The unit measures and displays characteristic of three phase four wire supply, including voltage, current, frequency, power, active and reactive energy, imported and exported.

SDM530-Modbus support Max. 100A direct connection, saves the cost and aviod the trouble to connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces provide pulse and RS485 Modbus outputs. All the configuration are password protected.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P4W)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input-Current

Direct Type



Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

SDM530-Modbus

2 Pulse Output + RS485 Modbus

SDM530-MT

2 Pulse Output + RS485 Modbus



Modbus Communication

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



Mechanical Characteristics

Weight

650g

IP Degree of Protection  (IEC 60529)

IP51 in door

Dimensions (WxHxD)

100x125x65 mm

Mounting Position

Vertical

Material of meter case

Self-extinguishing UL 94 V-0

Mechanical environment

M1



Environmental Characteristics

Operating Temperature

-25 to 55°C

Storage Temperature

-40 to  70°C

Humidity Rating

<95% RH at 50 °C (non-condensing)

Pollution Degree

2

Altitude

2000m

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

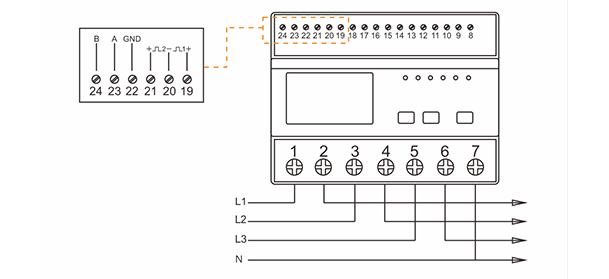

Wiring diagram

Wiring and Dimension [mm:]

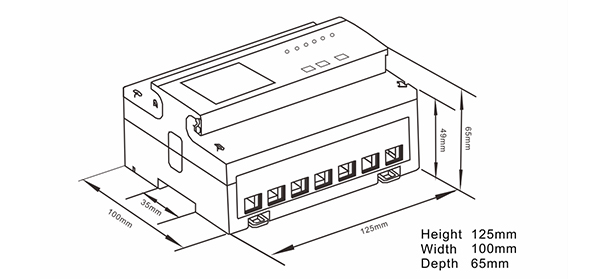

Dimensions
