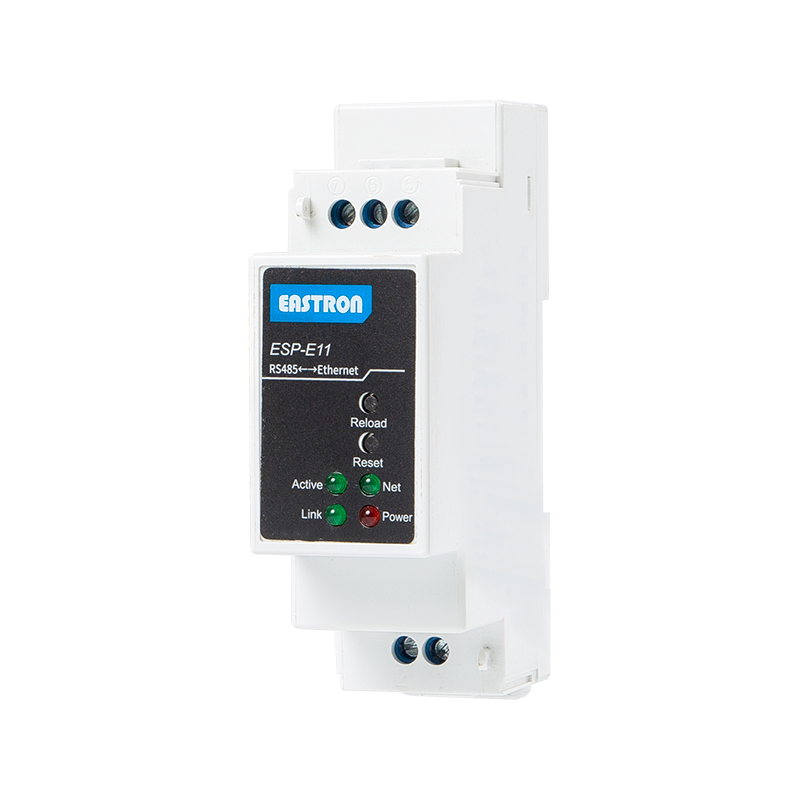

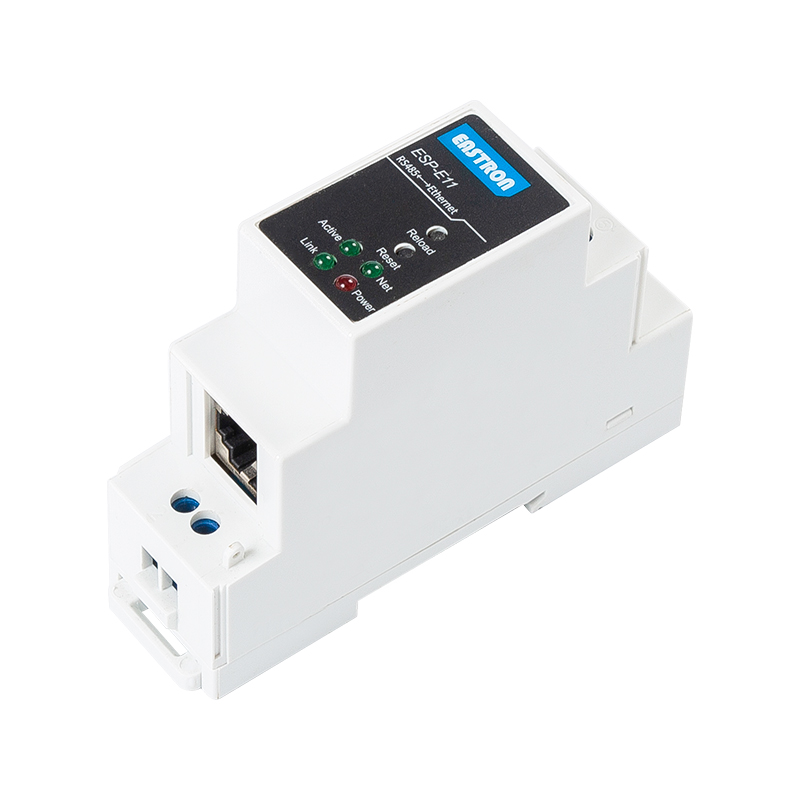

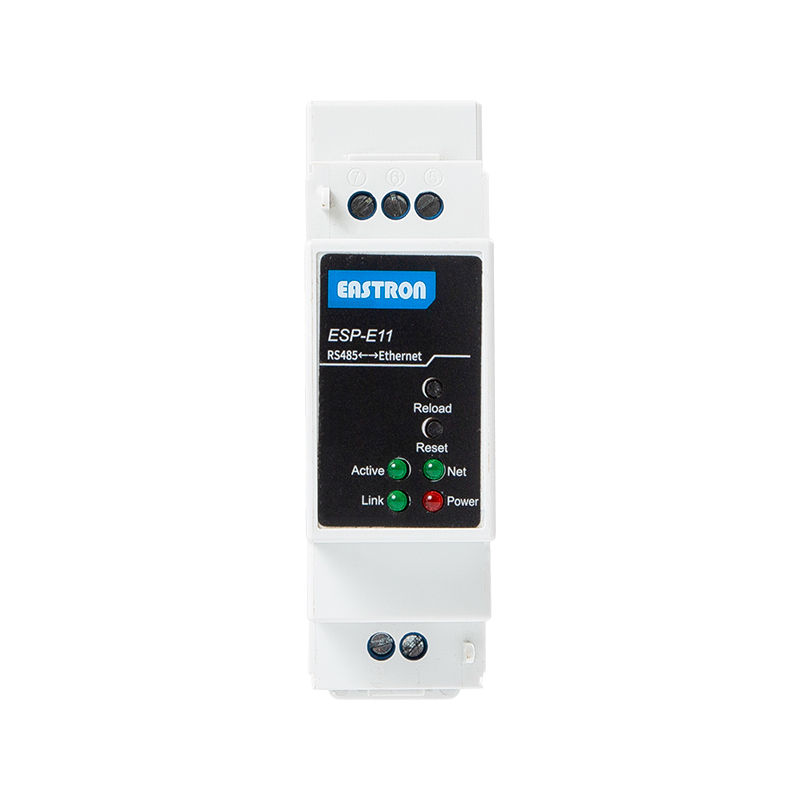

ESP-E11

Din Rail RS485 to Ethernet Protocol Converter for IOT Solutions

Small Size
Din Rail Mounting
Modbus RTU to Modbus TCP/IP converter
Support 10/100M Ethernet Auto-Negotiation
Webpage Easy Configuration or PC IOTService Tool

400-996-9296

The ESP-E11 is a din rail RS485 to Ethernet protocol converter for IOT solutions. It provides a RS485 interface to TCP/IP data transfer product. The ESP-E11 integrate TCP/IP controller, memory, 10/100M Ethernet transceiver, RS485 and integrates a fully developed TCP/IP network stack and Free RTOS OS. ESP-E11 also includes an embedded web server used to configure device.

The ESP-E11 using highly integrated hardware and software platform, it has been optimized for all kinds of applications in the industrial control, smart grid, personal medical application and remote control that have lower data rates, and transmit or receive data on an infrequent basis.

Product parameters
Basic Frequency	96MHz
Flash	2MB
SDRAM	128KB
Operating System	FreeRTOS
Ethernet	1
Interface Standard	10/100M Base-T Auto-Negotiation
Network Protocol	IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， AutoIP， ICMP， Telnet，NTP， Modbus TCP
Security Protocol	TLS 1.2 AES 128Bit DES3
Port Number	EE10：1 RS232 EE11：1 RS485
Data Bits	5，6，7，8
Stop Bit	1，2
Check Bit	None，Even，Odd
Baud Rate	TTL：600 bps~460800bps
Flow Control	No Flow Control Half Flow Control(RS485) Software Xon/ Xoff flow control
Configuration	Http Web Configuration Customization of HTTP Web Pages
Size	97.60mm x 64.95mm x 27.50mm
Storage Temp.	-45 ~ 105°C， 5 ~ 95% RH
Input Voltage	Protoss-PE11-H： 100～240VAC@50～60Hz Protoss-PE11-M： 9～48VDC@1A
Power	<400mW
Network Transformer	Integrated
Work Temp.	-40 ~ 85°C
