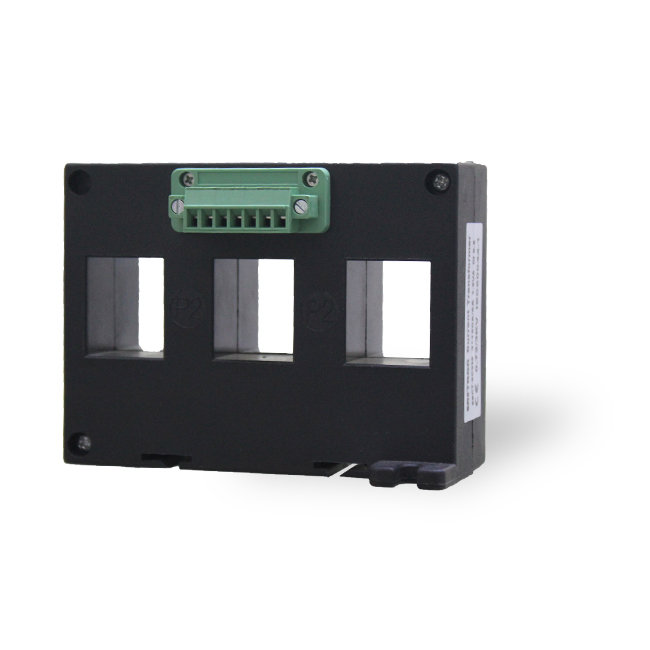

ESCT-SC Series

1A output 3-in-1 Current Sensor(CT)

3-in-1 Current Transformer
Easy terminal Pulg Connection
Integrated wire sealable terminal cover
Primary current input: 60A-630A
Secondary output: 1A
Cost effective three phase moulded case

400-996-9296

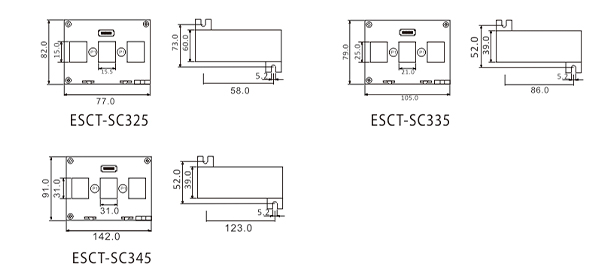

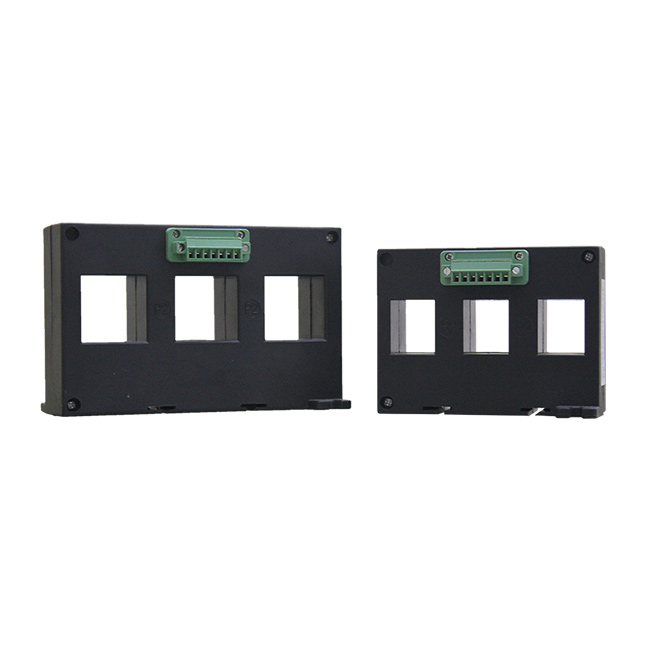

Eastron ESCT-SC series is a three phase 1A output 3-in-1 current sensor(CT). It including 3 types of CT size: ESCT-SC325, ESCT-SC335, ESCT-SC345. Primary current range are from 60A to 630A.

The ESCT-SC Series is using terminal pulg-in quick connection. Compared with the traditional wiring, it is labour saving and helps zero error wiring.

The ESCT-SC Series is widely used in three phase systems. It is suitable for both cable and busbar installation. Din rail mounting is supported. A three phase 3-in-1 current transformer will be more economical than 3pcs single phase current transformers.

Model	Primary Current	Secondary Output	Burden(VA)
Model	Primary Current	Secondary Output	Class 0.5	Class 1.0
ESCT-SC325	60A	1A	-	1
	100A	1A	-	1.5
	125A	1A	1.5	1.5
	150A	1A	1.5	1.5
	200A	1A	1.5	1.5
ESCT-SC335	100A	1A	-	1.5
	125A	1A	-	2.5
	150A	1A	-	3.75
	200A	1A	1.5	1.5
	250A	1A	1.5	1.5
ESCT-SC345	250A	1A	1.5	1.5
	300A	1A	2.5	2.5
	400A	1A	2.5	2.5
	500A	1A	2.5	2.5
	600A	1A	2.5	2.5
	630A	1A	2.5	2.5
