CT Connection Single Phase Din Rail Wifi Energy Meter

  • CT Connection Single Phase Din Rail Wifi Energy Meter
  • CT Connection Single Phase Din Rail Wifi Energy Meter
  • CT Connection Single Phase Din Rail Wifi Energy Meter
  • CT Connection Single Phase Din Rail Wifi Energy Meter
  • CT Connection Single Phase Din Rail Wifi Energy Meter
  • CT Connection Single Phase Din Rail Wifi Energy Meter
  • CT Connection Single Phase Din Rail Wifi Energy Meter
  • CT Connection Single Phase Din Rail Wifi Energy Meter
  • CT Connection Single Phase Din Rail Wifi Energy Meter
  • CT Connection Single Phase Din Rail Wifi Energy Meter

SEM1-WL

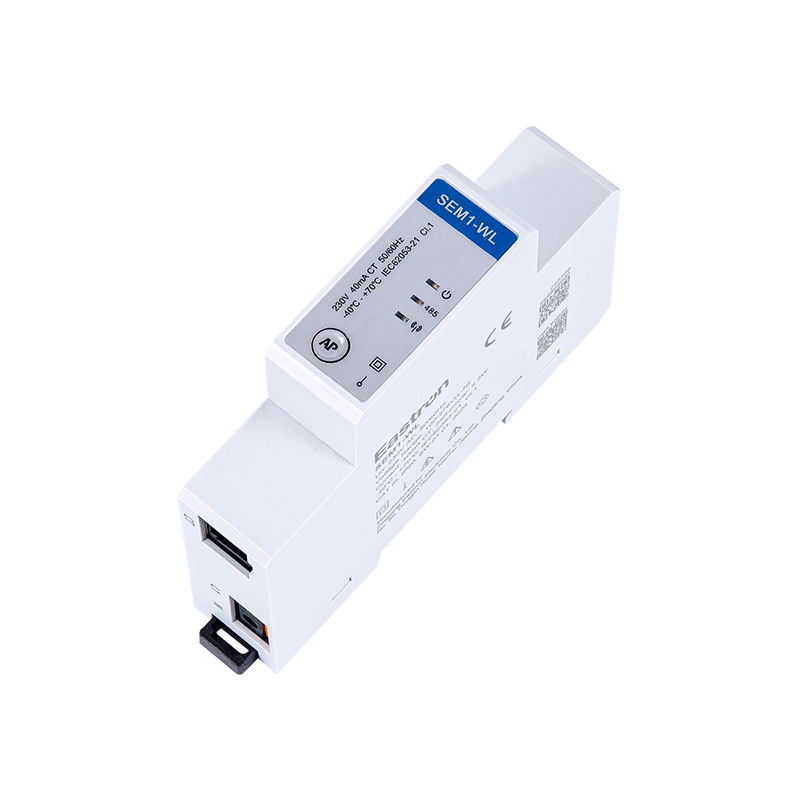

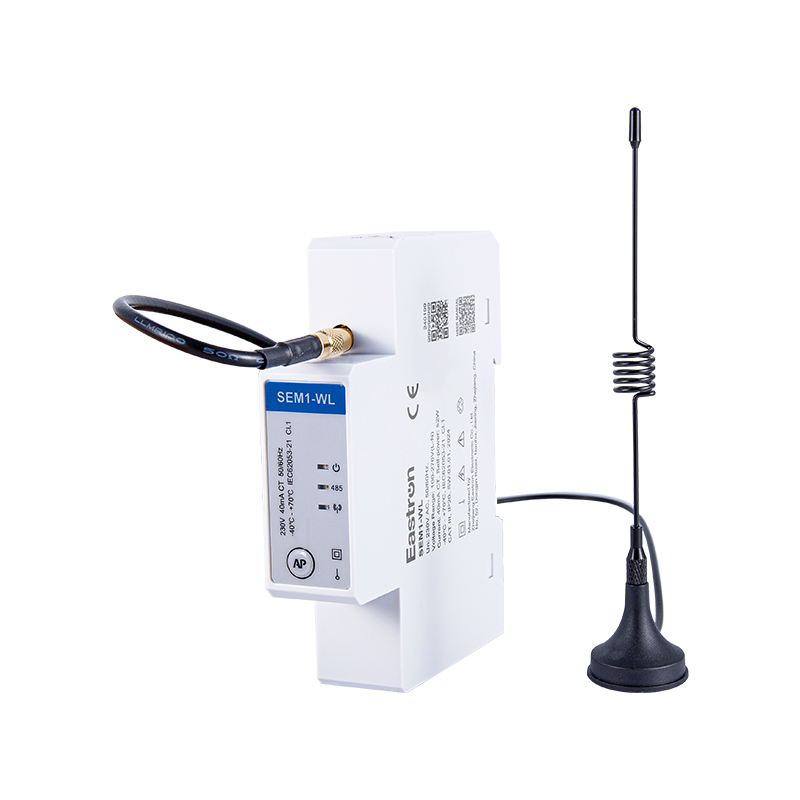

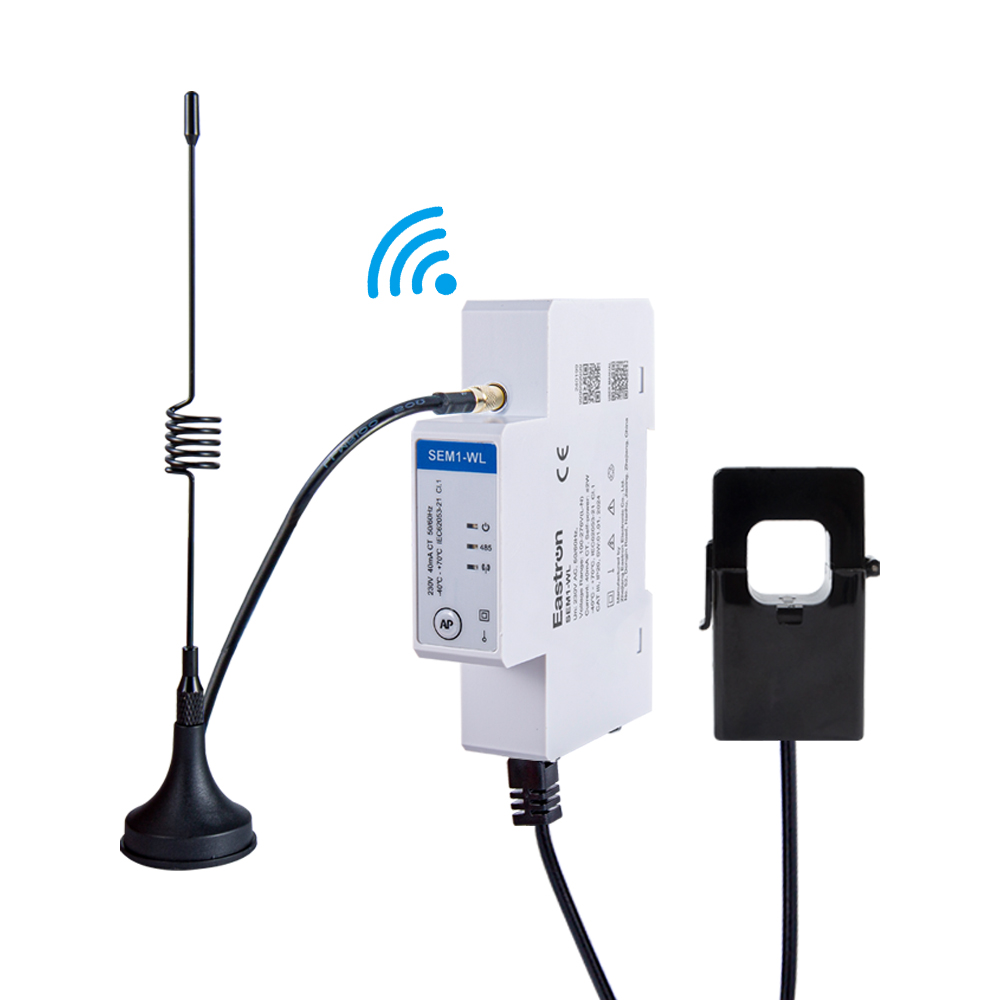

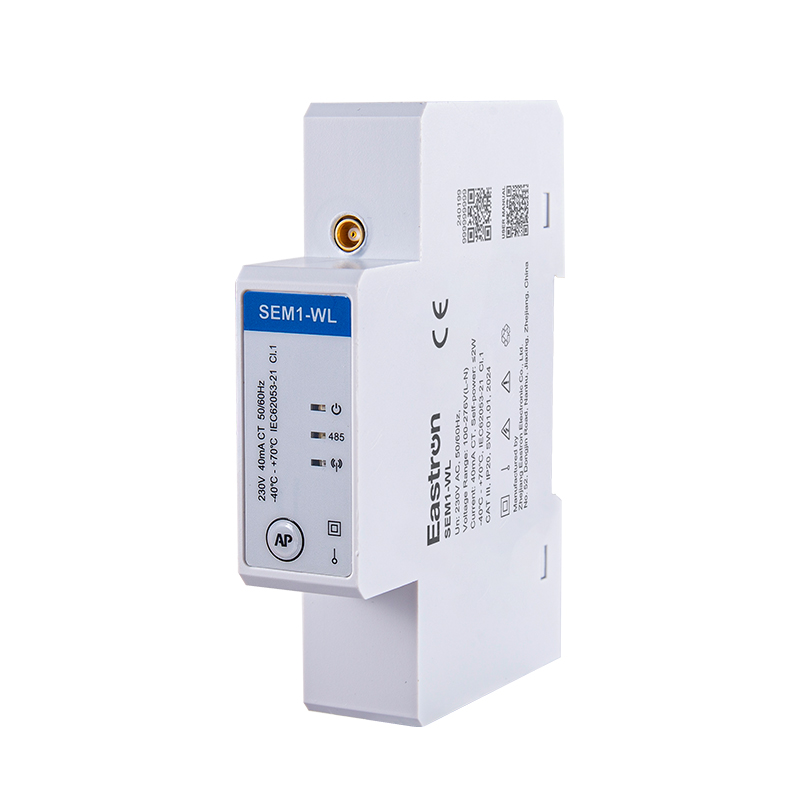

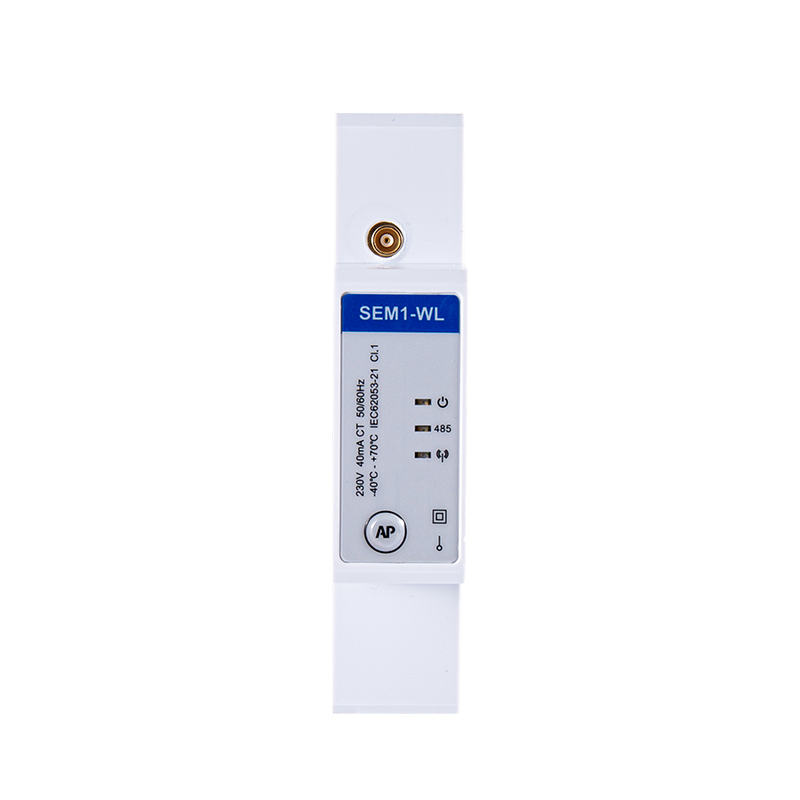

CT Connection Single Phase Din Rail Wifi Energy Meter

  • Compact design
  • Wifi & RS485 Modbus
  • Easy connection solution
  • Bi-directional measurement
  • Multi-parameter measurements
  • Accuracy Class 1.0 active energy
Eastron SEM1-WL is a new generation din rail mounted energy meter, equipped with Wi-Fi and RS485 connectivity.
With multi parameters measurement, SEM1-WL can be used for energy monitoring of various applications, such as solar PV system, smart building, industrial equipment, etc.
Eastron SEM1-WL measures characteristics of 1P2W network, including voltage, frequency, current, power and active and reactive energy, imported or exported, power factor etc. Energy is measured in terms of kWh and kVArh.
Eastron SEM1-WL is designed in compact size. To save installation and maintenance cost, all terminals of SEM1-WL adopt spring terminals or RJ terminals for easy connection.
The measurement mode of SEM1-WL is total mode. In total mode, import and export energy will be measured separately. Total energy equals to import energy plus export energy.

Electrical Characteristics

Type of Measurement

RMS including harmonics

Measurement Accuracy

Power

±1%

Active Energy

±1% IEC 62053-21 Class 1

Reactive Energy

±2%

Frequency

±0.2%

Current

±0.5% (4A~120A)

±1% (1A~4A)

±3% (0.06A~1A)

Voltage

±0.5%

Power Factor

±0.1

Data Update Rate

Active power: 50mS (RS485), 100mS(Wi-Fi)

Input-Voltage

Un

230V

Working Voltage Range

100~277 V ac L-N

Frequency Range

50/60 Hz

RS485 Communications

Protocol

MODBUS RTU

Communication Address

1~247

Transmission Mode

Half duplex

Data Type

Floating point

Transmission Distance

1000m Maximum

Transmission Speed

2400bps~115200bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<50mS

Wi-Fi Communications

Protocol

MODBUS TCP

Data Type
Floating Point
RF Band
2.4 GHz to 2.5 GHz
Max. RF Power
<20 dBm
Wi-Fi Protocol
802.11 b/g/n
Wi-Fi Range
Up to 30m / 100ft indoors and 50m / 160ft outdoors
(Depends on local conditions)

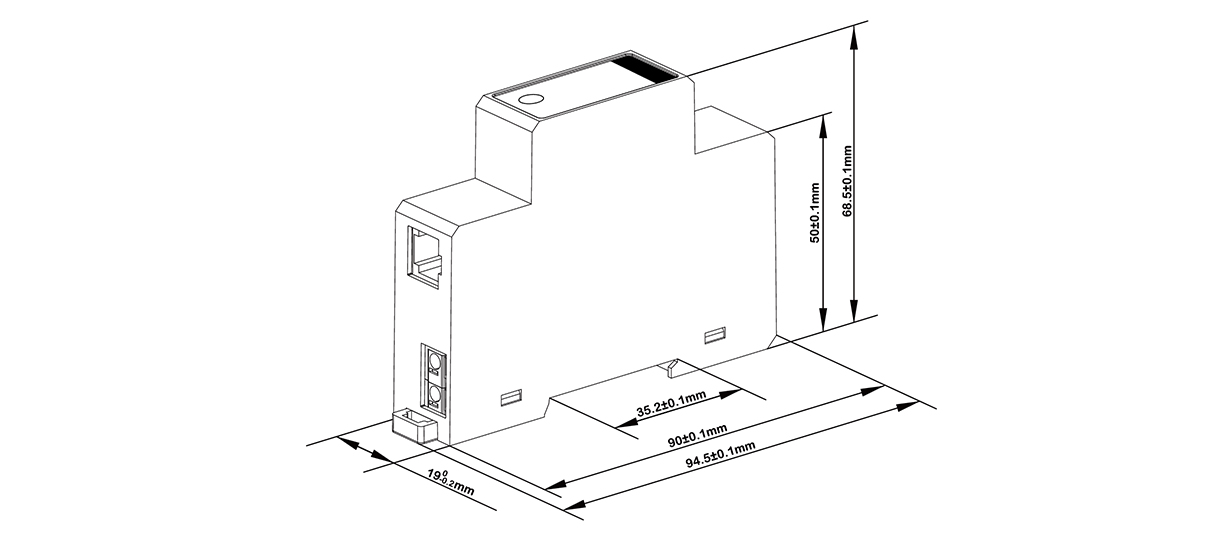

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Dimensions
