Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics on Three Phase AC System (3P, 3P+N) |
|
|
Measurement Accuracy |
Power |
±1% |
|
Active Energy |
±1% IEC 62053-21 Class 1 |
|
|
Reactive Energy |
±2% |
|
|
Frequency |
±0.2% |
|
|
Current |
±0.5% (4A~120A) ±1% (1A~4A) ±3% (0.06A~1A) |
|
|
Voltage |
±0.5% |
|
|
Power Factor |
±0.1 |
|
|
Data Update Rate |
Active power: 50mS (RS485), 100mS(Wi-Fi) |
|
|
Input-Voltage |
Un |
3*230V(L-N)/400V(L-L)
|
|
Working Voltage Range |
90 to 277 V ac L-N
156 to 480 V ac L-L
|
|
|
Frequency Range |
50/60 Hz |
|
|
RS485 Communications |
|
|
Protocol |
MODBUS RTU |
|
Communication Address |
1~247 |
| Transmission Mode |
Half duplex |
|
Data Type |
Floating point |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps~115200bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
＜50mS |
|

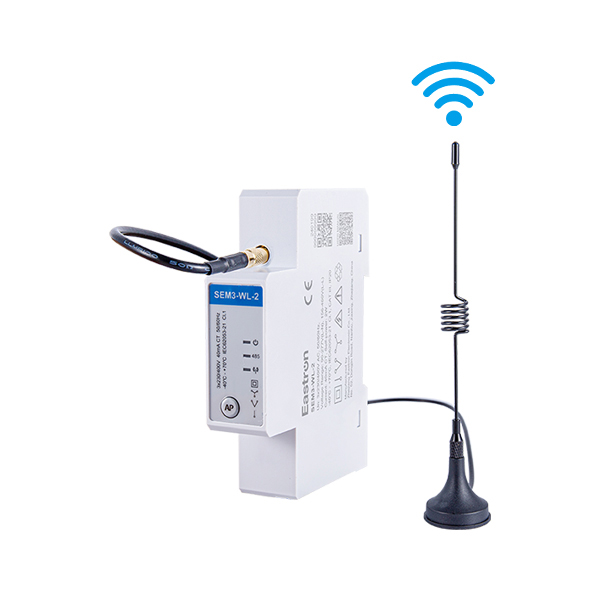

Wi-Fi Communications |
|
|
Protocol |
MODBUS TCP |
|
Data Type
|
Floating Point
|
|
RF Band
|
2.4 GHz to 2.5 GHz
|
|
Max. RF Power
|
<20 dBm
|
|
Wi-Fi Protocol
|
802.11 b/g/n
|
|
Wi-Fi Range
|
Up to 30m / 100ft indoors and 50m / 160ft outdoors
(Depends on local conditions)
|
