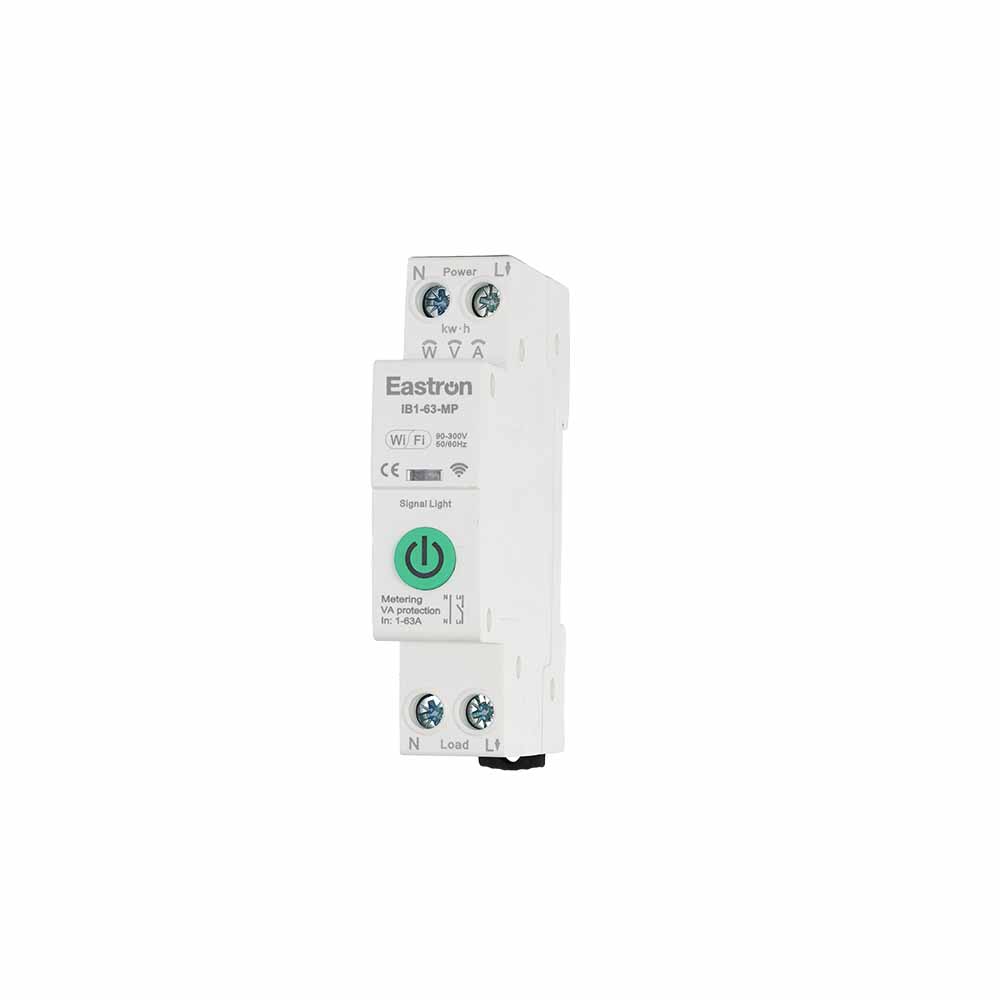

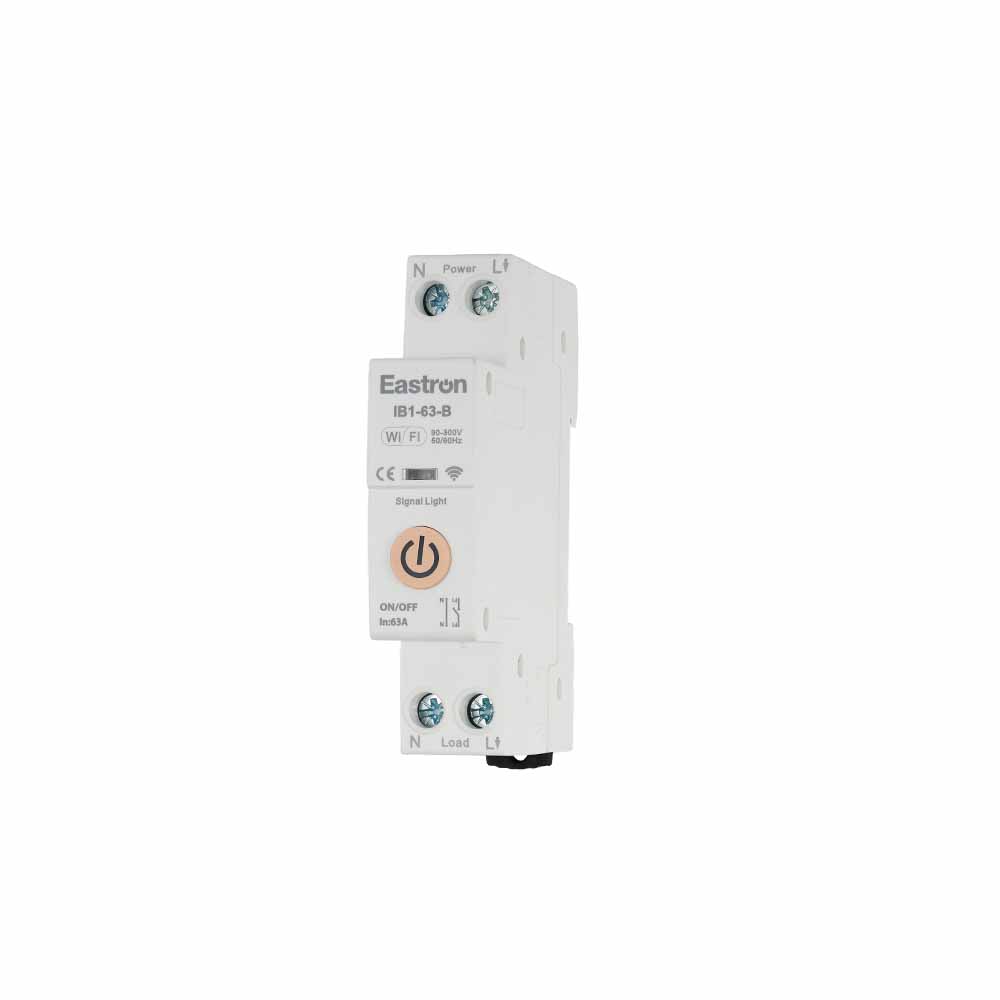

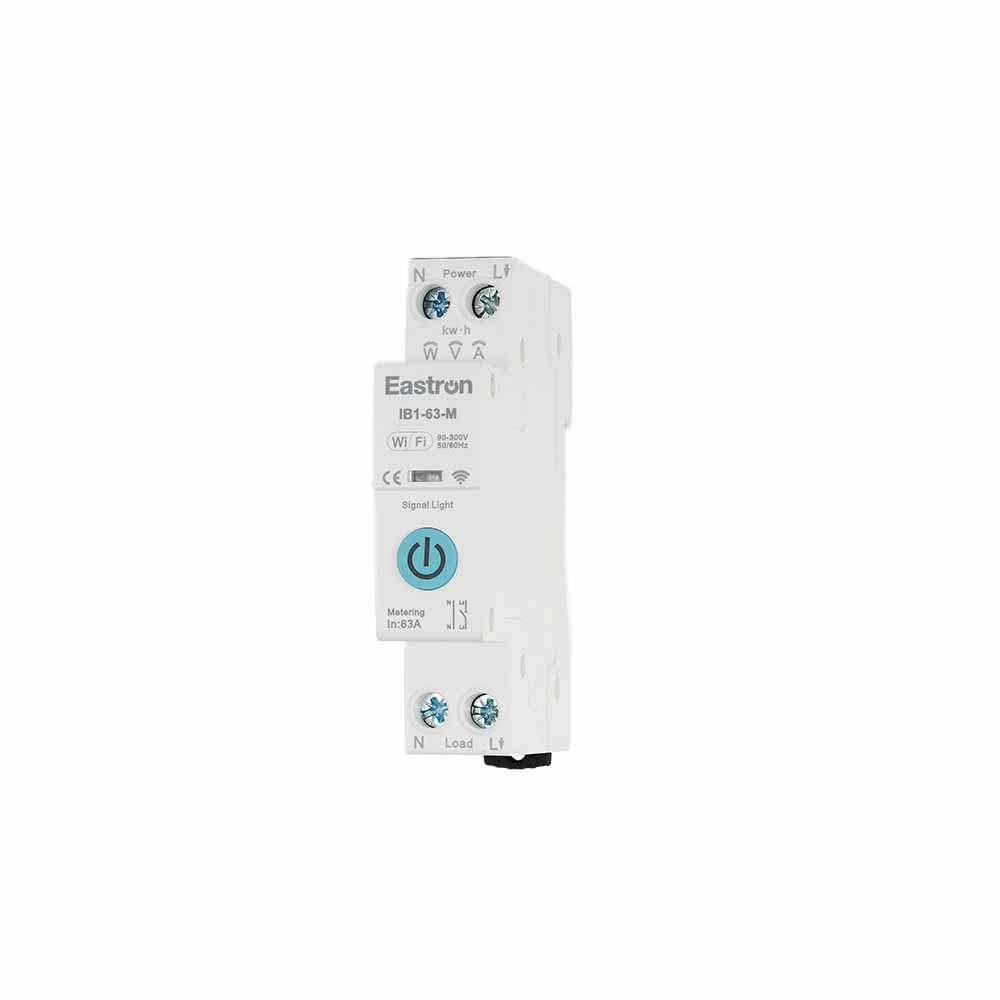

Eastron IB1-63 Series is a compact design Wi-Fi intelligent circuit breaker with an advanced structure, reliable performance, and an aesthetically pleasing appearance. It is primarily designed for applications in AC 50Hz systems with a voltage below 400V and a rated operating current of up to 63A.
Supporting remote operation, it allows users to view real-time displays of electrical parameters (including current, voltage, energy consumption, power, and frequency) via mobile devices. Equipped with programmable cycle timers, it can be set to automatically turn power supply on or off.
Ideal for protecting lighting systems, distribution circuits, and electrical equipment in office buildings, residences, and similar facilities, Eastron IB1-63 Series also facilitates infrequent switching and conversion operations.
|
Technical Parameters |
|
|
Current Setting |
1A~63A |
|
Rated Voltage |
220V/110V AC
|
|
Protection Rating |
400V |
|
Withstand Voltage |
80V~300V AC |
|
Overvoltage Range |
130V~300V |
|
Undervoltage Range |
75V~210V |
|
Electric Power Range |
0~9999kWh |
|
Scheduled Setting |
15 sets of timed settings |
|
Temperature Range |
-40℃~+150℃ |
|
Altitude |
≤2000m |
|
Humidity |
<50% at 40℃ (non-condensing) |
