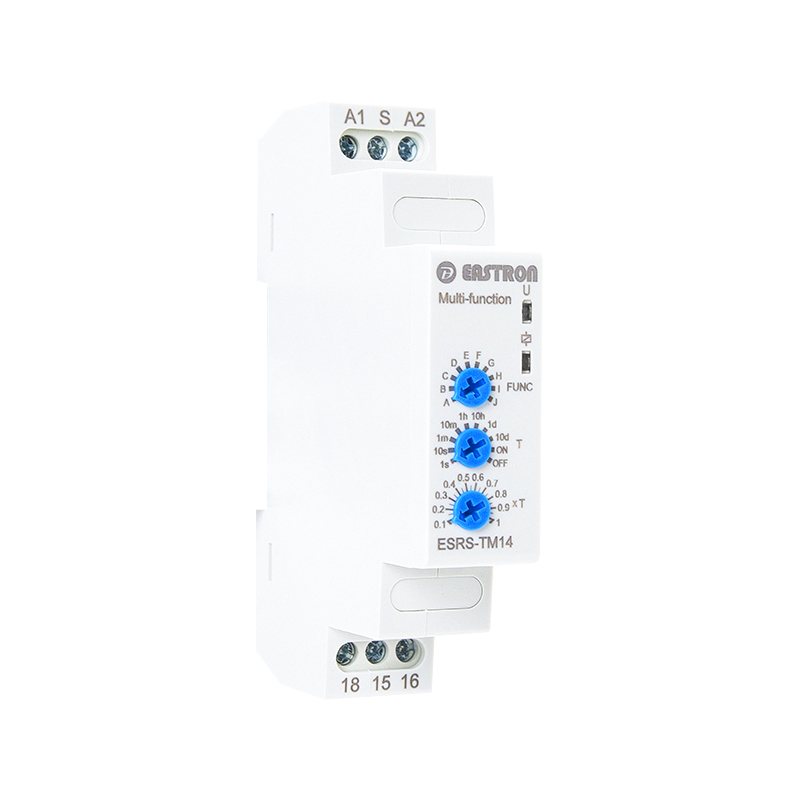

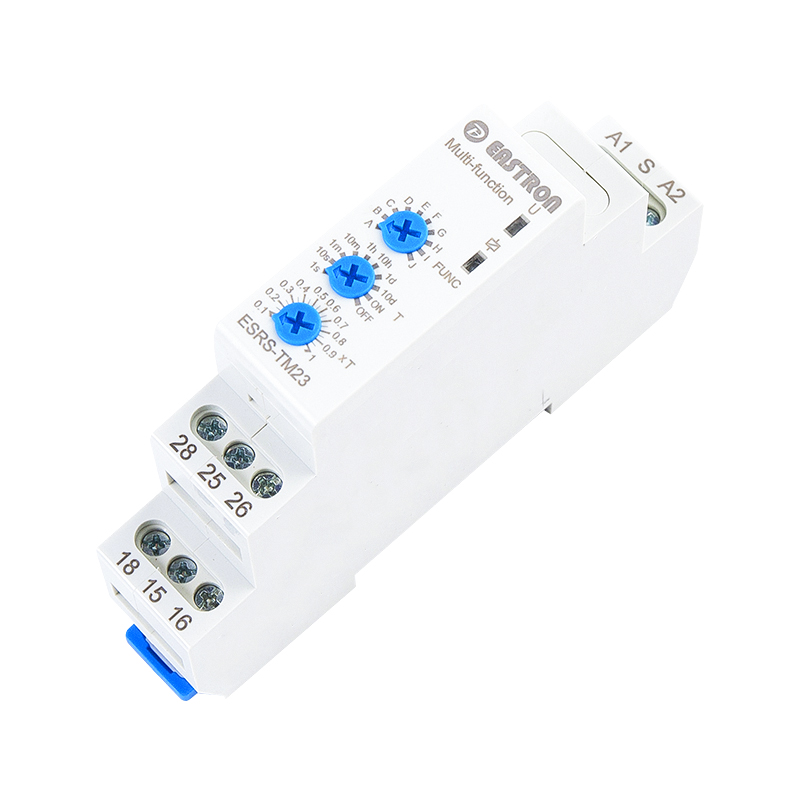

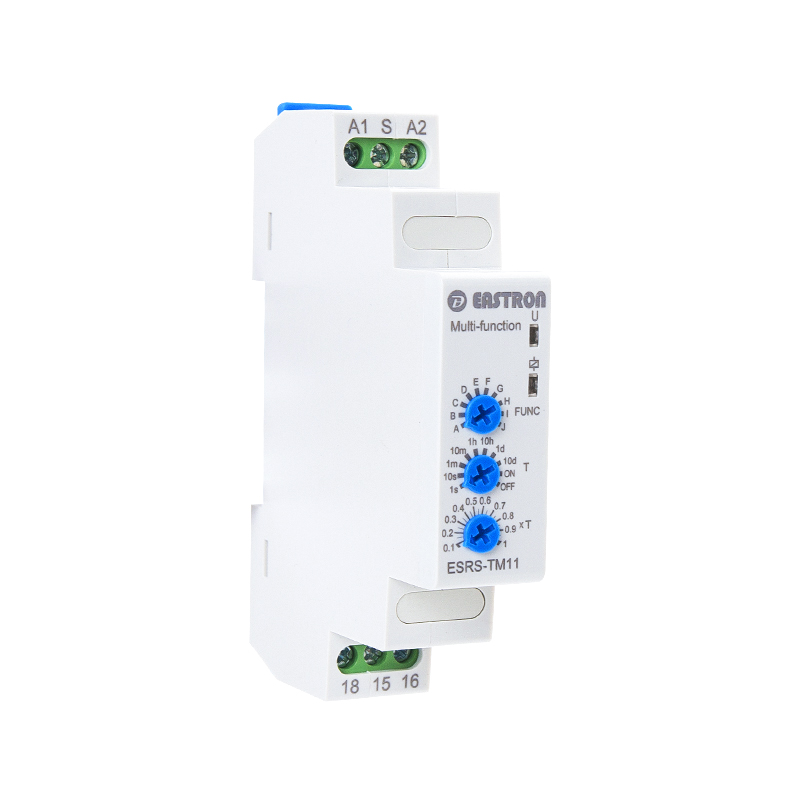

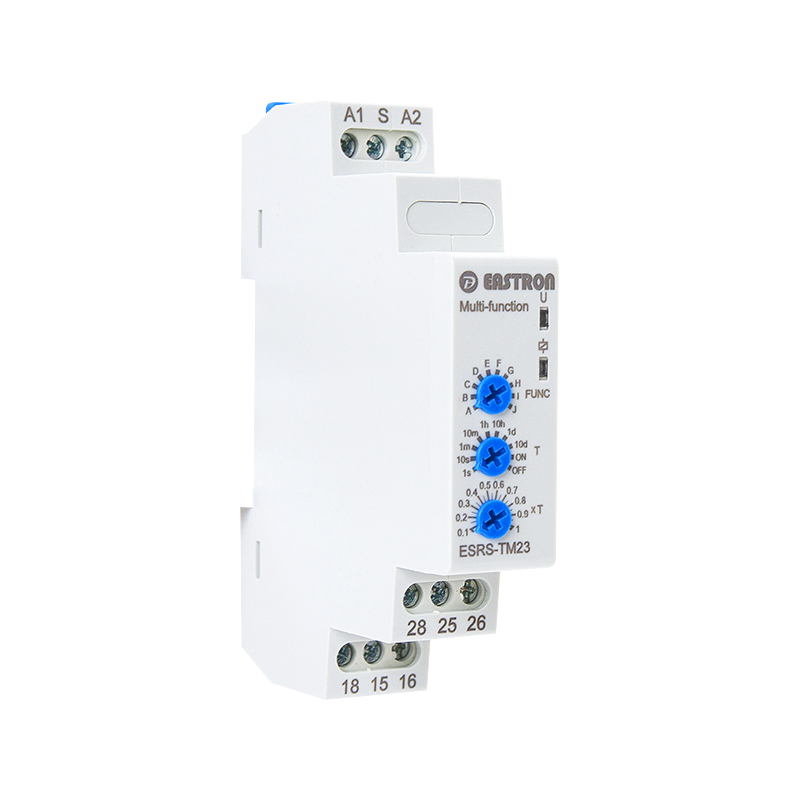

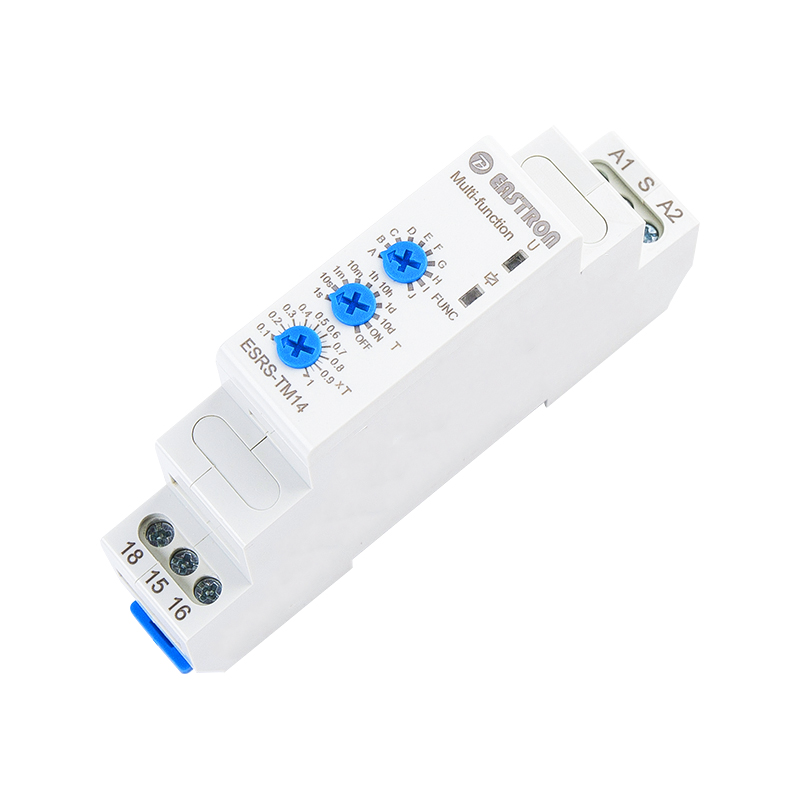

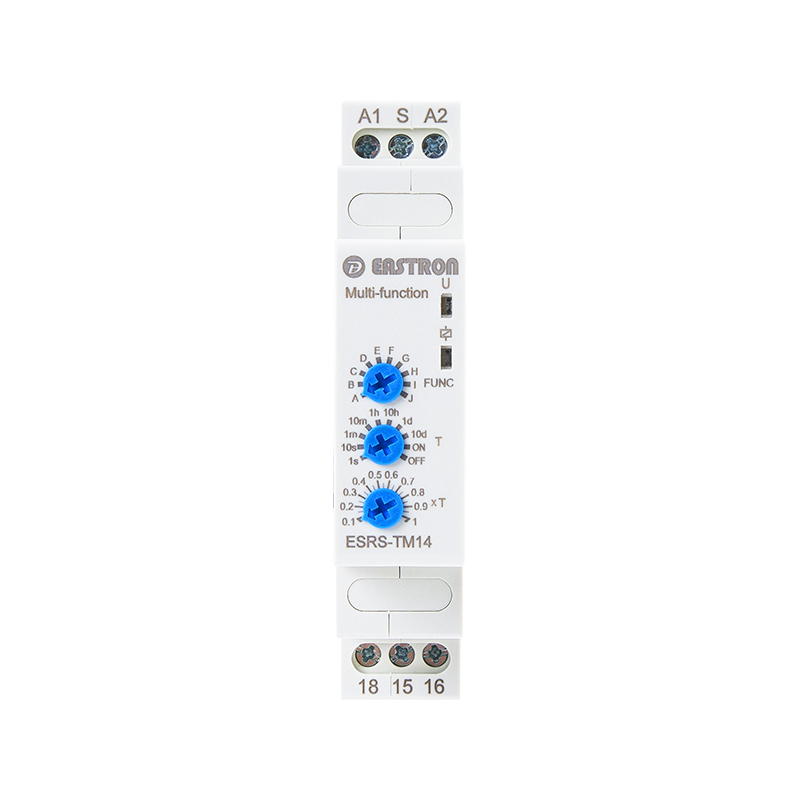

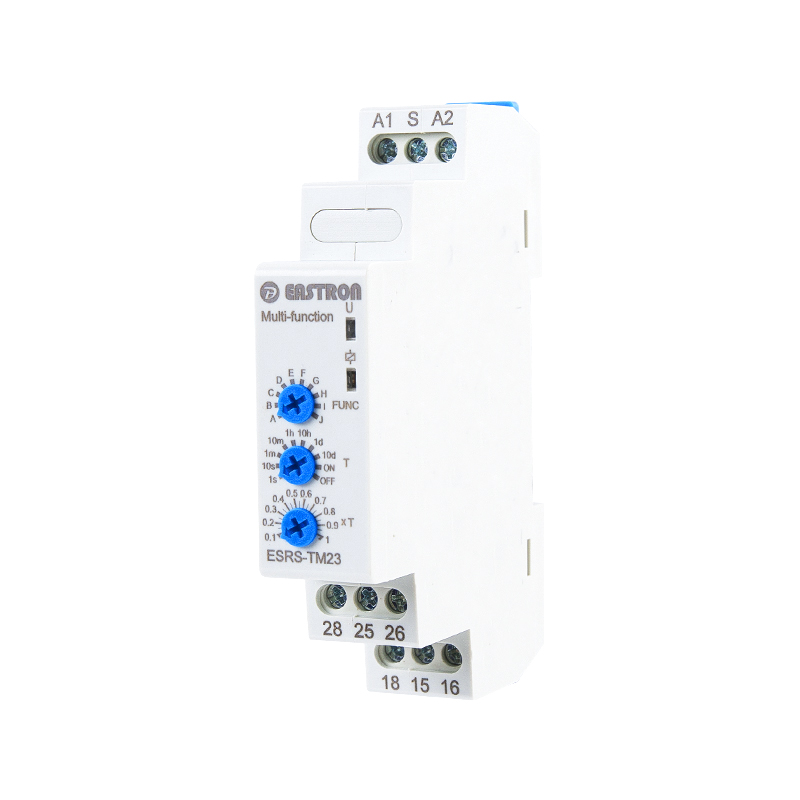

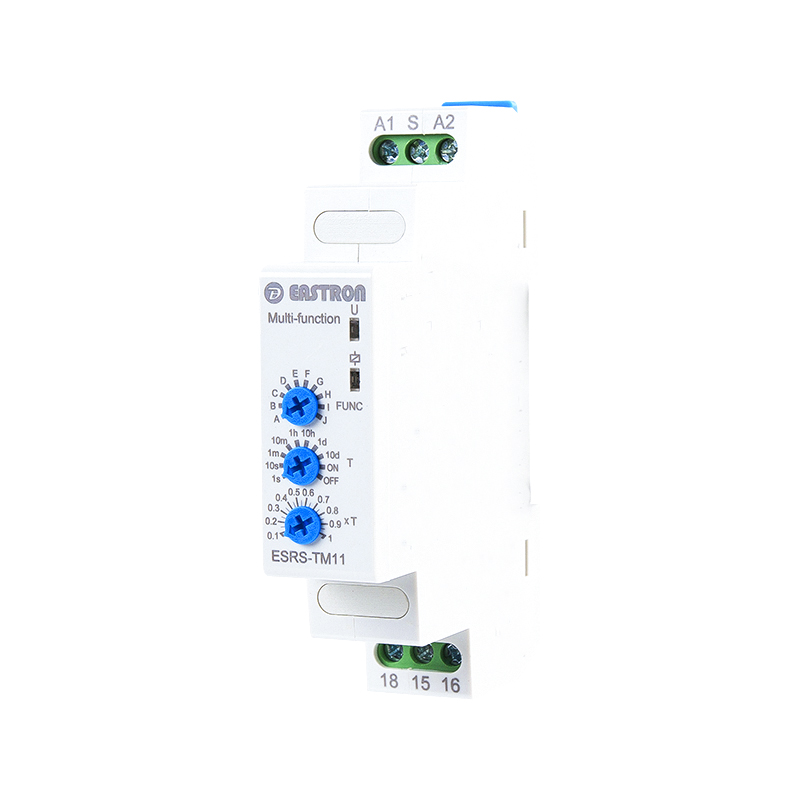

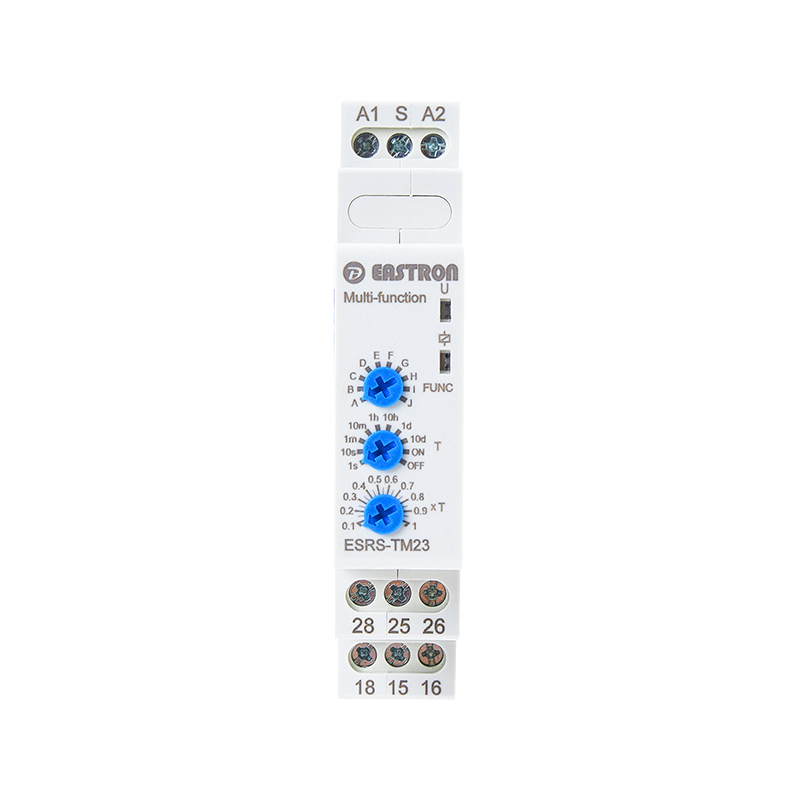

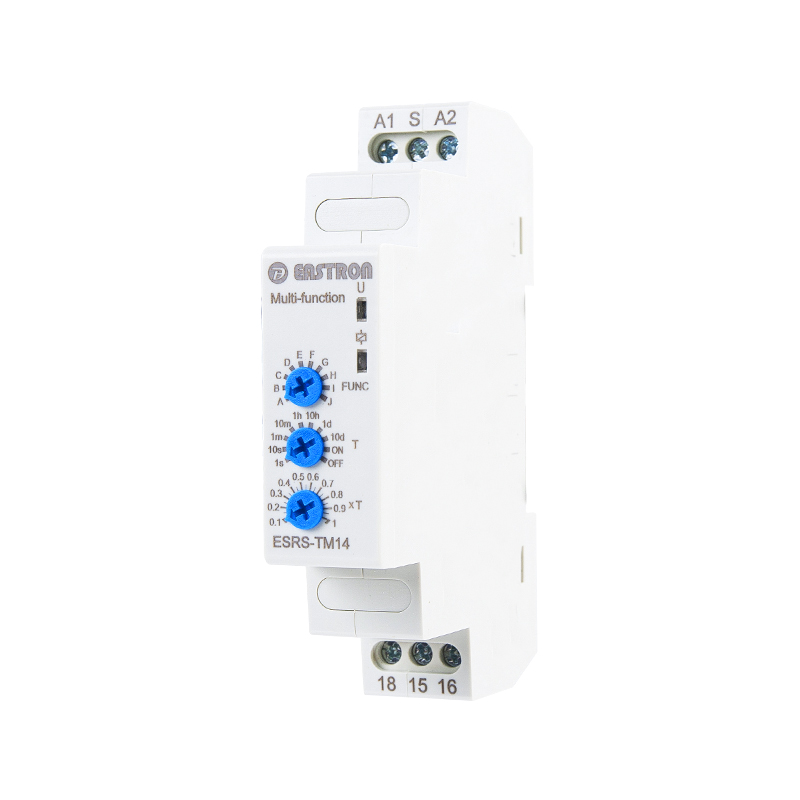

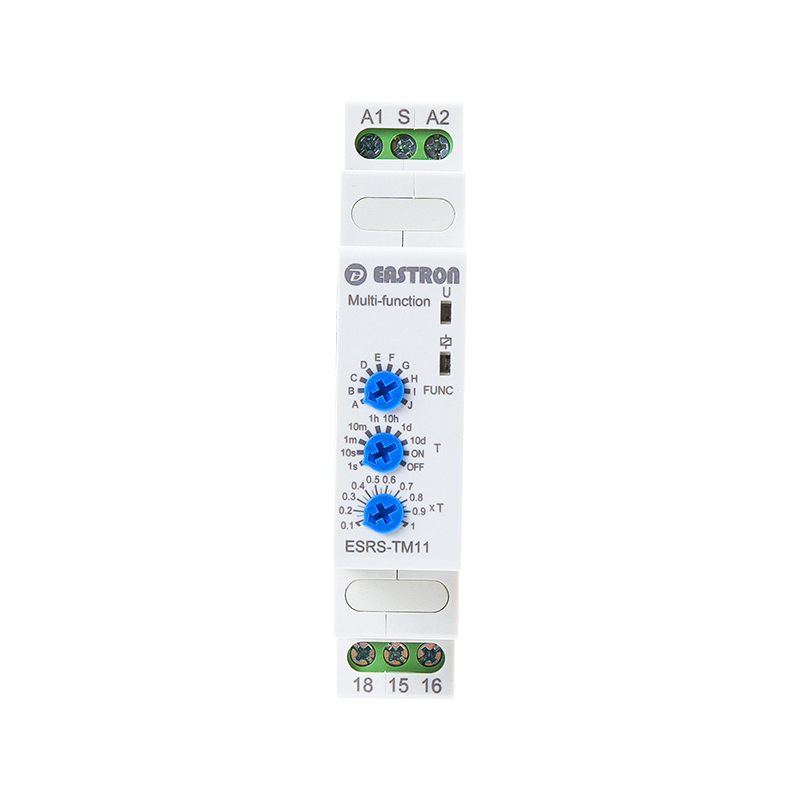

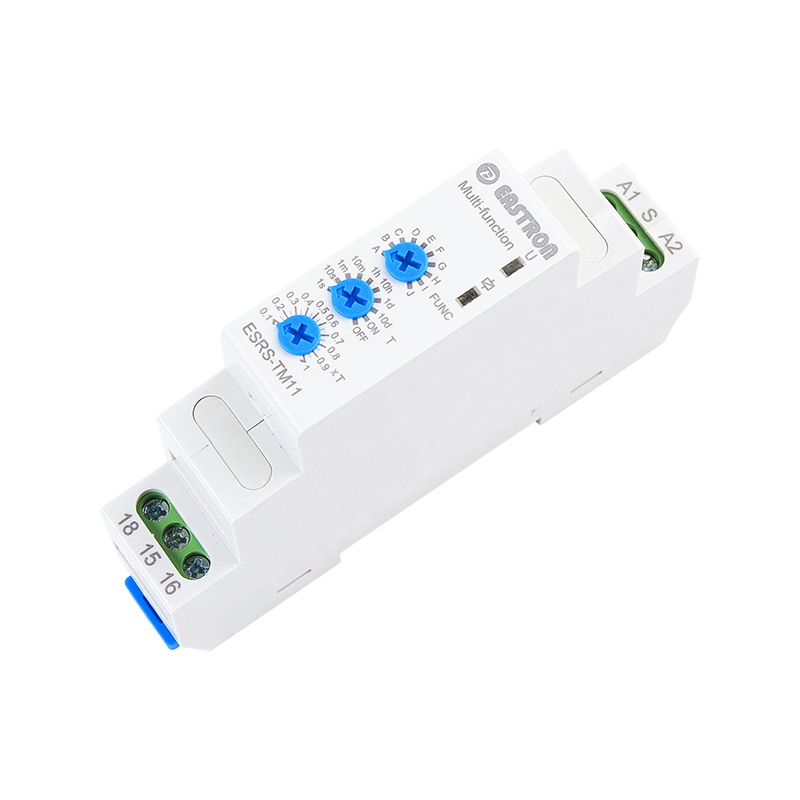

ESRS-TM11/12/14/23

Multi-function Time Relay

  • Microcontroller based
  • 10 functions
  • 10 time ranges(1s,10s,1m,10m,1h,10h,1d,10d,ON,OFF)
  • 1 changeover contact
  • LED indication for power supply and relay status
  • 1 Module Din-rail mounting

ESRD-TM series is multi-function time relay with LED indication for power supply and relay status.

It is used for the time control of industrial and domestic control systems.  It provides 10 operating modes, 10 time ranges. (1s, 10s, 1m,10m,1h, 10h,1d,10d,ON, OFF)

ESRD-TM series include 4 models: ESRD-TM11, ESRD-TM12,ESRD-TM14 and ESRD-TM23.

Technical data

Models

ESRS-TM11

ESRS-TM12

ESRS-TM14

ESRS-TM23

Supply terminals

A1,A2

A1,A2,A3

A1,A2

A1,A2

Pulse terminal

S

Supply voltage

AC220V

A1-A2:AC220V A3-A4;AC/DC 24V

AC/DC: 12-240V

AC/DC:24-240V

Rated frequency

50/60HZ

Time range

0.1s-10days

Setting accuracy

<5%

Repetition accuracy

<0.2%

Output contacts

1C/0

Current rating

8A/AC1

Contact

capacity

AC-15:2A

Insulation voltage

250V

Protection degree

IP20

Mechanical life

106

Protection degree

IP20

Pollution degree

3

Ambient temperature

-5℃>40℃

Storage temperature

-10℃~50℃

Wire size

0.5mm2 〜1mm2

Standard

IEC/EN60730-1/IEC/EN60730-2-7



Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

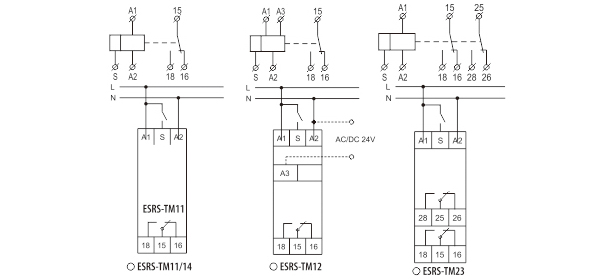

Wiring diagram

Wiring and Dimension [mm:]

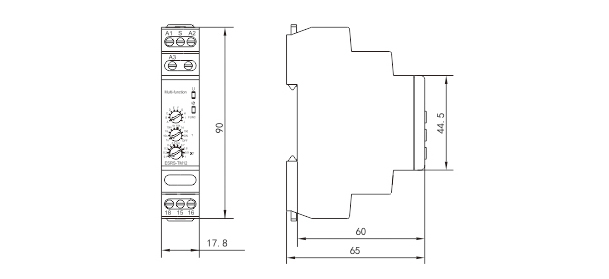

Dimensions
