2 Independent NO Contacts Digital Multi-function Time Relay

  • 2 Independent NO Contacts Digital Multi-function Time Relay
  • 2 Independent NO Contacts Digital Multi-function Time Relay
  • 2 Independent NO Contacts Digital Multi-function Time Relay
  • 2 Independent NO Contacts Digital Multi-function Time Relay
  • 2 Independent NO Contacts Digital Multi-function Time Relay
  • 2 Independent NO Contacts Digital Multi-function Time Relay
  • 2 Independent NO Contacts Digital Multi-function Time Relay
  • 2 Independent NO Contacts Digital Multi-function Time Relay
  • 2 Independent NO Contacts Digital Multi-function Time Relay
  • 2 Independent NO Contacts Digital Multi-function Time Relay

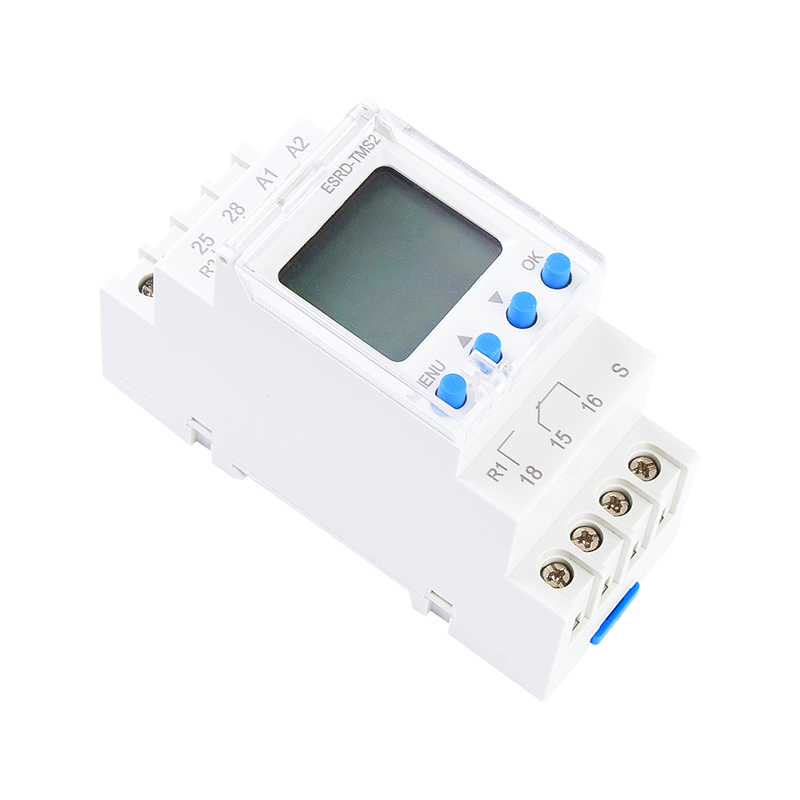

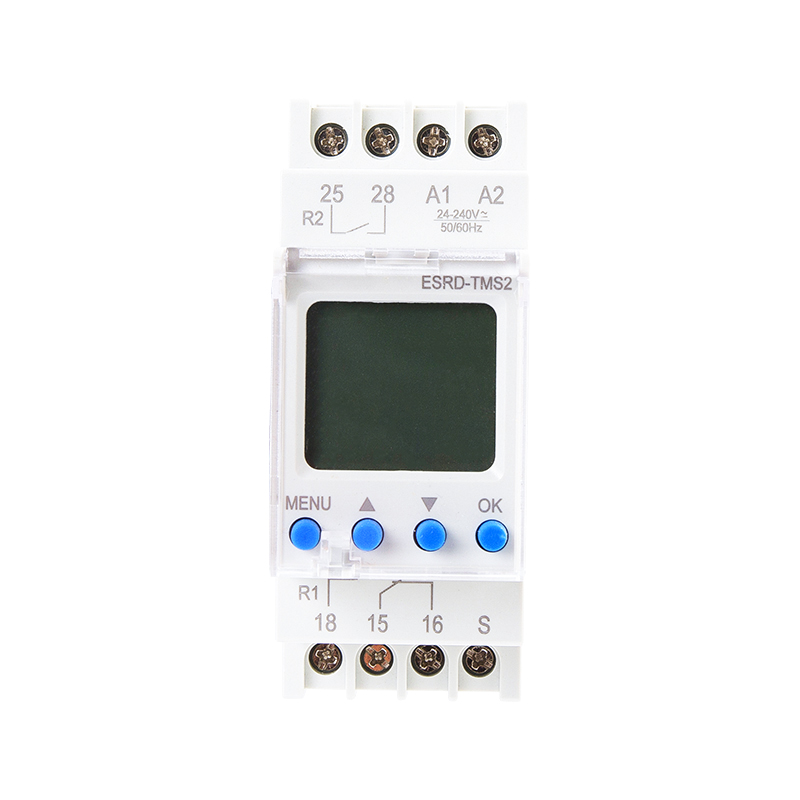

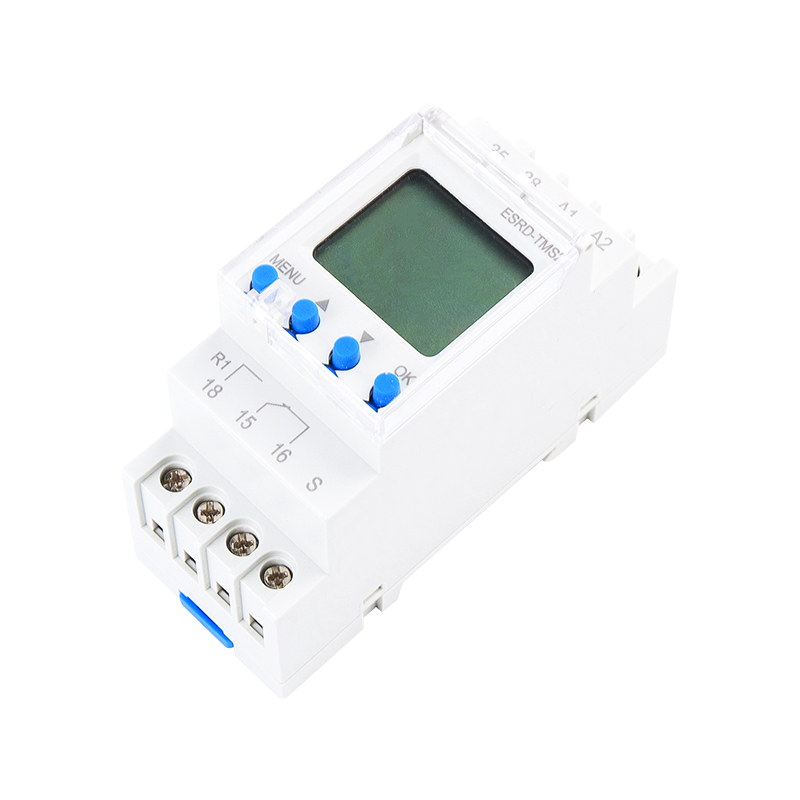

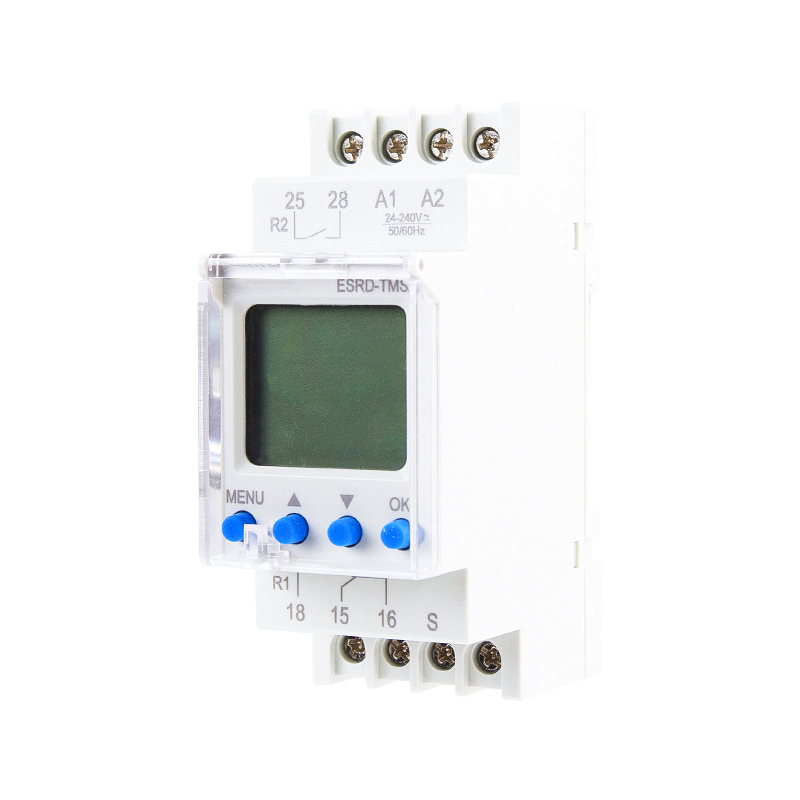

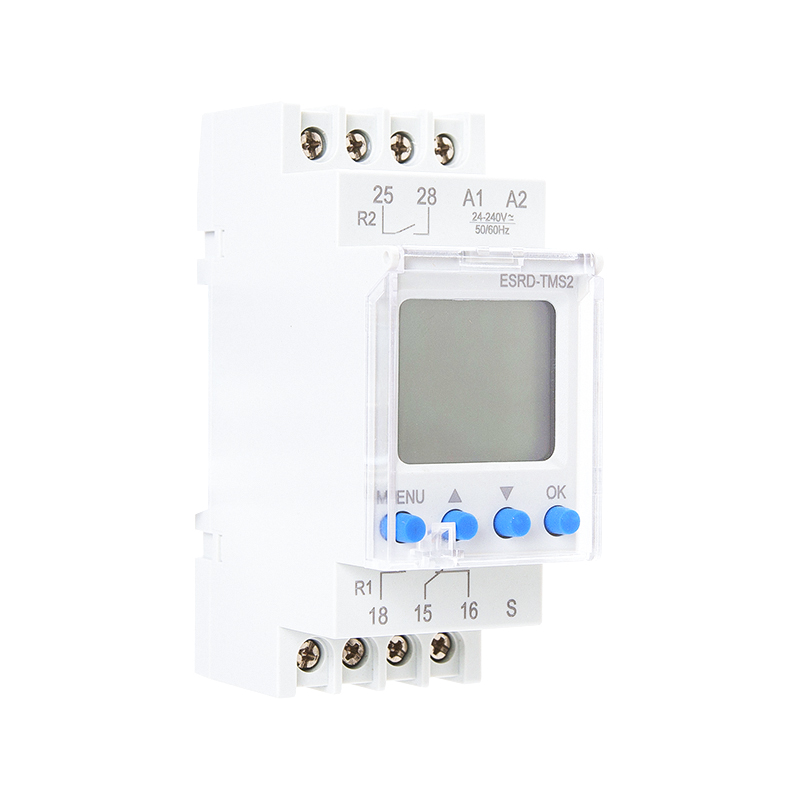

ESRD-TMS2

2 Independent NO Contacts Digital Multi-function Time Relay

  • Microcontroller based
  • 24 functions
  • LCD display functions,set delay and operating time
  • Time ranges:0-9999s,0-9999min
  • AC/DC 24-240V supply voltage
  • 2 independent NO contacts, can be controlled by differentoperating modes.
  • Backlighted LCD display
  • Easy to set by keys
  • 2 module Din-rail mounting
ESRD-TMS2 is a 2 Independent NO Contacts Digital multi-function time relay with backlit for easy reading. It is used to time control of industrial and domestic control systems.
It has 24 functions operating modes. With 4 buttons, easy to set and operate. It provides 2 independent No contacts, controlled by different operating modes.

Technical data

Supply terminals

A1-A2

Pulse terminal

S

Supply voltage

AC/DC 24-240V

Time range

0-9999s, 0-9999min

Repetition accuracy

max.±3s/24h 25V

Data readout

Back-lighted LCD display

Data storage

10 years

Output contacts

1C/0 + 1 NO

Current rating

8A/AC1

Contact capacity

AC-15:2A

Insulation voltage

250V

Protection degree

IP20

Mechanical life

106

Protection degree

IP20

Pollution degree

3

Ambient temperature

-5℃~40℃

Storage temperature

-10℃~50℃

Wire size

0.5mm2 〜1mm2

Standard

IEC/EN60730-1/IEC/EN60730-2-7



Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

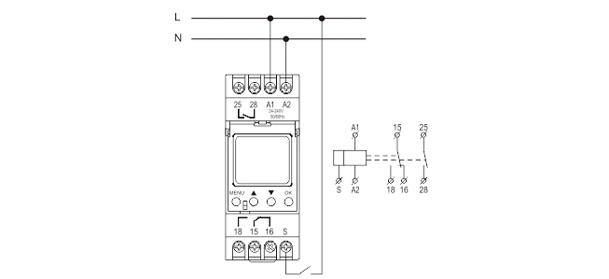

Wiring diagram

Wiring and Dimension [mm:]

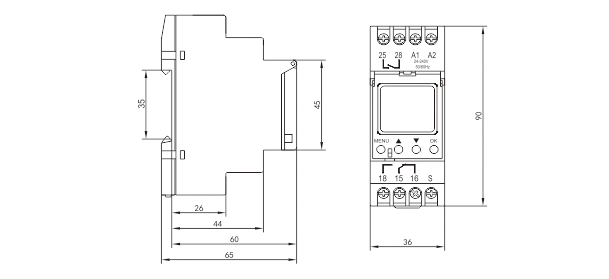

Dimensions
