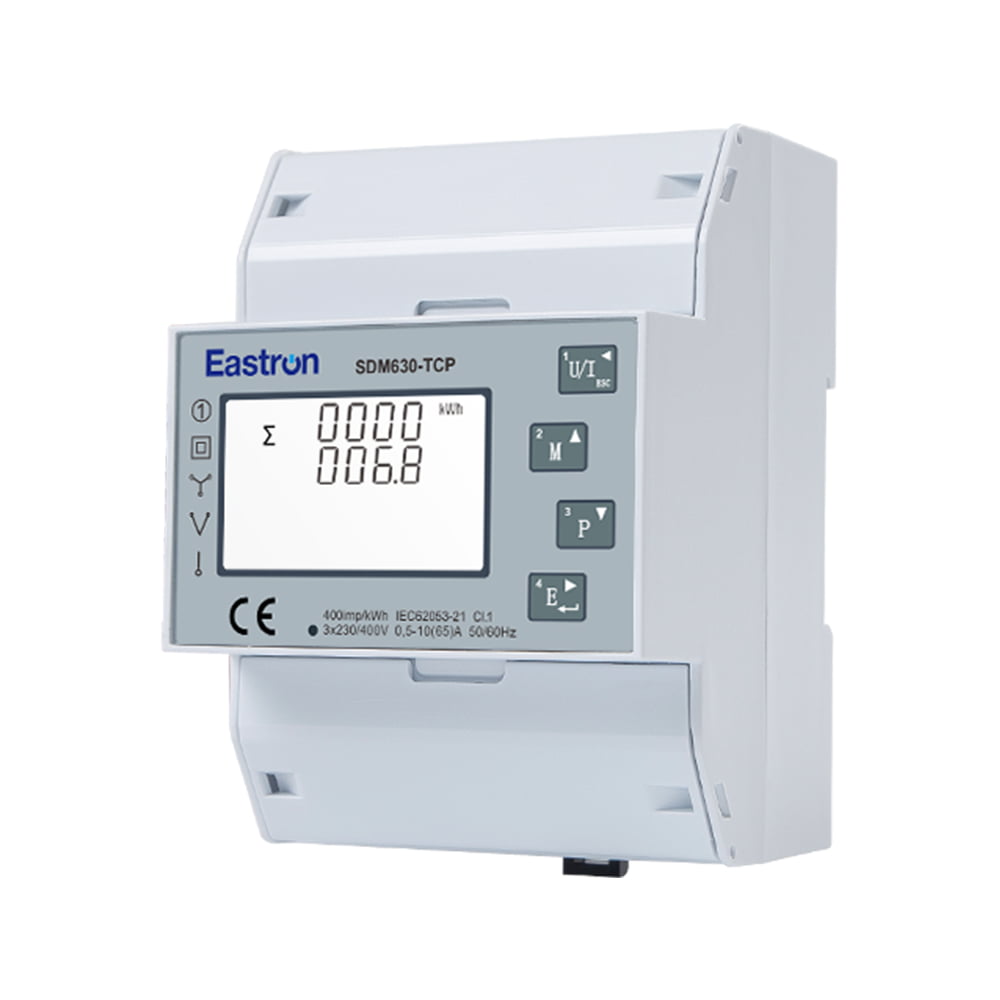

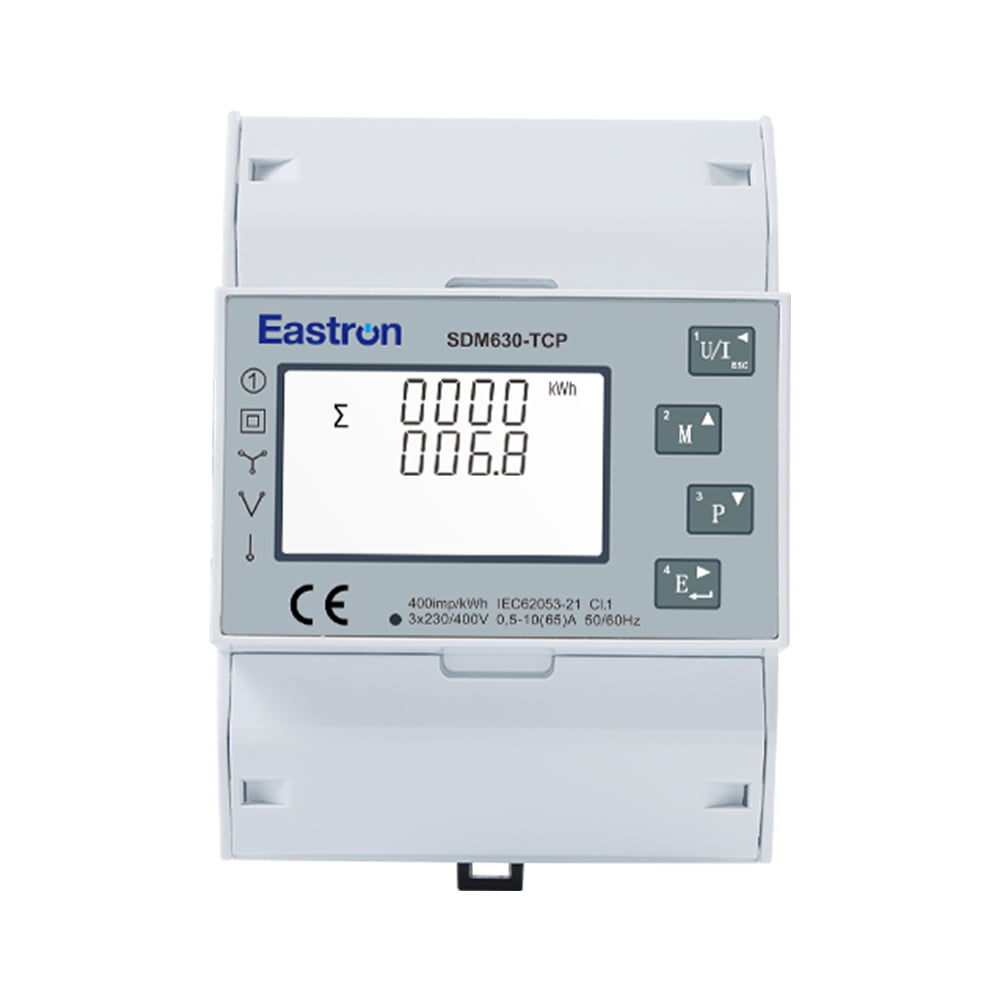

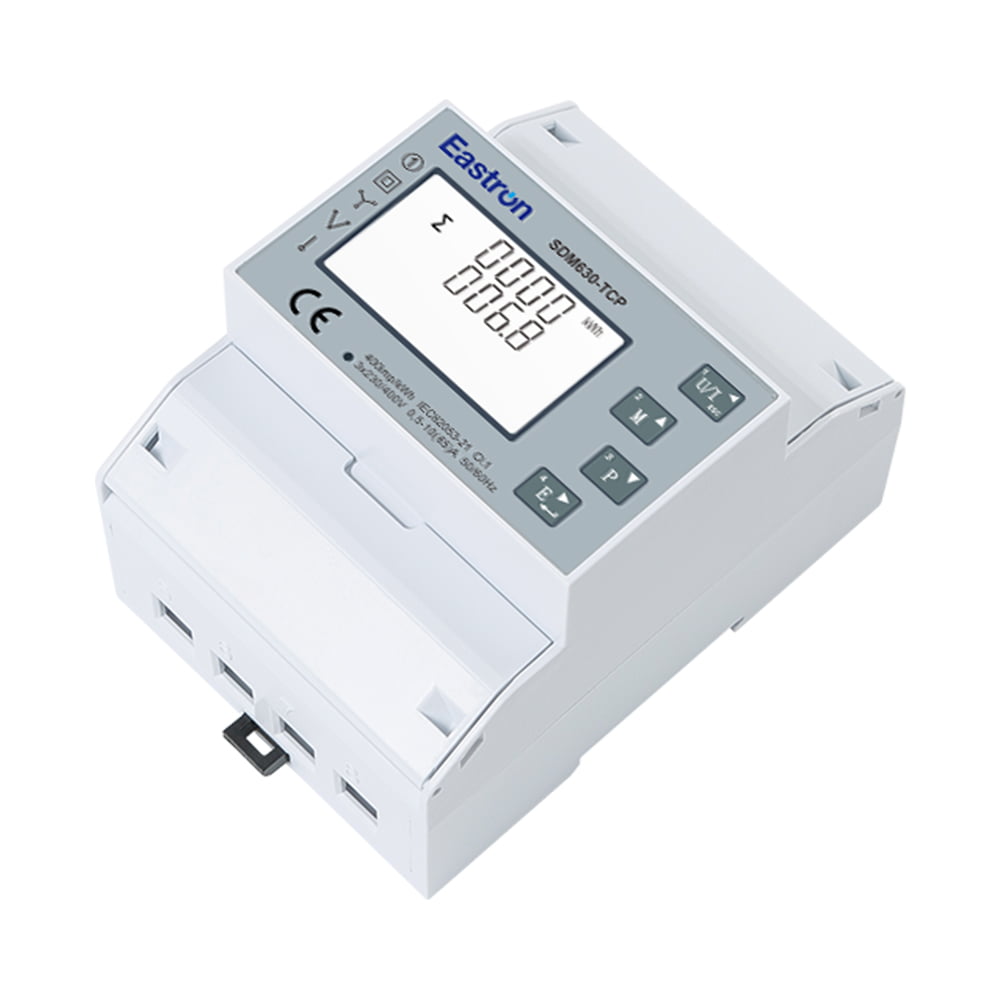

SDM630-TCP

Ethernet Modbus TCP Din Rail Three Phase UL Energy Meter

Max.100A Direct Load
Work with 3P4W/3P3W/1P2W
4 Module 72mm wide
Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,
Bi-directional measurement
Ethernet TCP communication
UL Certified

(86)573-83698881

SDM630-TCP is a ethernet modbus TCP din rail three phase UL energy meter.

The meter can work with 1p2w, 3p3w, 3p4w electricity grid. It provides all important electrical parameters: voltage, current, power, PF, THD, frequency, demand, energy etc.

The meter supports max.100A direct connection, saving the cost and avoiding the trouble to connect external CTs, giving the unit a cost-effective and easy operation. The meter SDM630-TCP is equipped with a Ethernet communication port and MODBUS-TCP protocol is adopted for remote reading and programming.

Electrical Characteristics
Type of Measurement	RMS including harmonics on three phase AC system (3P, 3P+N)
Measurement Accuracy	Voltage	±0.5%
	Current	±0.5%
	Frequency	±0.2%
	Power Factor	±1%
	Active Power	±1%
	Reactive Power	±1%
	Apparent Power	±1%
	Active Energy	Class 1.0 IEC 62053-21 Class B EN50470-3
	Reactive Energy	Class 2 IEC62053-23

Input & Output
Input	Current	Rated Current (Ib/Iref)	10A
		Max Current(Imax.)	100A
		Min Current(Imin.)	0.3A
		Starting Current	40mA
	Voltage	Rated Voltage (Un)	230V L-N / 120V L-N
		Operational Voltage	80%~120% of Un
Output	SDM630-P	2 Pulse Outputs for imp/exp. energy
	SDM630-M / MT	2 Pulse Outputs + RS485 Modbus
	SDM630-MB	2 Pulse Outputs + M-bus EN13757
	SDM630-2T	2 Pulse Outputs+ RS485 Modbus + 2 Tariffs (Dual Power Source)
	SDM630-MB-2T	2 Pulse Outputs + M-bus EN13757 + 2 Tariffs (Dual Power Source)
	SDM630M-DI	2 Pulse Outputs+ RS485 Modbus + Digital Input
	SDM630-TCP	Ethernet Modbus TCP

RS485 Modbus Communications
Communication Address	1~247
Transmission Distance	1000m Maximum
Transmission Speed	2400bps~38400bps
Parity	None (default), Odd, Even
Stop Bits	1 or 2
Response Time	<100 mS

M-Bus EN13757-3 Communications
Communication Address	1~250
Transmission Distance	1000m Maximum
Baud Rate	300bps~9600bps
Parity	None (default), Odd, Even
Stop Bits	1 or 2

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
