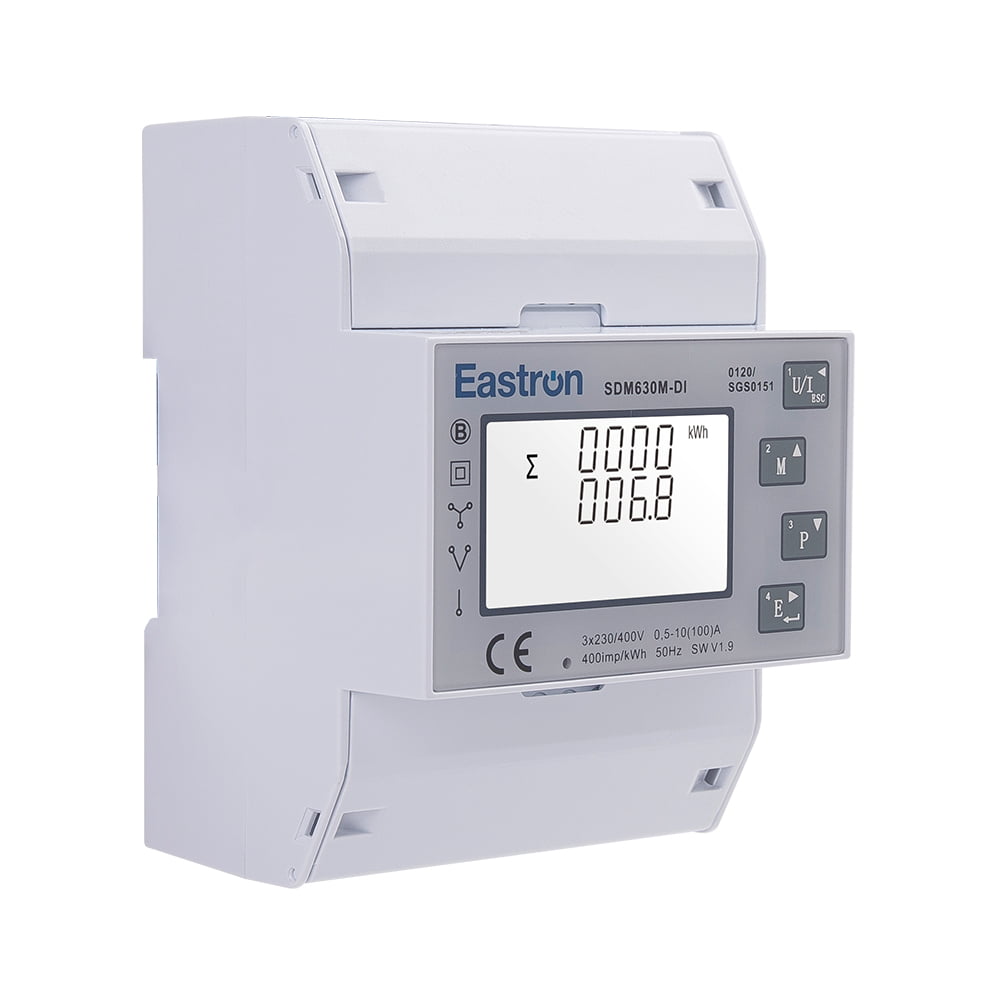

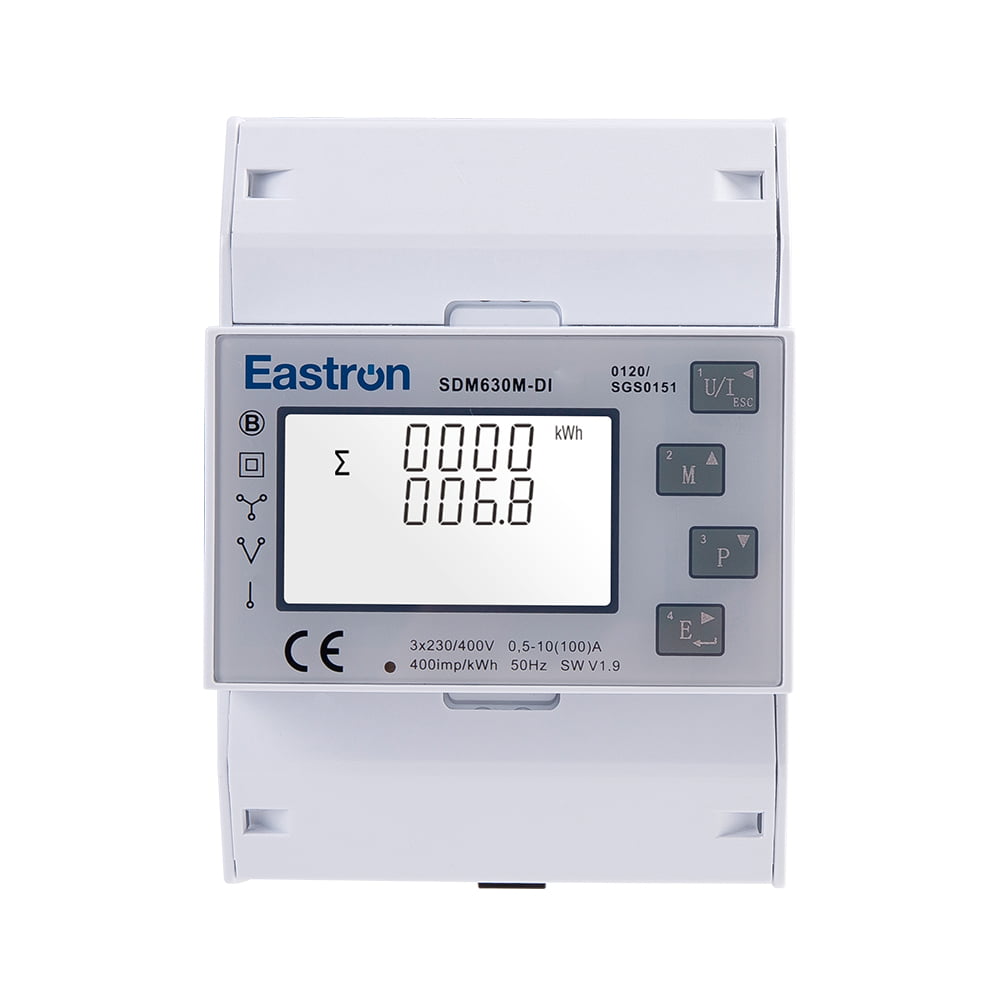

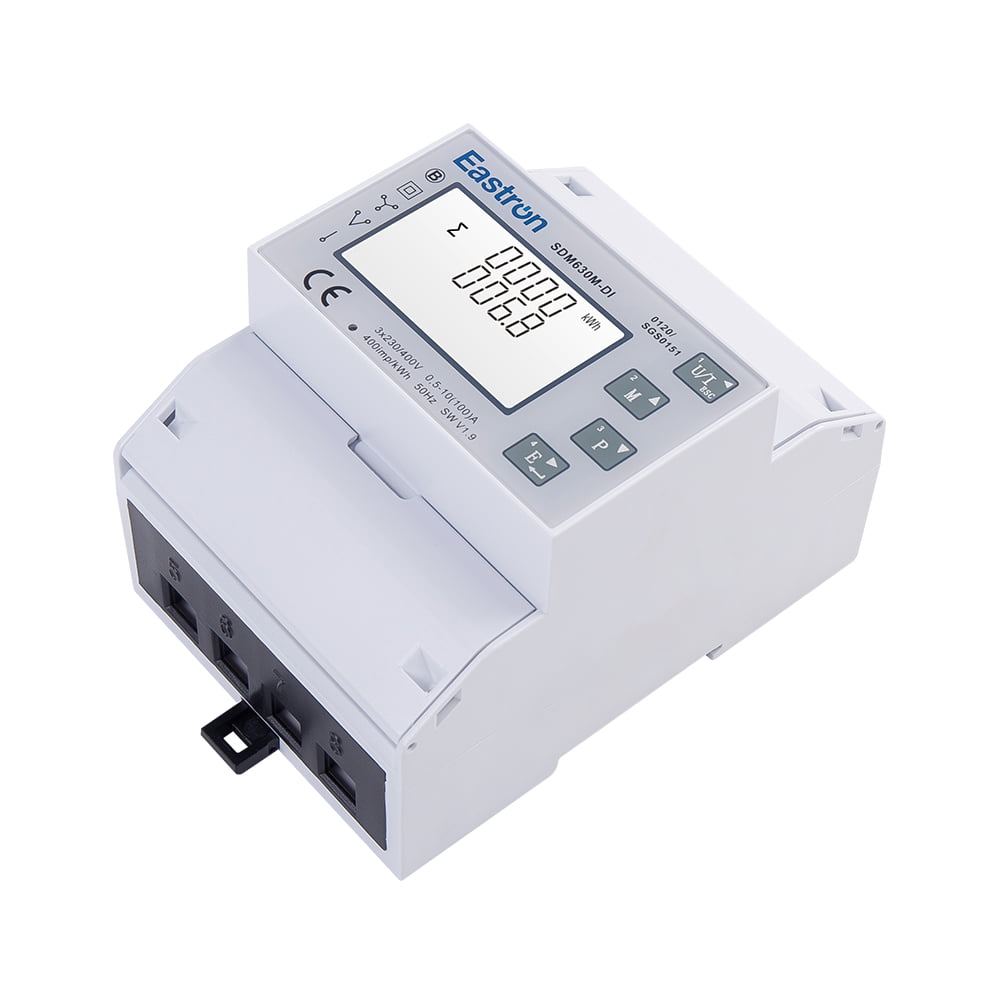

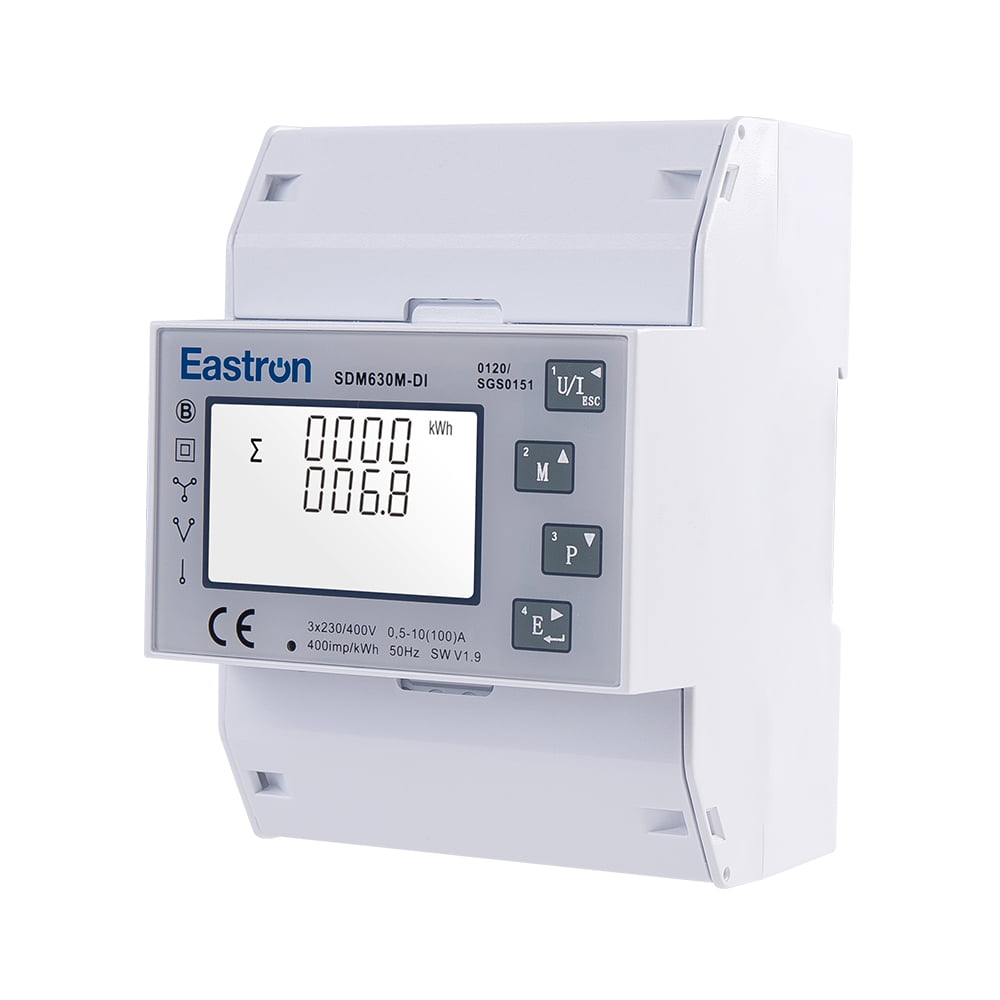

SDM630-DI

Digital Input RS485 Modbus Din Rail Three Phase UL Energy Meter

Max. 100A direct load
Work with 3P4W/3P3W/1P2W
4 Module 72mm wide
Multi-measurement: kWh,kVarh,W,Var,VA,V,A,PF,THD,Hz,Max.DMD,ect.
Bi-directional measurement
2 Digital Inputs
RS485 Modbus
UL Certified

(86)573-83698881

SDM630-DI is Digital Input RS485 Modbus Din Rail Three Phase UL Energy Meter.

This unit measures and displays the characteristics of Single Phase Two Wire (1P2W), Three Phase Three Wire (3P3W) and Three Phase Four Wire (3P4W) networks. The measuring parameters include voltage (V), current (A), frequency (Hz), power(kW/kVA/kVAr), power factor (PF), imported, exported and total energy (kWh/kVArh). The unit also measures Maximum demand current and power, which is measured over preset periods of up to 60 minutes.

SDM630-DI also comes with a complete comms capability with built-in RS485 Modbus RTU outputs and 2 digital inputs. This unit supports Max. 100A direct connection. Configuration is password protected.

The meter has been assessed and certified as meeting the requirements of UL 61010.

Electrical Characteristics
Type of Measurement	RMS including harmonics on three phase AC system (3P, 3P+N)
Measurement Accuracy	Voltage	±0.5%
	Current	±0.5%
	Frequency	±0.2%
	Power Factor	±0.01
	Active Power	±1%
	Reactive Power	±1%
	Apparent Power	±1%
	Active Energy	Class 1/0.5 IEC 62053-21 Class B/C EN50470-3
	Reactive Energy	Class 2 IEC 62053-23

Input & Output
Input	Current	Rated Current (Ib/Iref)	10A
		Max Current(Imax.)	100A
		Min Current(Imin.)	0.3A
		Starting Current	40mA
	Voltage	Rated Voltage (Un)	3*230/400V AC
		Operational Voltage	80%~120% of Un
Output	SDM630-P	2 Pulse Outputs for imp/exp. energy
	SDM630-M / MT	2 Pulse Outputs + RS485 Modbus
	SDM630-MB	2 Pulse Outputs + M-bus EN13757
	SDM630-2T	2 Pulse Outputs+ RS485 Modbus + 2 Tariffs (Dual Power Source)
	SDM630-MB-2T	2 Pulse Outputs + M-bus EN13757 + 2 Tariffs (Dual Power Source)
	SDM630-DI	2 Pulse Outputs+ RS485 Modbus + Digital Input

RS485 Modbus Communications
Communication Address	1~247
Transmission Distance	1000m Maximum
Transmission Speed	2400bps~115200bps
Parity	None (default), Odd, Even
Stop Bits	1 or 2
Response Time	<100 mS

M-Bus EN13757-3 Communications
Communication Address	1~250
Transmission Distance	1000m Maximum
Baud Rate	300bps~9600bps
Parity	None (default), Odd, Even
Stop Bits	1 or 2

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
