CT Operated Mbus Din Rail Three Phase UL Energy Meter

  • CT Operated Mbus Din Rail Three Phase UL Energy Meter
  • CT Operated Mbus Din Rail Three Phase UL Energy Meter
  • CT Operated Mbus Din Rail Three Phase UL Energy Meter
  • CT Operated Mbus Din Rail Three Phase UL Energy Meter
  • CT Operated Mbus Din Rail Three Phase UL Energy Meter
  • CT Operated Mbus Din Rail Three Phase UL Energy Meter

SDM630MCT-MB

CT Operated Mbus Din Rail Three Phase UL Energy Meter

  • CT & PT operated
  • Work with 3P4W/3P3W/1P2W
  • 4 Module 72mm wide
  • Multi-measurement
  • kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,etc.
  • Bi-directional measurement
  • Mbus communication
  • 2 Pulse outputs

SDM630MCT-MB

THREE PHASE MULTI-FUNCTION ENERGY METER

The SDM630MCT-MB is CT Operated Mbus Din Rail Three Phase UL Energy Meter. Suitable for monitoring energy consumption and many other electrical parameters.The unit requires auxiliary power supply (AC or DC) to power the meter and it can work with 1A/5A input CTs. Build-in interface provides pulse and Mbus RTU outputs.

SDM630MCT-MB has been assessed and certified as meeting the requirements of UL 61010.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Voltage

±0.5%

Current

±0.5%

Frequency

±0.2%

Power Factor

±1%

Active Power

±1%

Reactive Power

±1%

Apparent Power

±1%

Active Energy

Class 0.5 IEC 62053-21

Reactive Energy

Class 2 IEC 62053-23

Input & Output

Input

Current



CT Secondary

1A/5A

CT Primary

1-9999A

Min Current

0.05A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output




SDM630MCT/ MT

2 Pulse Outputs + RS485 Modbus

SDM630MCT-2T

2 Pulse Outputs + RS485 Modbus + 2T (Dual Power Source)

SDM630MCT-MB

2 Pulse Outputs + M-bus EN13757

SDM630MCT-LoRa

2 Pulse Outputs + LoraWAN

SDM630MCT-MB-2T

2 Pulse Outputs + M-bus EN13757 + 2T (Dual Power Source)

RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

2400bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



LoRaWAN Communications

Communication Frequency

EU868/ AS923/ AU915/ US915, etc.

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

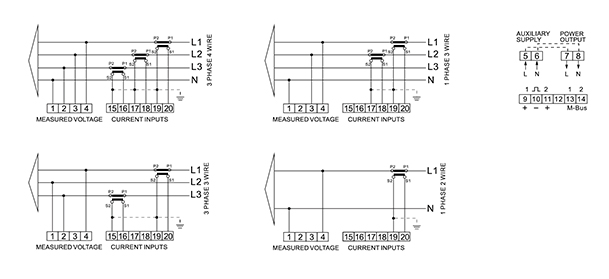

Wiring diagram

Wiring and Dimension [mm:]

Dimensions

Eastron Electronic Co., Ltd.

Eastron Electronic Co., Ltd. headquartered in Jiaxing, China, near to Shanghai, Hangzhou, Jiangsu, is one of the leading high-tech manufacturer and supplier for electricity products and energy measurement solutions. Over the years, we have developed a rich range of electricity meters, sensors, communication modules and management systems.Custom Manufacturers of CT Operated Mbus Din Rail Three Phase UL Energy Meter.

Eastron keeps investing on the research and development of new technology and new products on electricity metering. We have energetic and innovative development teams in both China and UK,which help us keep the competitive edge in the market. The collaboration with leading universities and institutions also brings many cutting-edge technology into our products. To make sure the reliability of the products, Eastron has setup own professional lab that can performs EMC, LVD, accuracy and environment tests according to IEC, EN, GB, UL standards.

With more than 40 patented technologies on software, embedded software and hardware, Eastron has been awarded with “High-tech Enterprise” and “High-tech R&D Centre of Electricity Application”. Eastron strictly follows ISO 9001 Quality management system, and the production is approved by SGS according to MID standard.Suppliers and Factory of CT Operated Mbus Din Rail Three Phase UL Energy Meter

Creating value to and growing up with our partners is our mission. Eastron provides not only the high quality and innovative products, but also first-class service to all our customers. We have professional team for technical supports and aftersales services. We have provided products and services to more than 50 countries in Europe, Asia-Pacific, America, Middle East, and Africa. We pride ourselves on having long-term partners globally that allows us to further our growth and bring our innovation and quality to the market.
