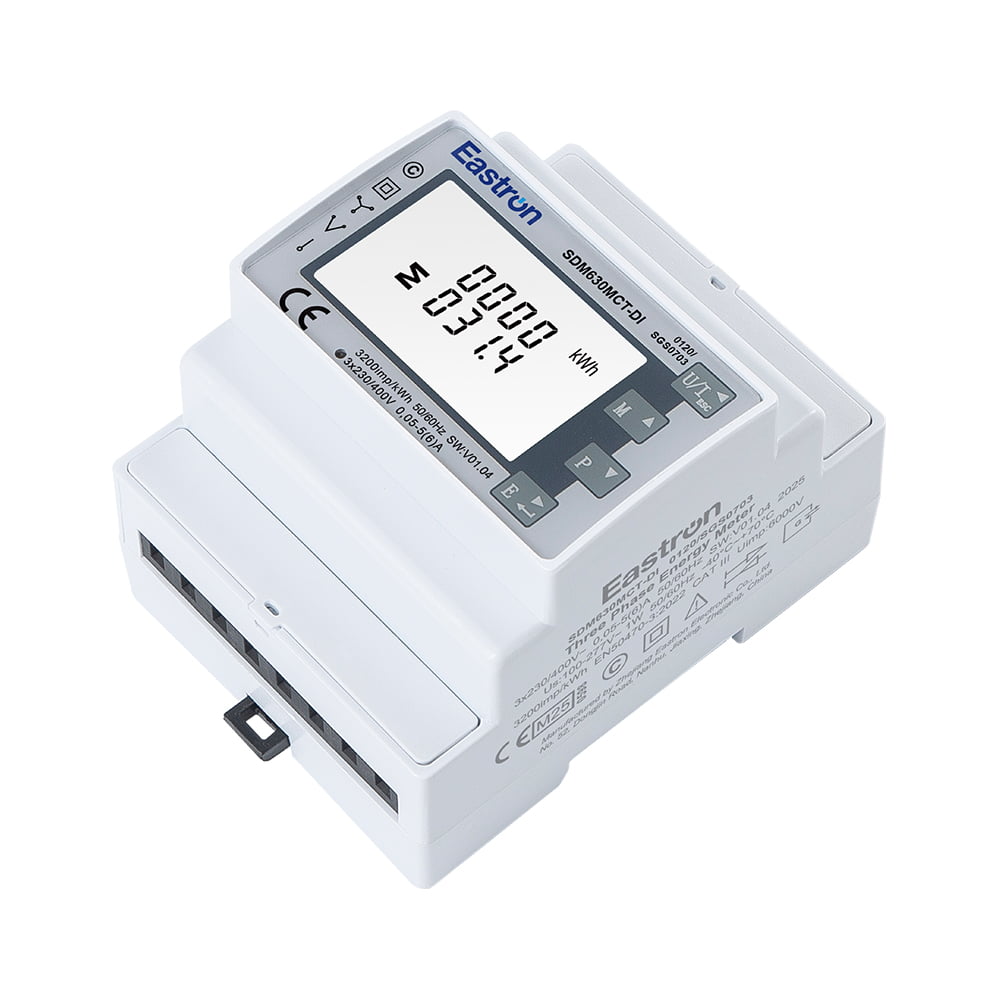

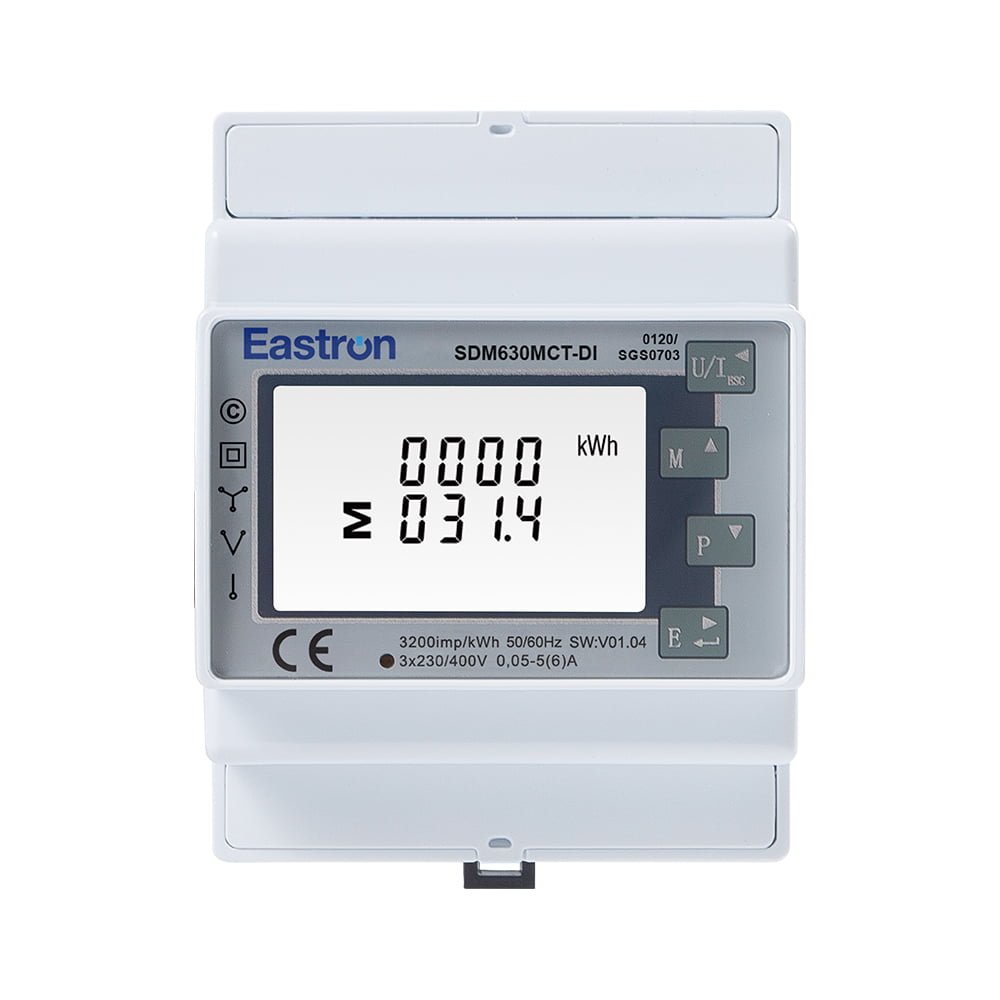

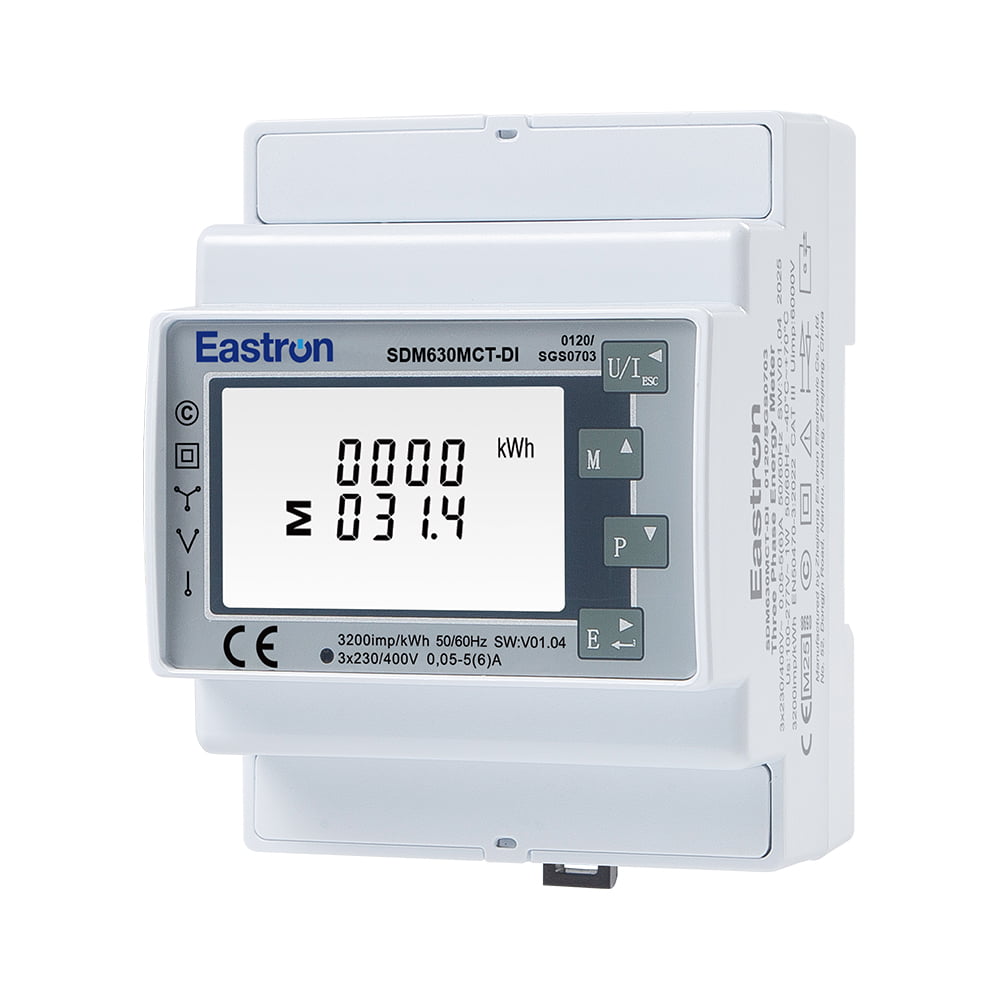

SDM630MCT-DI

CT Operated Digital Input RS485 Din Rail Three Phase UL Energy Meter

CT & PT operated
Work with 3P4W/3P3W/1P2W
4 Module 72mm wide
Multi-measurement
kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,etc.
Bi-directional measurement
2 Digital Inputs
RS485 Modbus

400-996-9296

The SDM630MCT-DI is CT Operated Digital Input RS485 Din Rail Three Phase UL Energy Meter. This unit measures and displays the characteristics of 1P2W, 3P3W and 3P4W networks. The measuring parameters include voltage (V), current (A), frequency (Hz), power(kW/kVA/kVAr), power factor (PF), imported, exported and total energy (kWh/kVArh).

SDM630MCT-DI also comes with a complete comms capability with built-in RS485 Modbus RTU outputs and 2 digital inputs.

The requisite current input(S) are obtained via 1A/5A output current transformers (CT), this meter can be configured to work with a wide range of CTs, giving the unit a wide range of opration. Configuration is password protected.

SDM630MCT-DI has been assessed and certified as meeting the requirements of UL 61010.

Electrical Characteristics
Type of Measurement	RMS including harmonics on three phase AC system (3P, 3P+N)
Measurement Accuracy	Voltage	±0.5%
	Current	±0.5%
	Frequency	±0.2%
	Power Factor	±1%
	Active Power	±1%
	Reactive Power	±1%
	Apparent Power	±1%
	Active Energy	Class 0.5 IEC 62053-21
	Reactive Energy	Class 2 IEC62053-23

Input & Output
Input	Current	CT Secondary	1A/5A
		CT Primary	1-9999A
		Min Current	0.25A
		Starting Current	20mA
	Voltage	Rated Voltage (Un)	230V L-N / 120V L-N
	Voltage	Operational Voltage	80%~120% of Un
Output	SDM630MCT-DI	2 Digital Inputs + RS485 Modbus

RS485 Modbus Communications
Communication Address	1~247
Transmission Distance	1000m Maximum
Transmission Speed	2400bps~38400bps
Parity	None (default), Odd, Even
Stop Bits	1 or 2
Response Time	<100 mS
