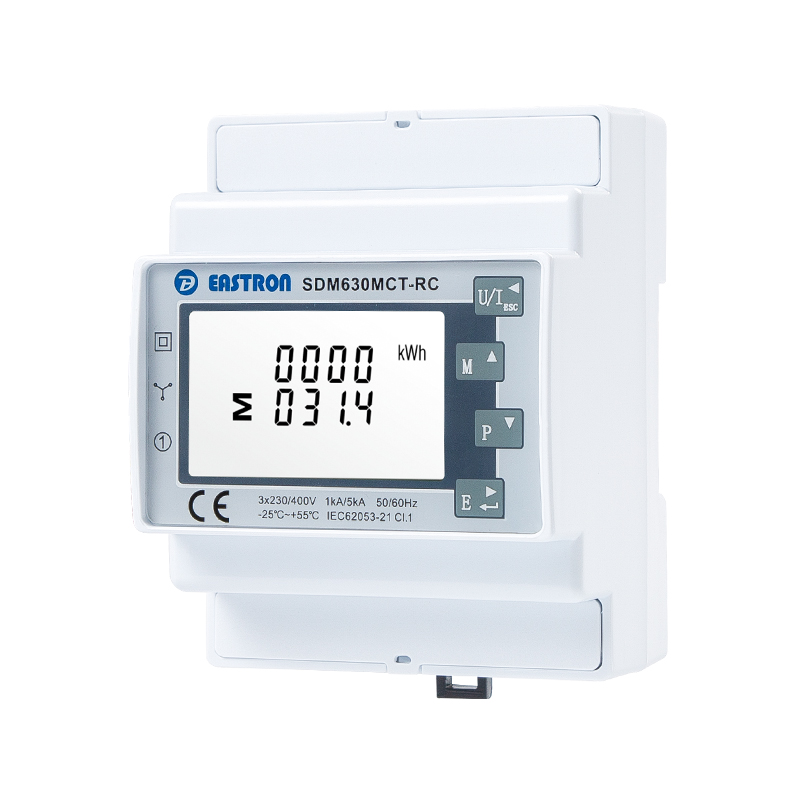

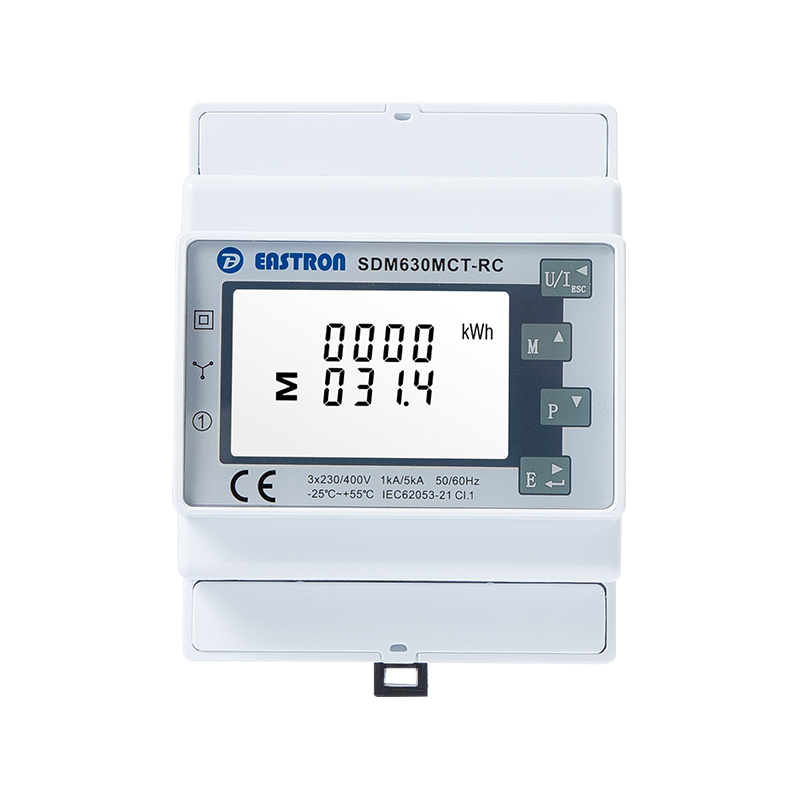

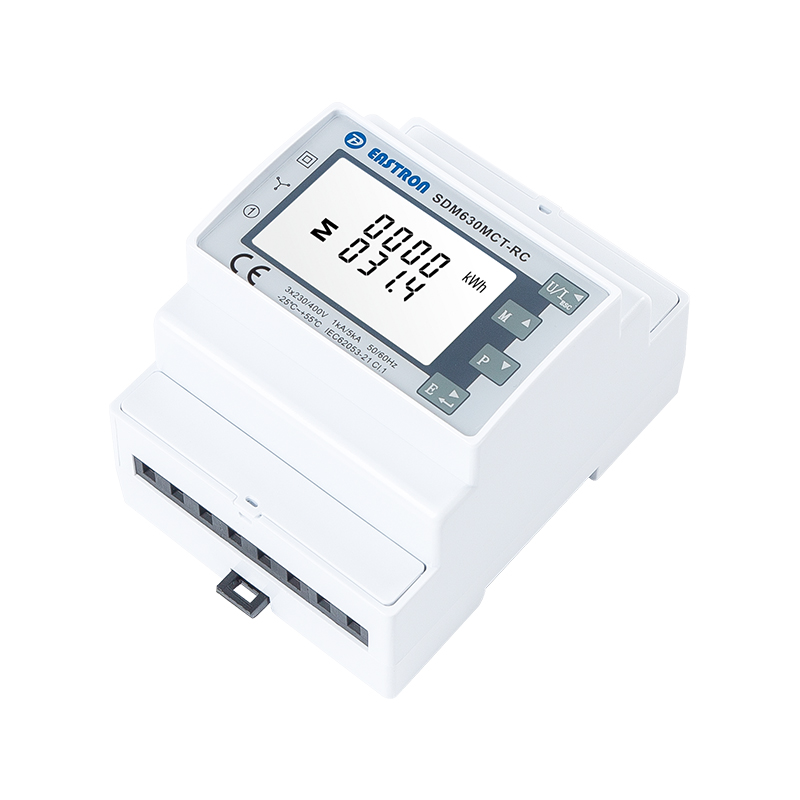

The SDM630MCT-RC is Rogowski Coil Connect RS485 Modbus Din Rail Three Phase Multi-function Energy Meter. Suitable for monitoring energy consumption and many other electrical parameters.The unit requires auxiliary power supply (AC or DC) to power the meter and it can work with 1A/5A input CTs. Built-in interface provides RS485 port for Modbus RTU communication.The meter directly connects with Rogowski coils for current measurement without integrator.
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on three phase AC system (3P+N) |
|
|
Measurement Accuracy |
Power |
±1%(5%lb~Imax) |
|
Active Energy |
Class 0.5 IEC62053-21 |
|
|
Reactive Energy |
Class 2 IEC 62053-23 |
|
|
Frequency |
± 0.2% |
|
|
Current |
± 0.5% |
|
|
Voltage |
± 0.5% |
|
|
Power Factor |
± 0.01 |
|
|
Input & Output |
|||
|
Input |
Current |
CT Secondary |
85mV/kA |
|
CT Primary |
1kA/5kA |
||
|
Voltage |
Rated Voltage (Un) |
3*230/400VAC |
|
|
Voltage Range |
100 ~ 277V AC (L-N) |
||
|
Output |
SDM630MCT-RC |
RS485 Modbus |
|
|
RS485 Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
1200bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
