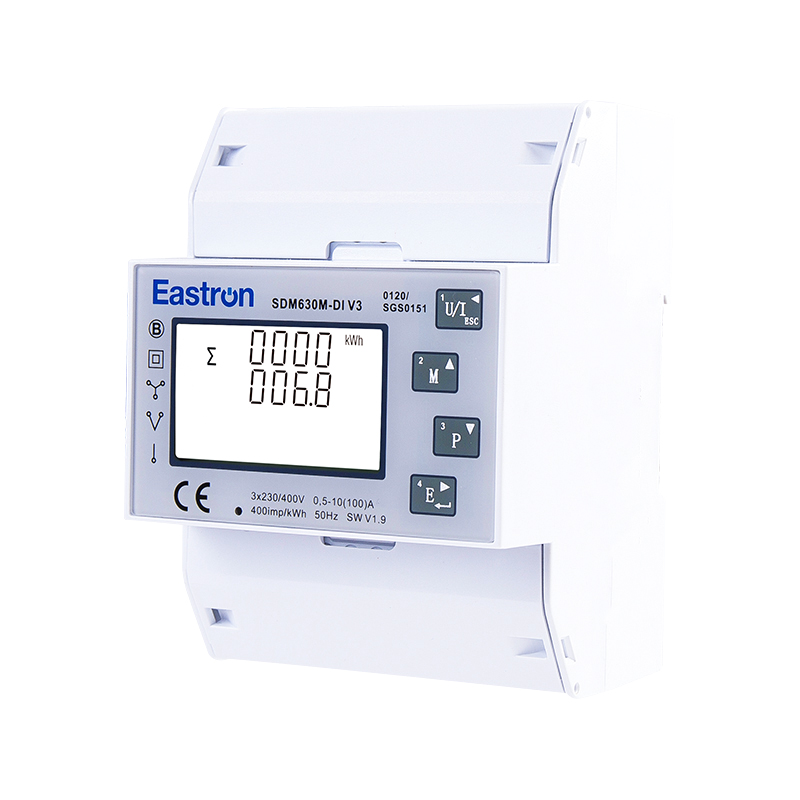

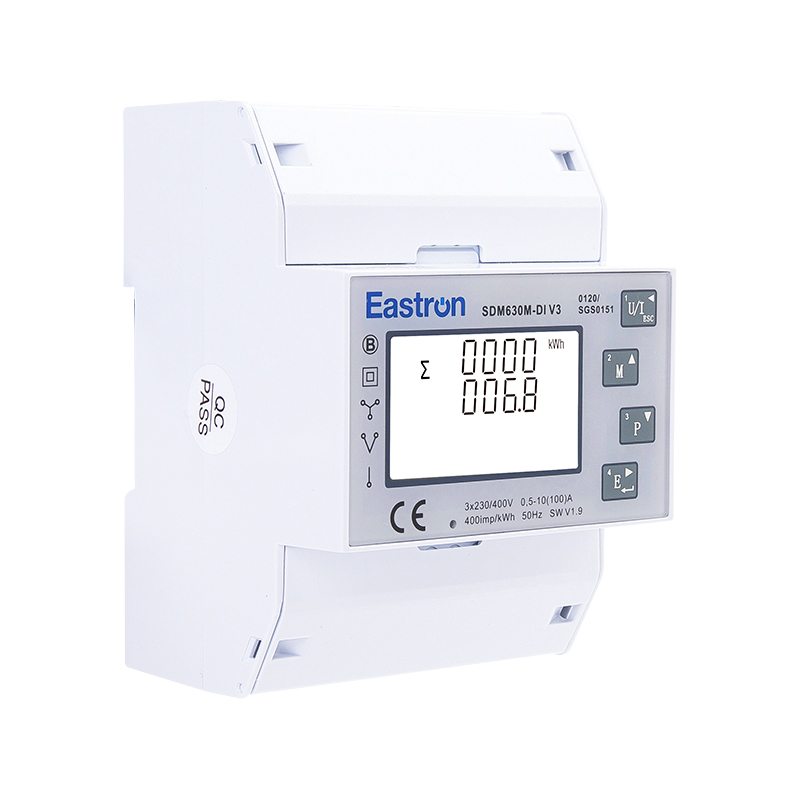

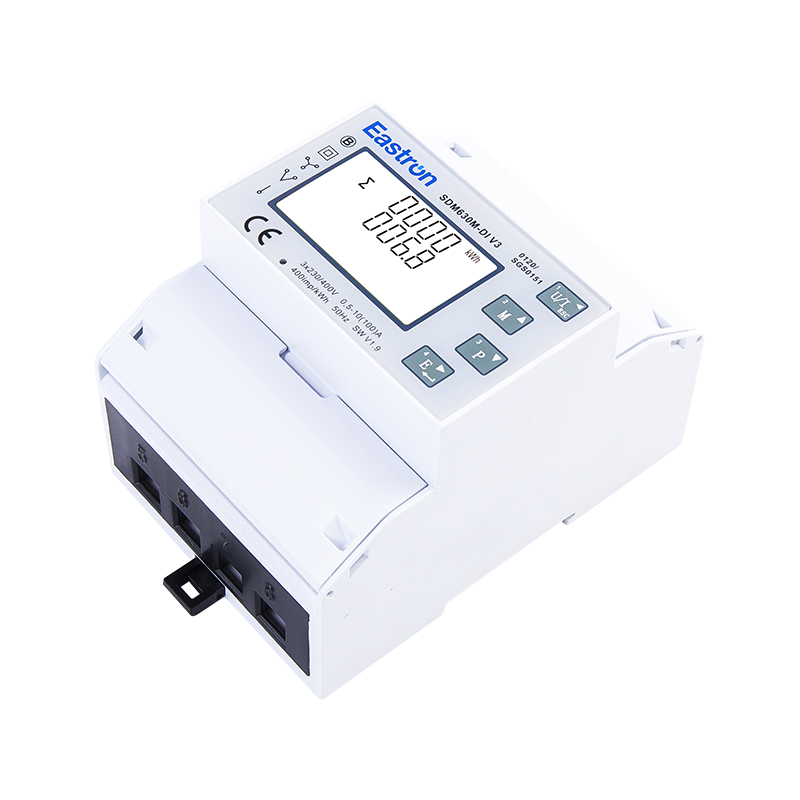

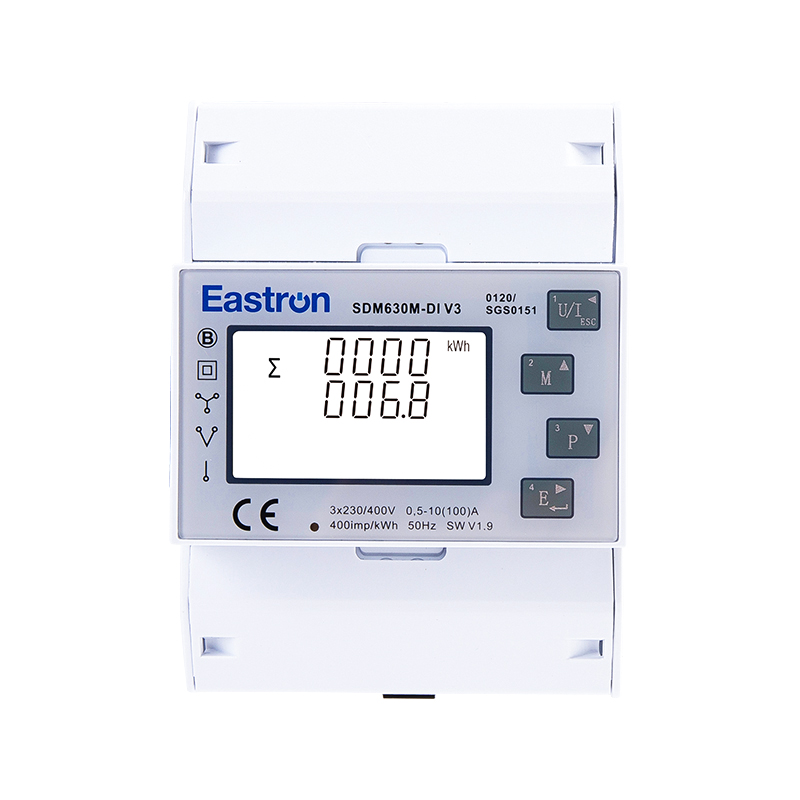

SDM630M-DI is Digital Input RS485 Modbus Din Rail Three Phase Multi-function Energy Meter.

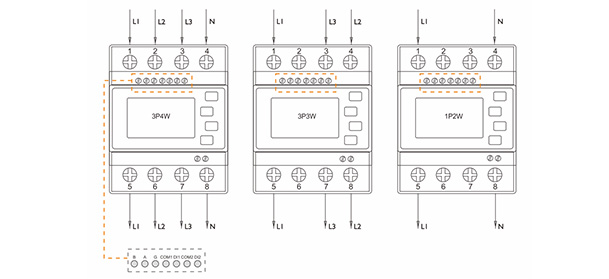

This unit measures and displays the characteristics of 1P2W, 3P3W and 3P4W networks. The measuring parameters include voltage (V), current (A), frequency
(Hz), power(kW/kVA/kVAr), power factor (PF), imported, exported and total energy (kWh/kVArh).
SDM630M-DI also comes with a complete comms capability with built-in RS485 Modbus RTU outputs and 2 digital inputs.
It has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU and it is ETL listed by Intertek.
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement Accuracy |
Power |
0.5% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0 |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input |
Current
|
Rated Current (Ib/Iref) |
10A |
|
Max Current(Imax.) |
65A |
||
|
Min Current(Imin.) |
0.5A |
||
|
Starting Current |
40mA |
||
|
Voltage |
Rated Voltage (Un) |
230V L-N / 120V L-N |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
SDM630M-DI |
2 Pulse Outputs+ RS485 Modbus + Digital Input |
|
|
SDM630-Modbus / MT |
2 Pulse Outputs + RS485 Modbus |
||
|
SDM630-Mbus |
2 Pulse Outputs + M-bus EN13757 |
||
|
SDM630-2T |
2 Pulse Outputs+ RS485 Modbus + 2 Tariffs (Dual Power Source) |
||
|
RS485 Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
1200bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<100 mS |
|
M-Bus EN13757-3 Communications |
|
|
Communication Address |
1~250 |
|
Transmission Distance |
1000m Maximum |
|
Baud Rate |
300bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
