SDM630MCT-ML

Quad Load RS485 Modbus Din Rail Three Phase MID Energy Meter

Multi-parameters for 4 Loads, 12 Loads
Multi-Parameter Measurement
RS485 Modbus Comunication
Independently programmable CT ratios
RJ12 Socket for fast connection
True RMS measurement

400-996-9296

SDM630MCT-ML

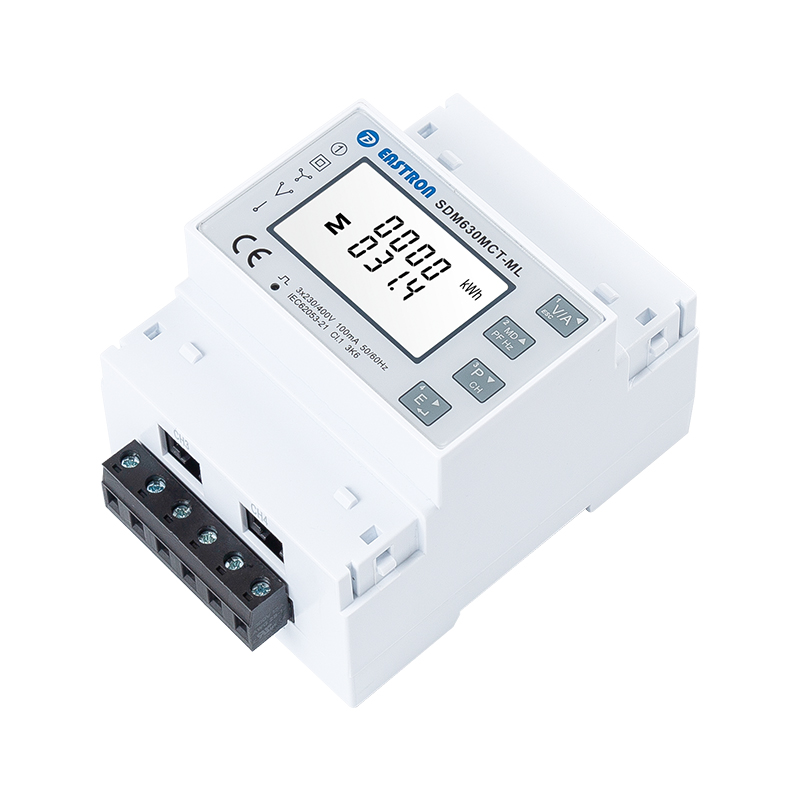

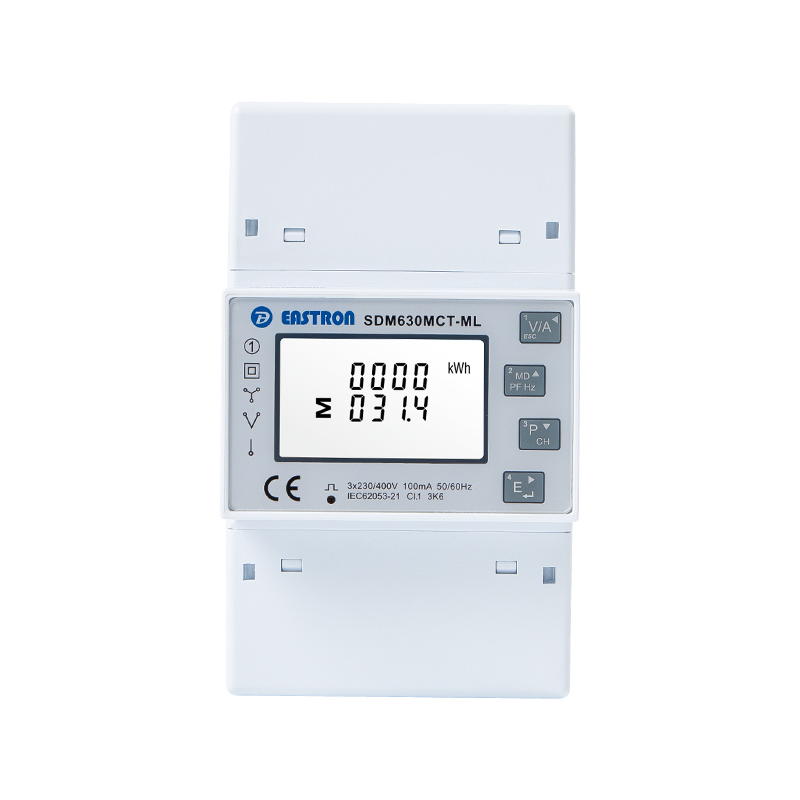

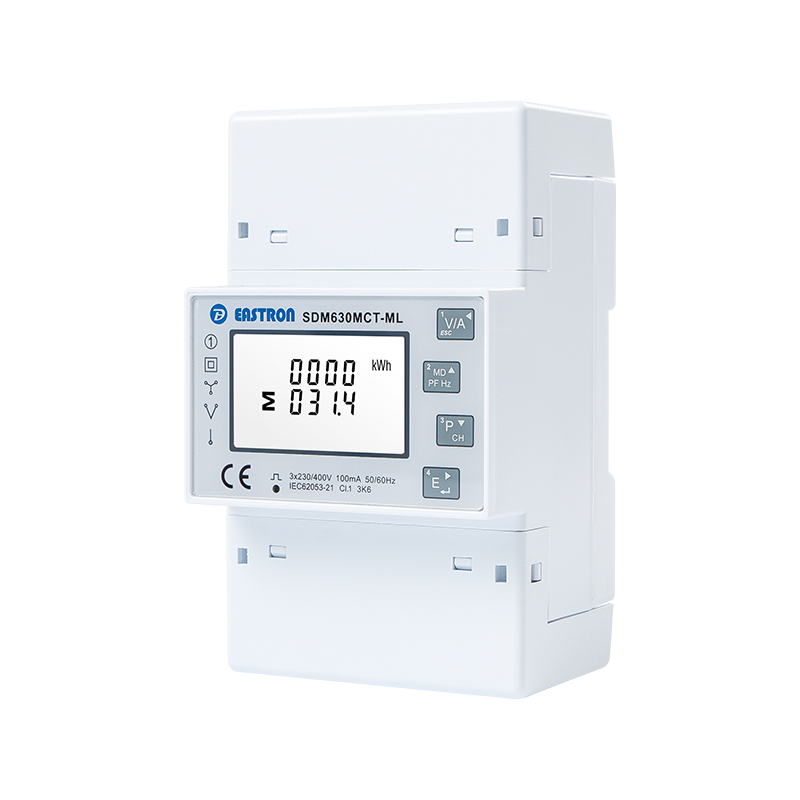

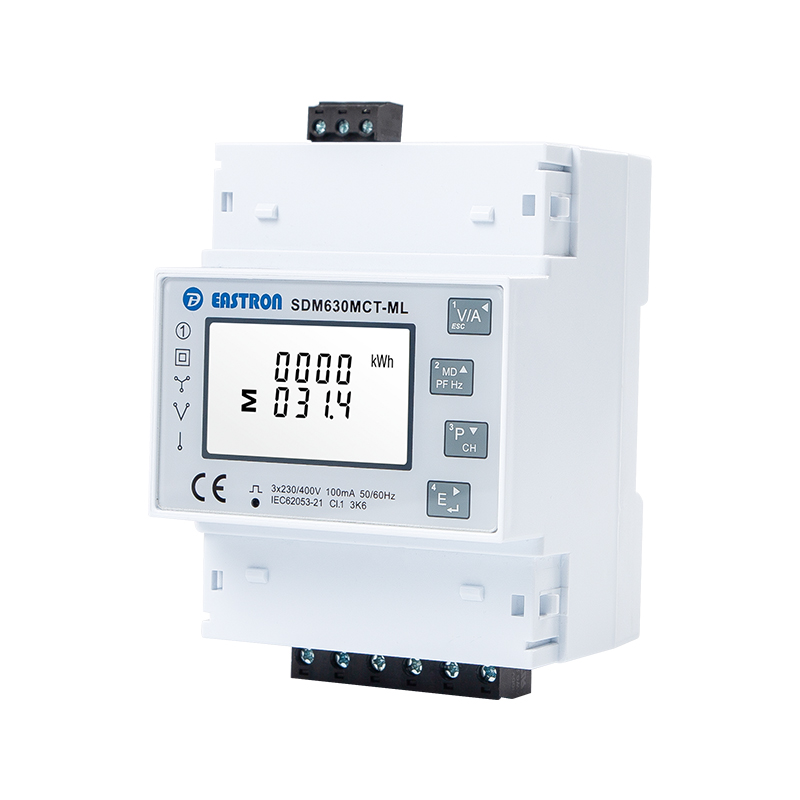

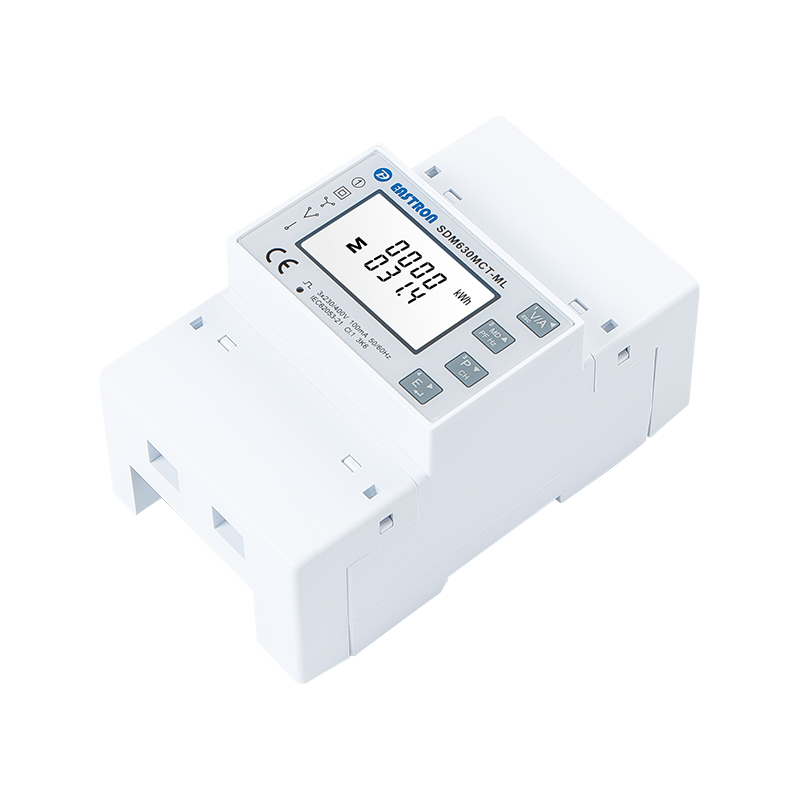

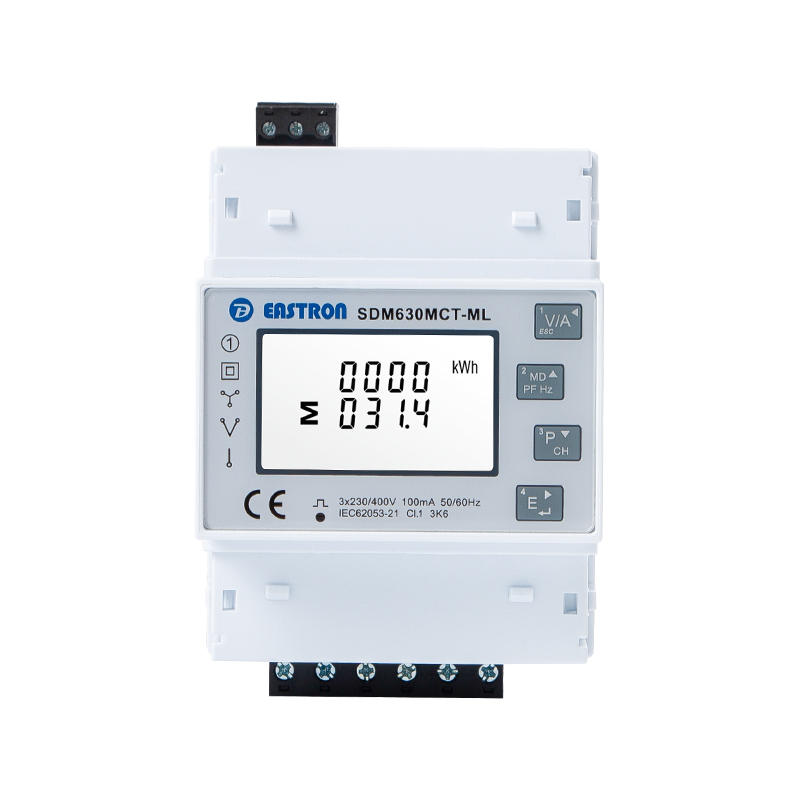

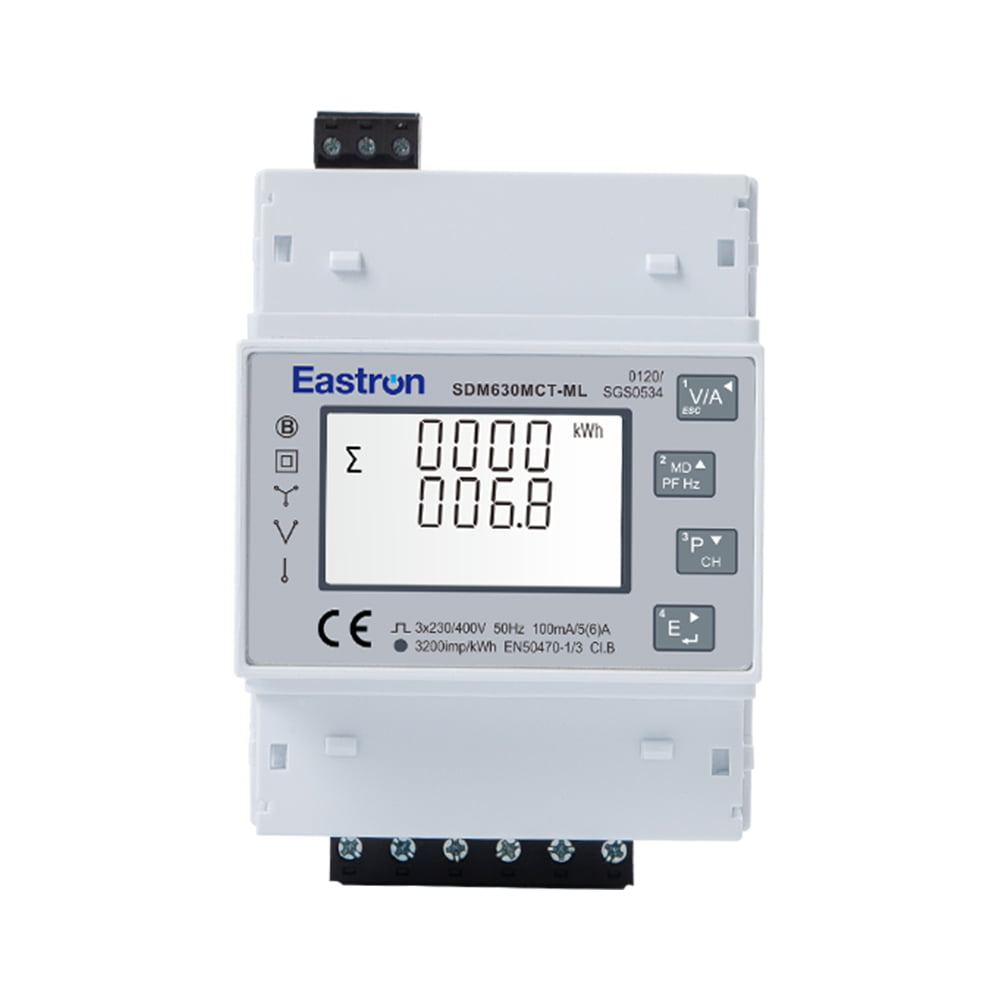

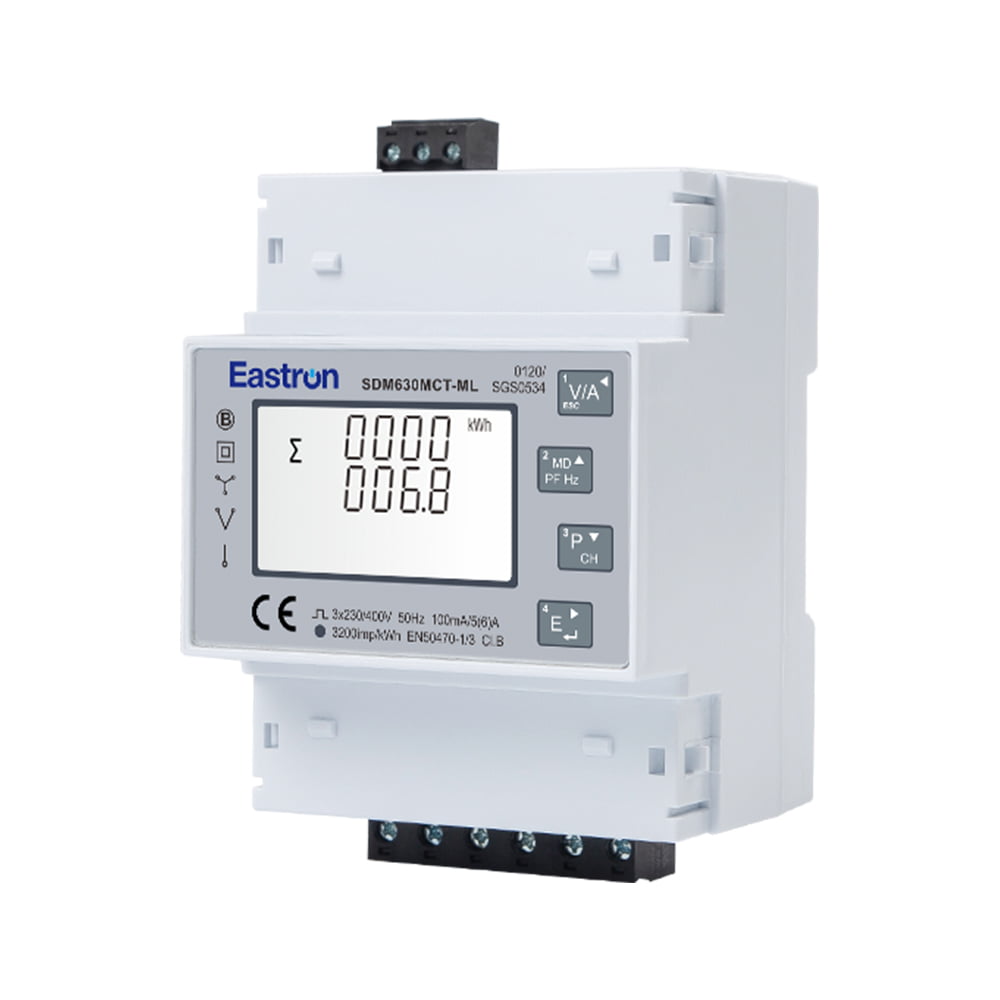

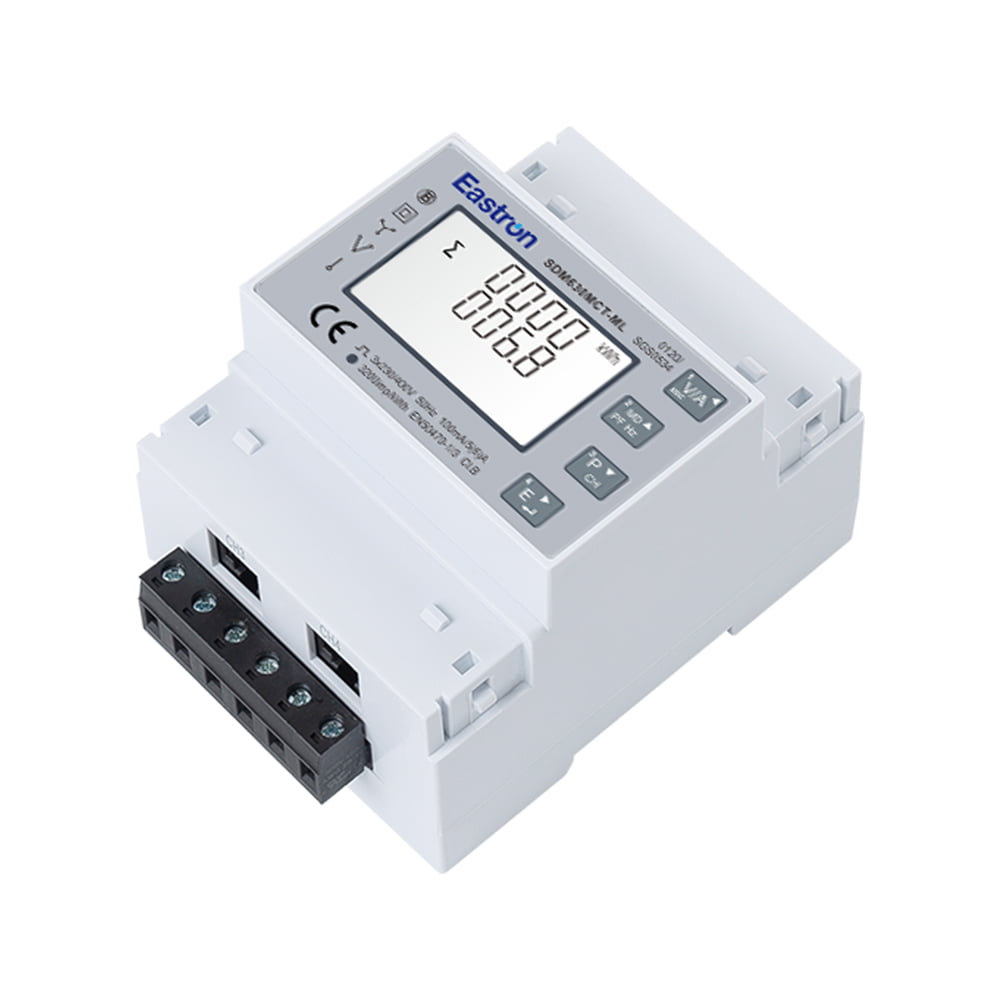

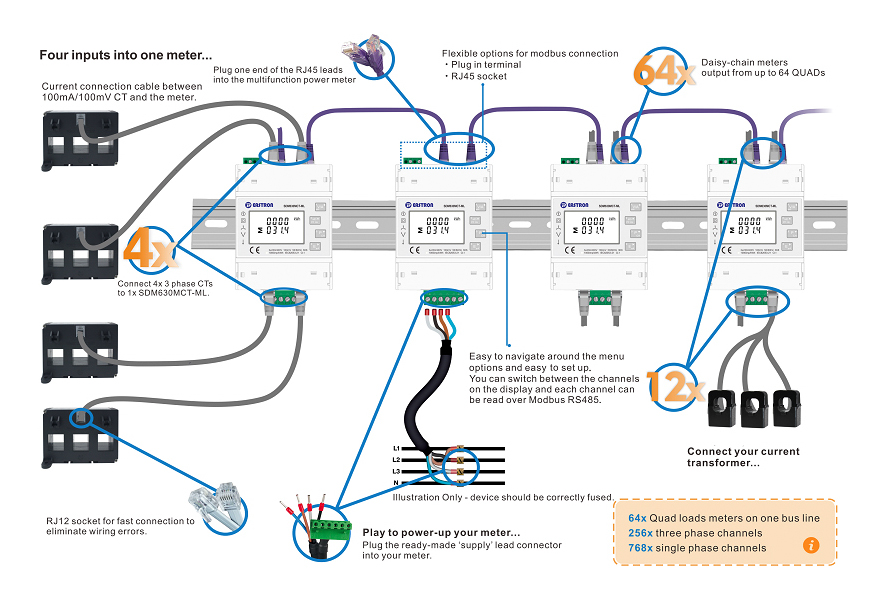

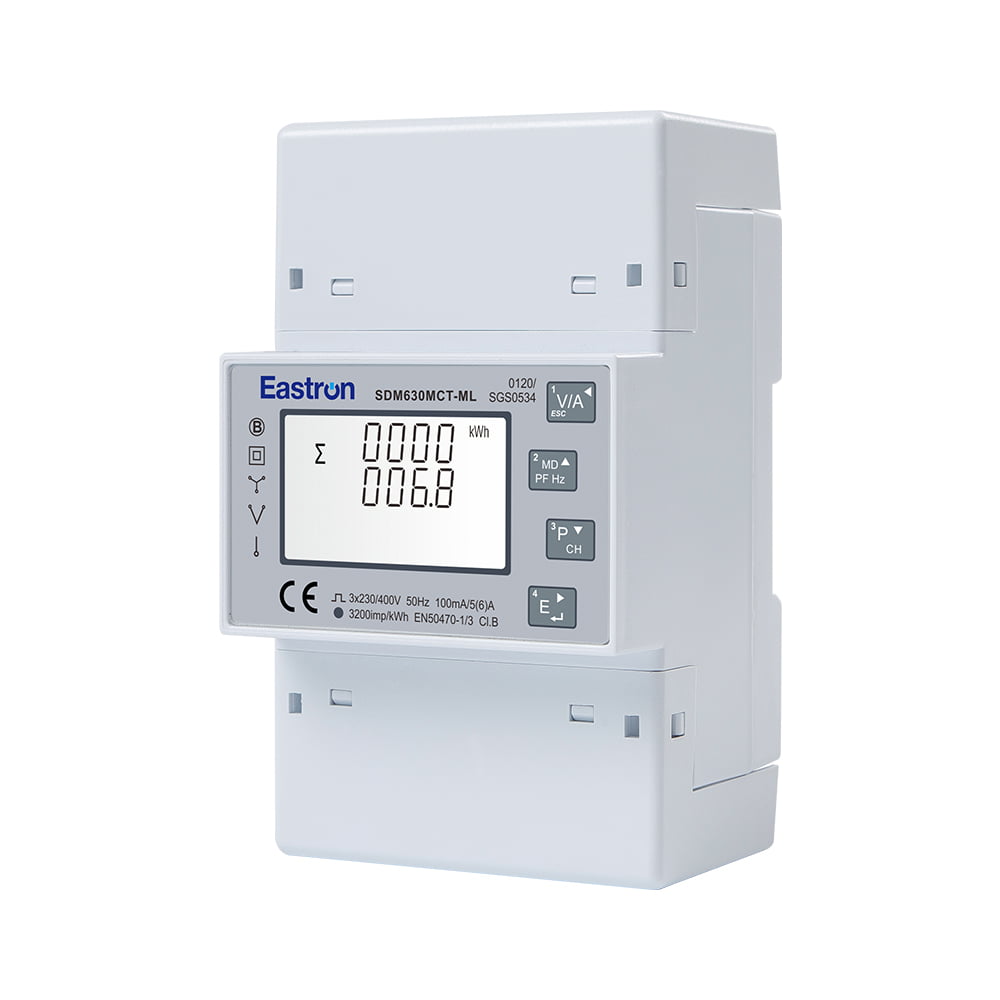

The SDM630MCT-ML is Quad Load RS485 Modbus Din Rail Three Phase MID Energy Meter. Suitable for monitoring energy consumption and many other electrical parameters. This meter contain four three phase metering circuits or 12 single phase circuits in one case, and accepts inputs from 4 or 12 separate RJ12 CTs.The unit requires auxiliary power supply (AC or DC) to power the meter and it can work with 100mA/100mV input CTs. Build-in interface provides RS485 Modbus RTU outputs.

SDM630CT-ML have been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. The instrument traceable number is 0120/SGS0534.

Electrical Characteristics
Type of Measurement		RMS including harmonics on three phase AC system (3P, 3P+N)
Measurement Accuracy	Power	0.5% of range maximum
	Active Energy	IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0
	Reactive Energy	IEC62053-23 Class 2
	Frequency	0.2% of mid-frequency
	Current	0.5% of range maximum
	Voltage	0.5% of range maximum
	Power Factor	1% of unity (0.01)

Input & Output
Input	Current	CT Secondary	100mA/ 100mV

		CT Primary	1-9999A
	Voltage	Rated Voltage (Un)	230V L-N / 120V L-N
		Operational Voltage	80%~120% of Un
Output	SDM630MCT-ML/3L/2L-1L	RS485 Modbus (RJ45 port)
	SDM630MCT-ML-TCP	Ethernet Modbus TCP

RS485/Ethernet Modbus Communications
Communication Address	1~247
Transmission Distance	1000m Maximum
Transmission Speed	1200bps~38400bps
Parity	None (default), Odd, Even
Stop Bits	1 or 2
