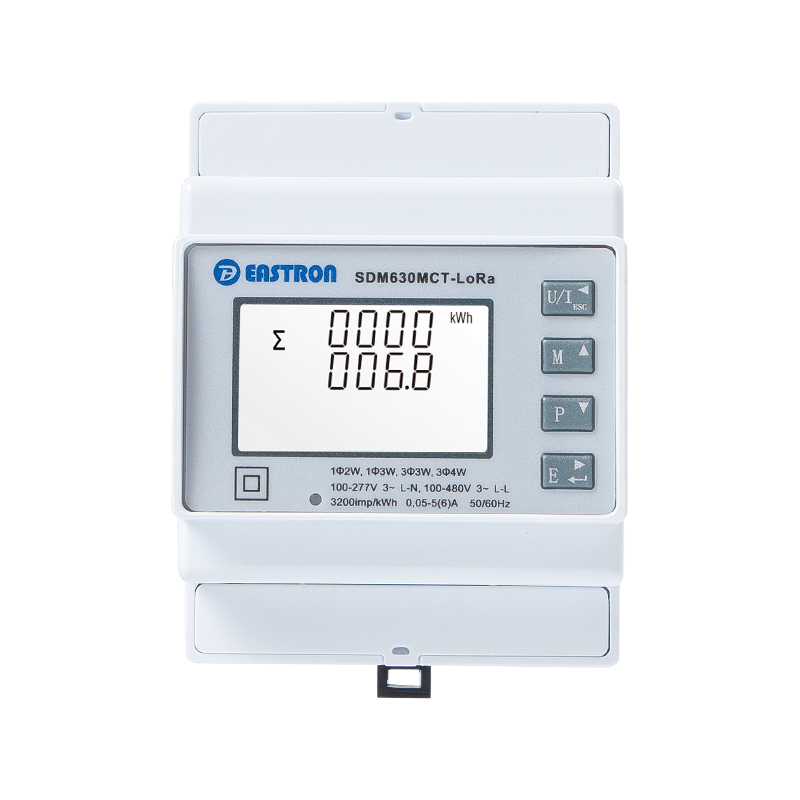

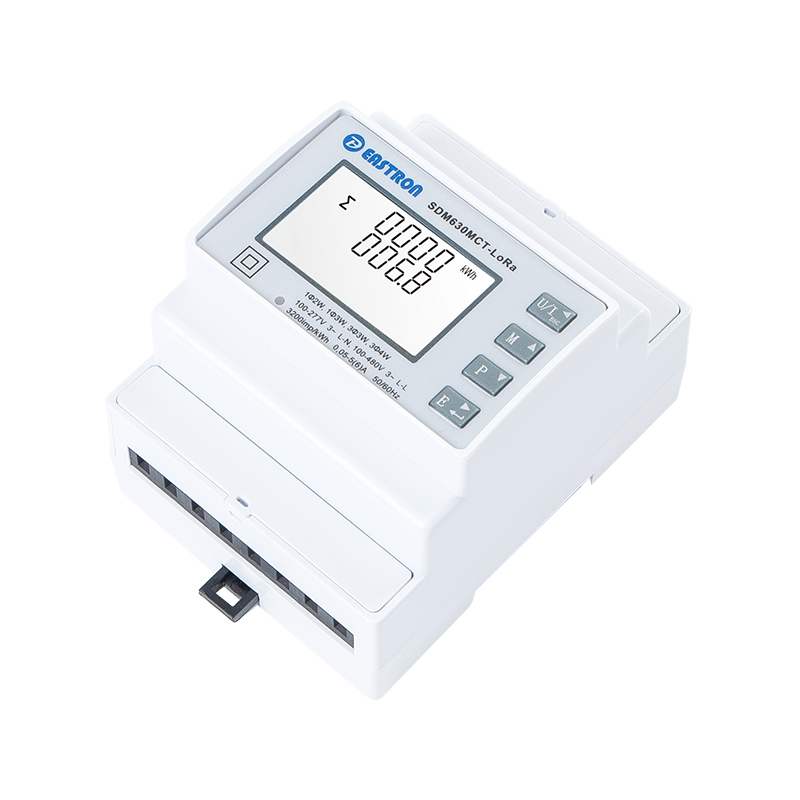

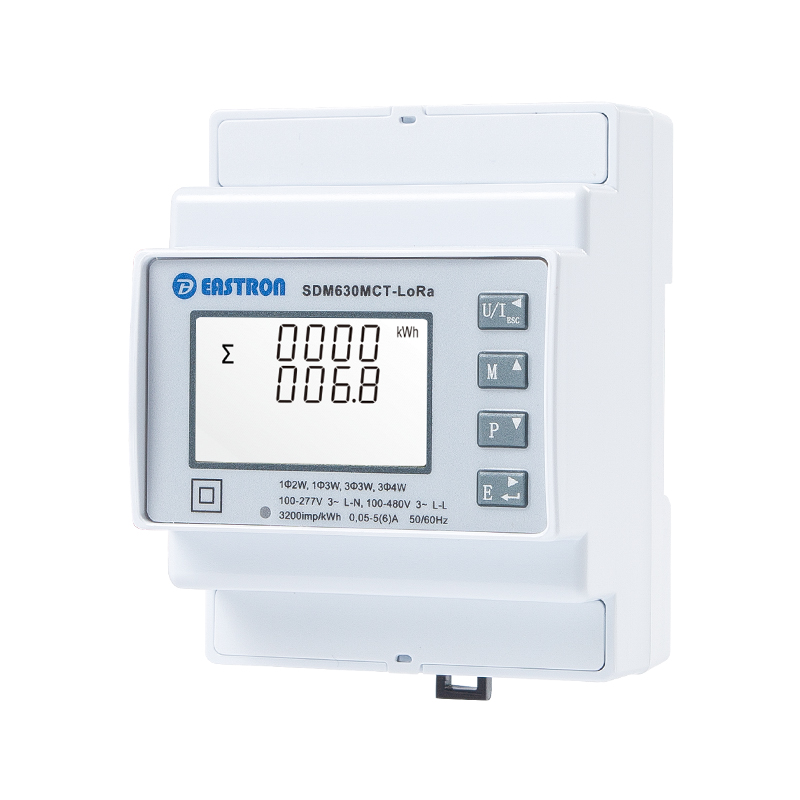

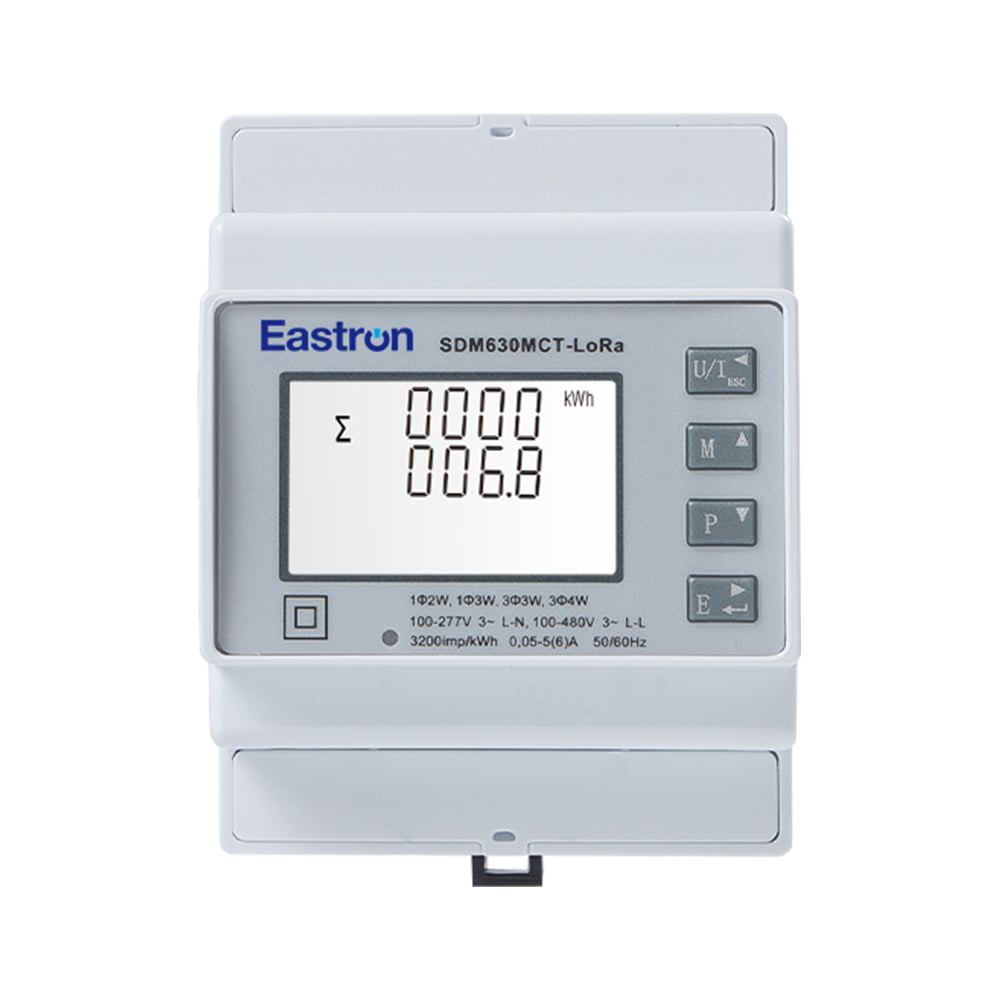

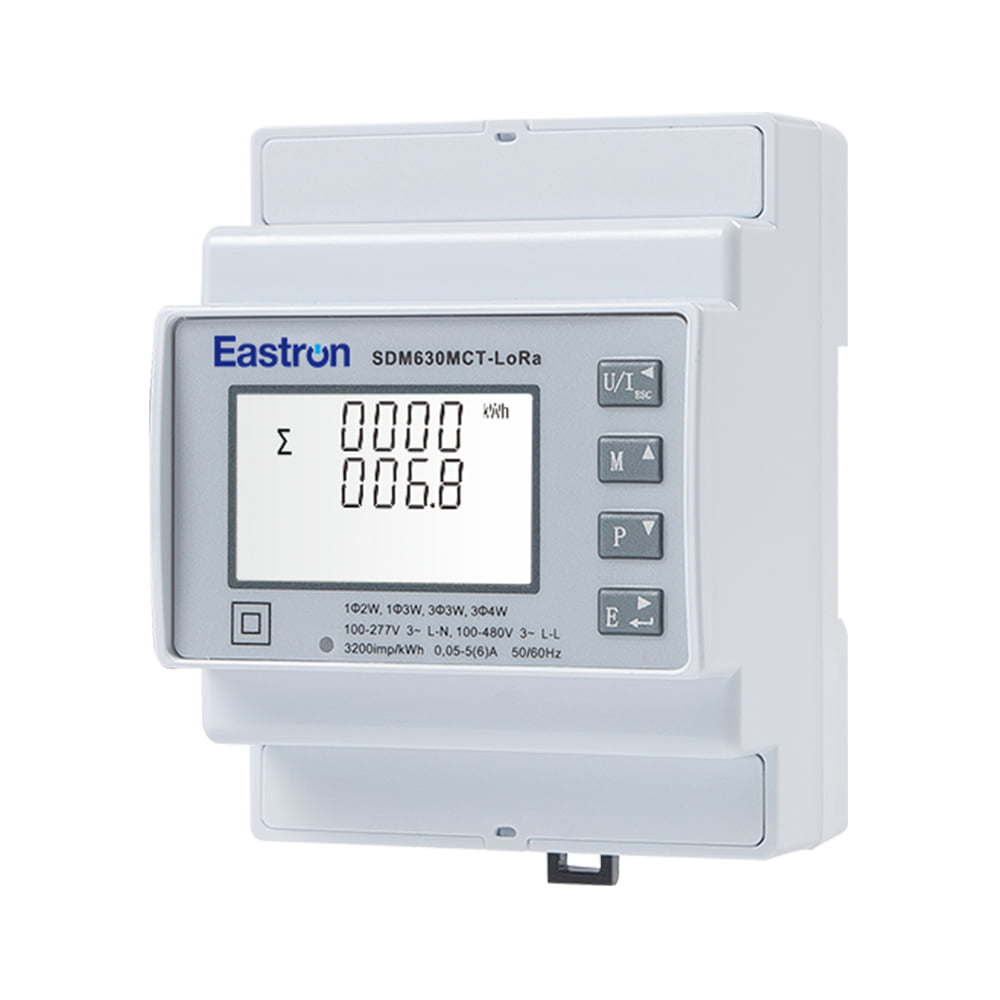

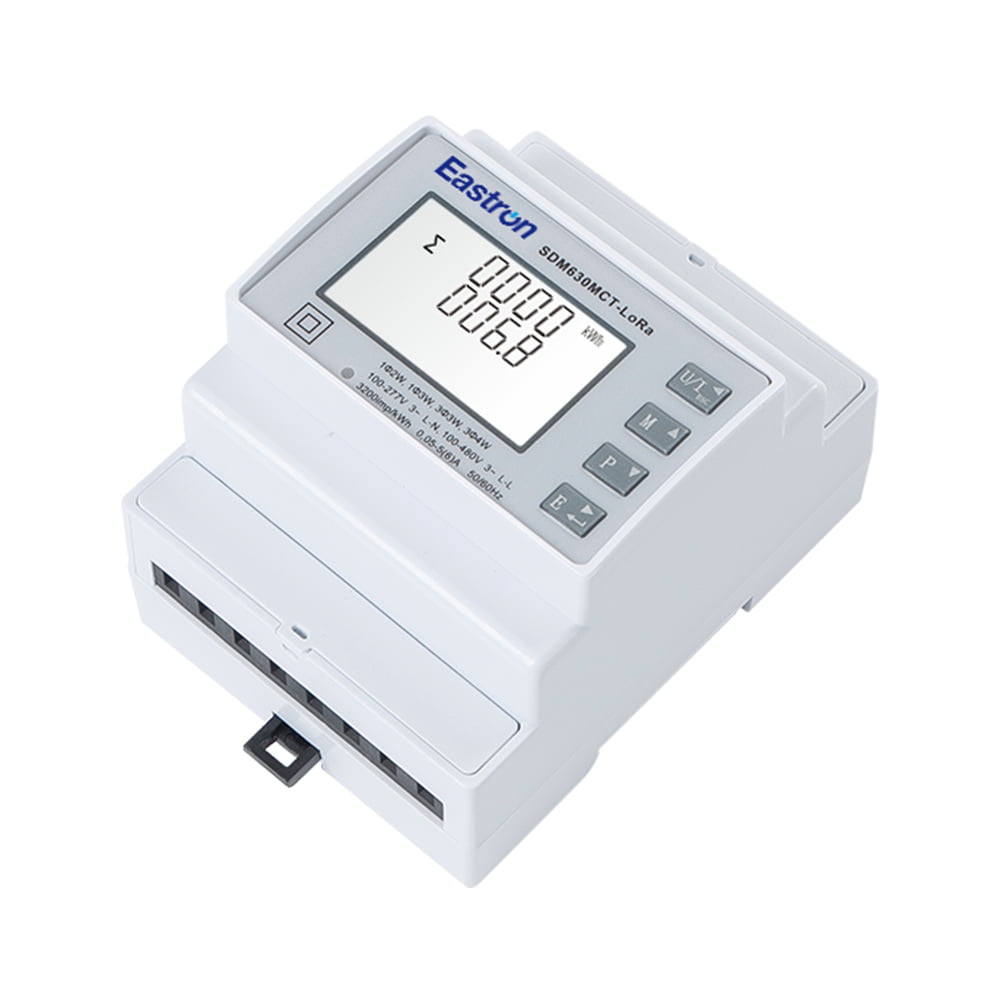

SDM630MCT-Lora

LoRaWAN CT Type Din Rail Multi-functional Three Phase ETL Energy Meter

  • Support auto-upload mode for uploading data
  • Download/ Upload time interval can be set or adjusted.
  • Confirmations/ Off line detection available
  • Support auto-resume mode
  • Wide range of LoRa frequency band
  • (EU868/AS923/CN433/CN470/AU915/US902 MHz, etc.)
  • High accuracy, Class 1 /Class 0.5s
  • ETL, MID certified

SDM630MCT Modbus / 2T / MT / LoRa

THREE PHASE MULTI-FUNCTION ENERGY METER

TThe SDM630MCT-Lora is LoRaWAN CT Type Din Rail Multi-functional Three Phase ETL Energy Meter.

With built-in LoraWAN module, it measures and displays the characteristics of single phase two wire (1p2w), single phsae three wire (1p3w), three phase three wire (3p3w), and three phase four wire(3p4w) supplies, including kWh, kVArh, kW, kVA, PF, frequency, voltage, current, demand, etc.

The requisite current input(S) are obtained via 1/5A output current transformers (CT), this meter can be configured to work with a wide range of CTs, giving the unit a wide range of opration. Configuration is password protected.

SDM630MCT-Lora is ETL listed by Intertek, which means it is qualified to enter the American market.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Voltage

±0.5%

Current

±0.5%

Frequency

±0.2%

Power Factor

±1%

Active Power

±1%

Reactive Power

±1%

Apparent Power

±1%

Active Energy

Class 0.5S IEC 62053-22, Class 1.0 IEC 62053-21

Reactive Energy

Class 2 IEC62053-23



Input & Output

Input

Current



CT Secondary

1A/5A

CT Primary

1-9999A

Min Current

0.25A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630MCT/ MT

2 Pulse Outputs + RS485 Modbus

SDM630MCT-2T

2 Pulse Outputs + RS485 Modbus + 2T (Dual Power Source)

SDM630MCT-LoRa

2 Pulse Outputs + LoraWAN



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS
