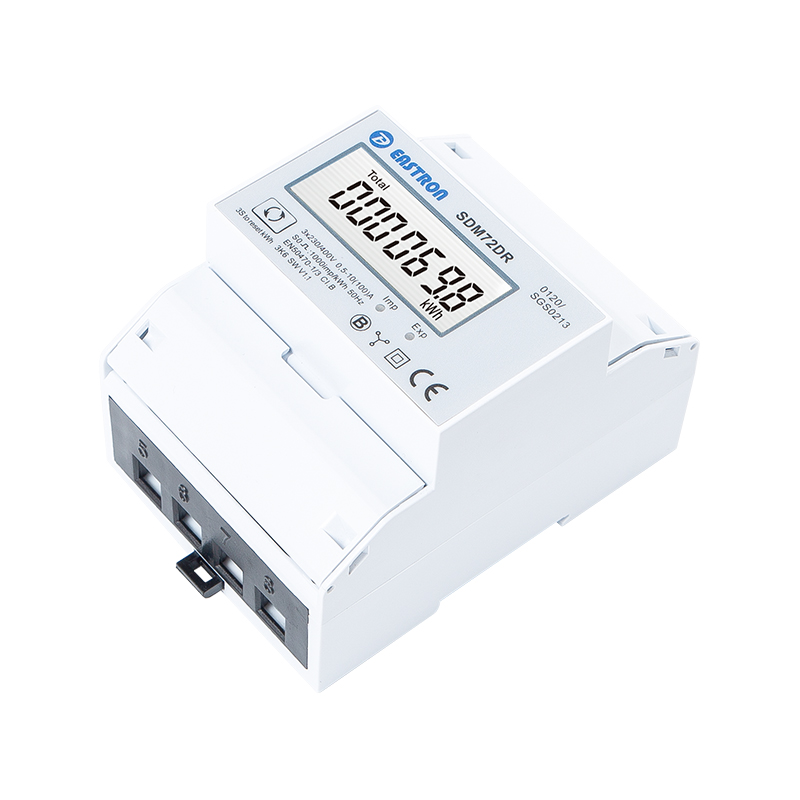

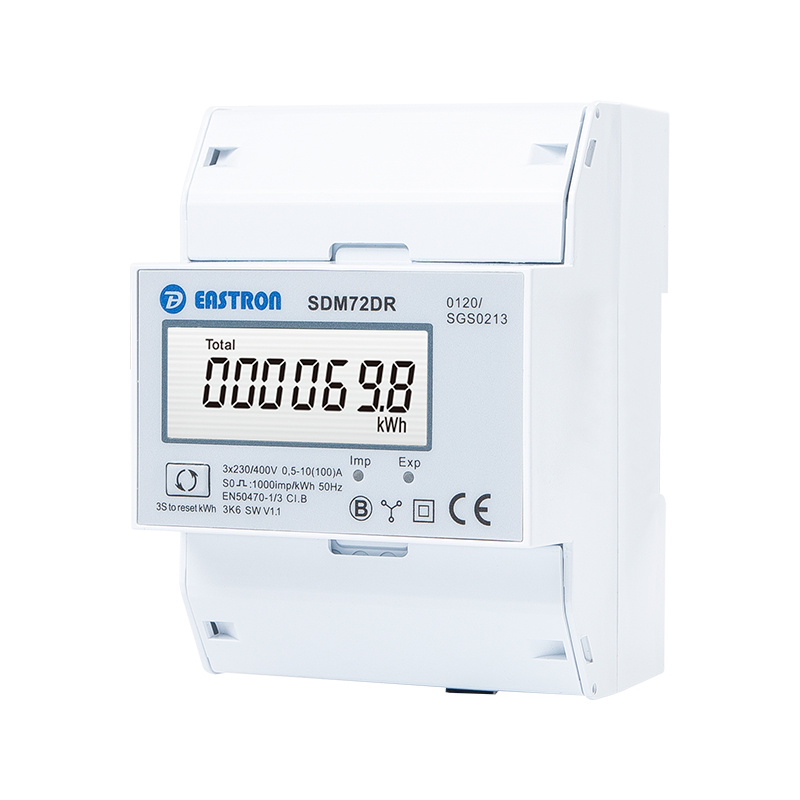

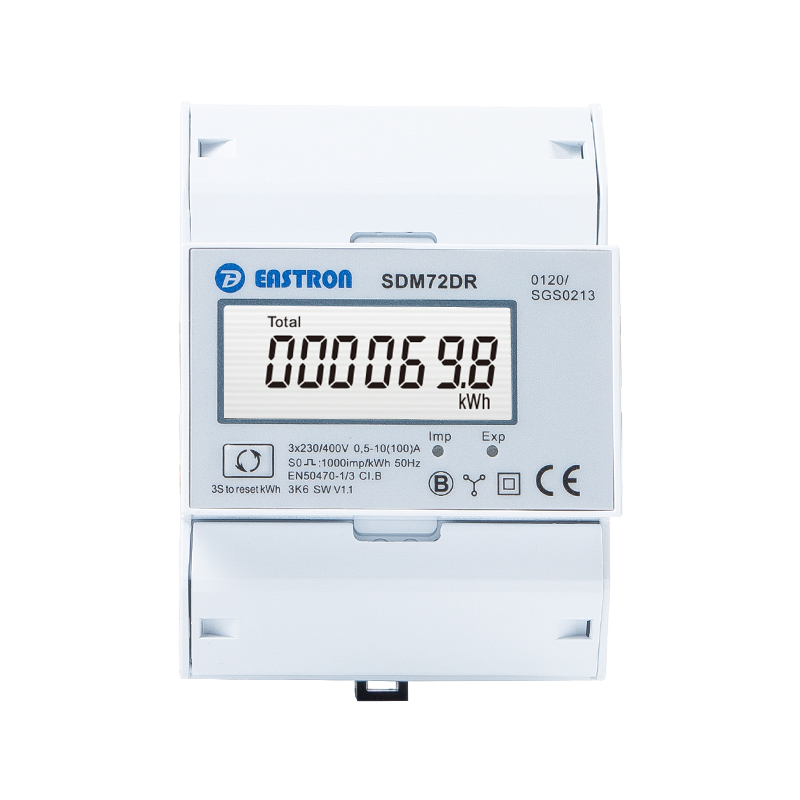

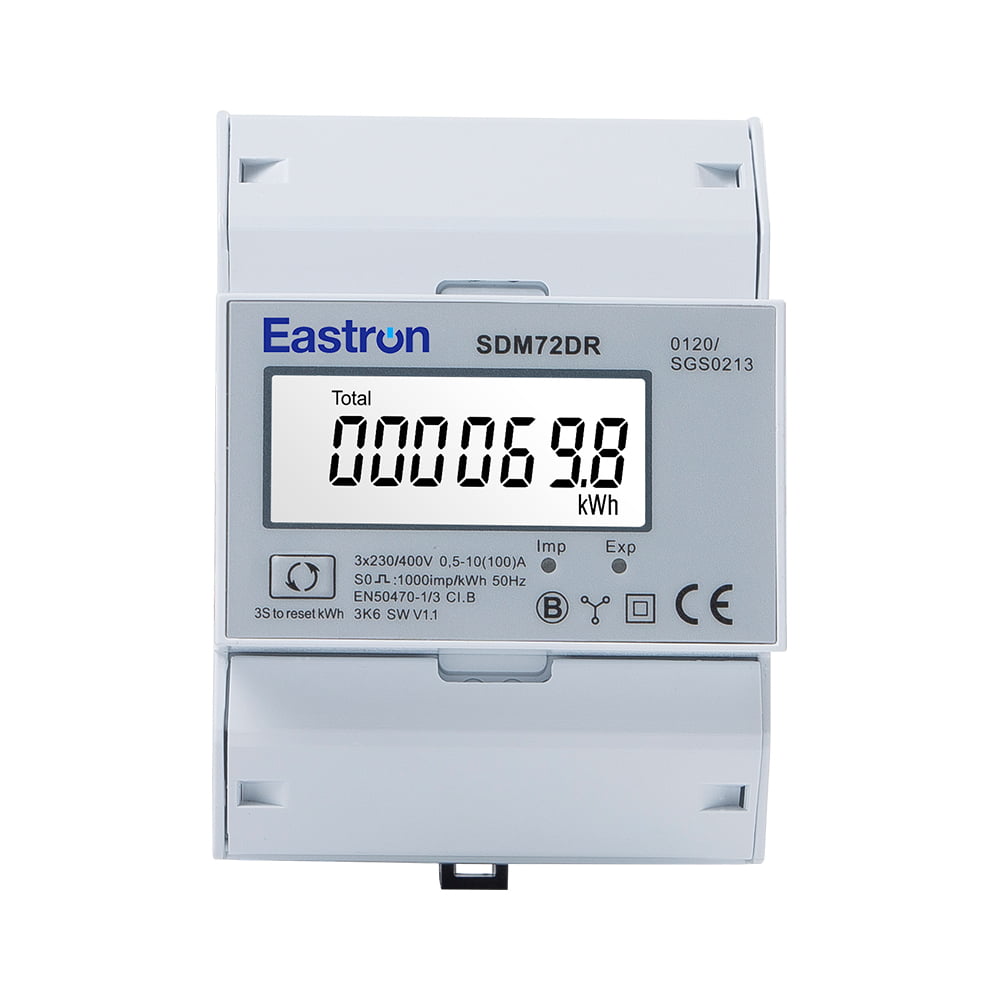

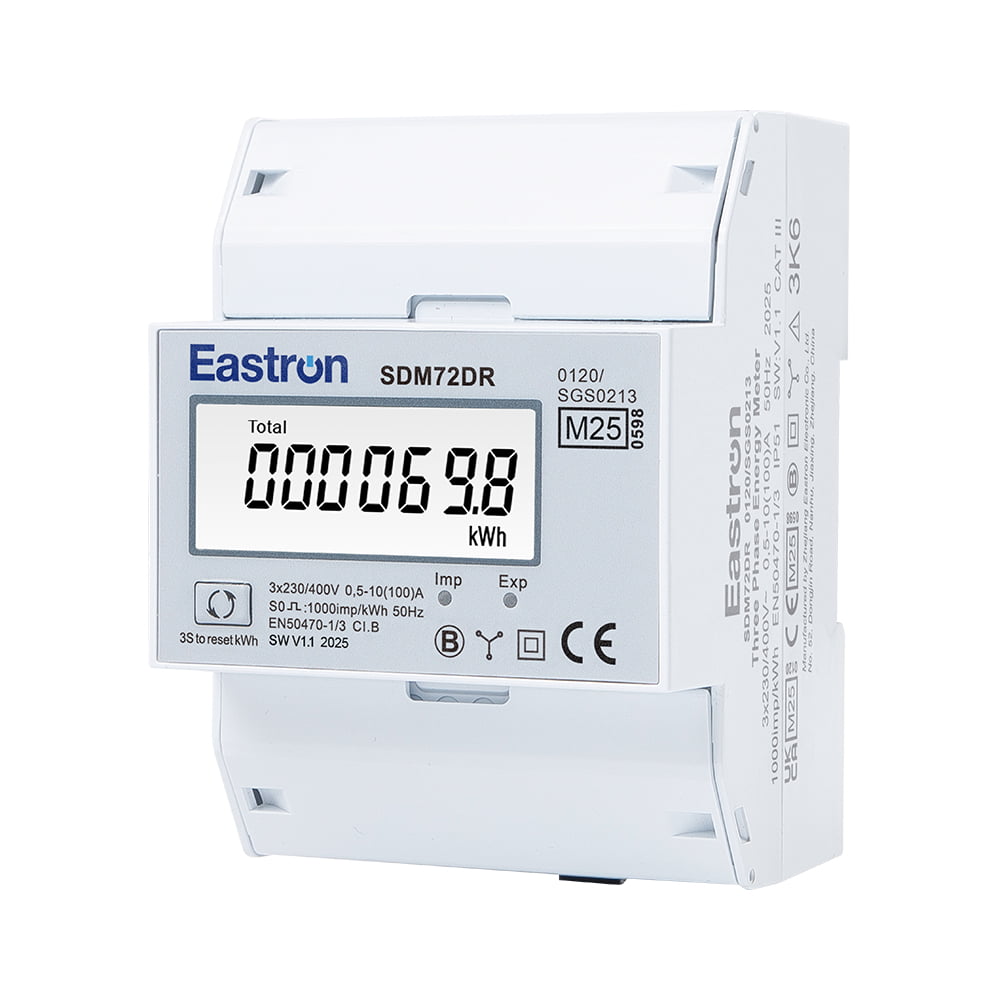

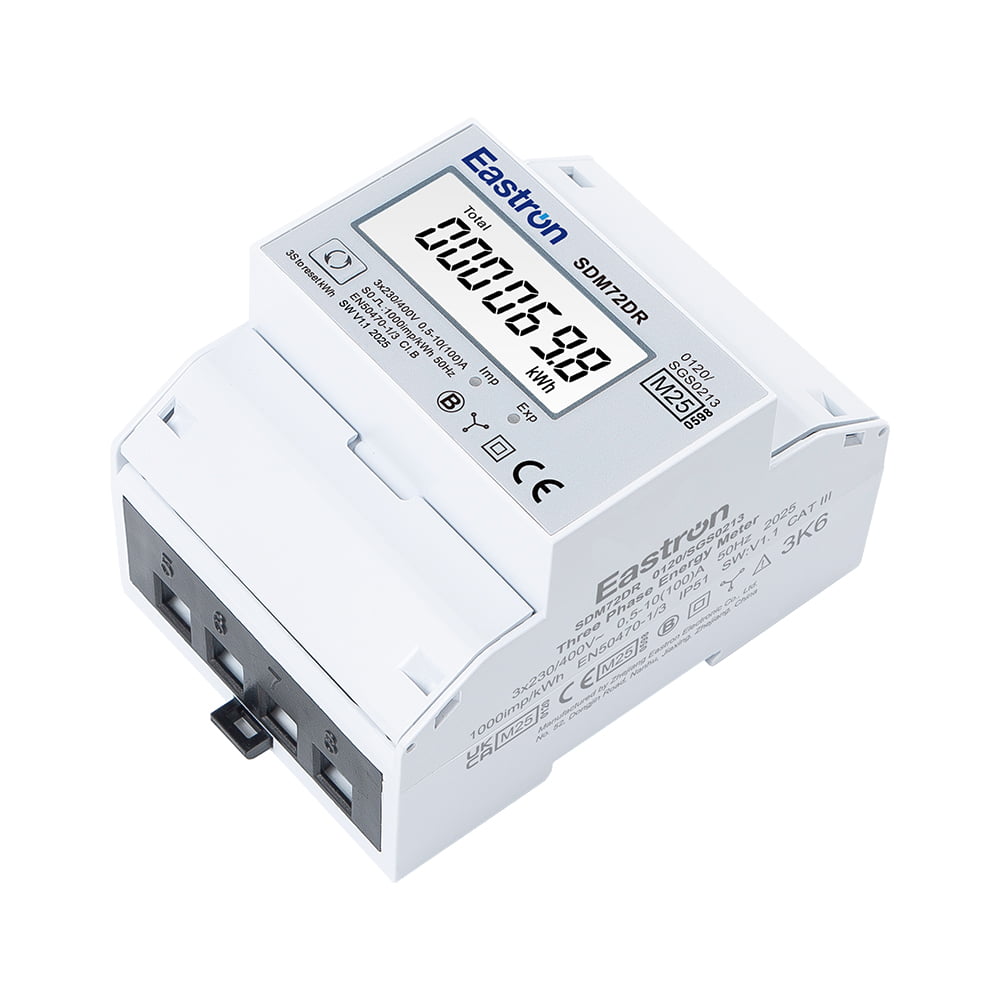

Resettable Din Rail Three Phase Electronic kWh meter with Pulse Output

  • Resettable Din Rail Three Phase Electronic kWh meter with Pulse Output

SDM72DR

Resettable Din Rail Three Phase Electronic kWh meter with Pulse Output

  • Max. 100A direct load
  • 4 Modules 72mm width
  • Measures active energy(kWh)+ power(W)
  • Resettable energy
  • Pulse output

(86)573-83698881

sales@eastrongroup.com

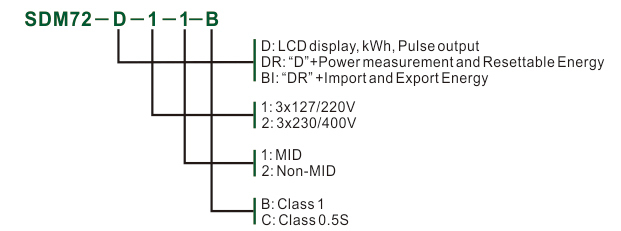

SDM72 D / DR / BI

THREE PHASE FOUR WIRE ENERGY METER

SDM72DR is Resettable Din Rail Three Phase Four wire Electronic kWh meter with Pulse Output.

It's used to measure three-phase like commercial and Industrial applications. The unit measures and displays active energy (kWh) and Power (W). A resettable partial energy is provided, so the user can easily check the energy consumption during a certain period.


Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B



Input & Output

Input-Current

CT Type

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

10mA

Direct Type



Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

Output

SDM72D / DR / BI

Pulse Output for active energy

SDM72CT-D

Pulse Output for active energy

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

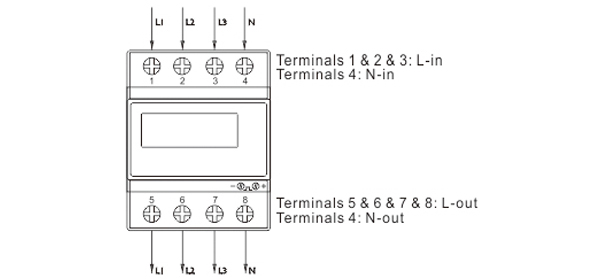

Wiring diagram

Wiring and Dimension [mm:]

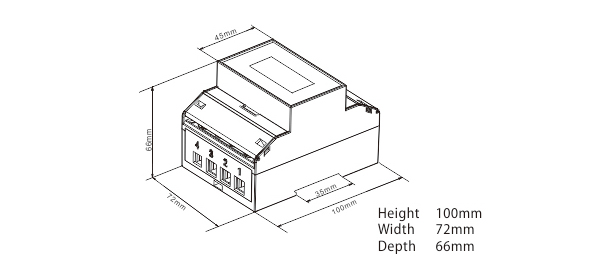

Dimensions
