Dual Tariff 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output

  • Dual Tariff 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output
  • Dual Tariff 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output
  • Dual Tariff 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output
  • Dual Tariff 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output
  • Dual Tariff 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output
  • Dual Tariff 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output

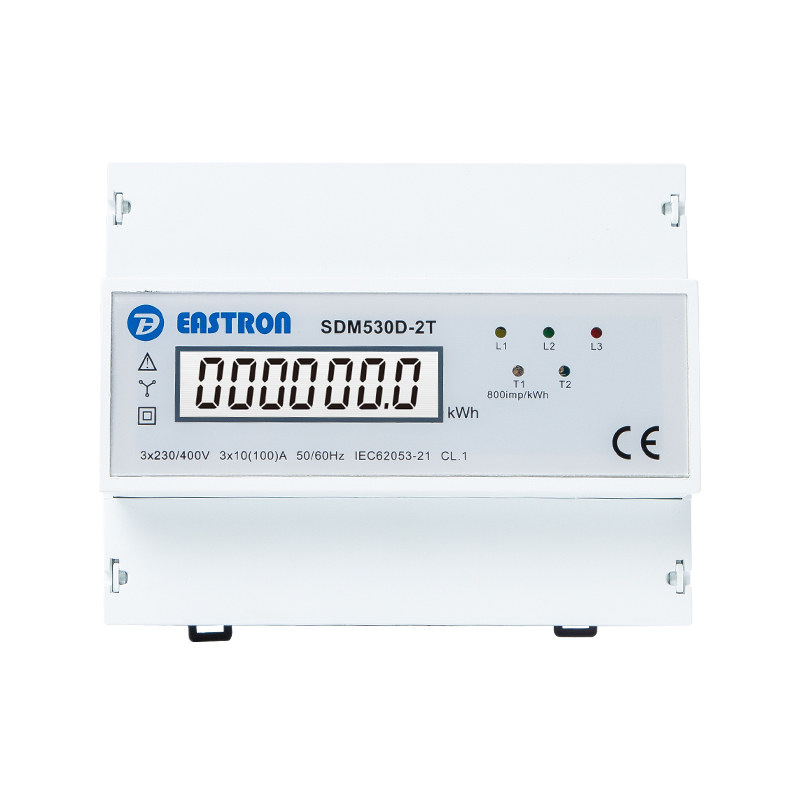

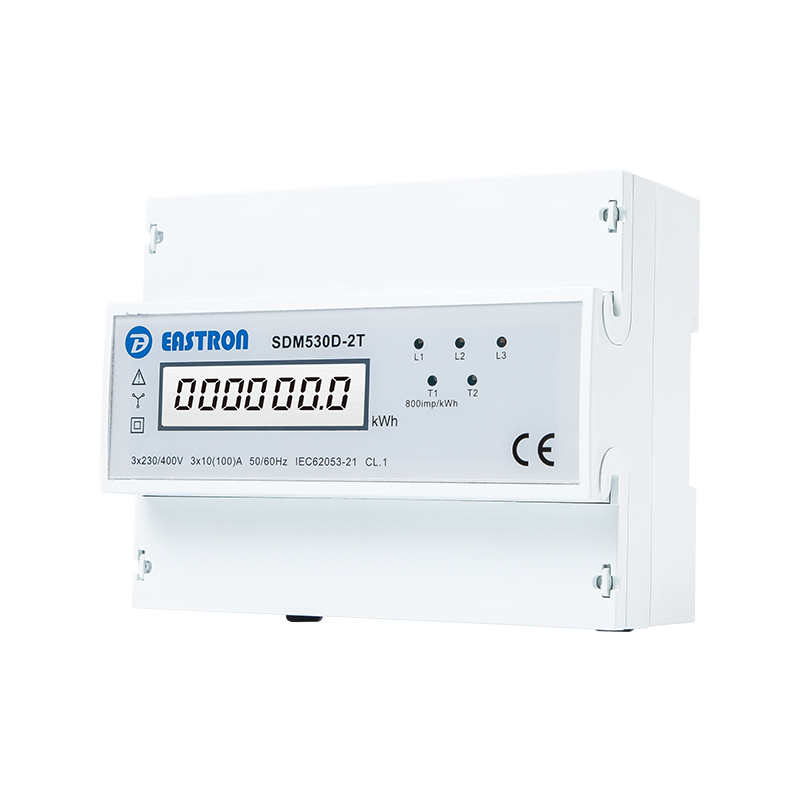

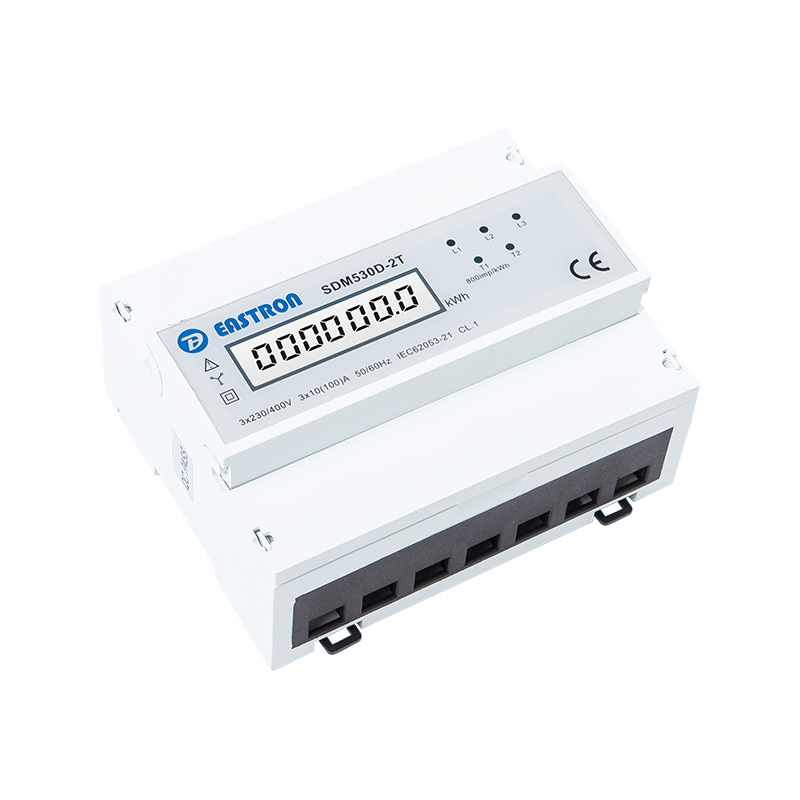

SDM530D-2T

Dual Tariff 7 Modules Din Rail Three Phase Electronic kWh meter with Pulse Output

  • Dual Tariffs Measurement
  • Max.100A Direct Load
  • 7 Modules width
  • Pulse Output
  • High Accuracy of Class 1

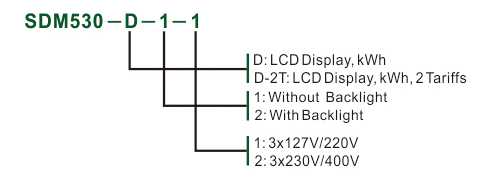

SDM530 D / D-2T

THREE PHASE FOUR WIRE KWH METER

SDM530D-2T is a dual tariff 7 modules din rail three phase electronic kWh meter with pulse output function. The meter support three phase four wire connection, it measures and displays three phase active energy(kWh) in 2 tariffs.

The meter has a time relay inside which can monitor if there is external 230V signal input. When it detected an external 230V signal input, the meter switches to tariff 2 measurement.

With high accuracy of Class 1, it is widthly used in commercial and industry applications.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P+N)

Measurement Accuracy

Energy

IEC 62053-21 Class 1.0



Input & Output

Input



Current

Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

Output

SDM530D

Pulse Output

SDM530D-2T

Pulse Output + 2 Tariffs (Dual Power Source)

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
