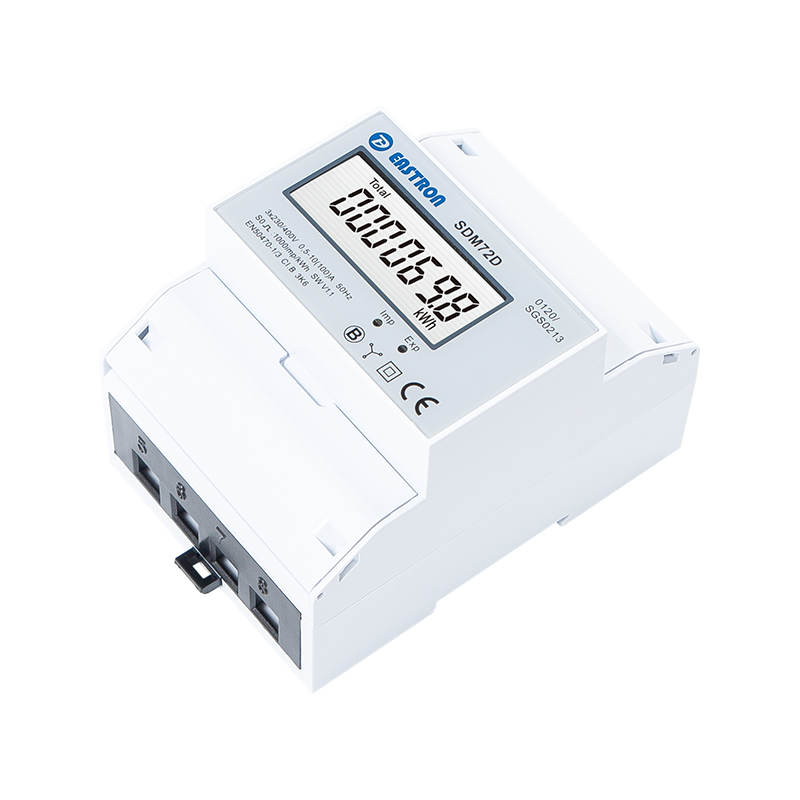

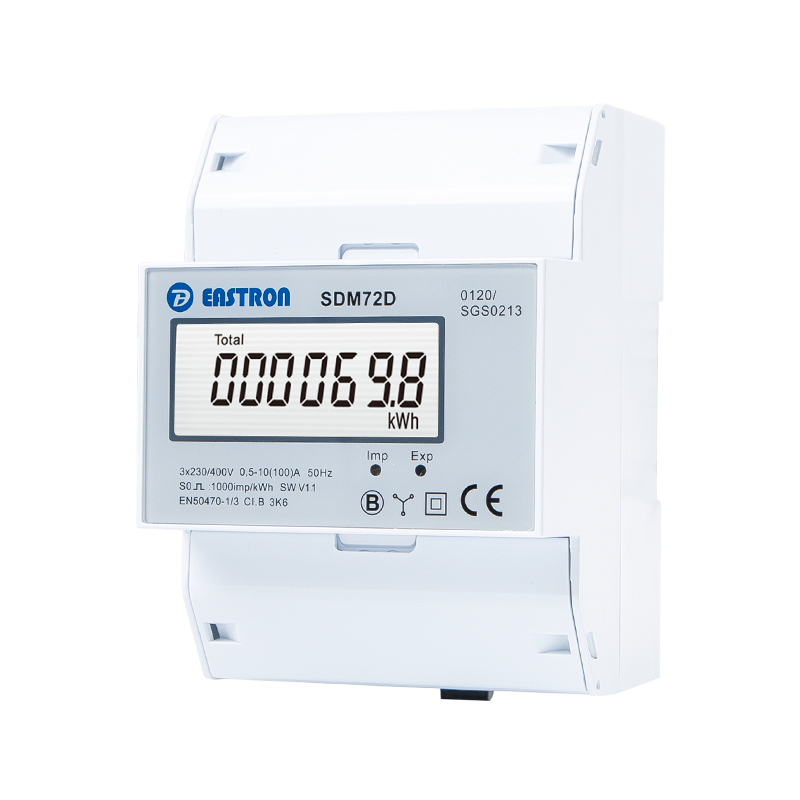

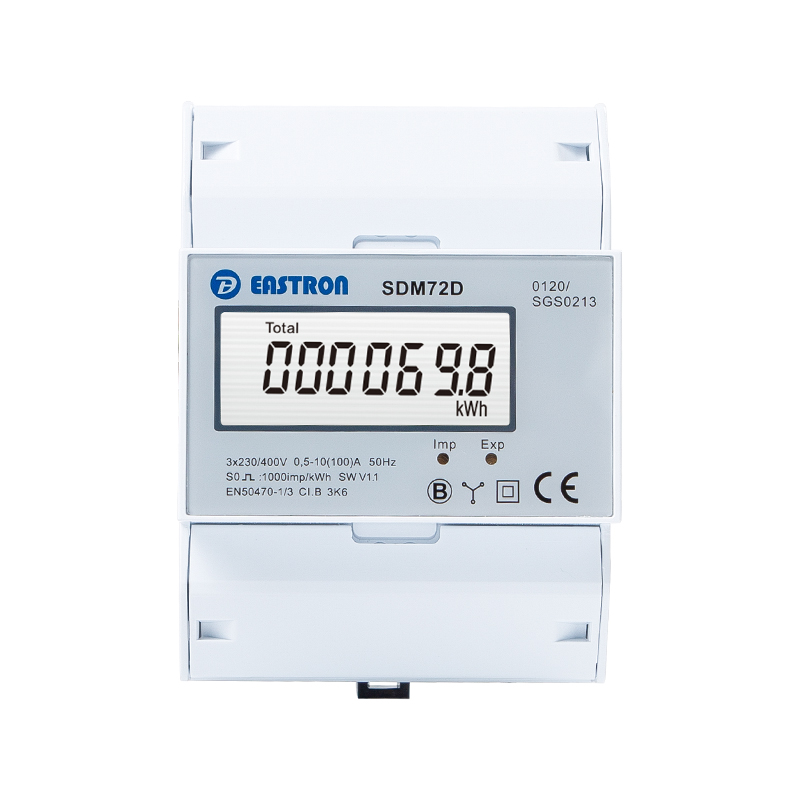

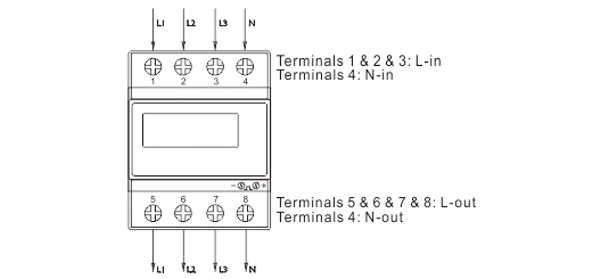

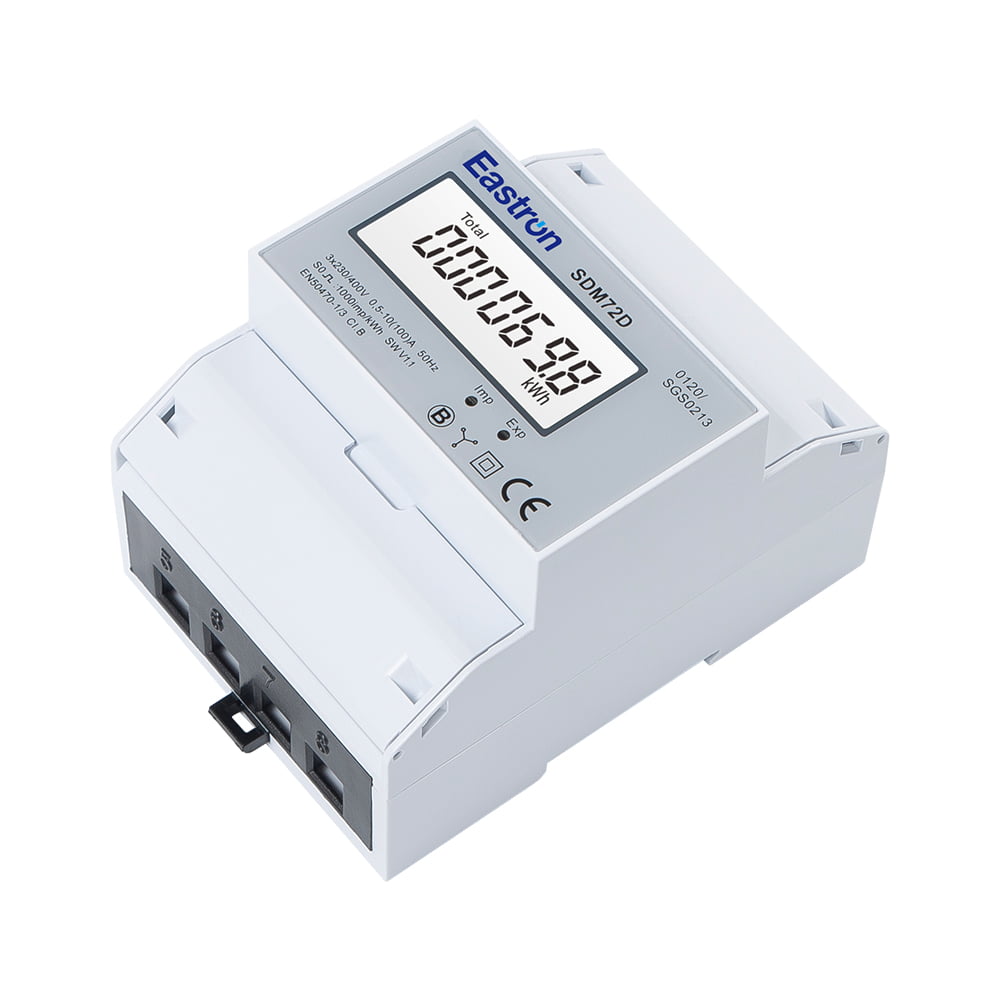

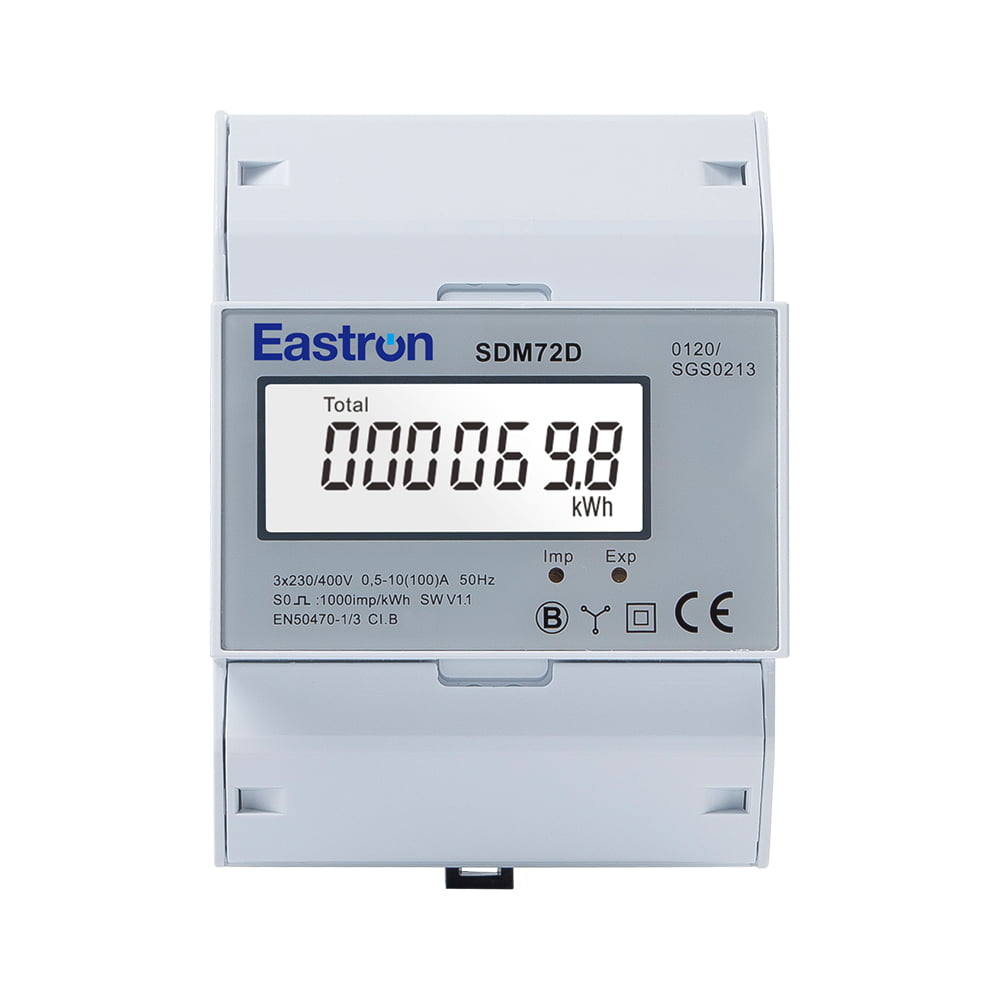

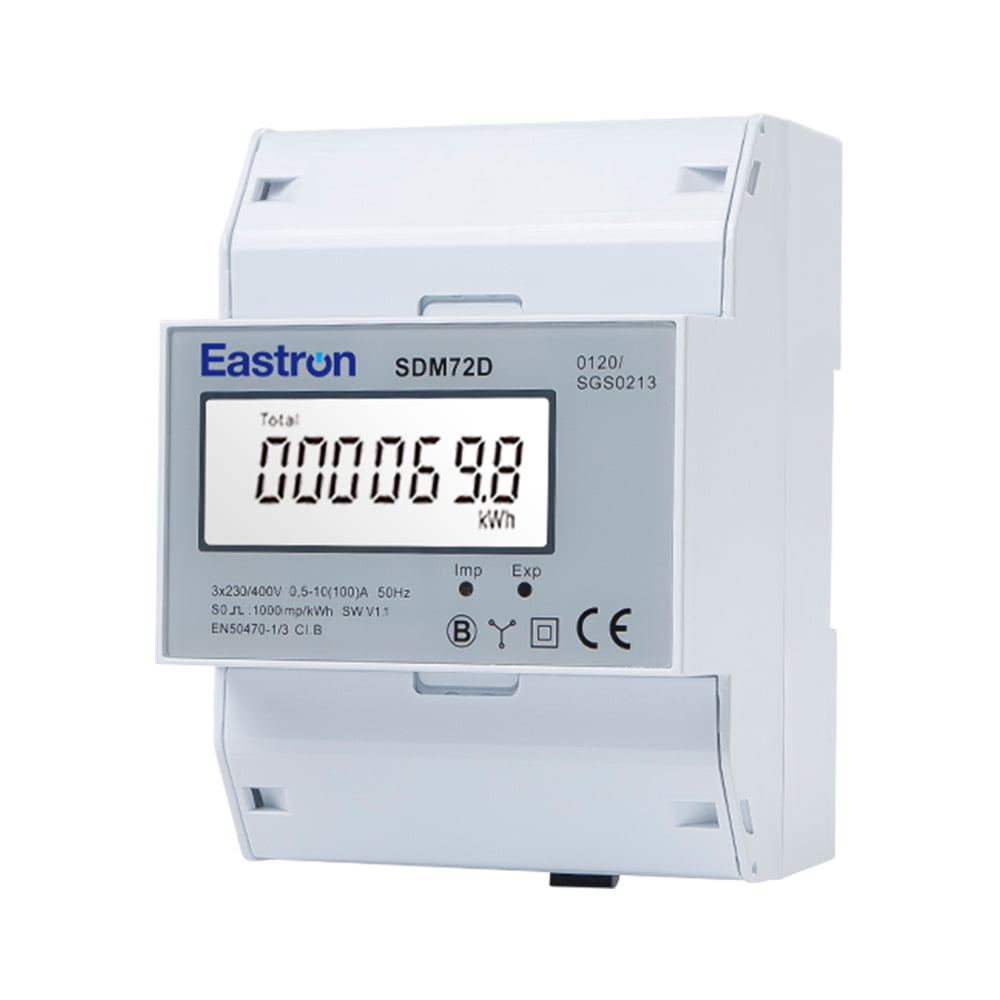

SDM72D is a 4 module size din rail three phase electronic kWh meter with pulse output function. The meter support 3 phase 4 wire connection. It measures and displays active energy (kWh) only. With its perfect performance and high accuracy, the meter is widthly used in commercial and Industrial applications.
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on three phase AC system (3P+N) |
|
|
Measurement Accuracy |
Energy |
IEC 62053-21 Class 1.0/ EN50470-1/3 Class B |
|
Input & Output |
|||
|
Input-Current |
CT Type |
CT Primary |
1-9999A |
|
CT Secondary |
1A/5A |
||
|
Min Current |
0.25A |
||
|
Starting Current |
10mA |
||
|
Direct Type
|
Rated Current |
10A |
|
|
Max Current |
100A |
||
|
Min Current |
0.5A |
||
|
Starting Current |
40mA |
||
|
Output |

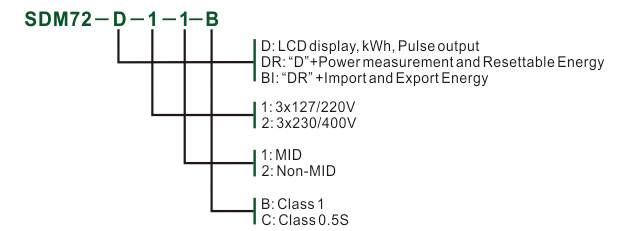

SDM72D / DR / BI |
Pulse Output for active energy |
|
|
SDM72CT-D |
Pulse Output for active energy |
||
