ESCT-RJ Series

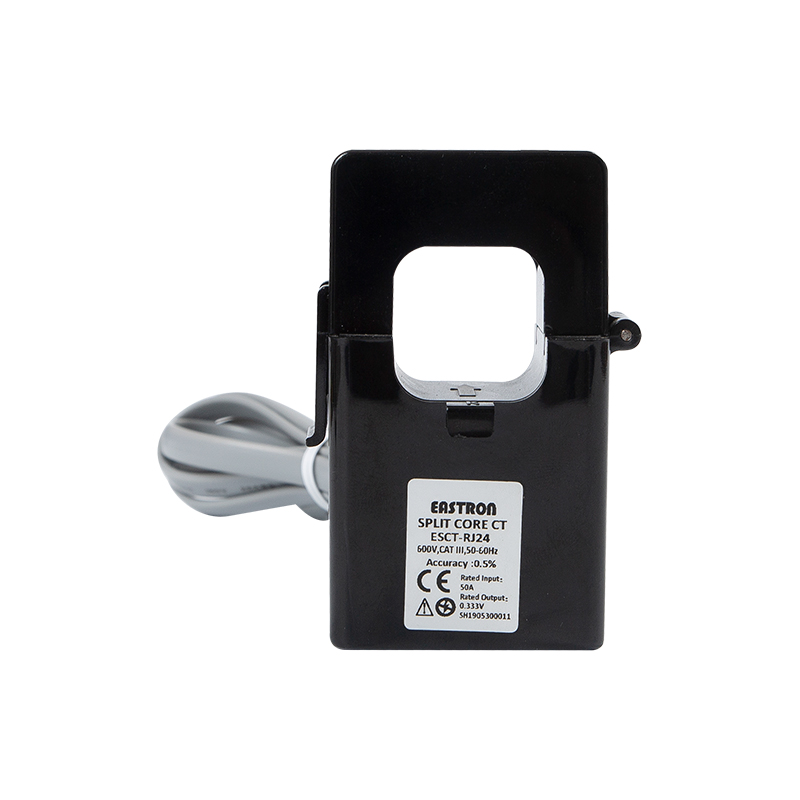

RJ12 terminal mV/mA output Split Core Current Sensor

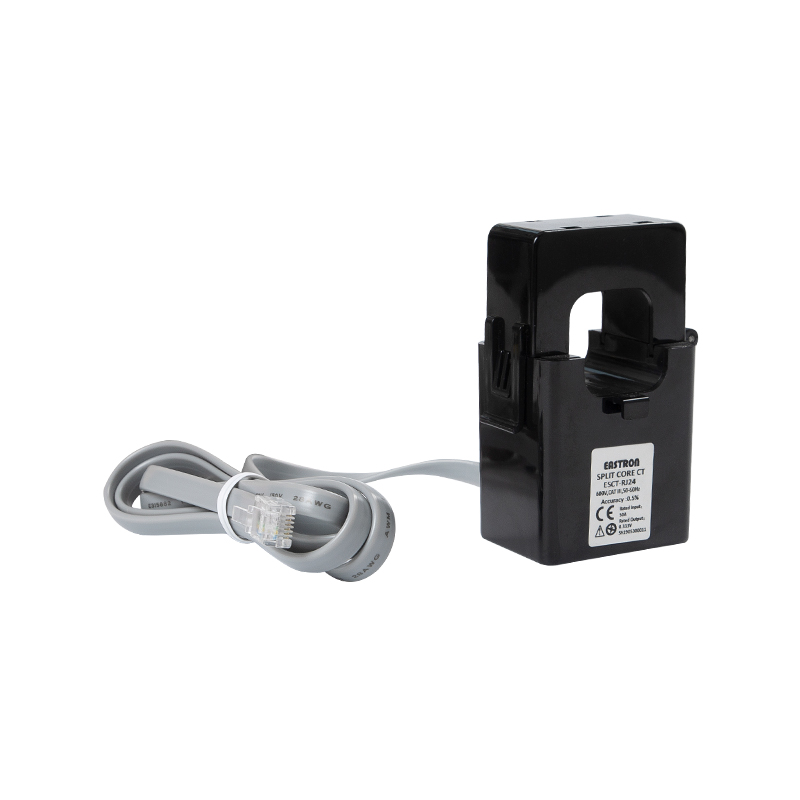

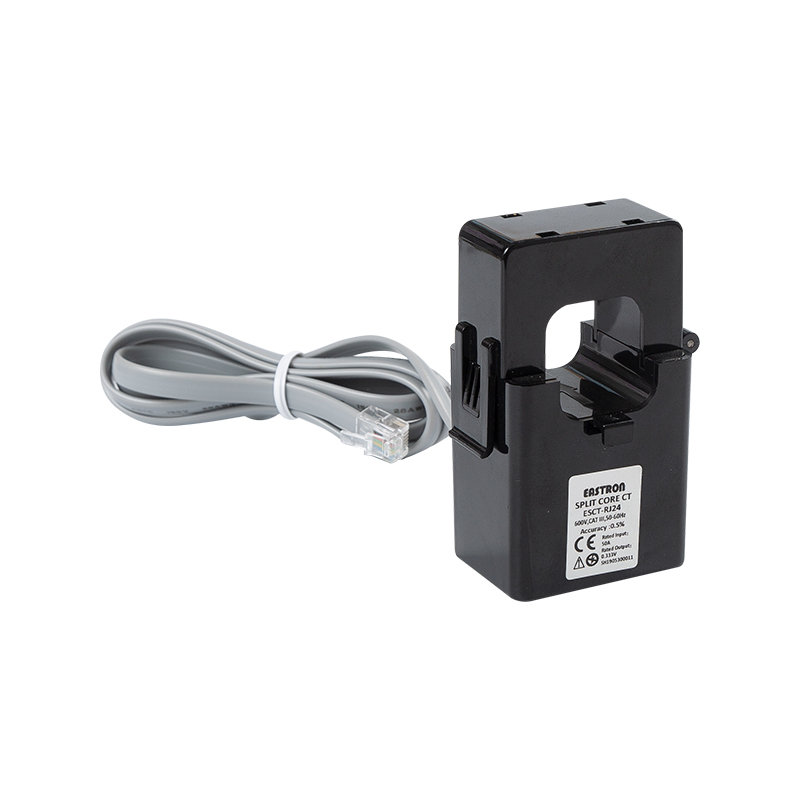

  • RJ12 for easy connection
  • Primary input 5A~1200A
  • Secondary output: 100mA/100mV, etc.

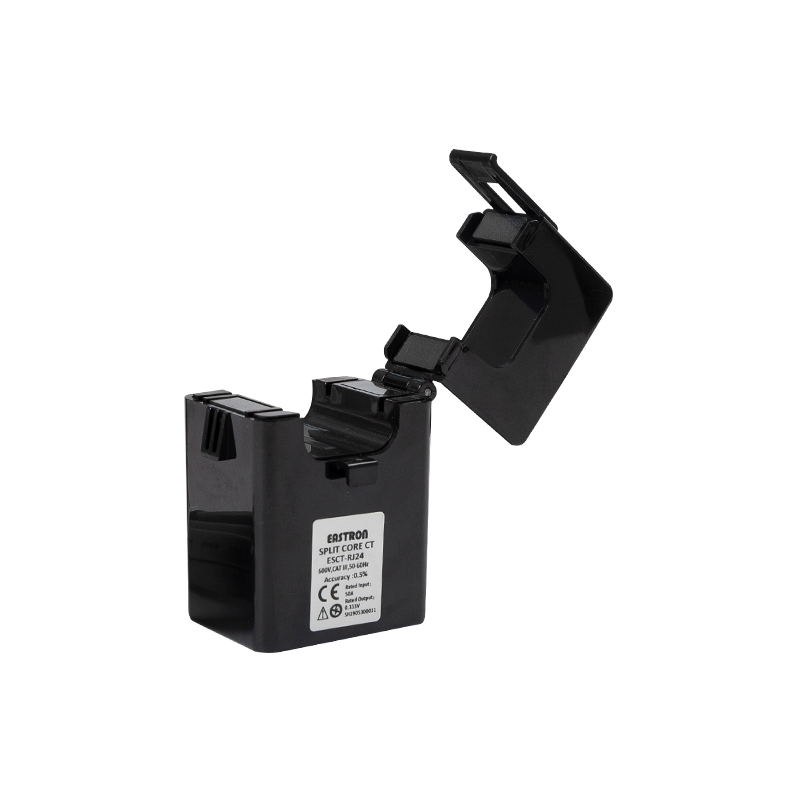

  • Split core, self-locking, safe operation
Contact Us Inquiry PDF Download

400-996-9296

[email protected]

EASTRON ESCT-RJ Series is a single phase RJ12 terminal mV/mA output split core current sensor. Compared with the traditional current sensor (current transformer) which is wire to terminal connection, it directly equipped with an RJ12 terminal for easy click installation, not only saving the labors but also avoiding wiring errors.
With an CRJ-31 adaptor, the CTs could be connected to any three phase system.
Model Primary Current Secondary Output Accuracy
ESCT-RJ16 5A mV or mA 0.5 or 1
10A mV or mA 0.5 or 1
 50A mV or mA 0.5 or 1
 100A mV or mA 0.5 or 1
150A mV or mA 0.5 or 1
ESCT-RJ24 10A mV or mA 0.5 or 1
50A mV or mA 0.5 or 1
100A mV or mA 0.5 or 1
250A mV or mA 0.5 or 1
300A mV or mA 0.5 or 1
ESCT-RJ36 20A mV or mA 0.5 or 1
100A mV or mA 0.5 or 1
250A mV or mA 0.5 or 1
400A mV or mA 0.5 or 1
600A mV or mA 0.5 or 1
ESCT-RJ50 200A mV or mA 0.5 or 1
250A mV or mA 0.5 or 1
300A mV or mA 0.5 or 1
400A mV or mA 0.5 or 1
500A mV or mA 0.5 or 1
600A mV or mA 0.5 or 1
700A mV or mA 0.5 or 1
800A mV or mA 0.5 or 1
1000A mV or mA 0.5 or 1
1200A mV or mA 0.5 or 1

Wiring and Dimension [mm:]
