ESCT-U Series

Big Current mV output Split Core Current Sensor

  • Big Primary Current Installation
  • Primary current input 50A-3000A
  • Secondary output: 333mV/ 100mA/100mV, etc.
  • Split core, safe operation, easy installation

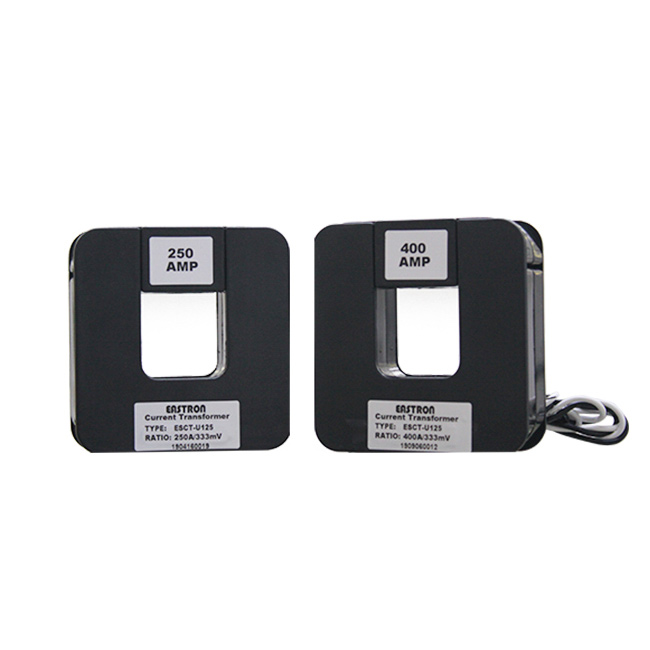

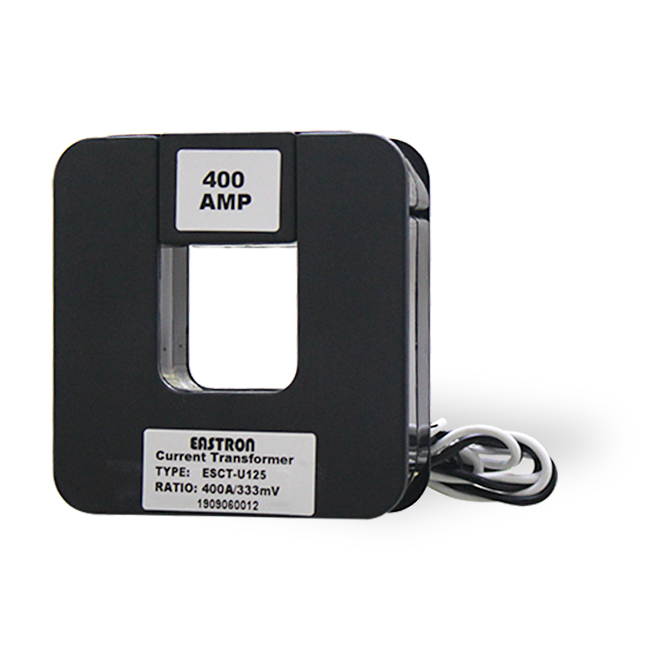

EASTRON ESCT-U Series is a big current mV output split core current sensor designed to facilitate the installations in new or already existing net works. They may be installed without opening any cable or bus-bar circuit.

The ESCT-U Series support up to 3000A current, which is an ideal solution for big primary current situation and bus-bar installation. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.

Model Primary Current Secondary Output Accuracy
ESCT-U75 5 mV or mA 0.5 or 1
10 mV or mA 0.5 or 1
50 mV or mA 0.5 or 1
75 mV or mA 0.5 or 1
100 mV or mA 0.5 or 1
125 mV or mA 0.5 or 1
150 mV or mA 0.5 or 1
200 mV or mA 0.5 or 1
ESCT-U125 50 mV or mA 0.5 or 1
100 mV or mA 0.5 or 1
125 mV or mA 0.5 or 1
200 mV or mA 0.5 or 1
250 mV or mA 0.5 or 1
400 mV or mA 0.5 or 1
600 mV or mA 0.5 or 1
630 mV or mA 0.5 or 1
ESCT-U200 100 mV or mA 0.5 or 1
250 mV or mA 0.5 or 1
125 mV or mA 0.5 or 1
400 mV or mA 0.5 or 1
630 mV or mA 0.5 or 1
800 mV or mA 0.5 or 1
1000 mV or mA 0.5 or 1
2000 mV or mA 0.5 or 1
ESCT-U300  400 mV or mA 0.5 or 1
800 mV or mA 0.5 or 1
1000 mV or mA 0.5 or 1
1500 mV or mA 0.5 or 1
2500 mV or mA 0.5 or 1
3000 mV or mA 0.5 or 1

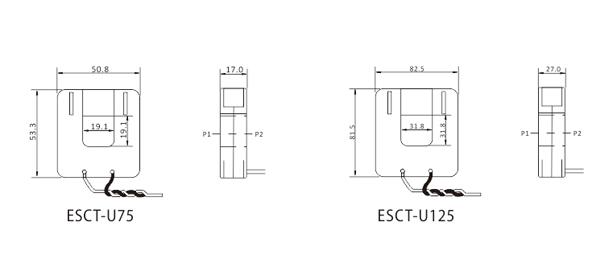

Wiring and Dimension [mm:]

Dimension [mm:]

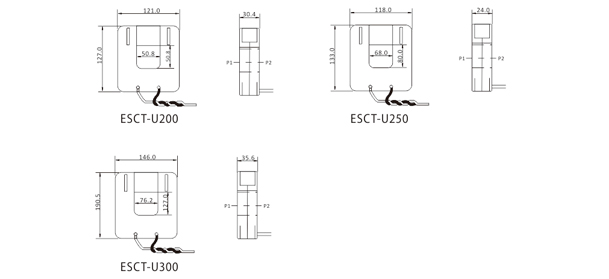

Dimensions

Dimension [mm:]

Dimensions
