We develop and produce high performance electricity meters, power analyzers, current sensors, communication modules and management systems. 40mA / 10mA Output Clamp-on Current Transformer Manufacturers and Factory

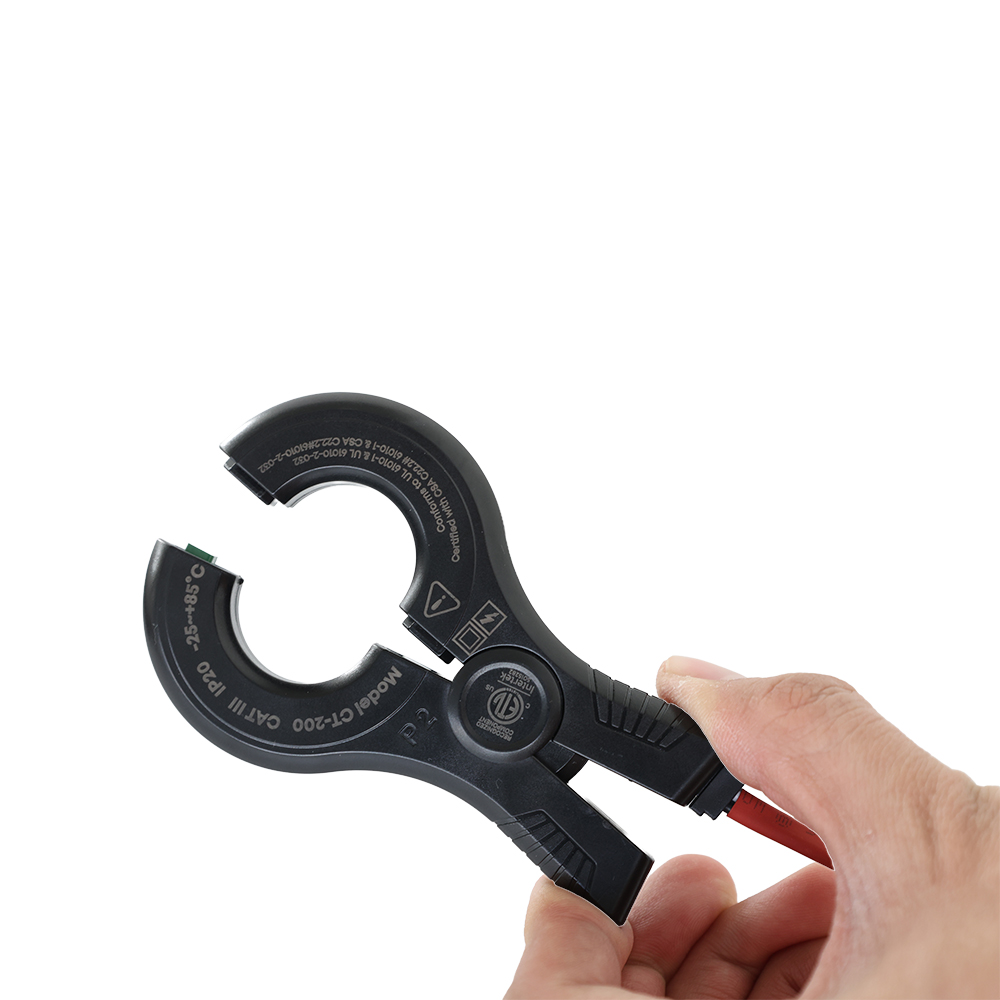

Clamp-on Design, Easy Operation

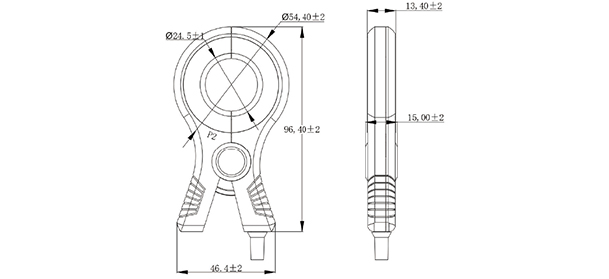

15mm Ultra-slim Design, Ideal for Space-constrained Installation
Operating Altitude up to 4000m
Enhanced Safety
Safe Operation
Standards：GB 20840.2-2014 / IEC61869-2
+86-400-996-9296

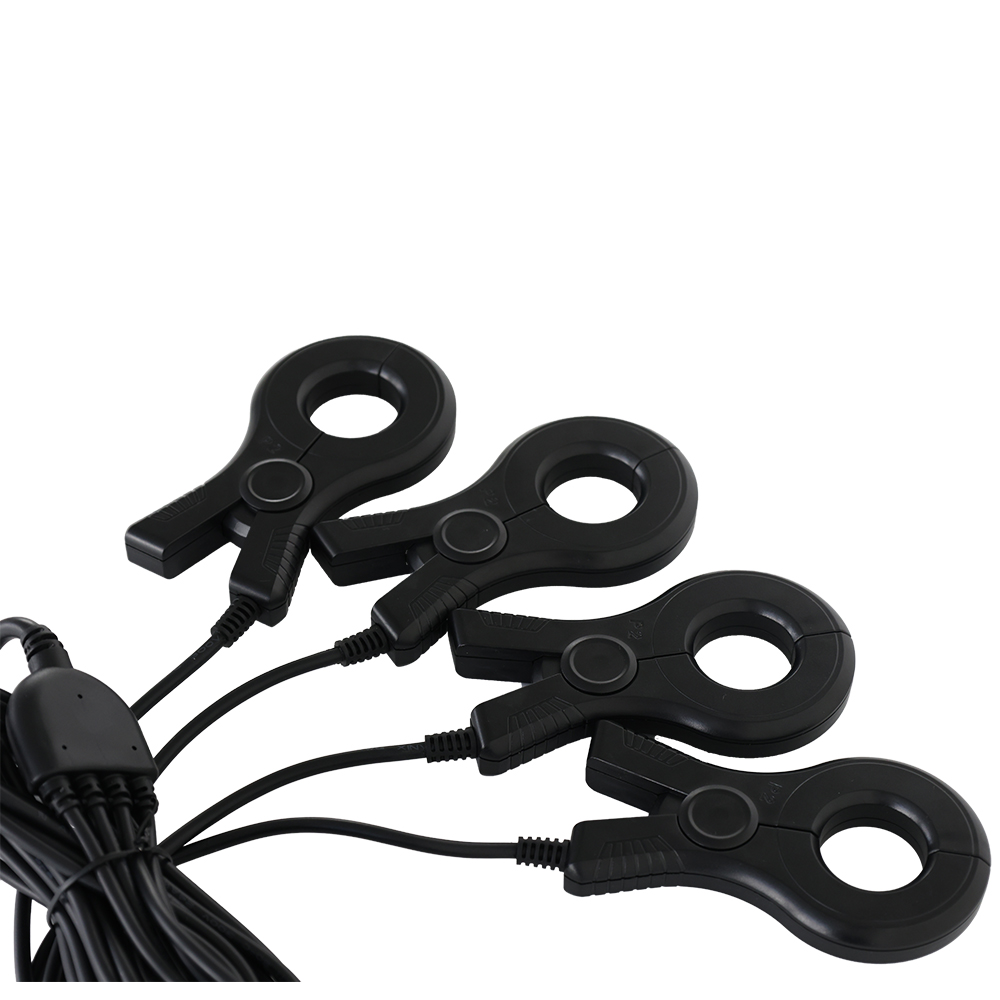

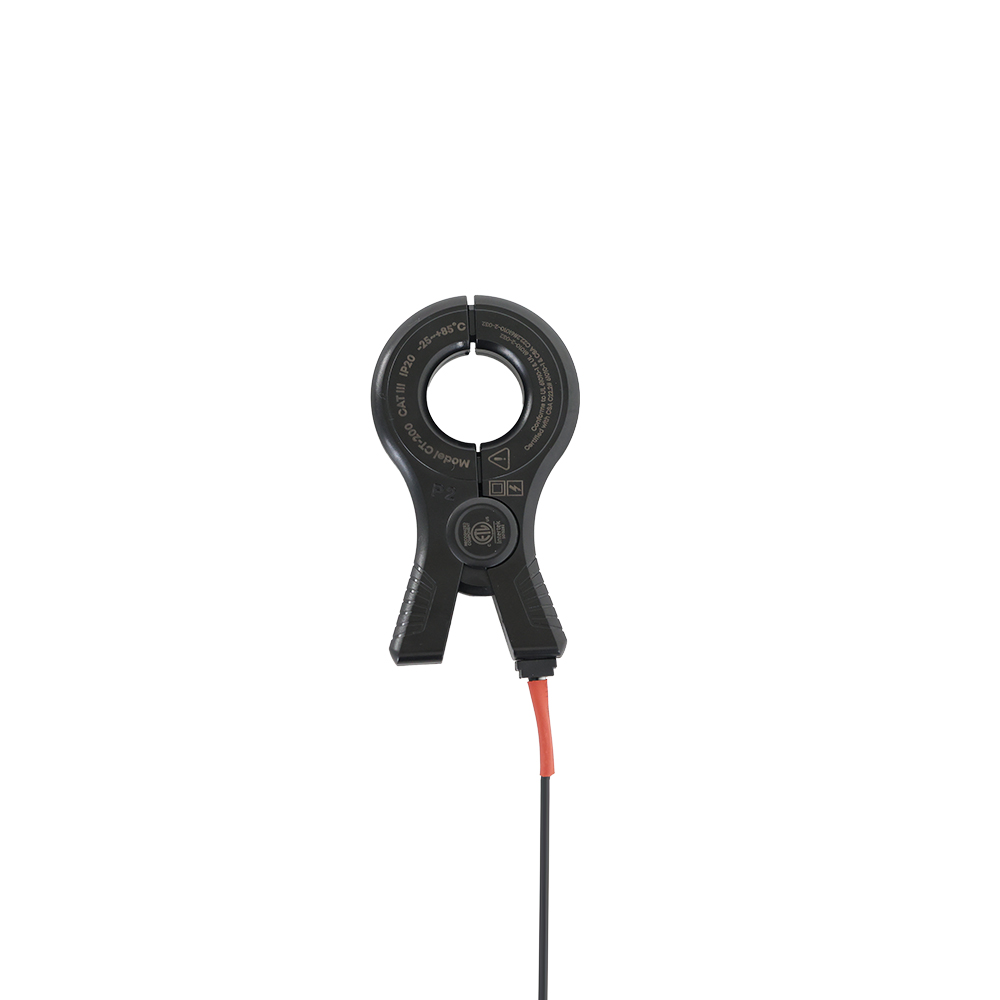

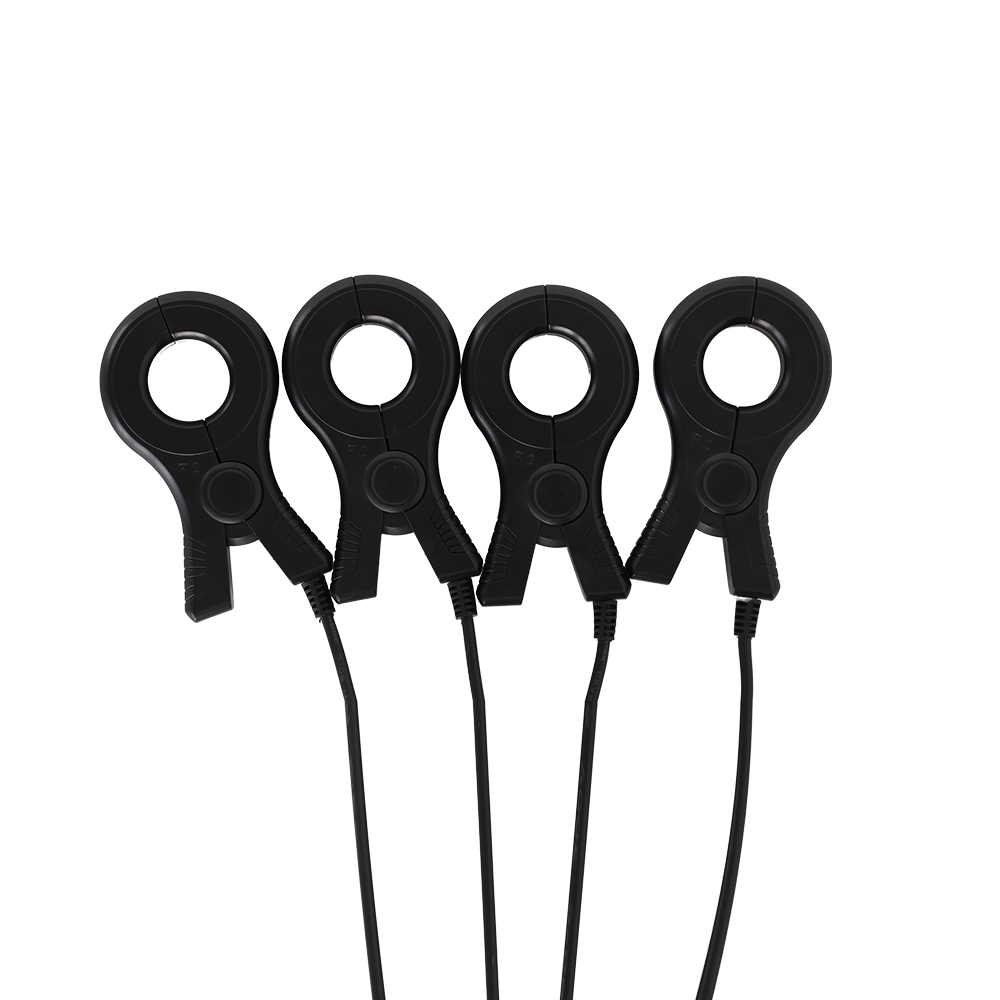

ESCT-D24 series is a clamp-on current transformer with an ultra-slim 15mm design, suitable for space-constrained installation. It supports an operating altitude up to 4000m and features enhanced safety for safe operation. This product complies with GB 20840.2-2014 / IEC61869-2 standard, working at 50–60Hz.
|
Technical Specification |
||
|
Specification |

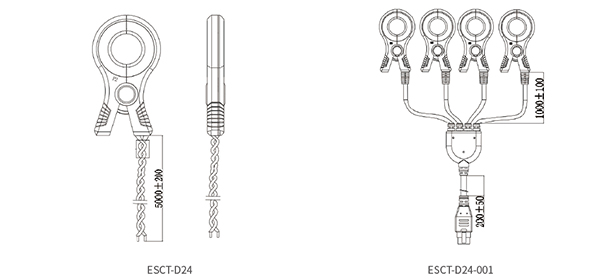

ESCT-D24 |
ESCT-D24-001 |
|
Frequency |
50~60Hz |
50~60Hz |
|
Rated Primary Current |
200A |
L1/L2：200A B1/B2：50A |
|
Rated Secondary Current |
40mA |
L1/L2：40mA B1/B2：10mA |
|
Accuracy |
Class 0.5 |
Class 0.5 |
|
Rated Burden |
30 Ω |
200A:10Ω 50A:40Ω |
|
Altitude |
4000m |
4000m |
|
Insulation Strength |
500MΩ/500V/min |
500MΩ/500V/min |
|
PF Withstand Voltage |
4KV/1mA/1min（Cable Feed-through） |
4KV/1mA/1min（Cable Feed-through） |
|
Operating Temperature |
-40℃ ~ +70℃ |
-40℃ ~ +70℃ |
|
Storage Temperature |
-40℃ ~ +85℃ |
-40℃ ~ +85℃ |
|
Linearity |
0.5 |
0.5 |
|
Standard |
GB 20840.2-2014 / IEC61869-2 |
GB 20840.2-2014 / IEC61869-2 |
|
Model |
Rate Amp (A) |
Output |
Accuracy |
|
ESCT-D24 |
200 |
40mA |
0.5 |
|
ESCT-D24-001(L1/L2) |
200 |
10mA |
0.5 |
|
ESCT-D24-001(B1/B2) |
200 |
10mA |
0.5 |
