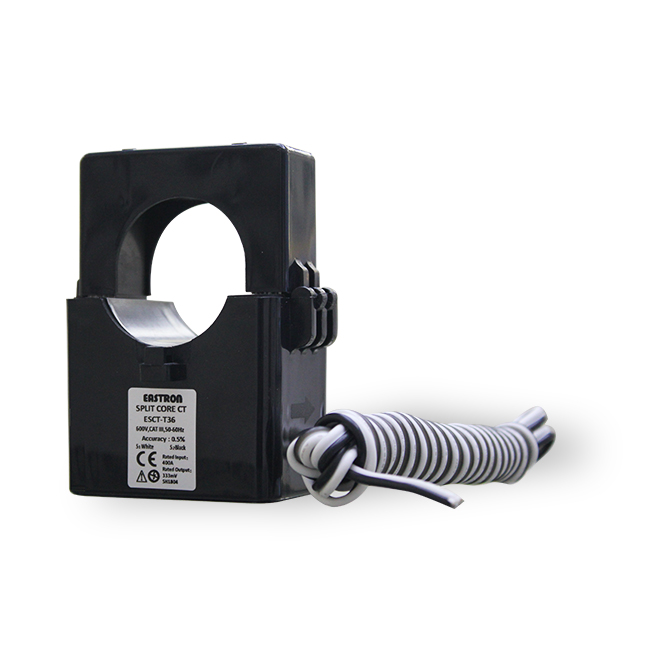

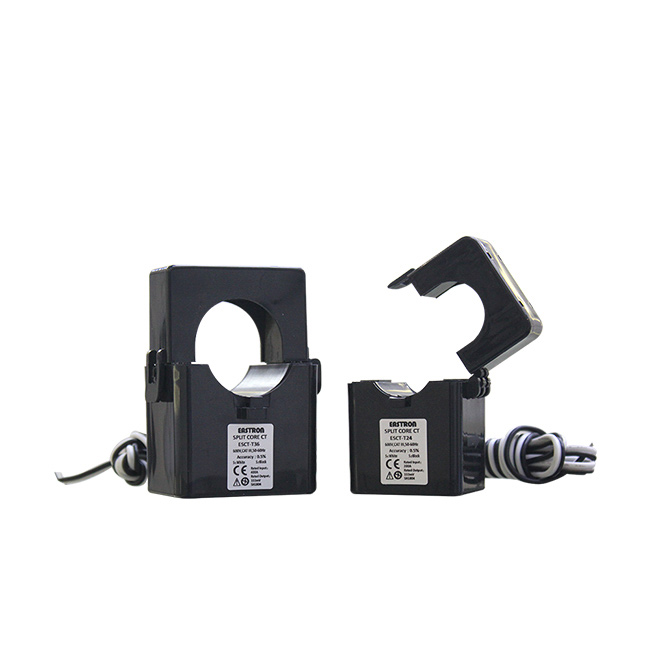

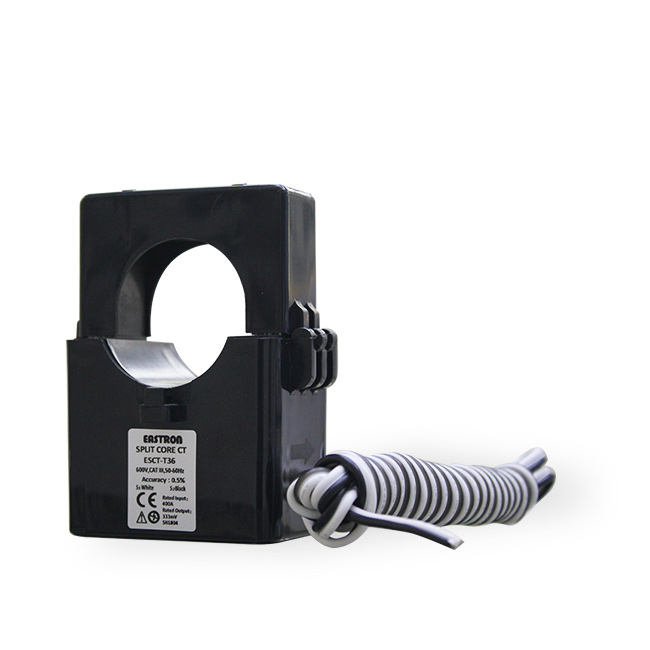

ESCT-T Series

1/5A output Split Core Current Sensor

  • Primary input 5A~600A
  • Secondary output: 1A/5A
  • Split core, self-locking, easy installation
  • Safe Operation

Eastron ESCT-T series is 1/5A output Split Core Current Sensor designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken off line and disconnected for CT installation. This method permits a safer easy and portable current measurement.

Model Primary
Current
Secondary
Output
Burden(VA)
Class 0.5 Class 1.0
ESCT-T24 100A 1A or 5A - 1.5
150A 1A or 5A - 1.5
200A 1A or 5A 1.5 2.5
250A 1A or 5A 1.5 2.5
300A 1A or 5A 1.5 2.5
ESCT-T36 100A 1A or 5A - 1.5
150A 1A or 5A - 1.5
200A 1A or 5A 1.5 2.5
300A 1A or 5A 1.5 2.5
400A 1A or 5A 1.5 2.5
500A 1A or 5A 2.5 3.75
600A 1A or 5A 2.5 5

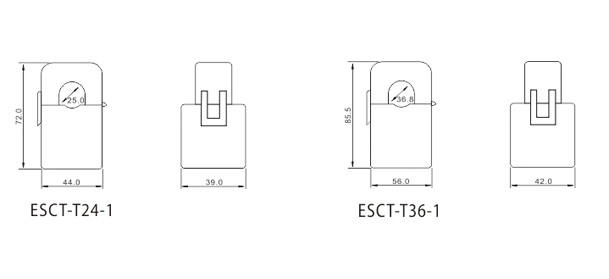

Wiring and Dimension [mm:]

Dimension [mm:]

Dimensions

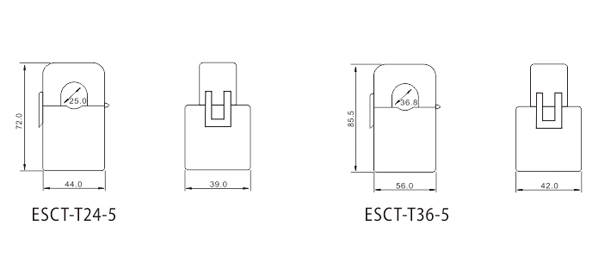

Dimension [mm:]

Dimensions
