ESCT-DM 5A CT output Solid Core Current Sensor

  • ESCT-DM 5A CT output Solid Core Current Sensor
  • ESCT-DM 5A CT output Solid Core Current Sensor

ESCT-DM Series

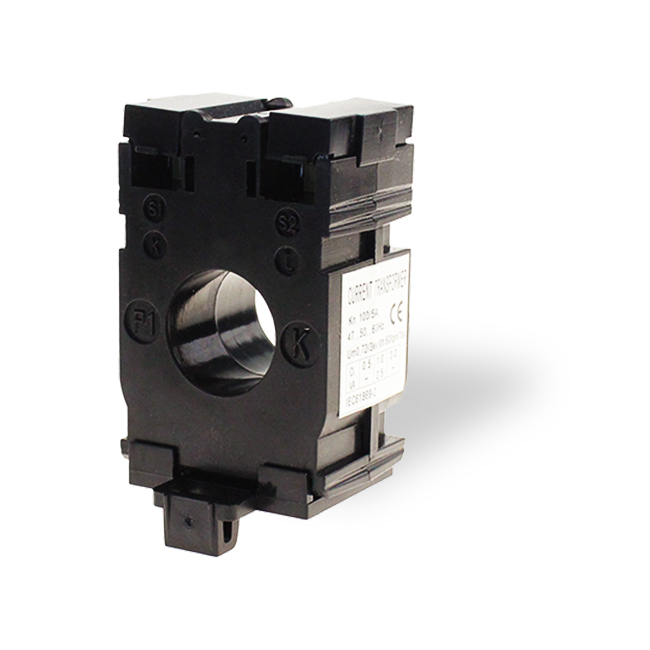

ESCT-DM 5A CT output Solid Core Current Sensor

  • Two Built-in fixing methods: busbar mounting or 1 side base
  • Built-in hinged terminal cover
  • Primary current input: 50A to 300A
  • Secondary output: 1A/5A
Eastron ESCT-DM 5A CT output Solid Core Current Sensor is a mini design plastic case current transformer. It is snap on body, and is widely used in generators. It is available for connectiong with cable, and also available for connecting with Busbars. Its primary currents are between 50A~300A, and secondaries with up to Class 1.0 accuracy performance.
Model Primary
Current
Secondary
Output
Burden(VA)
Class 0.5 Class 1.0
ESCT-DM20/30 50 5A - 1
60 5A - 1.25
75 5A - 1.5
80 5A - 1.5
100 5A - 2.5
120 5A - 2.5
150 5A - 2.5
200 5A - 3.75
250 5A - 3.75
300 5A - 3.75
ESCT-DM20/35 50 5A - -
60 5A - -
75 5A - 1.5
80 5A - 1.5
100 5A - 2.5
120 5A - 2.5
150 5A - 2.5
200 5A - 2.5
250 5A - 3.75
300 5A - 3.75

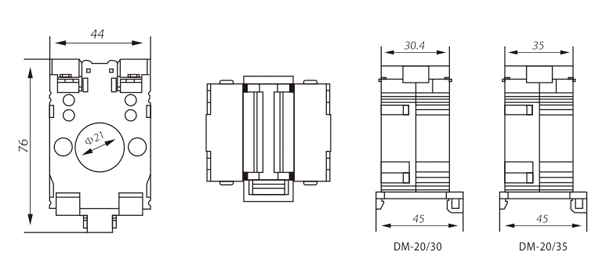

Wiring and Dimension [mm:]

Dimension [mm:]

Dimensions
