We develop and produce high performance electricity meters, power analyzers, current sensors, communication modules and management systems. Support DSMR4.2 /5.0 Wifi Communication Energy Tracker for P1 Port Smart Meters Manufacturers and Factory
400-996-9296

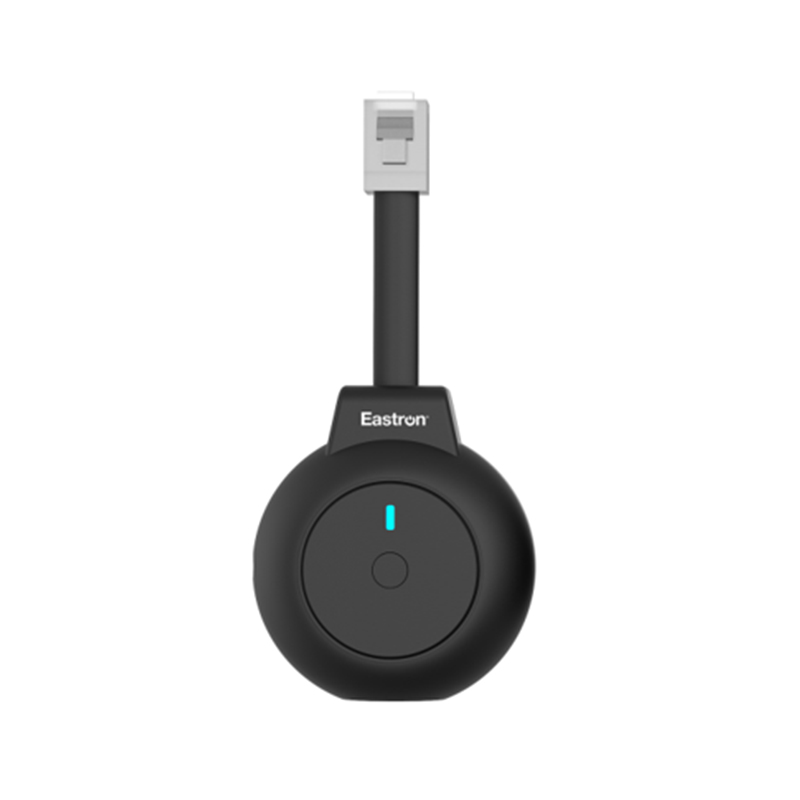

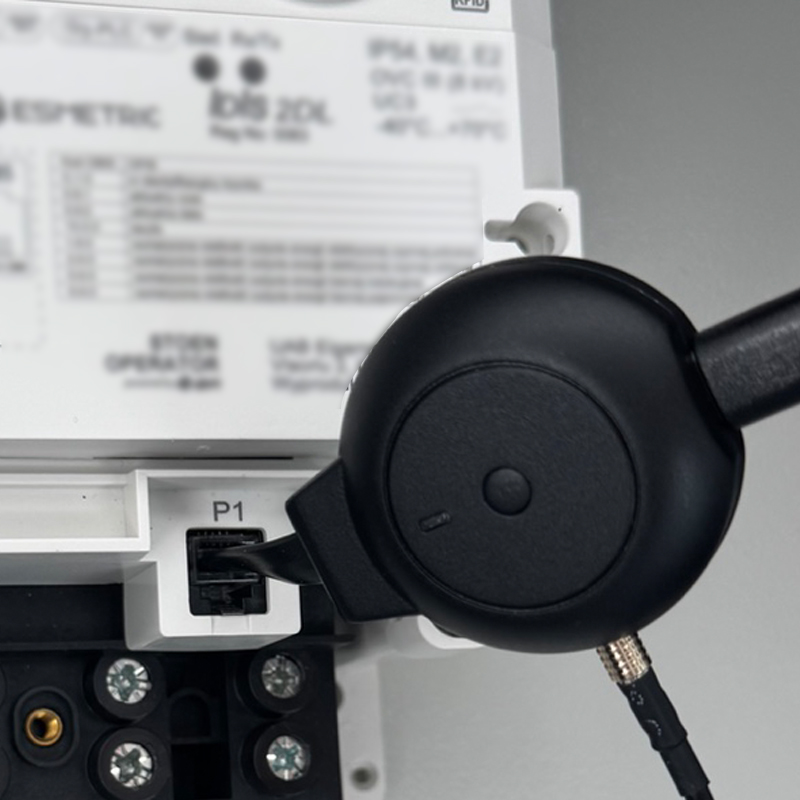

The P1 Meter clicks into the P1 port on your smart meter and gives you insight into the electricity of your home. The P1 Meter is compatible with most modern meters in Europe, and on modern smart meters you don't even need a power adapter. Plug in, connect to Wi-Fi and you're done!
|
Technical Characteristics |
|
|
Compatibility |
DSMR4.2 /5.0 |
|
Phases |
Single Phase and Three Phase |
|
Connection |
RJ12 Terminal |
|
Usage |
IP20（indoor） |
|
Power Consumption |
<1.5W（Typ. @ 5V/260mA） |
|
Measurement |
Voltage, Current, Power, Energy |
|
Data Frequency |
1S (on SMR5 smart meters) 10S（on SMR4 smart meters） |
|
Local API |
Yes |
|
Bridge/Hub Required |
No |
|
Wi-Fi Communications |
|
|
Protocol |
http |
|
Data Type |
JSON |
| RF Band |
2.4 GHz to 2.5 GHz |
|
Max. RF Power |
<20 dBm |
|
Wi-Fi Protocol |
802.11 b/g/n |
|
Wi-Fi Range |
Up to 30m / 100ft indoors and 50m / 160ft outdoors
(Depends on local conditions)
|
|
Bluetooth Protocol |
Ble 5.0 |
