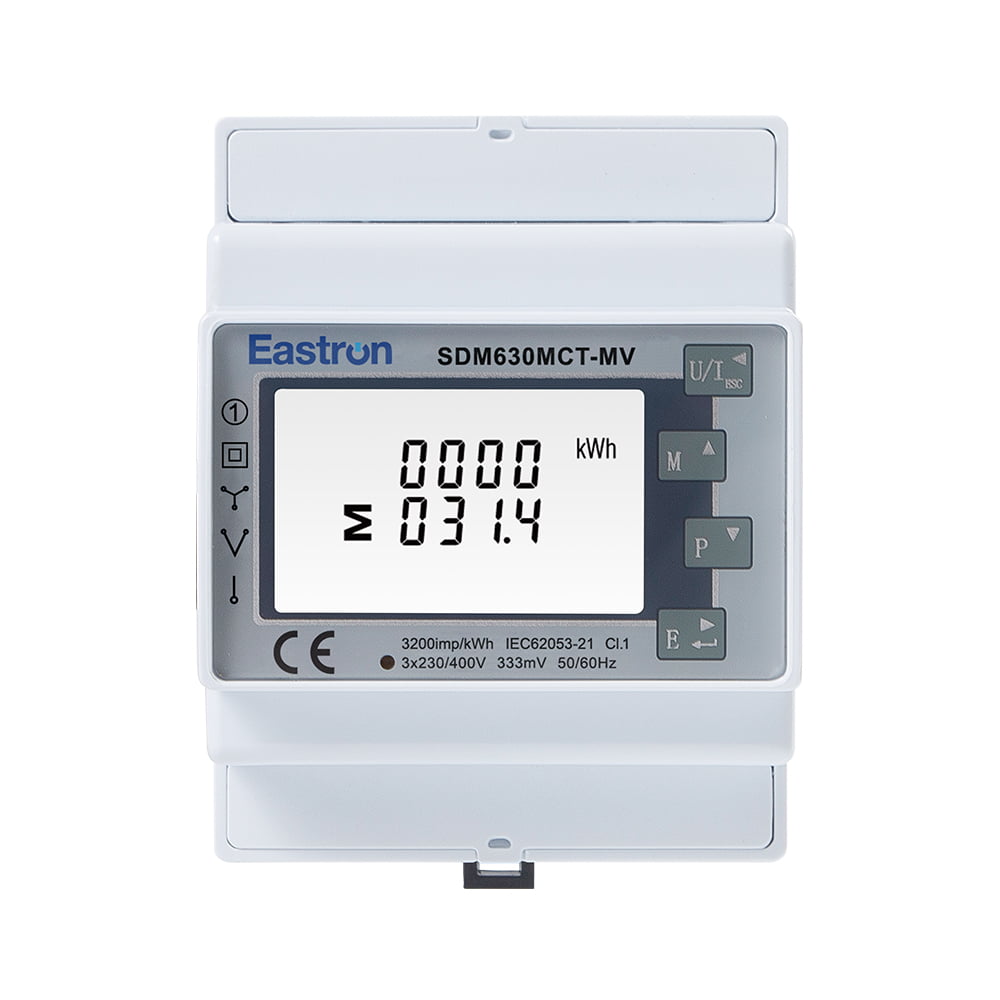

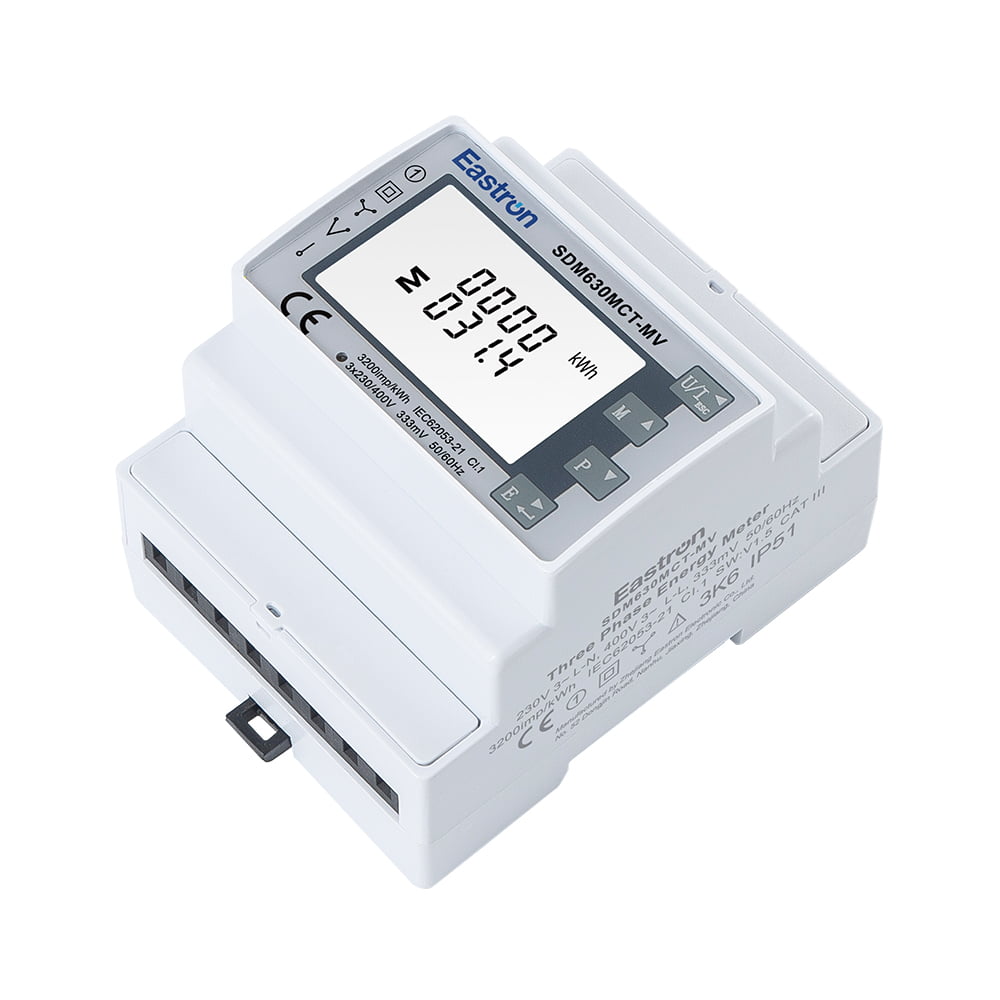

SDM630MCT-MV

RCM CT Type Din Rail Three Phase Multi-function Solar PV /Zero Export Meter for PV Metering

  • CT & PT operated
  • Work with 3P4W/3P3W/1P2W
  • 4 Module 72mm wide
  • Multi-measurement:
  • kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,etc.
  • Bi-directional measurement for Solar PV Metering
  • 2 Pulse outputs
  • RS485 Modbus

SDM630CT Modbus / Mbus / 2T / MV

THREE PHASE MULTI-FUNCTION ENERGY METER

The SDM630MCT-MV is SAA CT Type Din Rail Three Phase Multi-function Solar PV /Zero Export Meter for PV metering. Suitable for monitoring energy consumption and many other electrical parameters. The unit requires auxiliary power supply (AC or DC) to power the meter and it can work with 333mV/100mV input CTs. Build-in interface provides pulse and RS485 Modbus RTU outputs. Its bi-directional measurement function made it a good choice for Solar PV and the Zero Export Systems.

SDM630MCT-MV has been assessed and certified of RCM by SAA and the instrument traceable number is SAA220473.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

CT Secondary

333mV/ 100mA/ 40mA/100mV

CT Primary

1-9999A

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630MCT mV/mA Series

2 Pulse Outputs + RS485 Modbus



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
