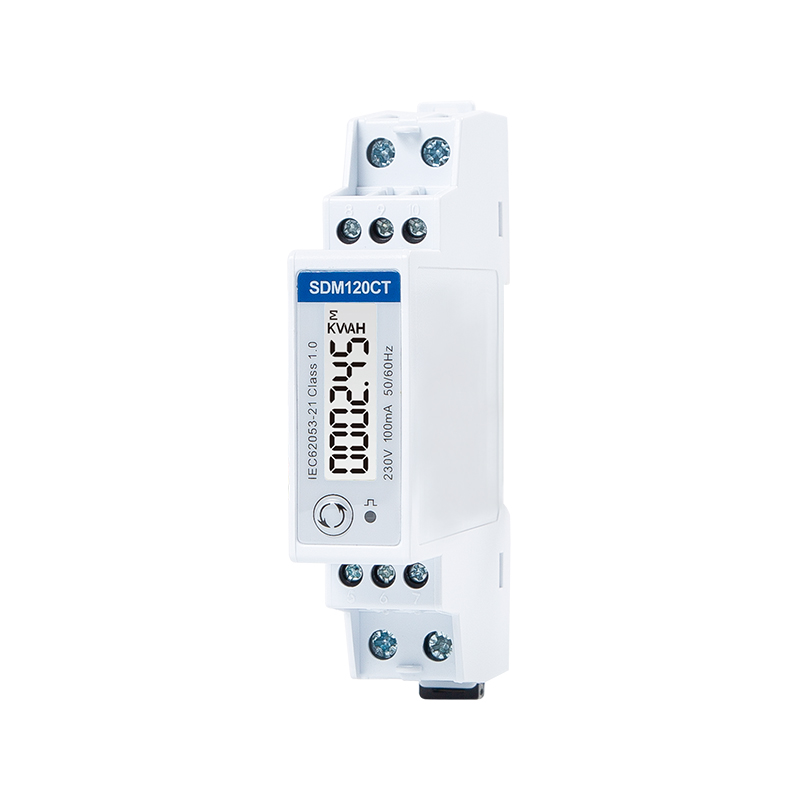

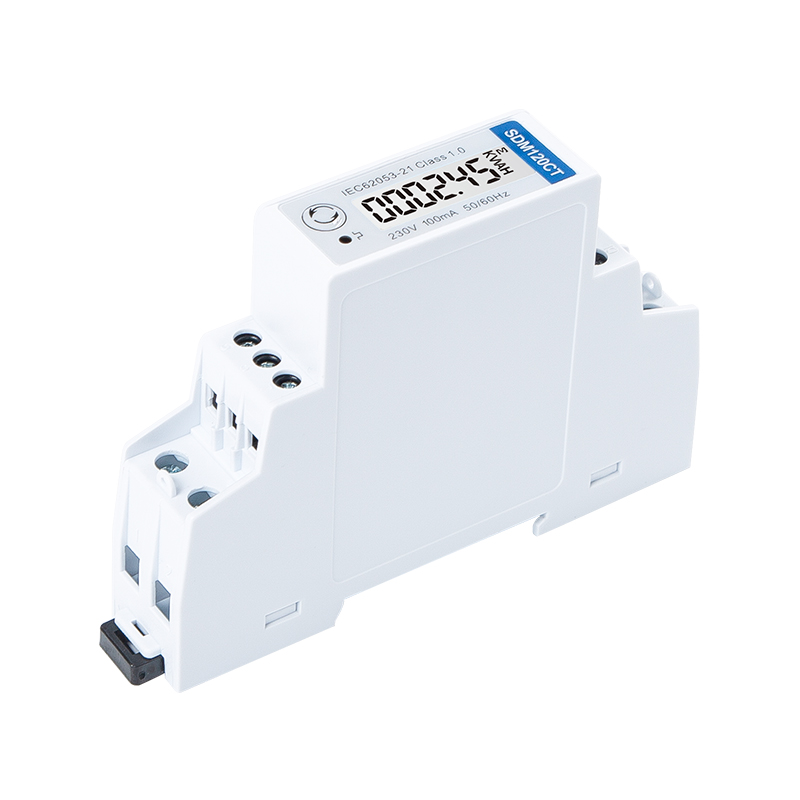

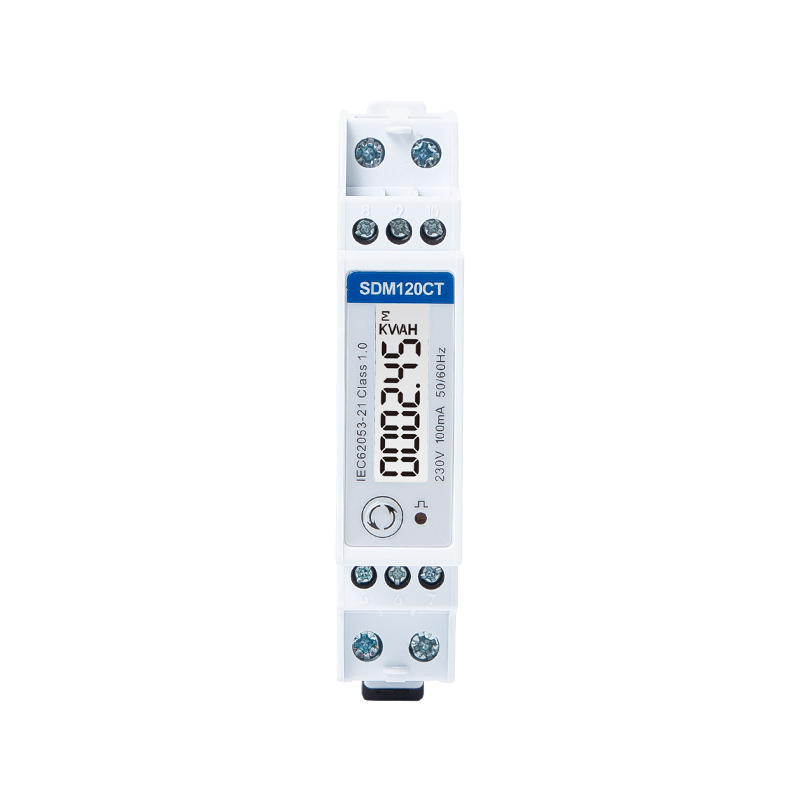

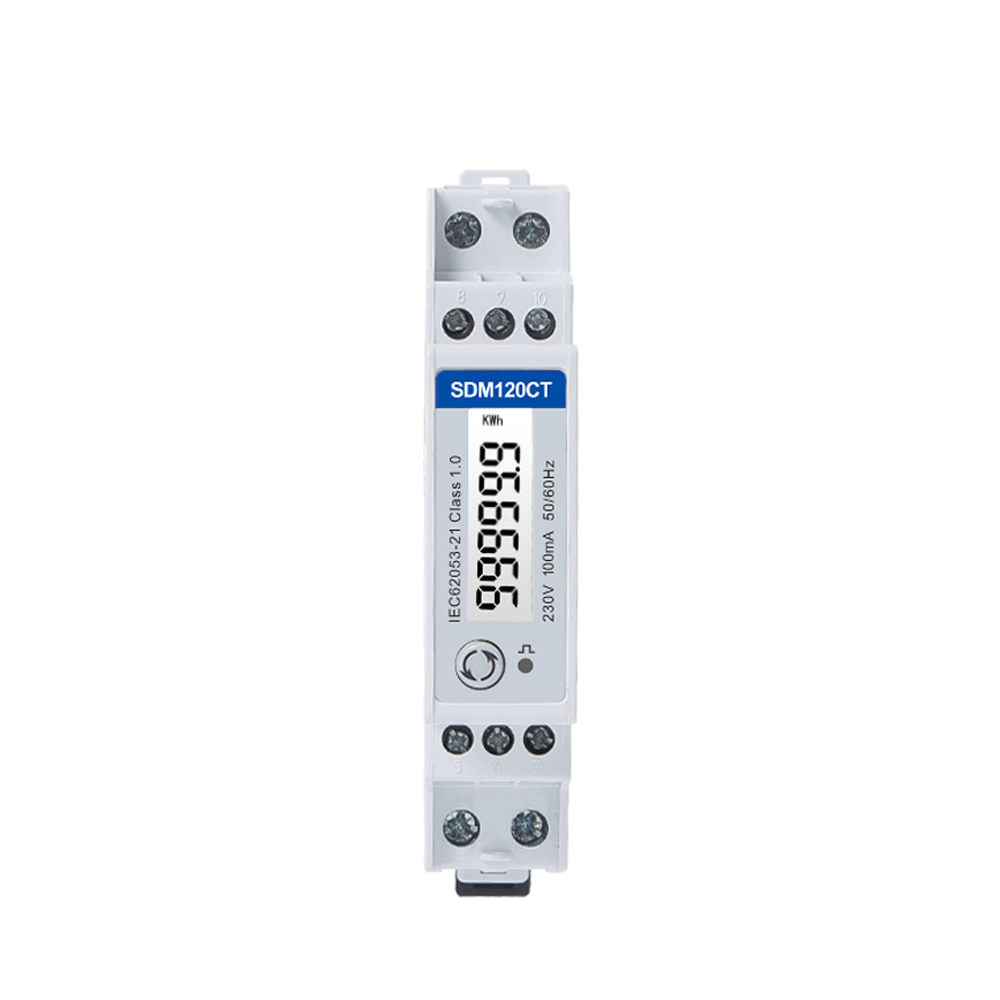

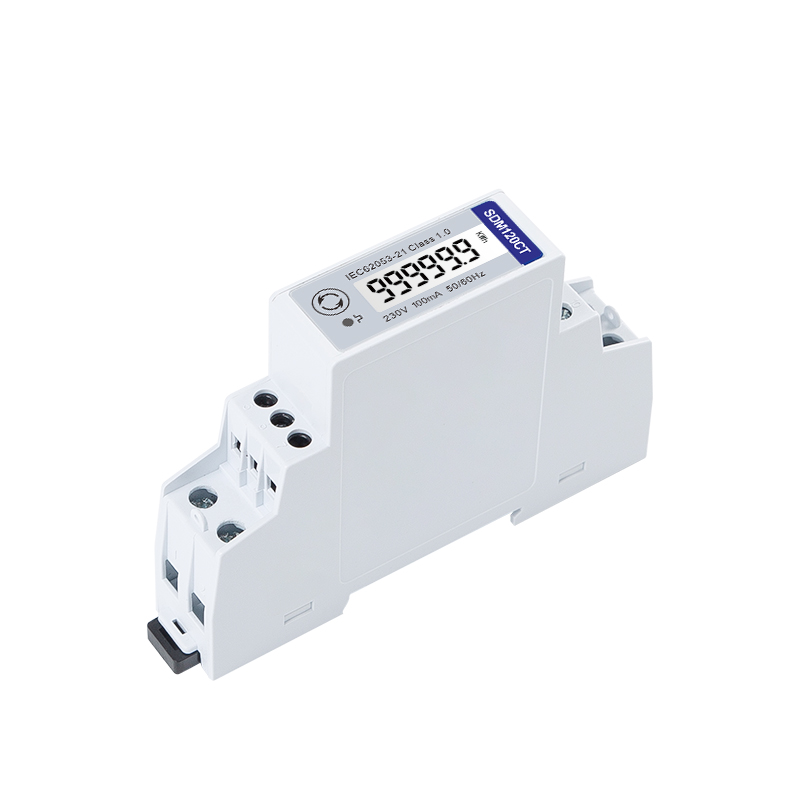

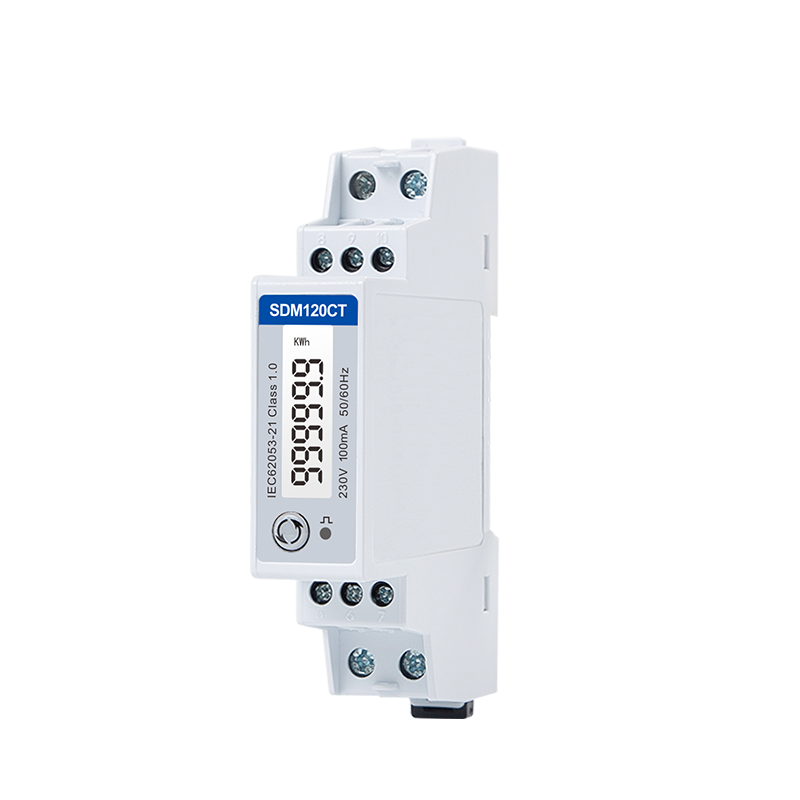

MID/RCM 100mA CT input Din Rail Single Phase Multi-function Solar PV /Zero Export Meter for PV Metering

  • MID/RCM 100mA CT input Din Rail Single Phase Multi-function Solar PV /Zero Export Meter for PV Metering
  • MID/RCM 100mA CT input Din Rail Single Phase Multi-function Solar PV /Zero Export Meter for PV Metering
  • MID/RCM 100mA CT input Din Rail Single Phase Multi-function Solar PV /Zero Export Meter for PV Metering
  • MID/RCM 100mA CT input Din Rail Single Phase Multi-function Solar PV /Zero Export Meter for PV Metering
  • MID/RCM 100mA CT input Din Rail Single Phase Multi-function Solar PV /Zero Export Meter for PV Metering
  • MID/RCM 100mA CT input Din Rail Single Phase Multi-function Solar PV /Zero Export Meter for PV Metering

SDM120CTM 100mA

MID/RCM 100mA CT input Din Rail Single Phase Multi-function Solar PV /Zero Export Meter for PV Metering

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • For Solar PV Metering
  • 2 Pulse Output +Modbus
  • Bi-directional Measurement
  • 100mA CT operated (40mA/ 100mV optional)
  • 1 Module 18mm Width
  • 1P2W

SDM120CT Modbus / Mbus / Pulse

SINGLE PHASE MULTI-FUNCTION ENERGY METER

The SDM120CTM 100mA is a SAA 100mA CT input Din Rail Single Phase Multi-function Solar PV /Zero Export Meter with  RS485 output for PV metering.  It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc.  Two pulse outputs and 1 communication port are provided for remote monitoring and setting, popular with single phase PV solar power system. The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

10mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

Output

SDM120CTP

2 Pulse Output for imp/exp. energy

SDM120CTM

2 Pulse Output + RS485 Modbus

SDM120CTMB

2 Pulse Output + M-bus EN13757-3



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Transmission Speed

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
