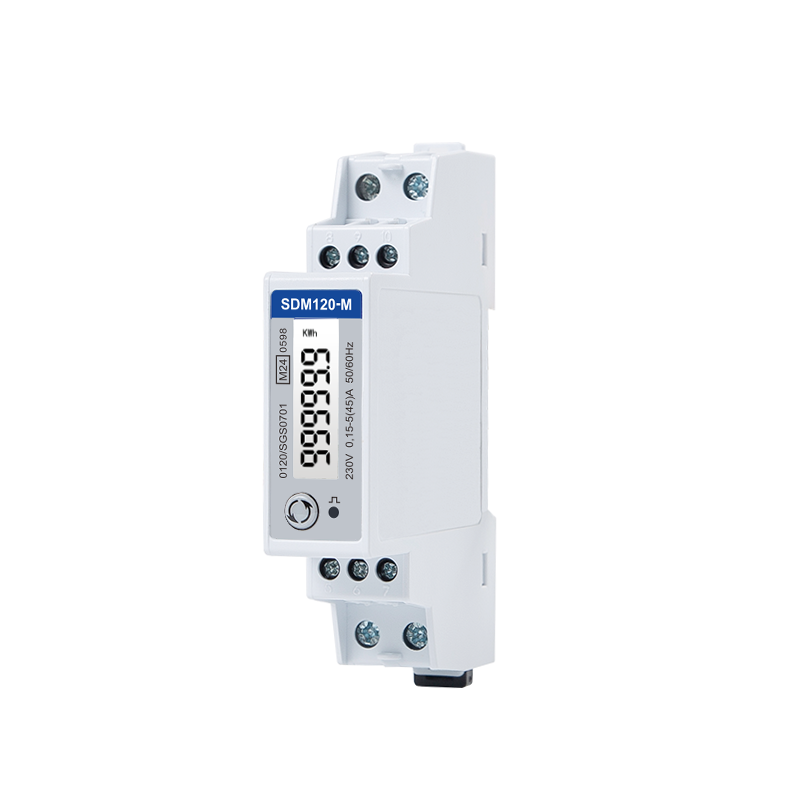

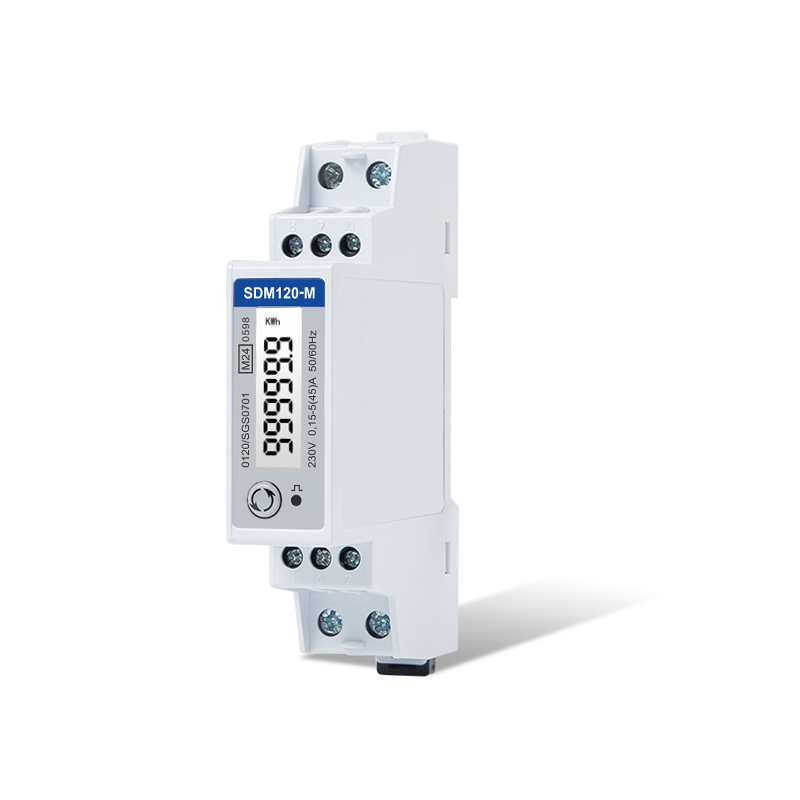

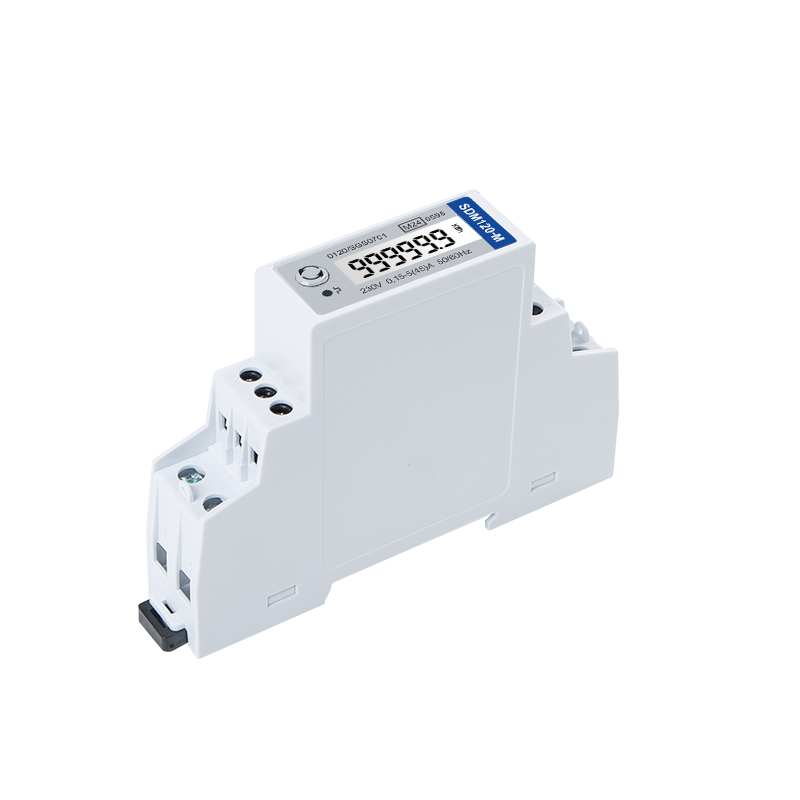

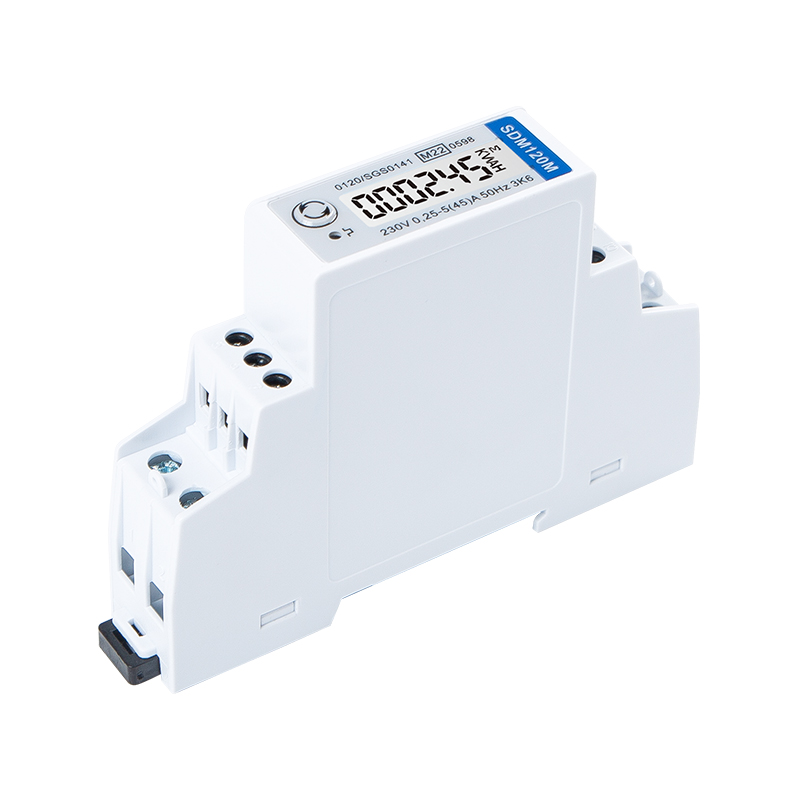

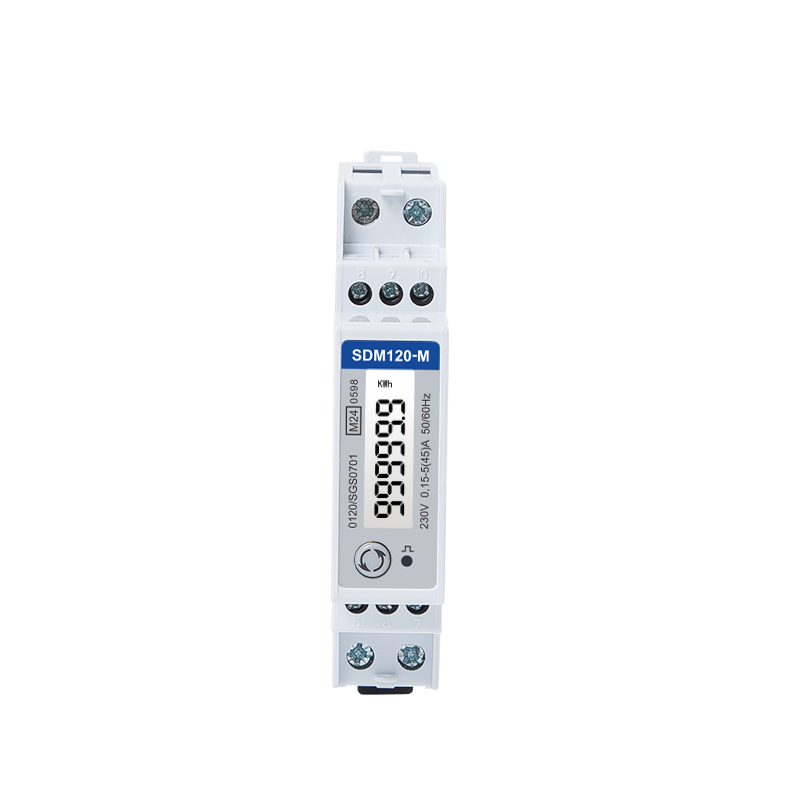

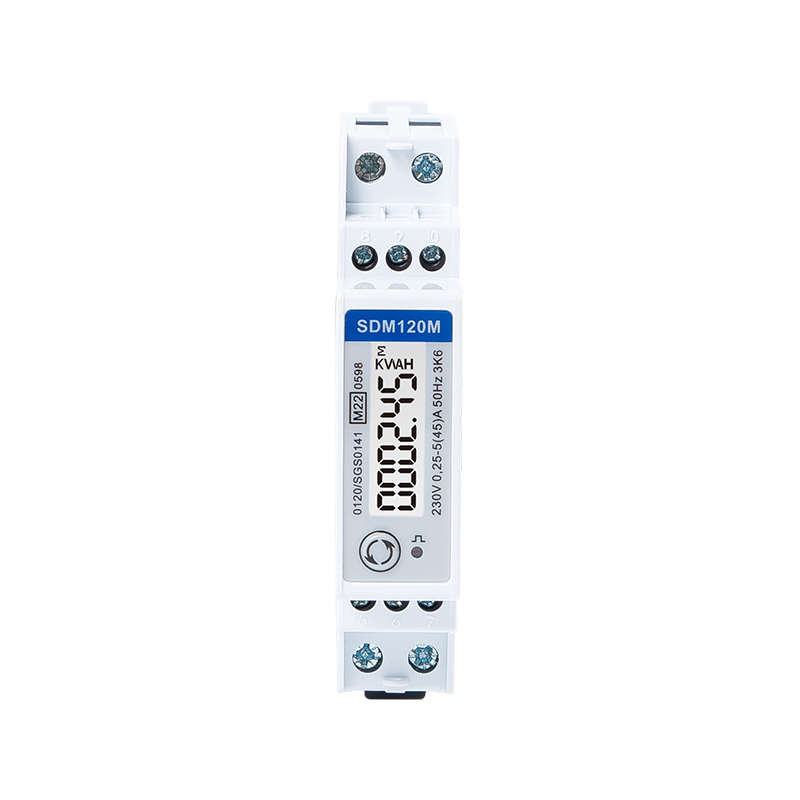

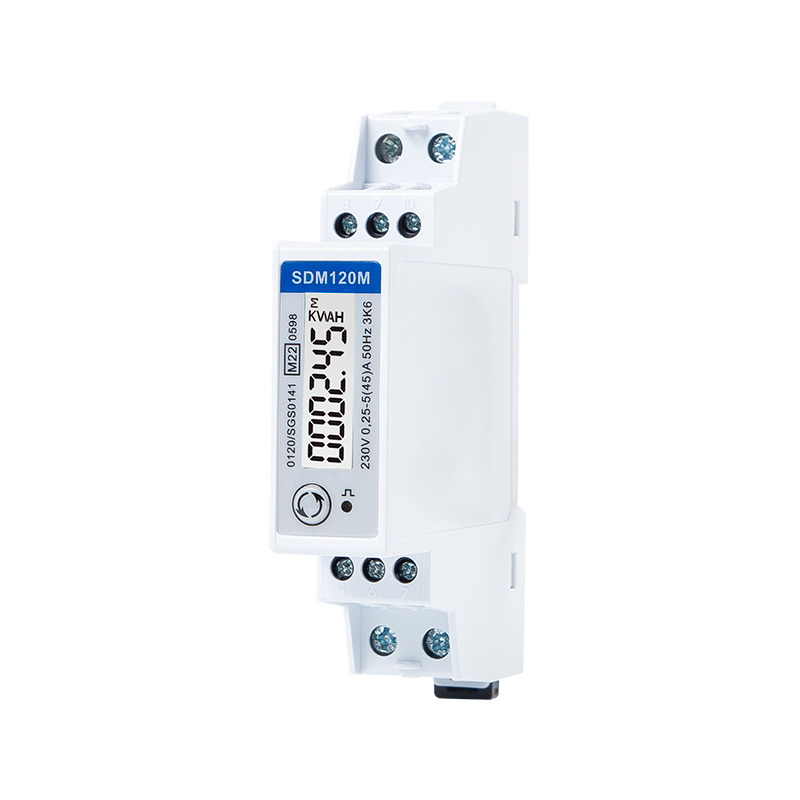

SDM120-M

MID Din Rail Single Phase Multi-function Solar PV /Zero Export Meter for PV Metering

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • For Solar PV Metering
  • 2 Pulse Output +Modbus
  • Bi-directional Measurement
  • 45A Max. Direct Load
  • 1 Module 18mm Width
  • MID approved
  • 1P2W

SDM120-Modbus / Mbus / Pulse

SINGLE PHASE MULTI-FUNCTION ENERGY METER

The SDM120-M is a MID Din Rail Single Phase Multi-function Solar PV /Zero Export Meter with  RS485 output for PV metering.  It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc.  The units support Max. 45A direct connection, saving the cost and avoiding the trouble to connect external CTs. Two pulse outputs and 1 communication port (RS485 Modbus/DLT645) are provided for remote monitoring and setting, popular with single phase solar power system.

The unit has been approved to meet the requirements of EU Directive 2014/32/EU.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC62053-21 Class 1/0.5
EN50470-3:2022 Class B/C

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

5A

Max Current(Imax.)

45A

Min Current(Imin.)

0.15A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

85~276V AC

Output

SDM120P

2 Pulse Output for imp/exp. energy

SDM120M

2 Pulse Output + RS485 Modbus

SDM120MB

2 Pulse Output + M-bus EN13757



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Transmission Speed

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

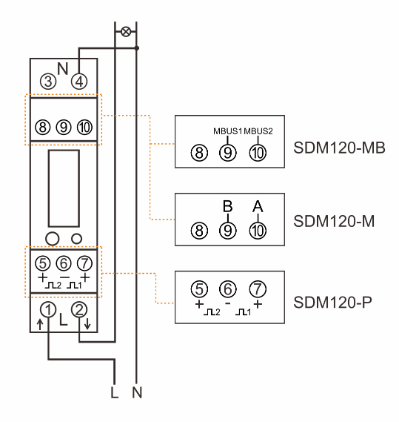

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
