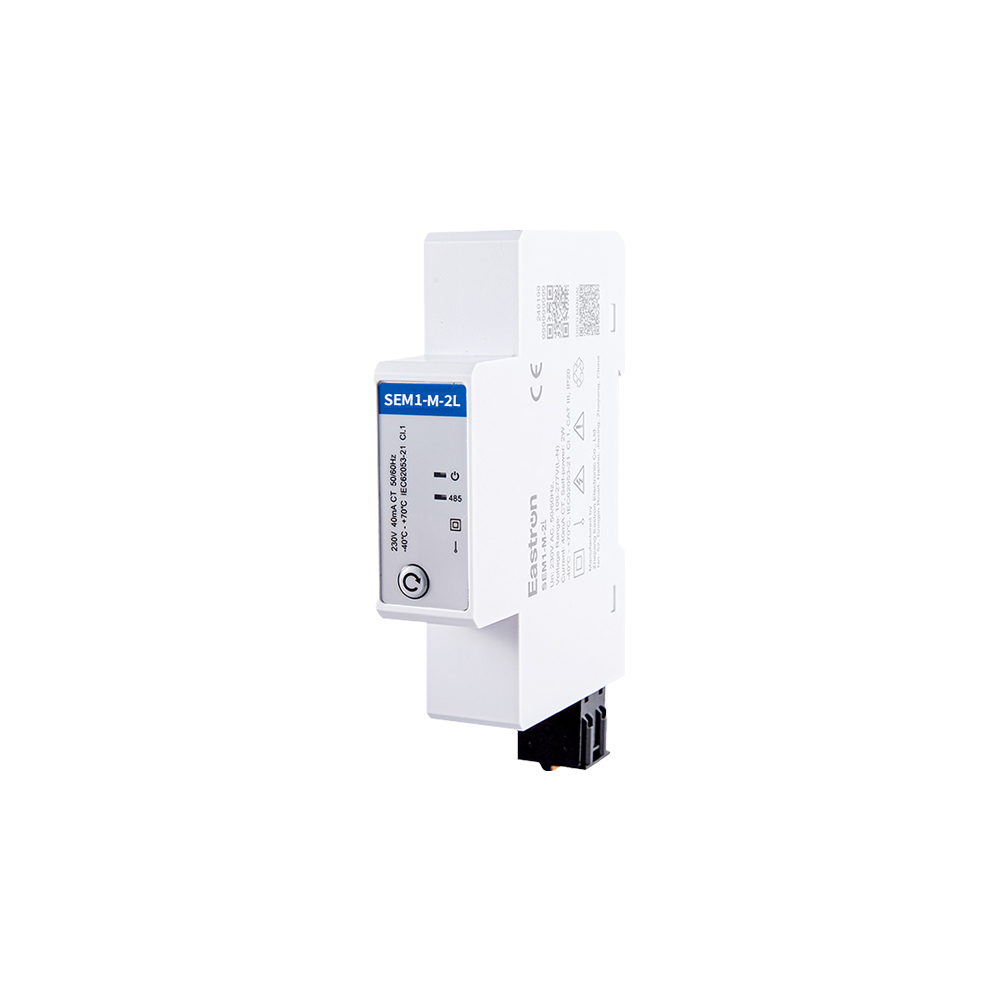

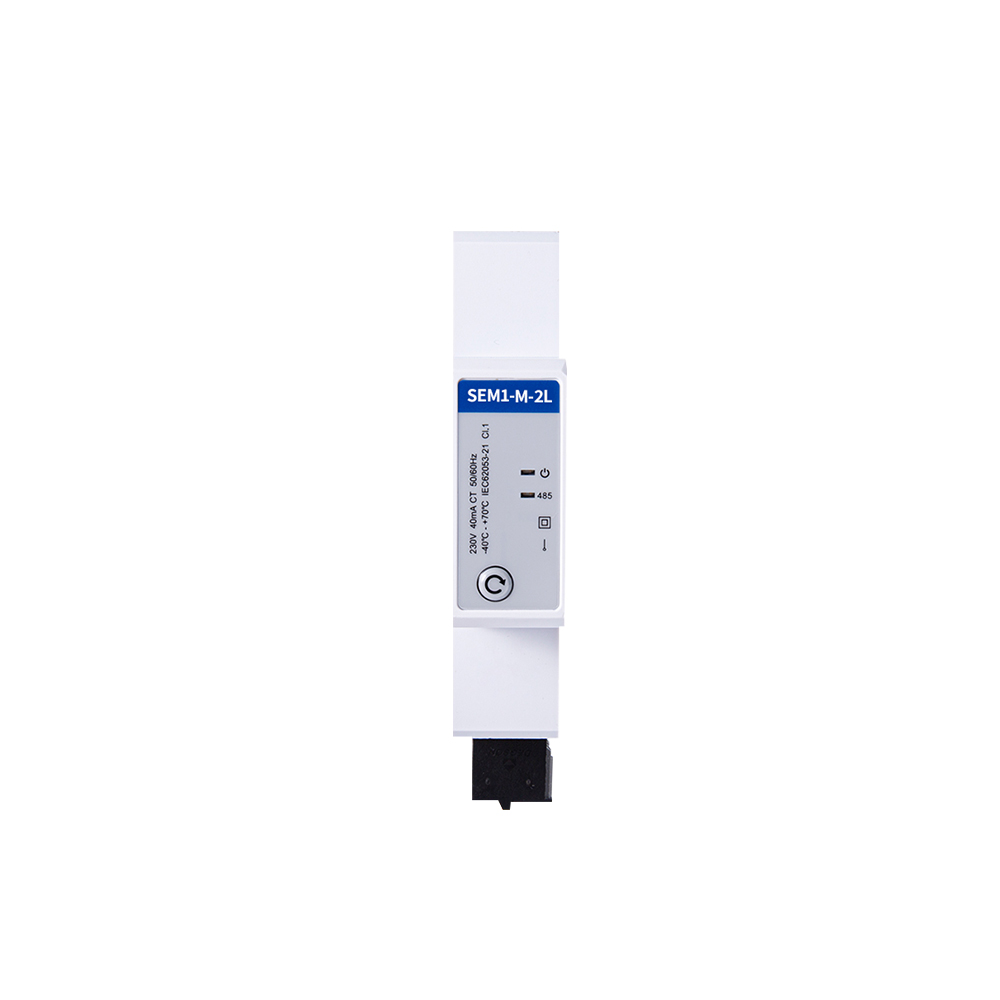

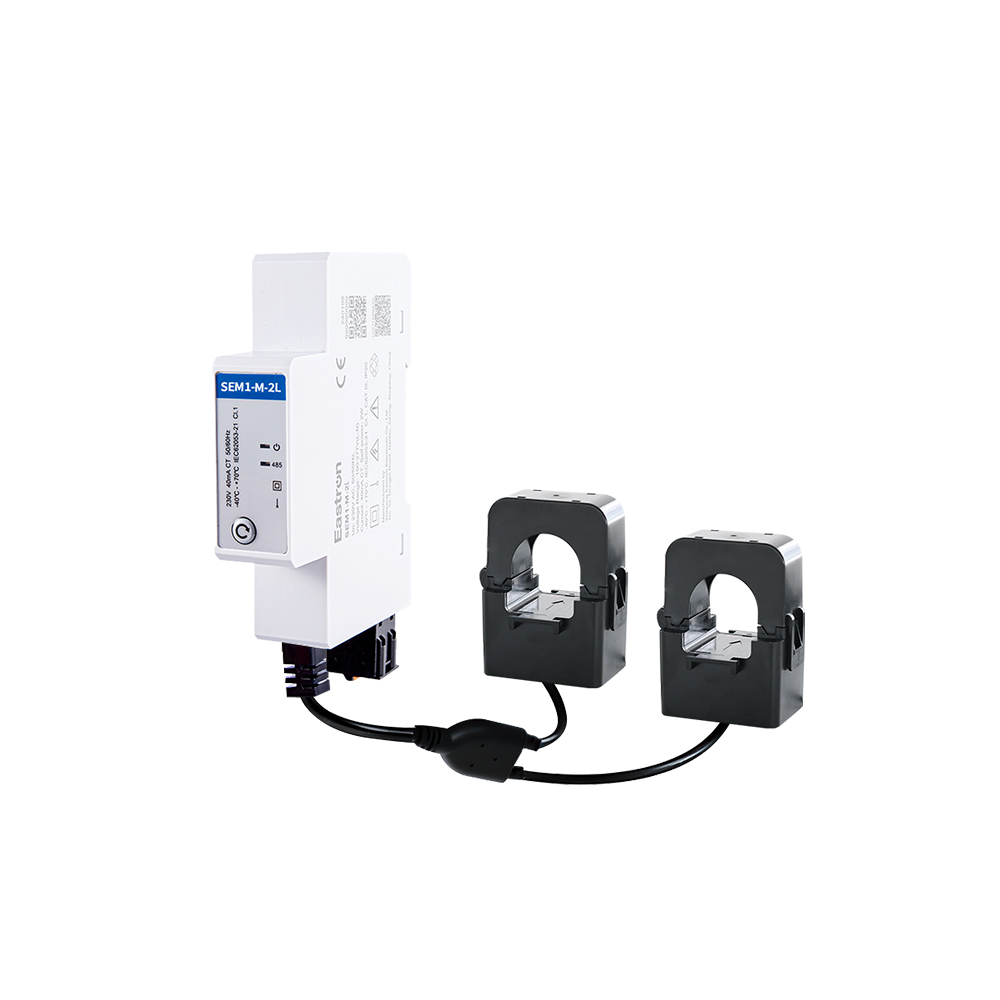

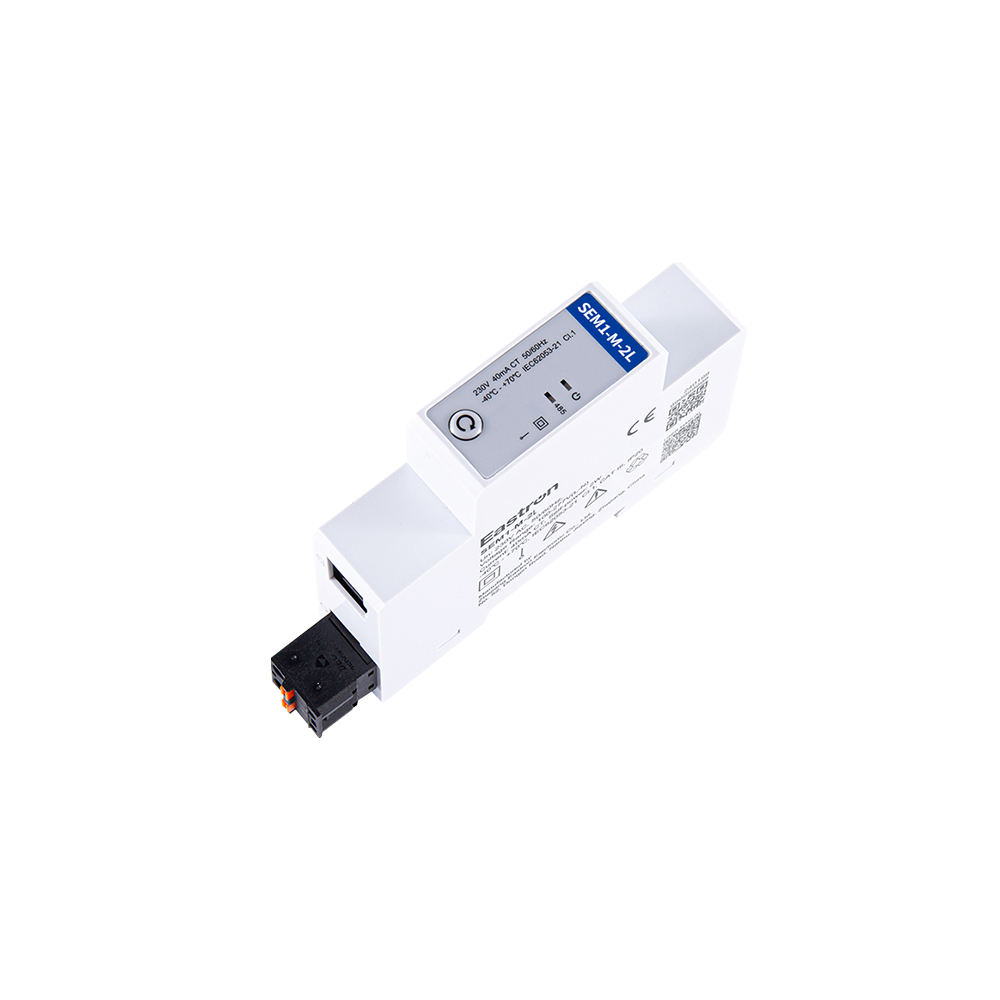

We develop and produce high performance electricity meters, power analyzers, current sensors, communication modules and management systems. CT Type RS485 Dual-channel Single Phase Din Rail Energy Meter for PV Metering Manufacturers and Factory
400-996-9296
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics |
|
|
Measurement Accuracy |
Power |
±1% |
|
Active Energy |
±1% IEC 62053-21 Class 1 |
|
|
Reactive Energy |
±2% |
|
|
Frequency |
±0.2% |
|
|
Current |
±0.5% (4A~120A) ±1% (1A~4A) ±3% (0.06A~1A) |
|
|
Voltage |
±0.5% |
|
|
Power Factor |
±0.1 |
|
|
Data Update Rate |
Active power: Channel 1: 50mS, Channel 2: 100mS |
|
|
Input-Voltage |
Un |
230V |
|
Working Voltage Range |
100~277 V ac L-N |
|
|
Frequency Range |
50/60 Hz |
|
|
RS485 Communications |
|
|
Protocol |
MODBUS RTU |
|
Communication Address |
1~247 |
| Transmission Mode |
Half duplex |
|
Data Type |
Floating point |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps~115200bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
＜50mS |
