Single Phase Din Rail Type Multi-function WIFI meter

  • Single Phase Din Rail Type Multi-function WIFI meter
  • Single Phase Din Rail Type Multi-function WIFI meter
  • Single Phase Din Rail Type Multi-function WIFI meter
  • Single Phase Din Rail Type Multi-function WIFI meter
  • Single Phase Din Rail Type Multi-function WIFI meter
  • Single Phase Din Rail Type Multi-function WIFI meter
  • Single Phase Din Rail Type Multi-function WIFI meter
  • Single Phase Din Rail Type Multi-function WIFI meter
  • Single Phase Din Rail Type Multi-function WIFI meter
  • Single Phase Din Rail Type Multi-function WIFI meter

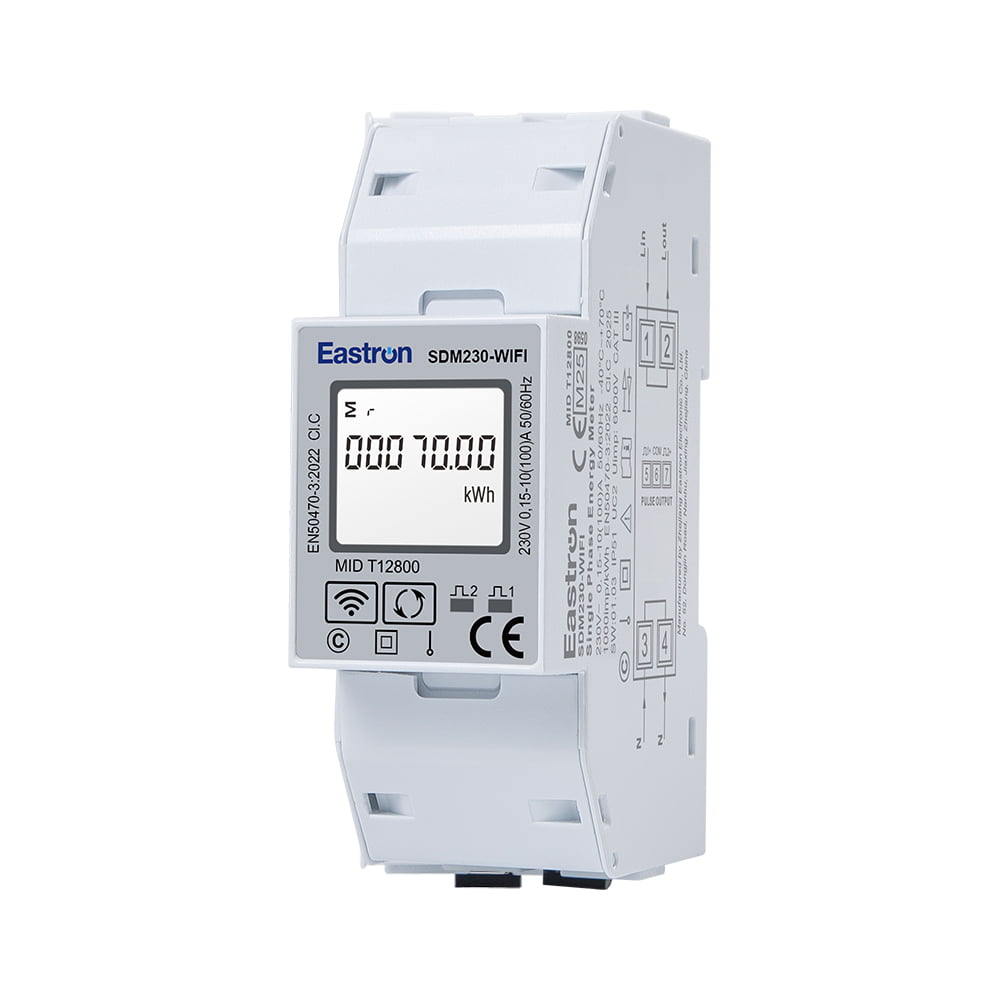

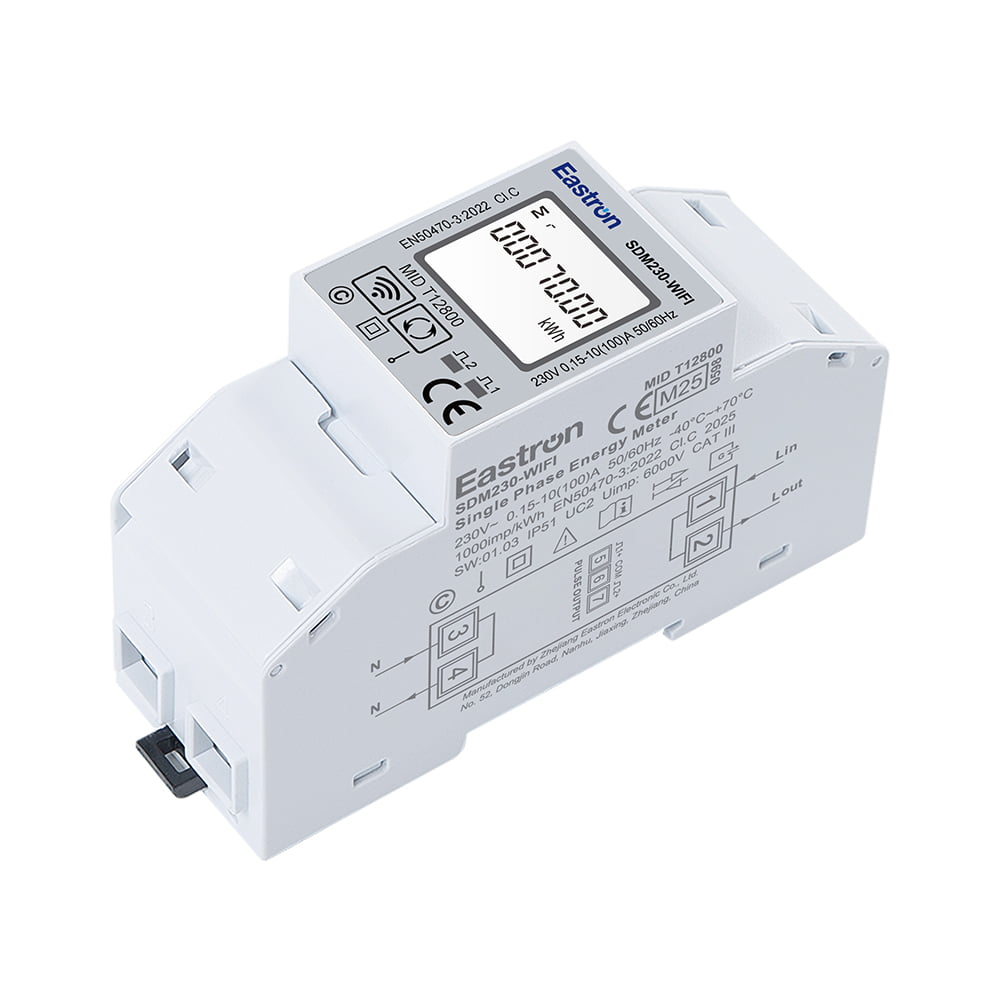

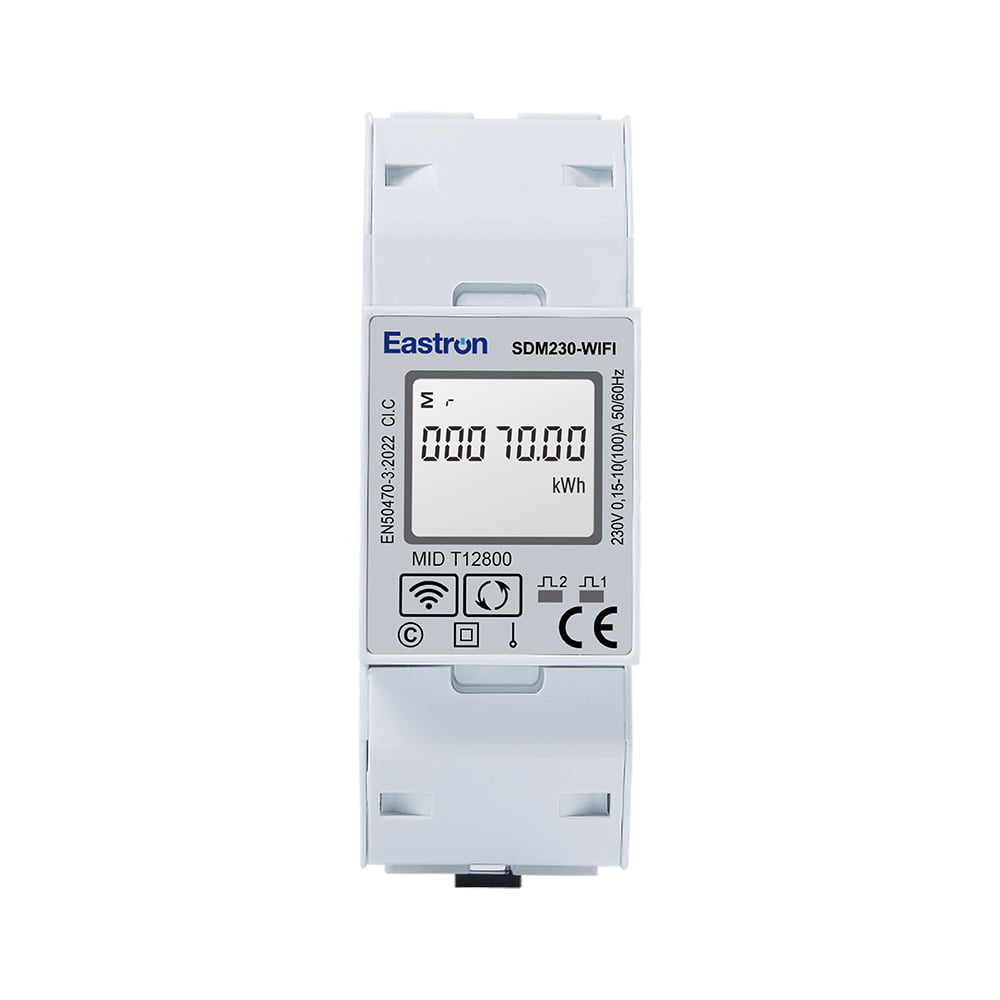

SDM230-WIFI

Single Phase Din Rail Type Multi-function WIFI meter

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • LCD with backlit
  • 2 Pulse Output + WIFI communication
  • Bi-directional Measurement
  • Dual tariff ( dual power source )
  • Max. 100A Direct Load
  • 2 Module 36mm Width
  • MID approved
  • 1P2W
SDM230-WIFI is a WIFI communication single phase din rail MID energy meter. The SDM230-WIFI is designed for single-phase residential, utility and industrial applications. it can measure multi-parameters like voltage, current, power, power factor, frequency, active energy, etc. Bi-directional energy measurement makes the SDM230 an excellent choice for solar PV energy metering.
The meter has been MID approved to meet the requirements of EU directive 2014/32/EU.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

100A

Min Current(Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

Output

SDM230-WIFI

2 Pulse Outputs +WIFI



Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram
