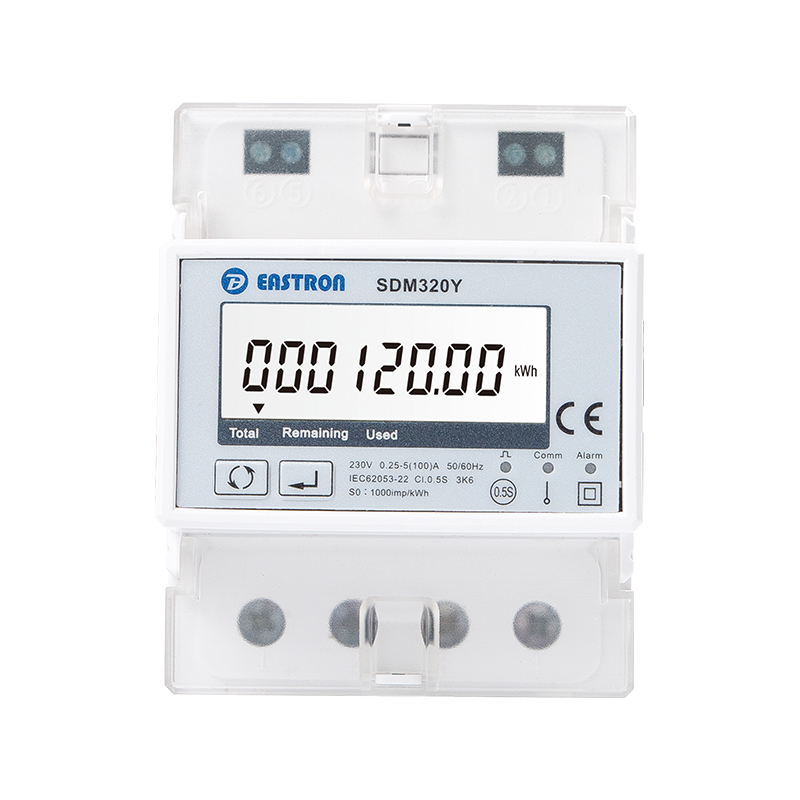

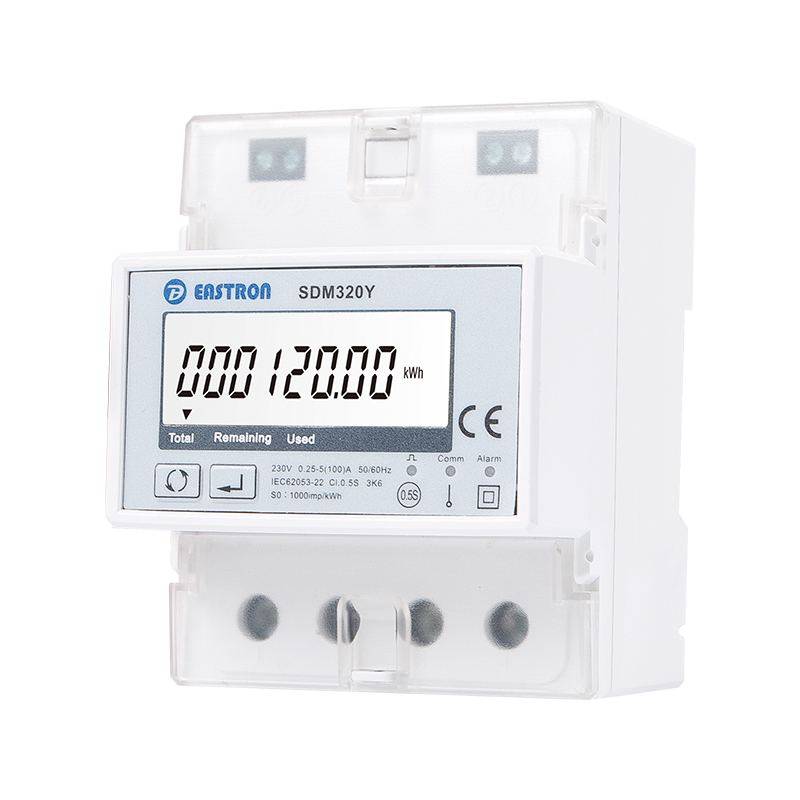

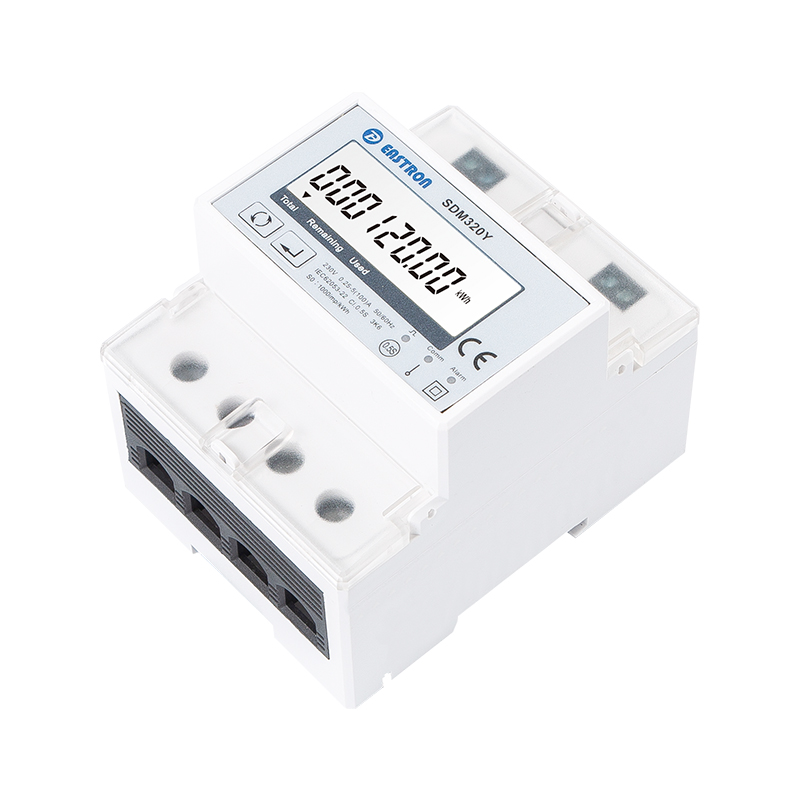

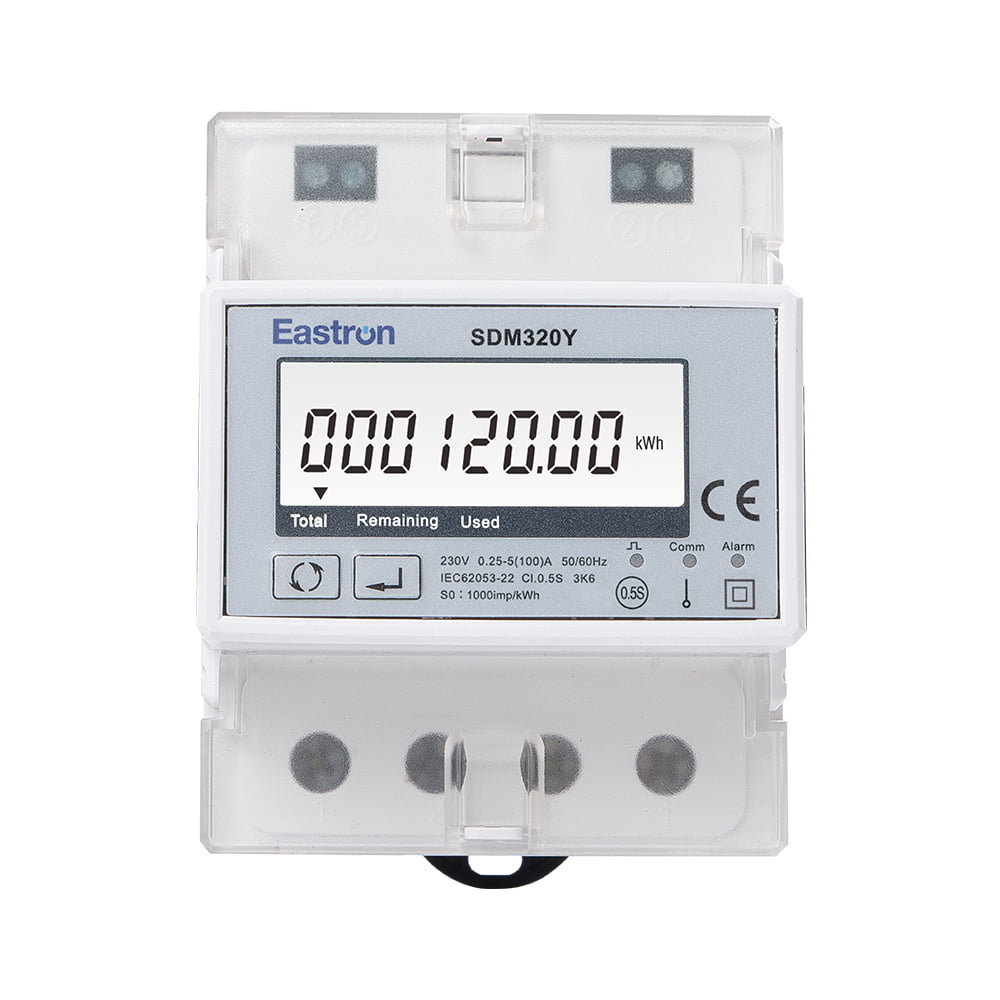

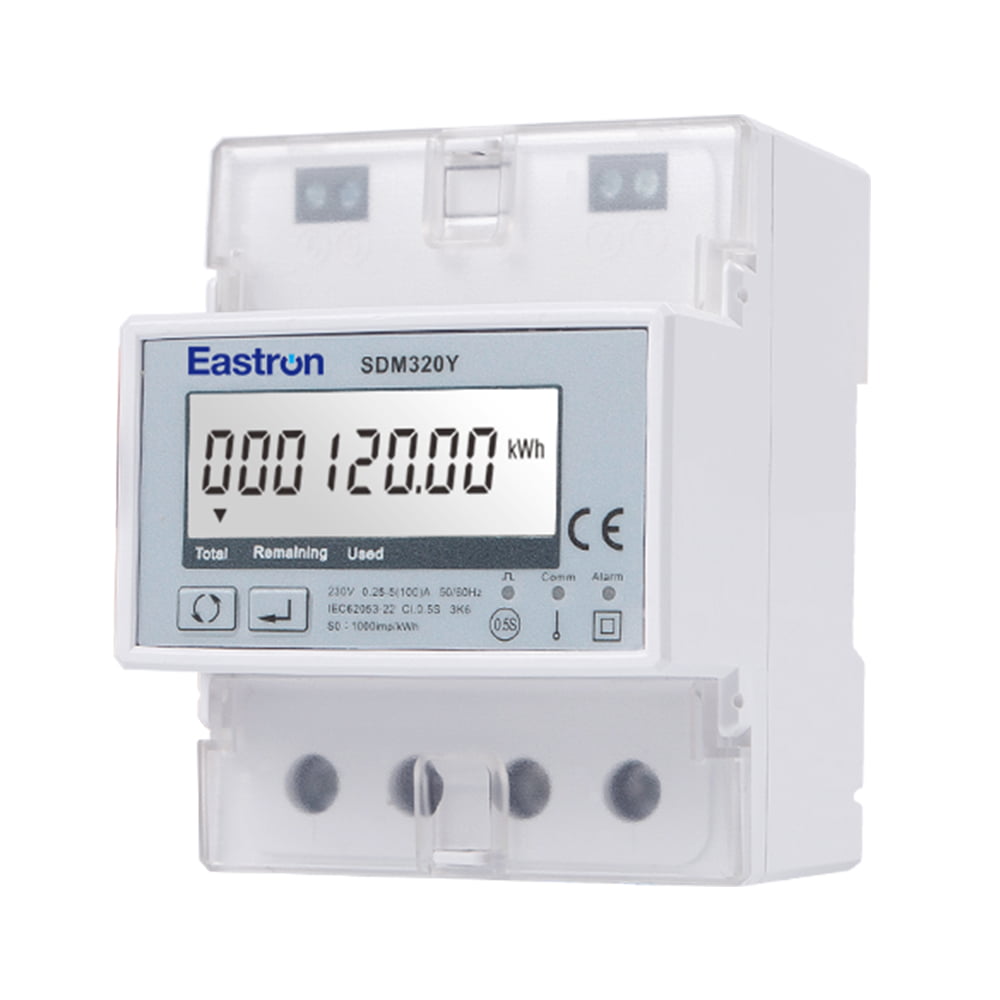

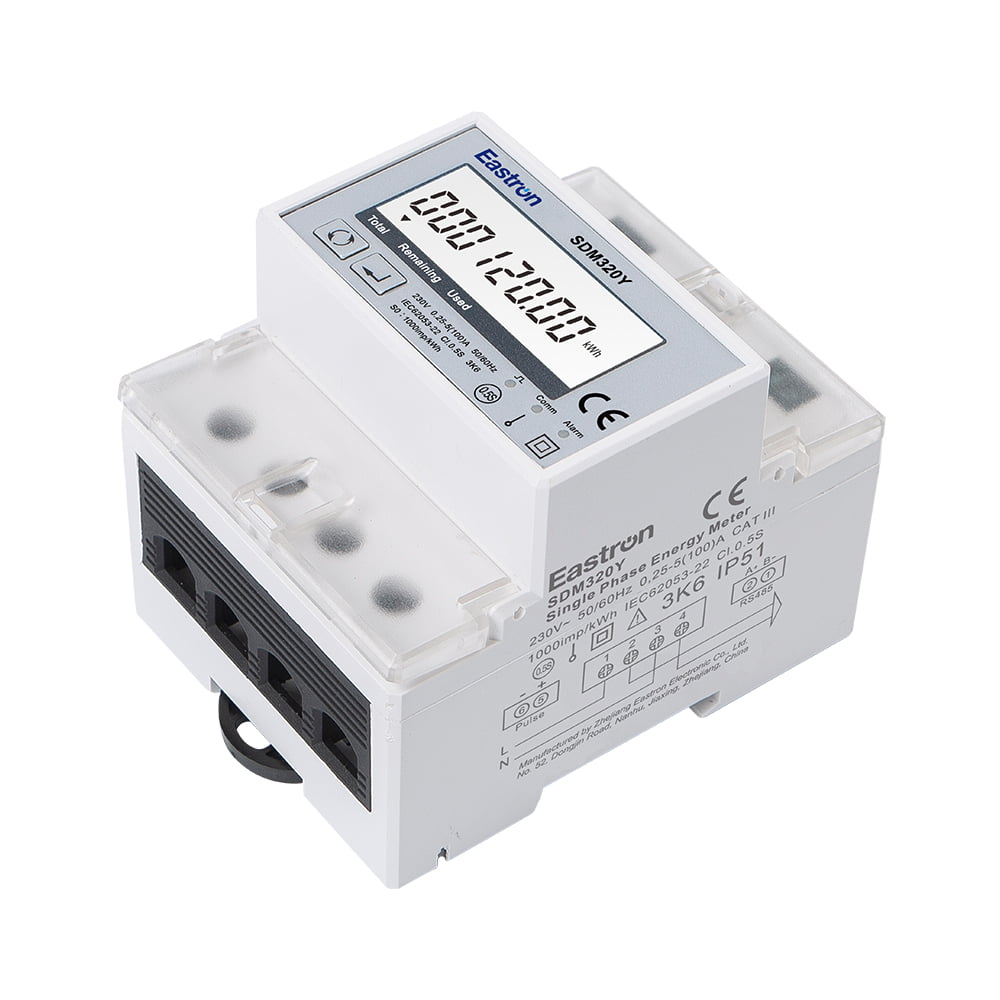

SDM320Y

RS485 Remote Control Built-in Relay Single Phase Prepaid Multi-function Energy Meter

Multi-measurement
Prepay Function via RS485 Modbus Communication
Bi-directional Measurement
26 Alarm Setting
S0 Output for Energy Pulse Emission
Built-in relay for Remote Control
0.5S Accuracy

400-996-9296

SDM320Y is a RS485 remote control built-in relay single phase prepaid multi-function energy meter.

The meter is with excleent reliability that can display remaining capacity, available remaining, total power consumption/ purchase of electricity, credit line, overdraft consumption, load threshlod, pay model, voltage, current, active power, active energy, import energy, export energy, power factor, frequency and

time ect. The reactive power, apparent power can be read by Modbus.

It is suitable for real-time power monitoring system and has the characteristics of multifunction, multi-purpose, high stability and long life.

Electrical characteristics
Type of measurement		RMS including on single phase AC system
Measurement accuracy	Power	1%
	Active Energy	IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0
	Reactive Energy	IEC62053-23 Class 2, IEC 61557-12 Class 2
	Frequency	±0.2%
	Current	±0.5%
	Voltage	±0.5%
	Power Factor	±0.01

Input & Output
Input	Current	Rated Current	5A
		Max Current	100A
		Min Current	0.25A
		Starting Current	40mA
	Voltage	Rated Volatge (Un)	230V
		Operational Volatge	80% ~ 120% of Un
Output	SDM320C	Pulse Output + RS485 Modbus
	SDM320Y	Pulse Output + RS485 Modbus
	SDM320Y-RF	Pulse Output + RF
	SDM320C-DI	Pulse Output + RS485 Modbus + Digital Input

RS485 Modbus Communications
Communication address	1~247
Transmission distance	1000m Maximum
Baud Rate	1200bps~9600bps
Parity	None (default), Odd, Even
Stop bits	1 or 2
