RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter

  • RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter
  • RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter
  • RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter
  • RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter
  • RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter
  • RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter

SDM120CTM

RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • LCD with backlit
  • 2 Pulse Output +Modbus
  • Bi-directional Measurement
  • CT operated
  • 1 Module 18mm Width
  • MID approved
  • 1P2W

SDM120CT Modbus / Mbus / Pulse

SINGLE PHASE MULTI-FUNCTION ENERGY METER

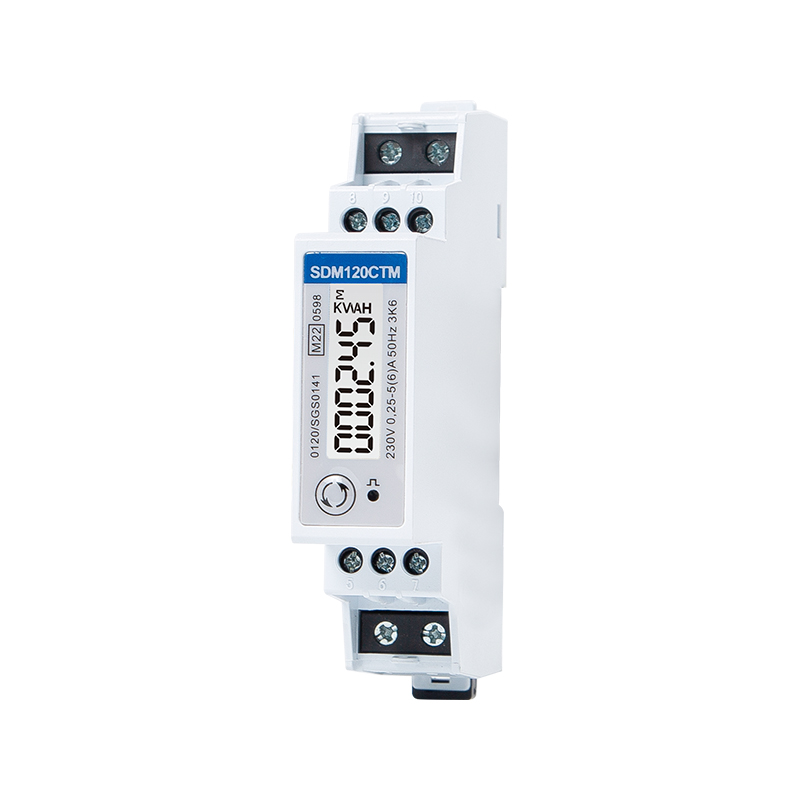

SDM120CTM is RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. Suitable for monitoring energy consumption in residential, solar PV, industrial and utility applications.

The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2, IEC 61557-12 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

10mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

Output

SDM120CTP

2 Pulse Output for imp/exp. energy

SDM120CTM

2 Pulse Output + RS485 Modbus

SDM120CTMB

2 Pulse Output + M-bus EN13757-3



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Transmission Speed

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS





Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
