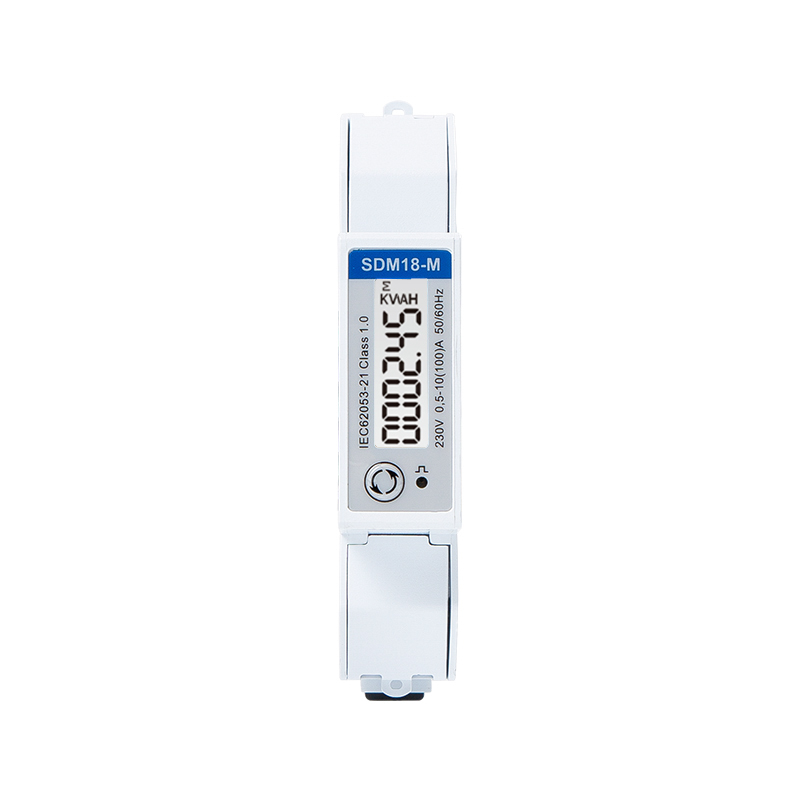

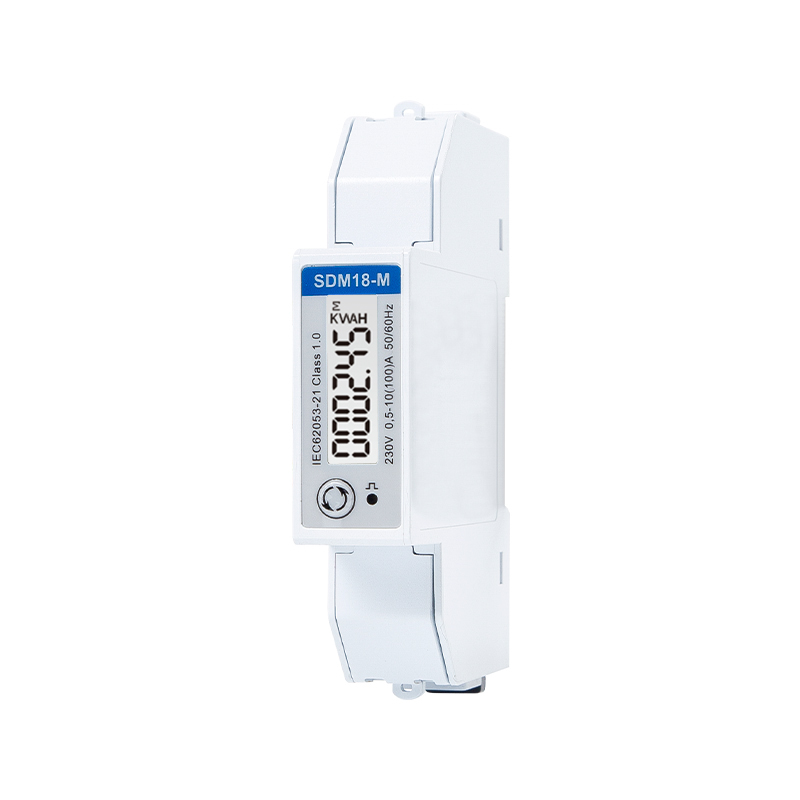

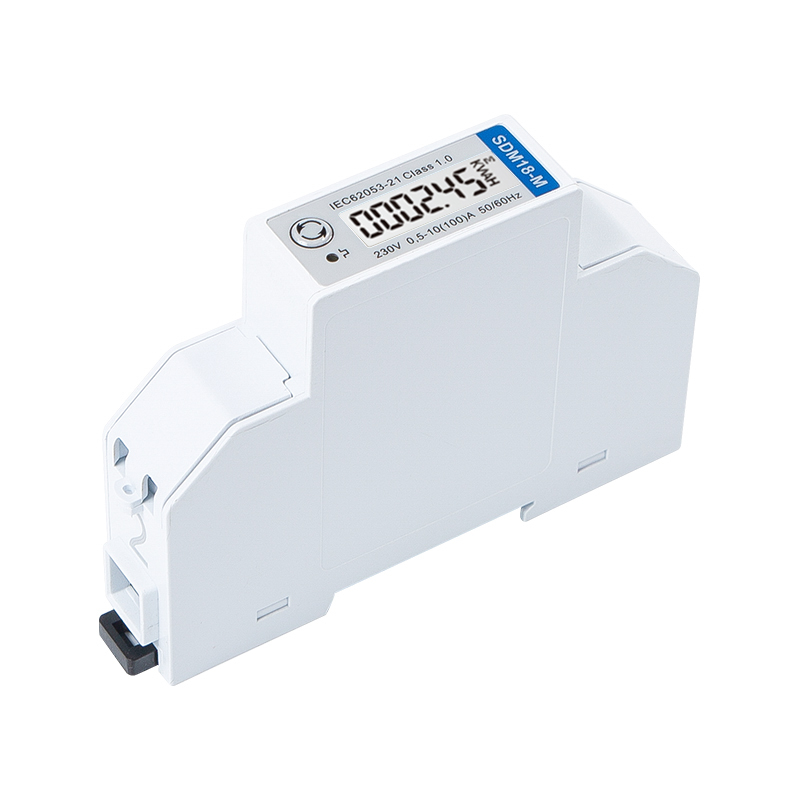

SDM18-M

RS485 1 Module 100A Din Rail Single Phase Multi-function Energy Meter

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • LCD with backlit
  • RS485 Modbus comunication
  • Bi-directional Measurement
  • Max. 100A Direct Load
  • 1 Module 18mm Width
  • Work with 1P2W
SDM18-M is a RS485 1 Module 100A Din Rail Single Phase Multi-function Energy Meter.The unit measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. Suitable for monitoring energy consumption in residential, solar PV, industrial and utility applications.
The units support Max. 100A direct connection, saving the cost and avoiding the trouble to connect external CTs. One communication port of RS485 Modbus is provided for remote monitoring and setting.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P2W)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0 / EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input-Current

Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

Output

SDM18-M

RS485 Modbus

SDM18-MB

Mbus



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



M-Bus Communications

Interface Standard and Protocol

M-bus EN13757-3

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
