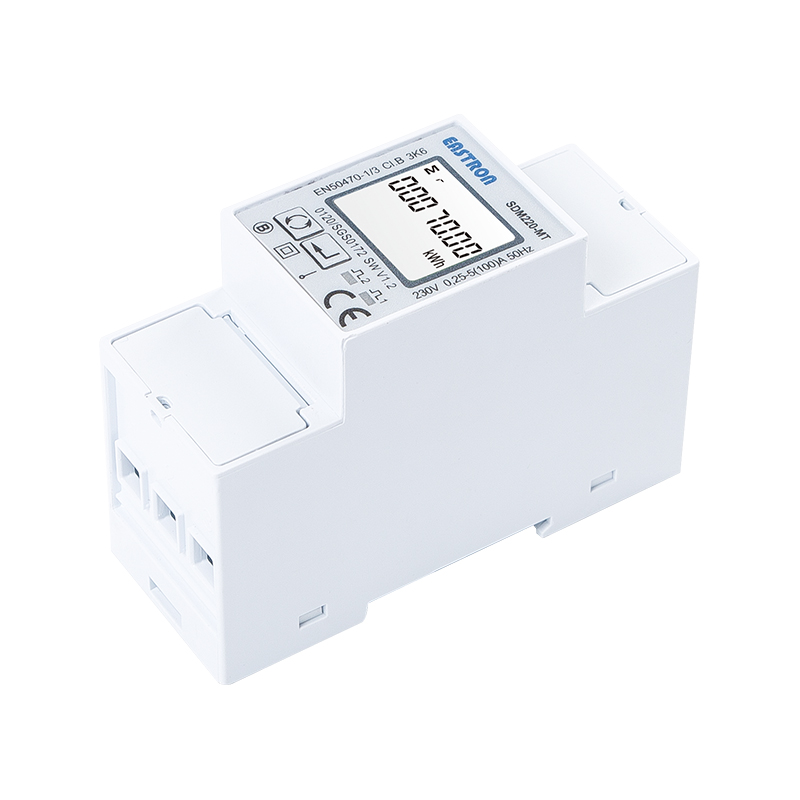

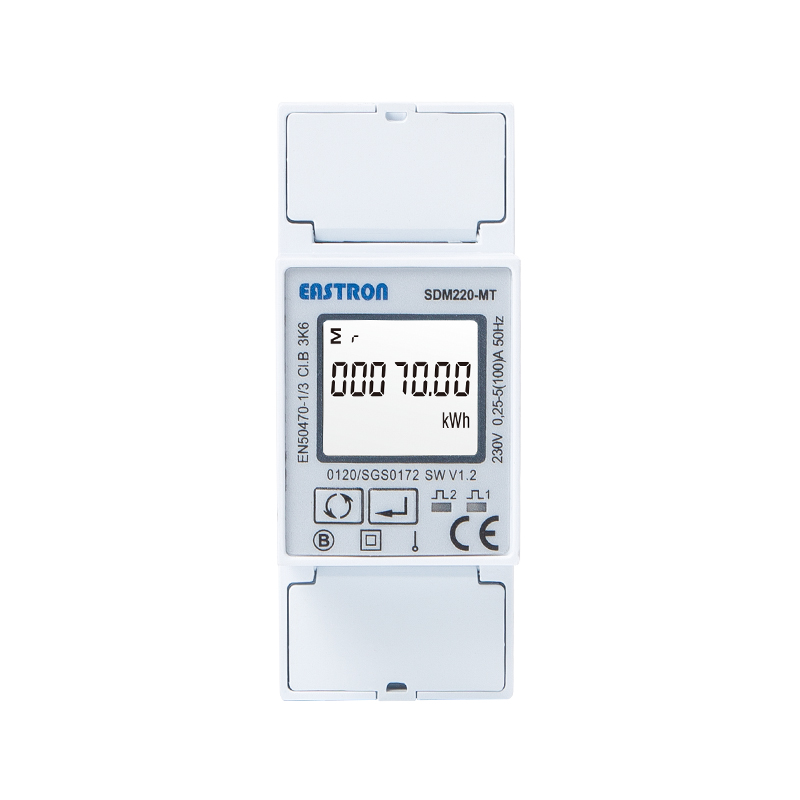

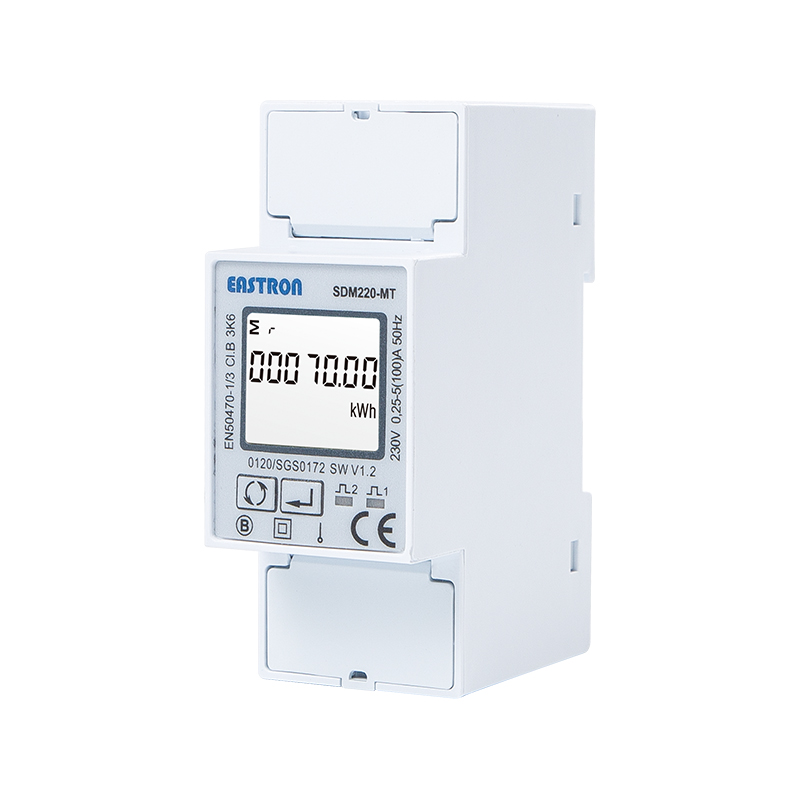

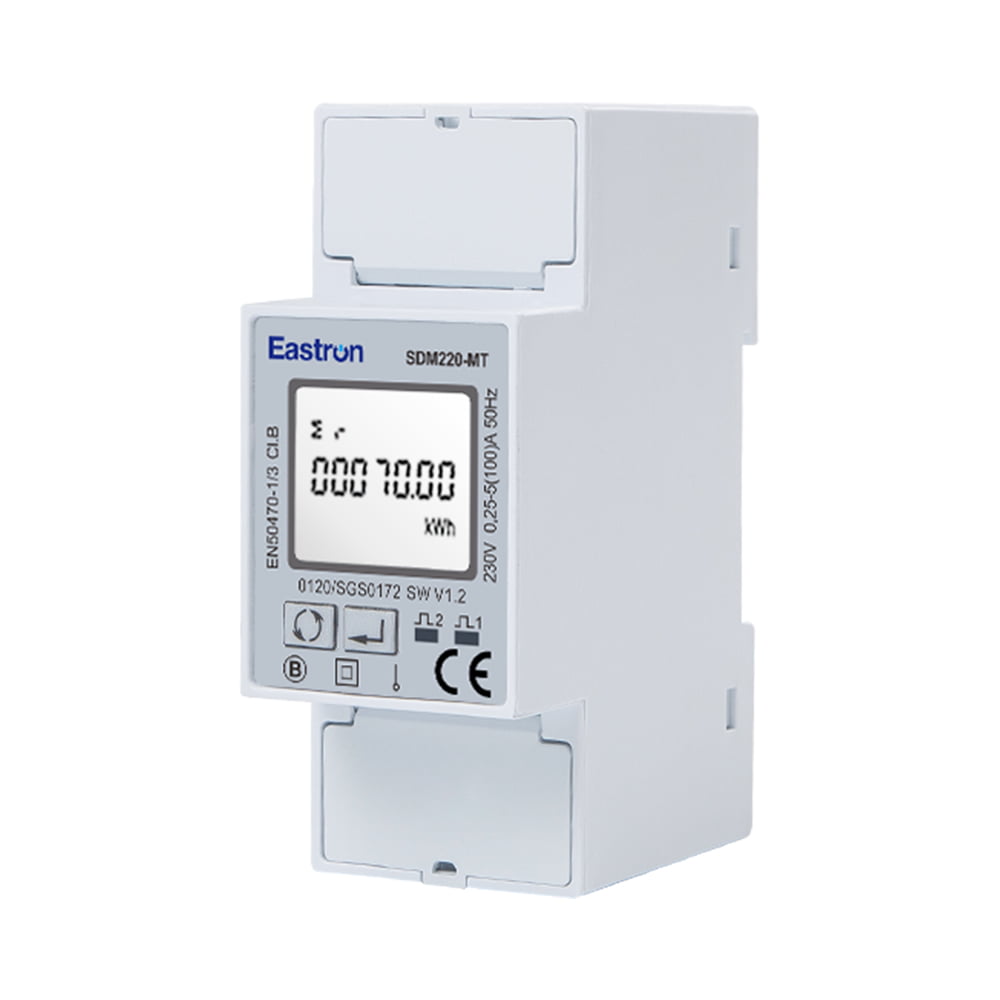

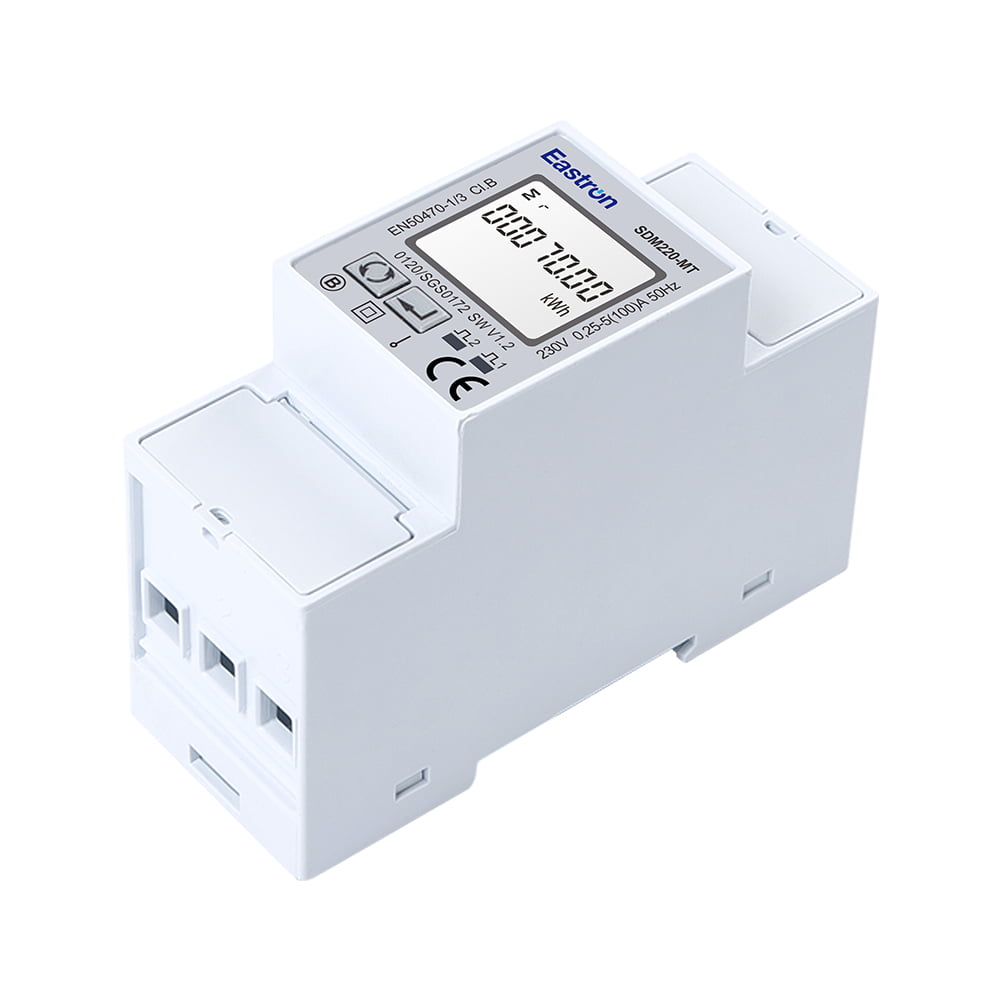

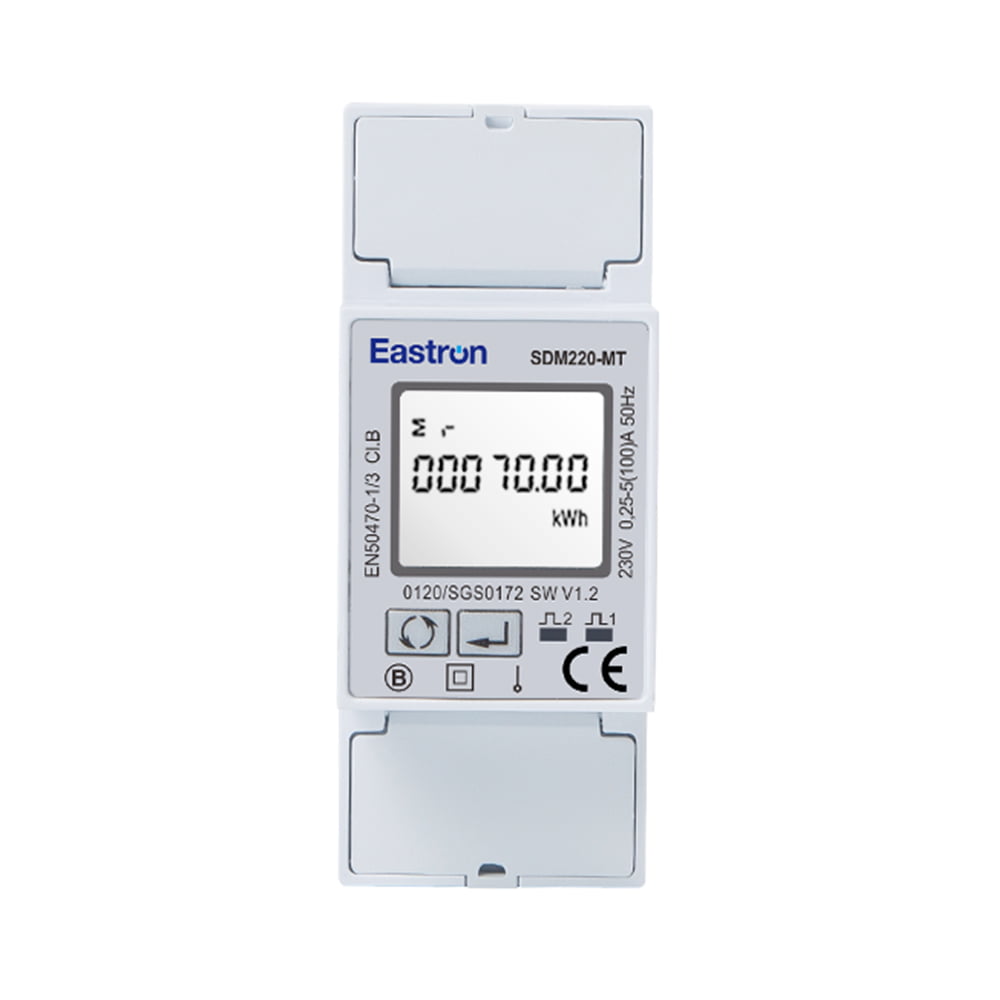

SDM220-MT

Multi-tariff RS485 Modbus Din Rail Single Phase Multi-function Energy Meter

Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
LCD with backlit
2 Pulse Outputs
RS485 Modbus comunication
Bi-directional Measurement
Max. 100A Direct Load

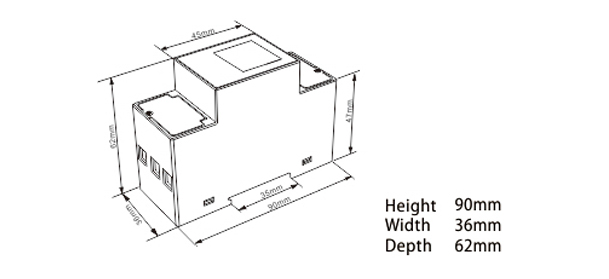

2 Module 36mm Width
Work with 1P2W
Multi-tariffs available (RTC)

400-996-9296

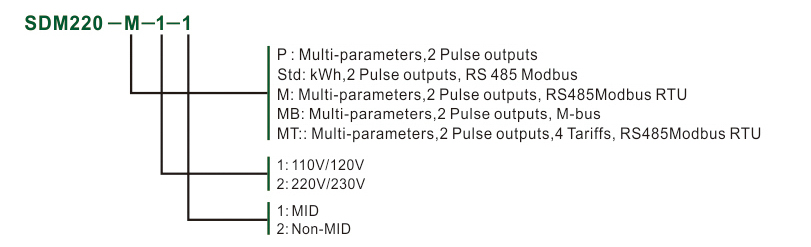

SDM220 Modbus / Mbus / MT / Std / Pulse

SINGLE PHASE MULTI-FUNCTION ENERGY METER

SDM220MT is Multi-tariff RS485 Modbus Din Rail Single Phase Multi-function Energy Meter.The unit measures active energy, reactive energy, current,voltage, power, power factor, frequency, demand, etc. Bi-directional measurement makes this unit an ideal choice for Solar PV measurement.Build-in interface provides pulse and RS485 Modbus RTU outputs.

The multi-tariff function is used to measure the energy consumed in different time zone. It supports Max. 4 tariffs and 10 time segments setting. The tariffs and time segments can be set via RS485 communication.

The SDM220 Series meters has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU.The EU Type Examination Certificate Number is 0120/SGS0172.

Electrical Characteristics
Type of Measurement		RMS on single phase AC system (1P+N)
Measurement Accuracy	Power	1% of range maximum
	Active Energy	IEC 62053-21 Class 1.0/ EN50470-1/3 Class B
	Reactive Energy	IEC 62053-23 Class 2, IEC 61557-12 Class 2
	Frequency	0.2% of mid-frequency
	Current	0.5% of range maximum
	Voltage	0.5% of range maximum
	Power Factor	1% of unity (0.01)

Input & Output
Input	Current	Rated Current	5A
		Max Current	100A
		Min Current	0.25A
		Starting Current	20mA
	Voltage	Rated Voltage (Un)	230V
		Operational Voltage	80%~120% of Un

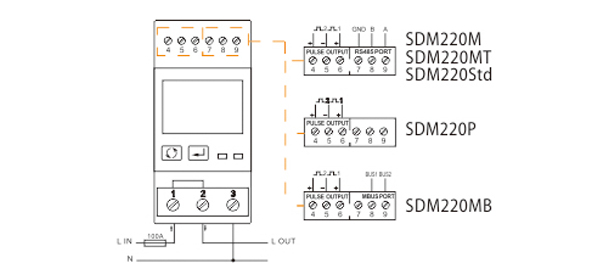

	SDM220-Modbus/ SDM220-MT	2 Pulse Output + RS485 Modbus
	SDM220-Mbus	2 Pulse Output + Mbus EN13757-3

Modbus Communications
Interface Standard and Protocol	RS485 and MODBUS RTU
Communication Address	1~247
Transmission Distance	1000m Maximum
Baud Rate	1200bps~9600bps
Parity	None (default), Odd, Even
Stop Bits	1 or 2

M-Bus EN13757-3 Communications
Communication Address	1~250
Transmission Distance	1000m Maximum
Transmission Speed	300bps~9600bps
Parity	None (default), Odd, Even
Stop Bits	1 or 2
