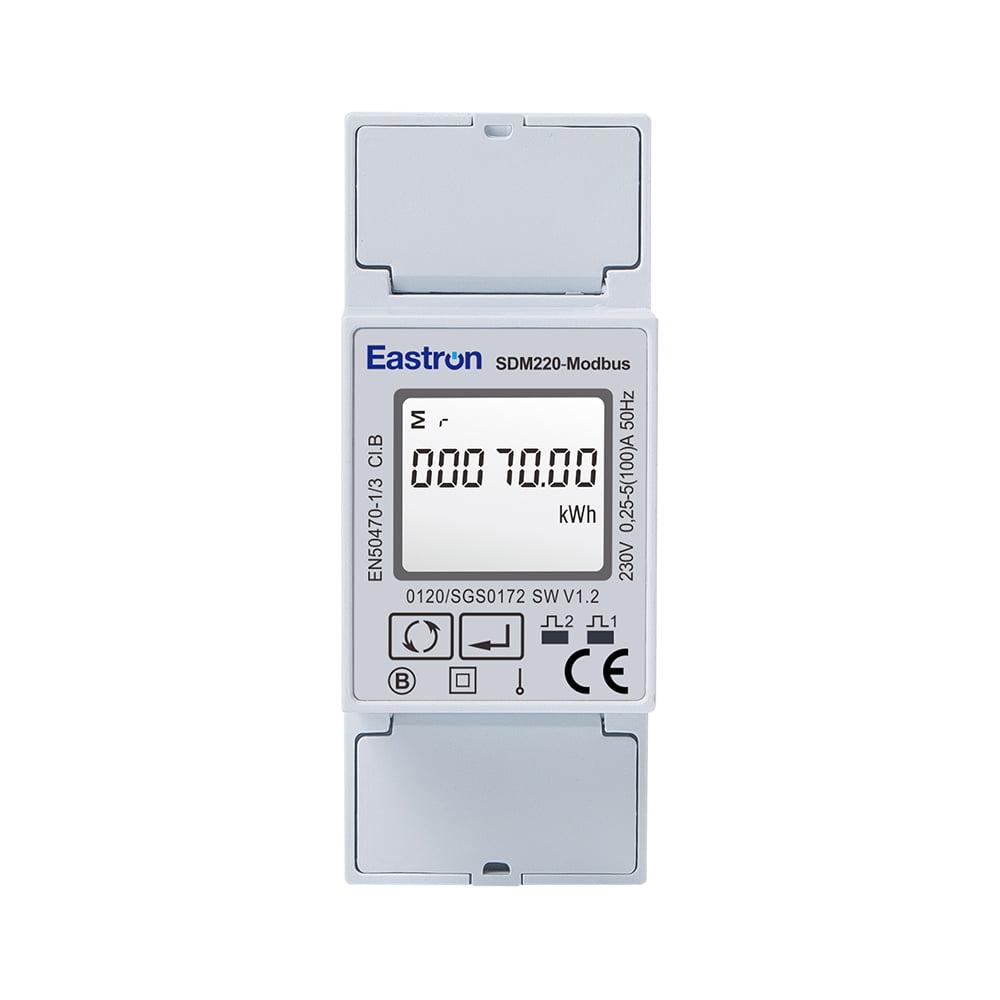

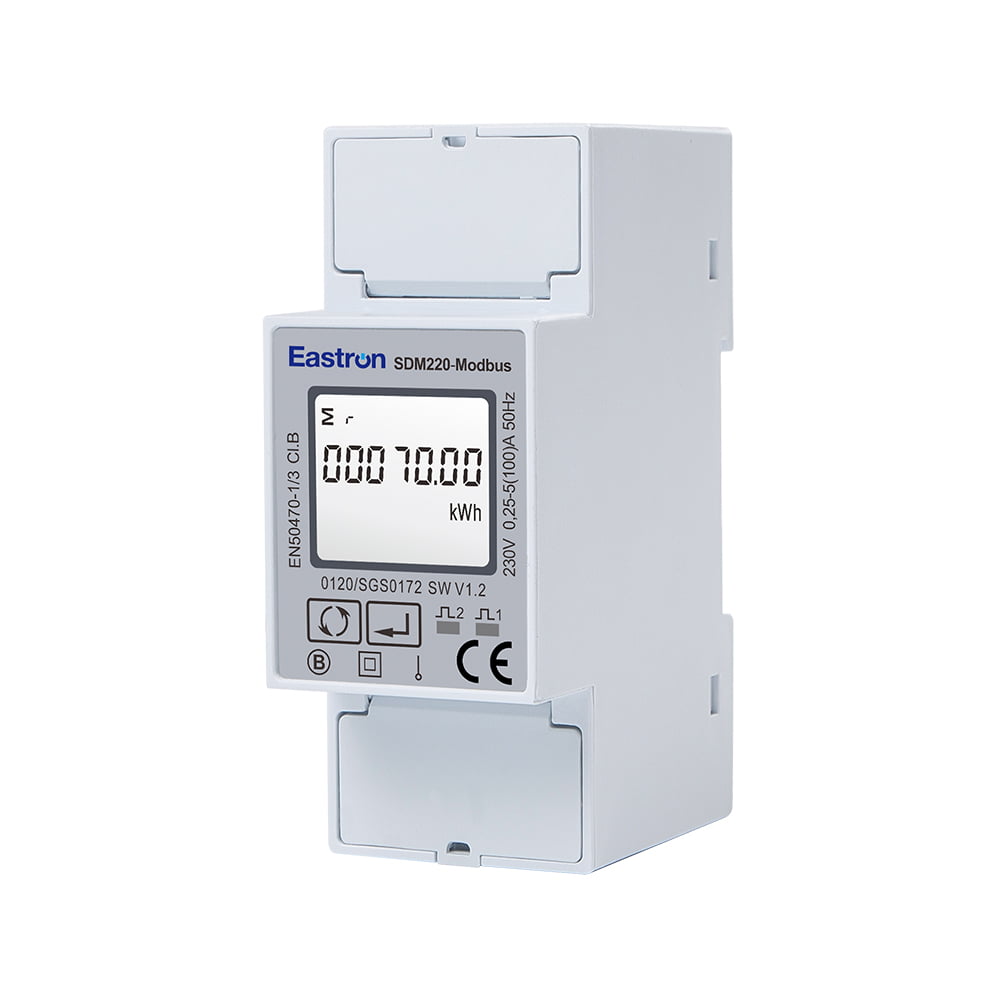

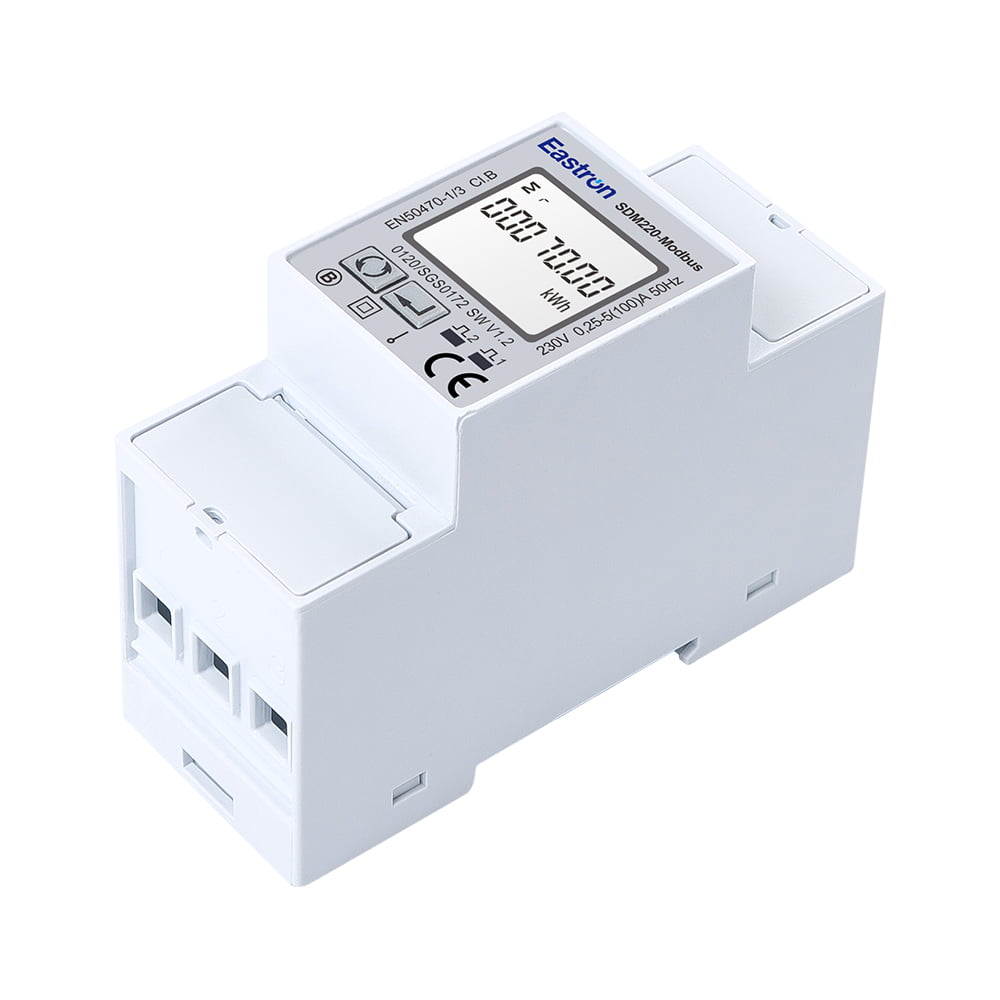

Modbus 100A Din Rail Single Phase MID Energy Meter

  • Modbus 100A Din Rail Single Phase MID Energy Meter
  • Modbus 100A Din Rail Single Phase MID Energy Meter
  • Modbus 100A Din Rail Single Phase MID Energy Meter
  • Modbus 100A Din Rail Single Phase MID Energy Meter
  • Modbus 100A Din Rail Single Phase MID Energy Meter
  • Modbus 100A Din Rail Single Phase MID Energy Meter

SDM220-Modbus

Modbus 100A Din Rail Single Phase MID Energy Meter

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • LCD with backlit
  • 2 Pulse Outputs
  • Modbus comunication
  • Bi-directional Measurement
  • Max. 100A Direct Load
  • 2 Module 36mm Width
  • Work with 1P2W

SDM220 Modbus / Mbus / MT / Std / Pulse

SINGLE PHASE MULTI-FUNCTION ENERGY METER

SDM220Modbus is a Modbus 100A din rail single phase MID energy meter. The unit measures active energy, reactive energy, current,voltage, power, power factor, frequency, demand, etc. Bi-directional measurement makes this unit an ideal choice for Solar PV measurement.Build-in interface provides pulse and Modbus ports for remotely reading and setting.

The SDM220 Series meters has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU.The EU Type Examination Certificate Number is 0120/SGS0172.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B

Reactive Energy

IEC 62053-23 Class 2, IEC 61557-12 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

Rated Current

5A

Max Current

100A

Min Current

0.25A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

SDM220-Modbus/ SDM220-MT

2 Pulse Output + RS485 Modbus

SDM220-Mbus

2 Pulse Output + Mbus EN13757-3





Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Transmission Speed

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
