SDM120DB

Backlit LCD Display Din Rail Single Phase MID Energy Meter with Pulse Output

  • Active Energy Measured
  • LCD display with backlit
  • Pulse Output
  • Max. 45A Direct Load
  • 1 Module 18mm Width
  • MID approved

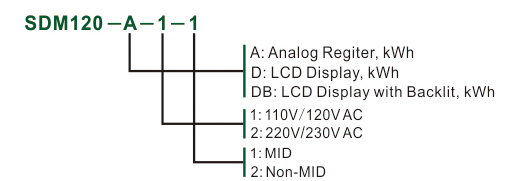

SDM120 A / D / DB

SINGLE PHASE TWO WIRE KWH METER

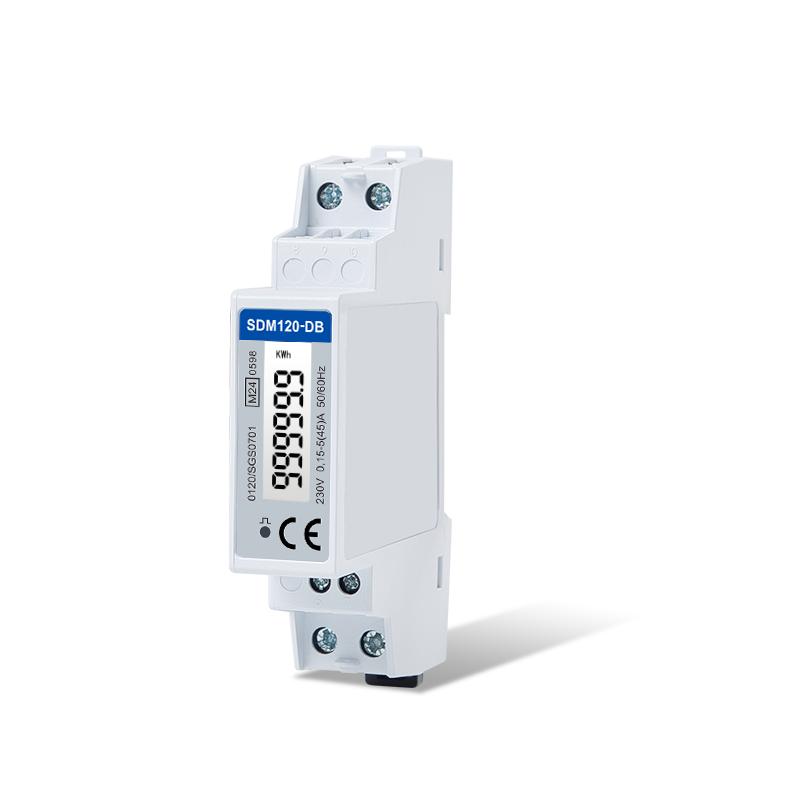

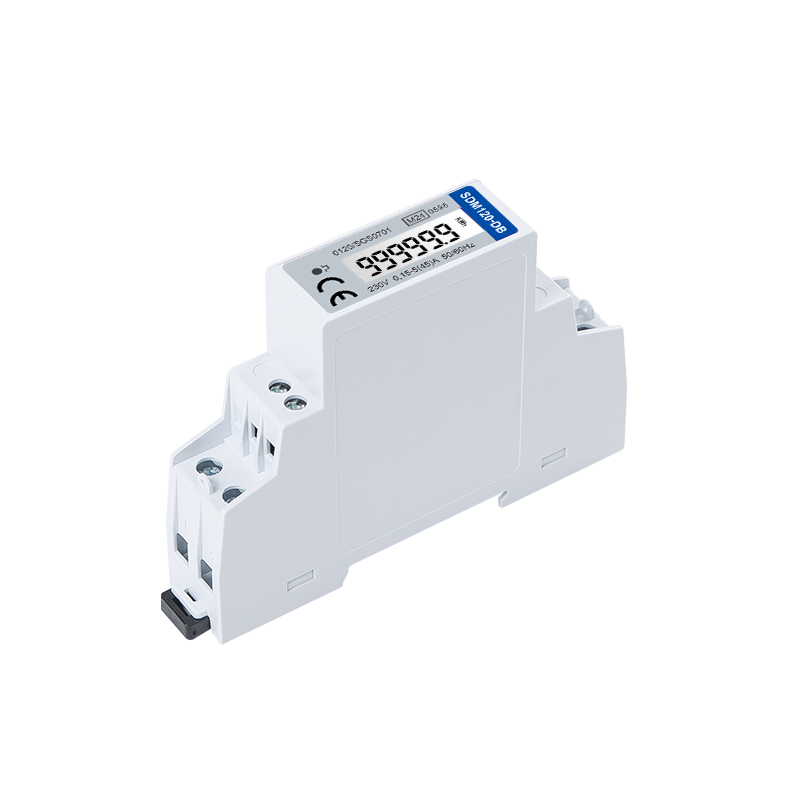

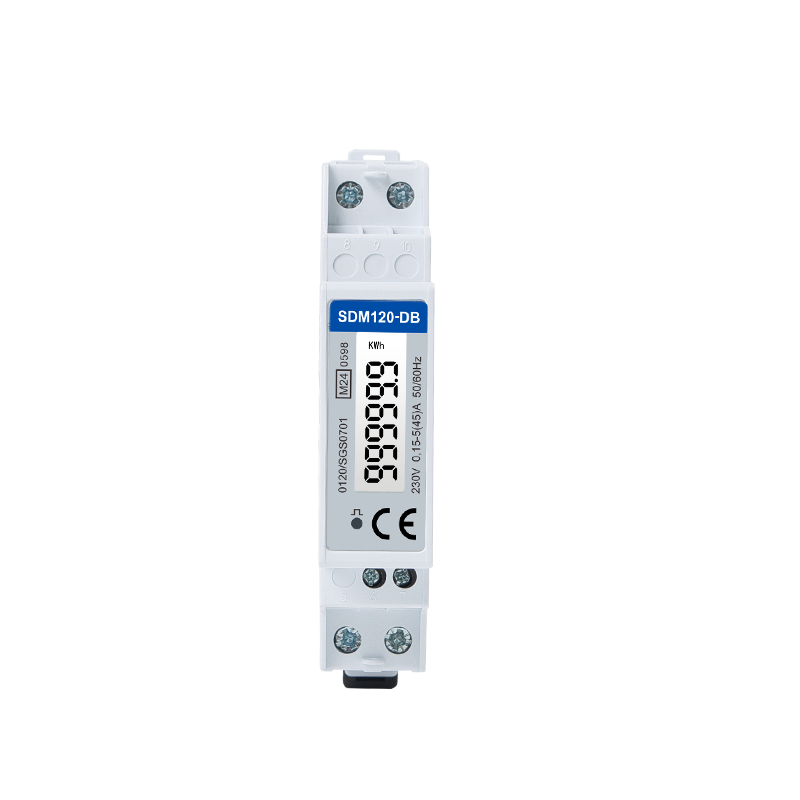

The SDM120DB is a Backlit LCD Display Din Rail Single Phase MID Energy Meter  with Pulse Output. It is a range of 1-DIN (1 module 18mm width) single phase DIN rail kWh meter with Max.46A direct input. It also provides an uni-directional (anti-reverse) measurement version, which is widely used in solar generation energy measurement.

The unit has been MID approved to meet the requirements of EU Directive 2014/34/EU.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B



Input & Output

Input

Current



Rated Current (Ib)

5A

Max Current (Imax.)

45A

Min Current (Imin.)

0.25A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V

Operation Voltage

80% ~120% of Un

Output

SDM120A/D/DB

Pulse Output for active energy

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
