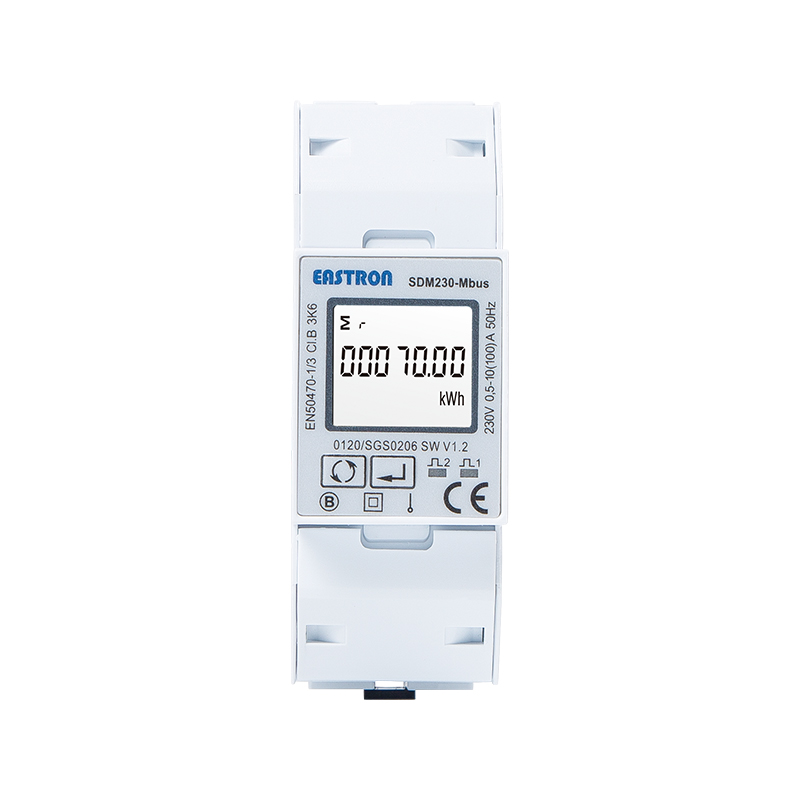

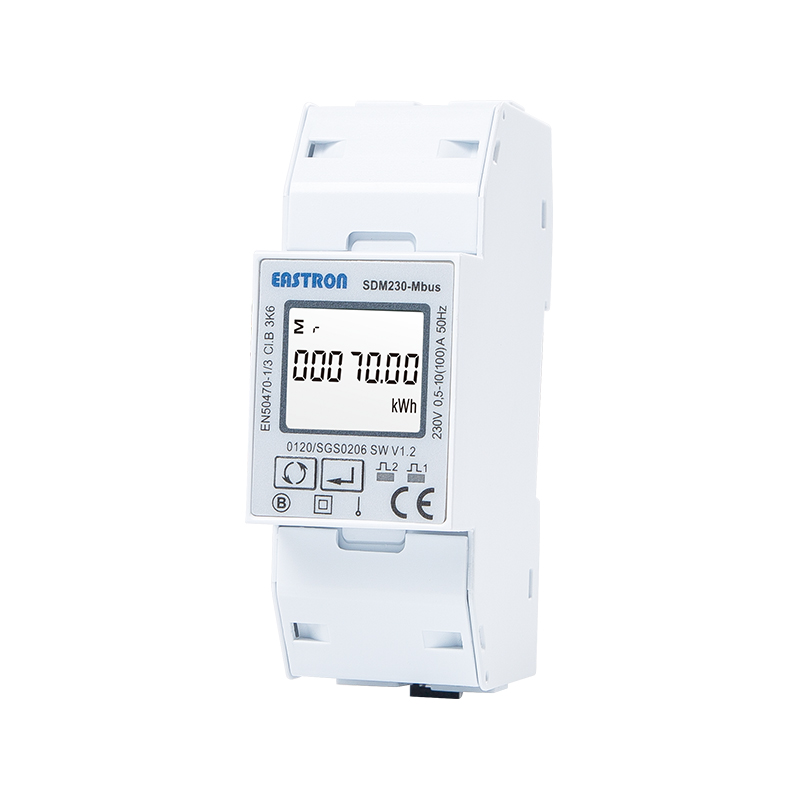

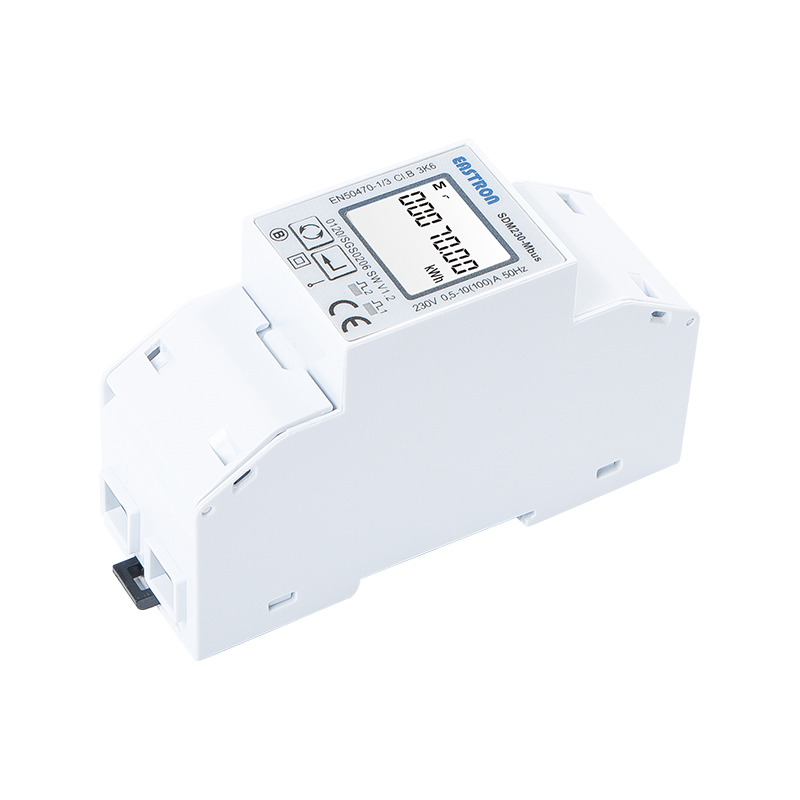

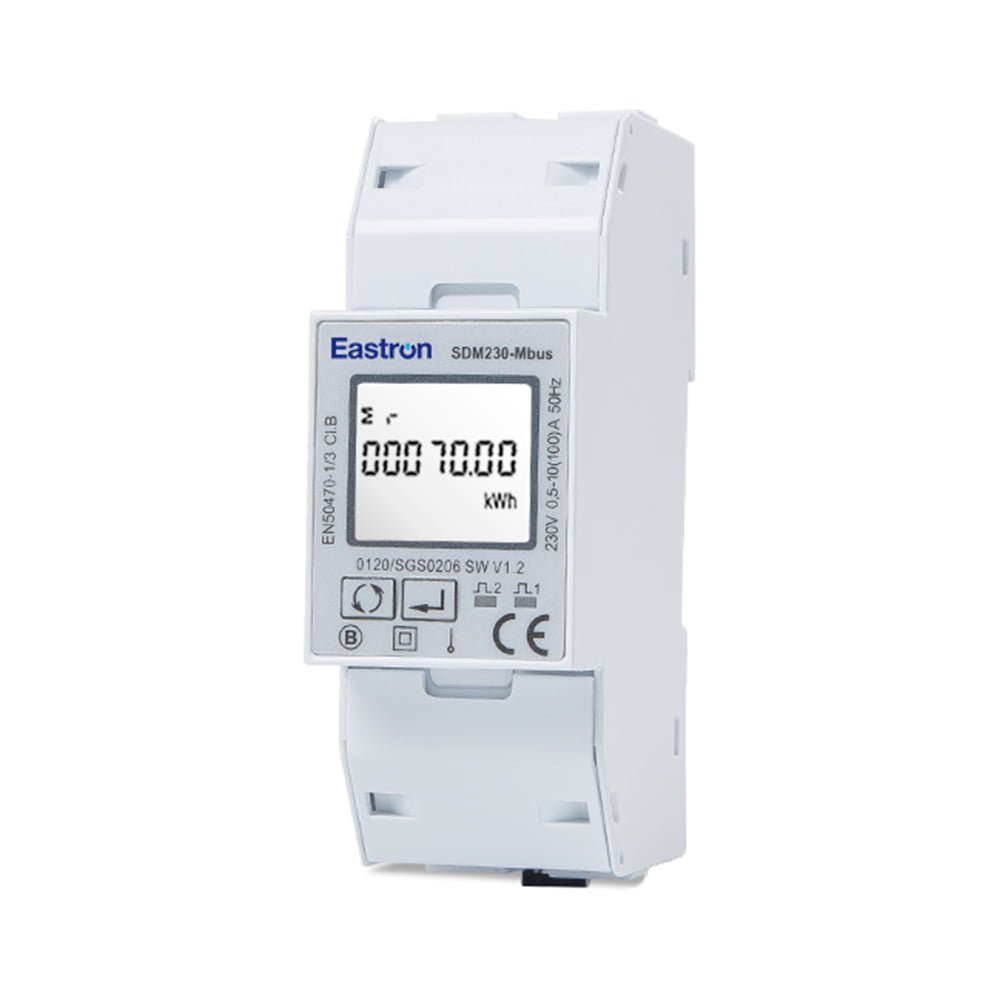

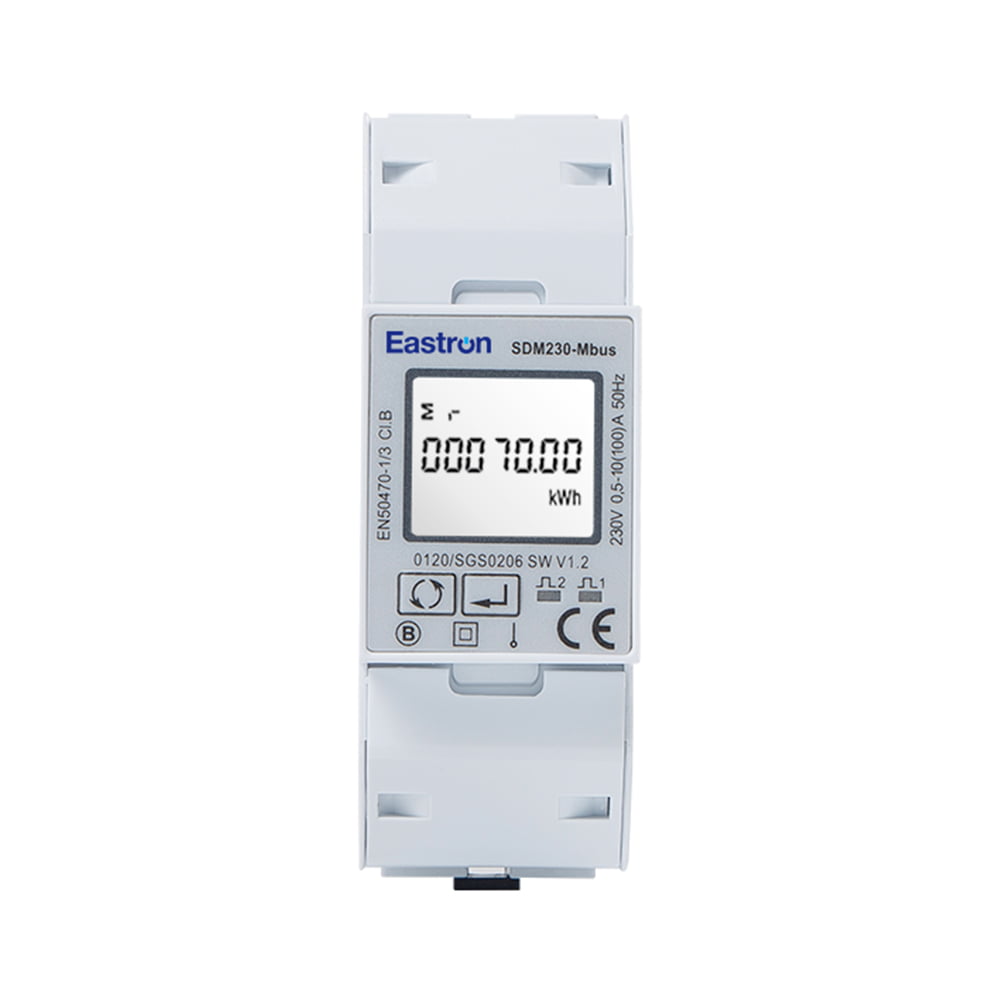

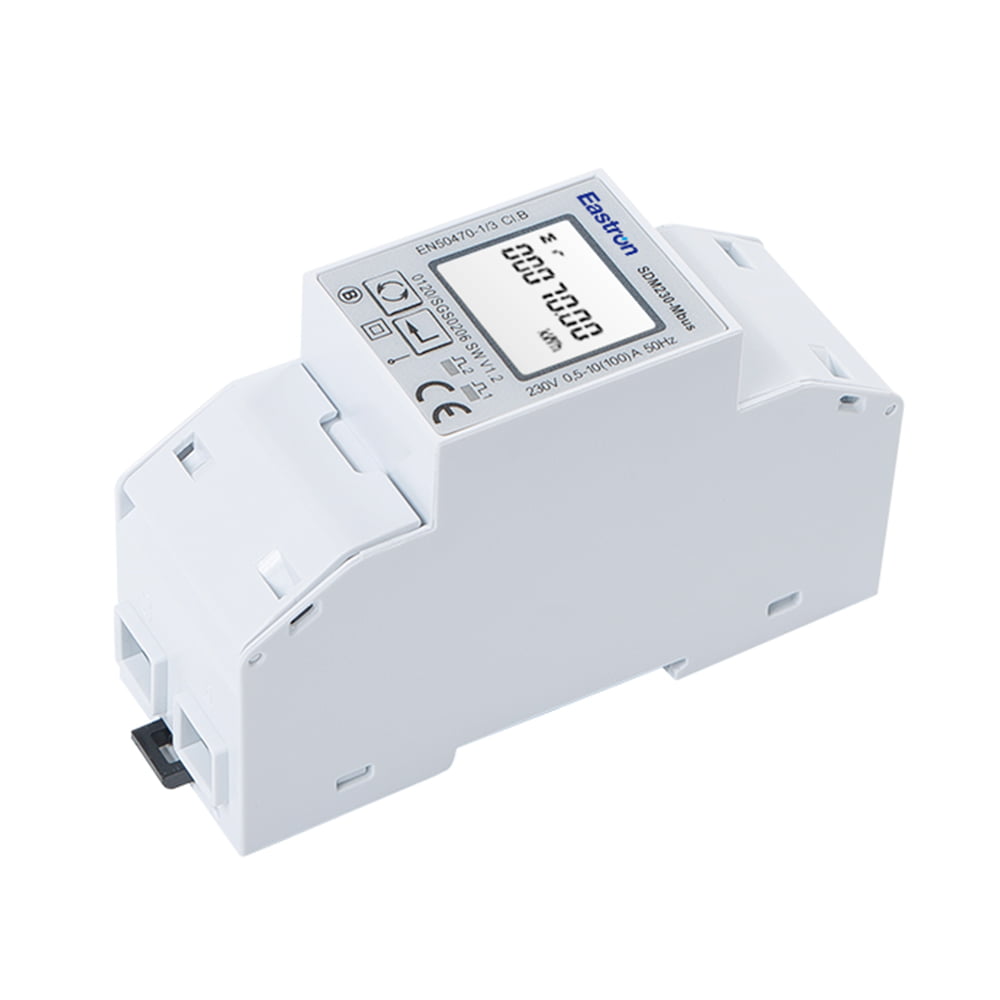

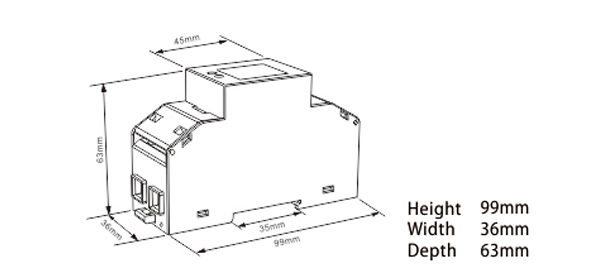

The SDM230-Mbus is a 2-DIN Mbus Din Rail Multi-functional Single Phase ETL Energy Meter. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. The units support Max. 65A direct connection, saving the cost and avoiding the trouble to connect external CTs. Two pulse outputs and 1 communication port (RS485 Modbus/DLT645) are provided for remote monitoring and setting, suitable for monitoring energy consumption in residential, solar PV, EV Charging system, industrial and utility applications.
The unit has been ETL listed by intertek.
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on single phase AC system (1P+N) |
|
|
Measurement Accuracy |
Power |
1% of range maximum |
|
Active Energy |
IEC62053-21 Class 1 |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input |
Current
|
Rated Current (Ib/Iref) |
10A |
|
Max Current(Imax.) |
65A |
||
|
Min Current(Imin.) |
0.5A |
||
|
Starting Current |
40mA |
||
|
Voltage |
Operation Voltage |
100-240V |
|
|

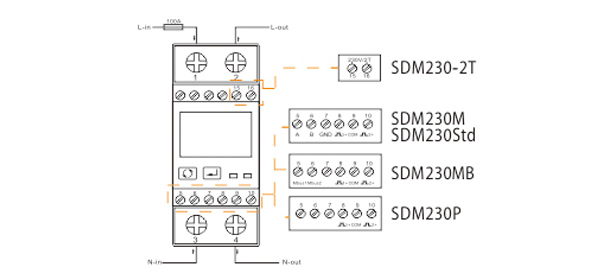

Output |
SDM230-Pulse |
2 Pulse Output for imp/exp. energy |
|
|
SDM230-Modbus |
2 Pulse Output + RS485 Modbus |
||
|
SDM230-Mbus |
2 Pulse Output + M-bus EN13757 |
||
|
SDM230-2T |
2 Pulse Output + RS485 Modbus + 2 Tariffs (Dual Power Source) |
||
|
SDM230M-DI |
2 Pulse Output + RS485 Modbus + Digital Input |
||
|
RS485 Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
1200bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<100 mS |
|
M-Bus EN13757-3 Communications |
|
|
Communication Address |
1~250 |
|
Transmission Distance |
1000m Maximum |
|
Baud Rate |
300bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
