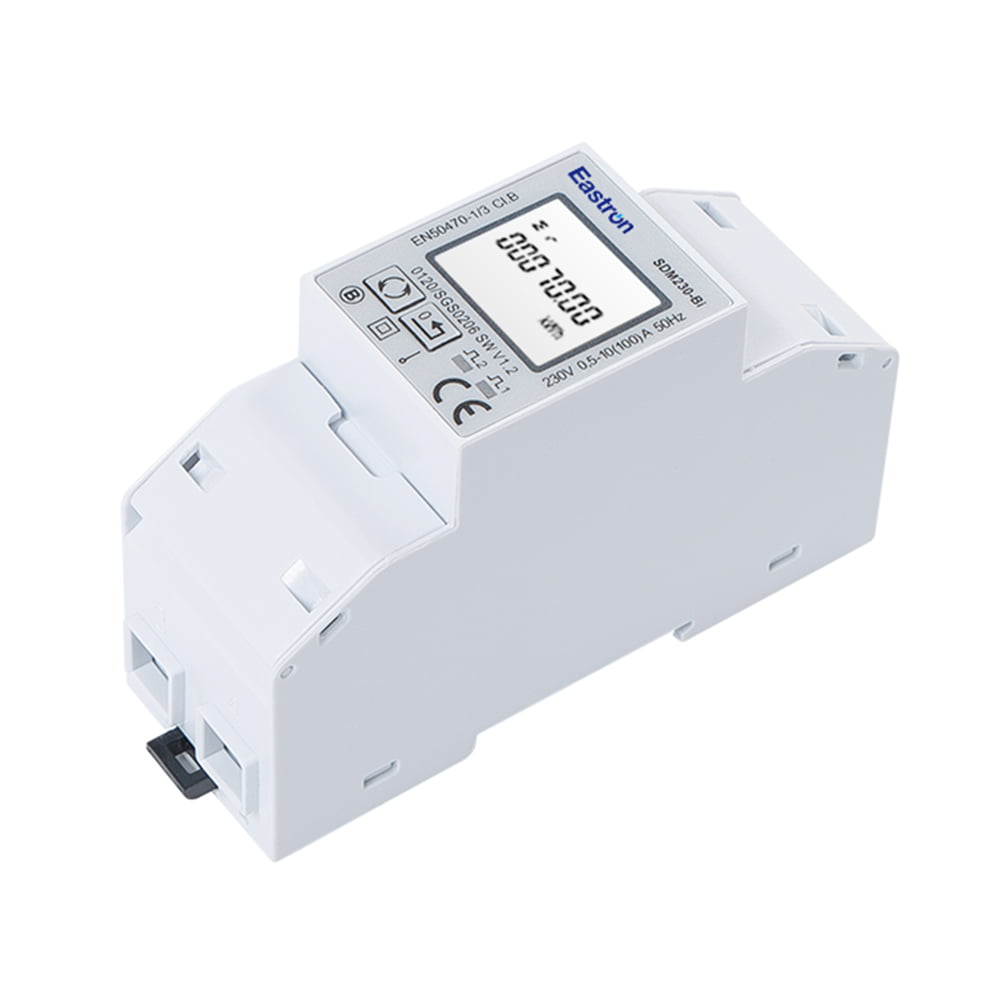

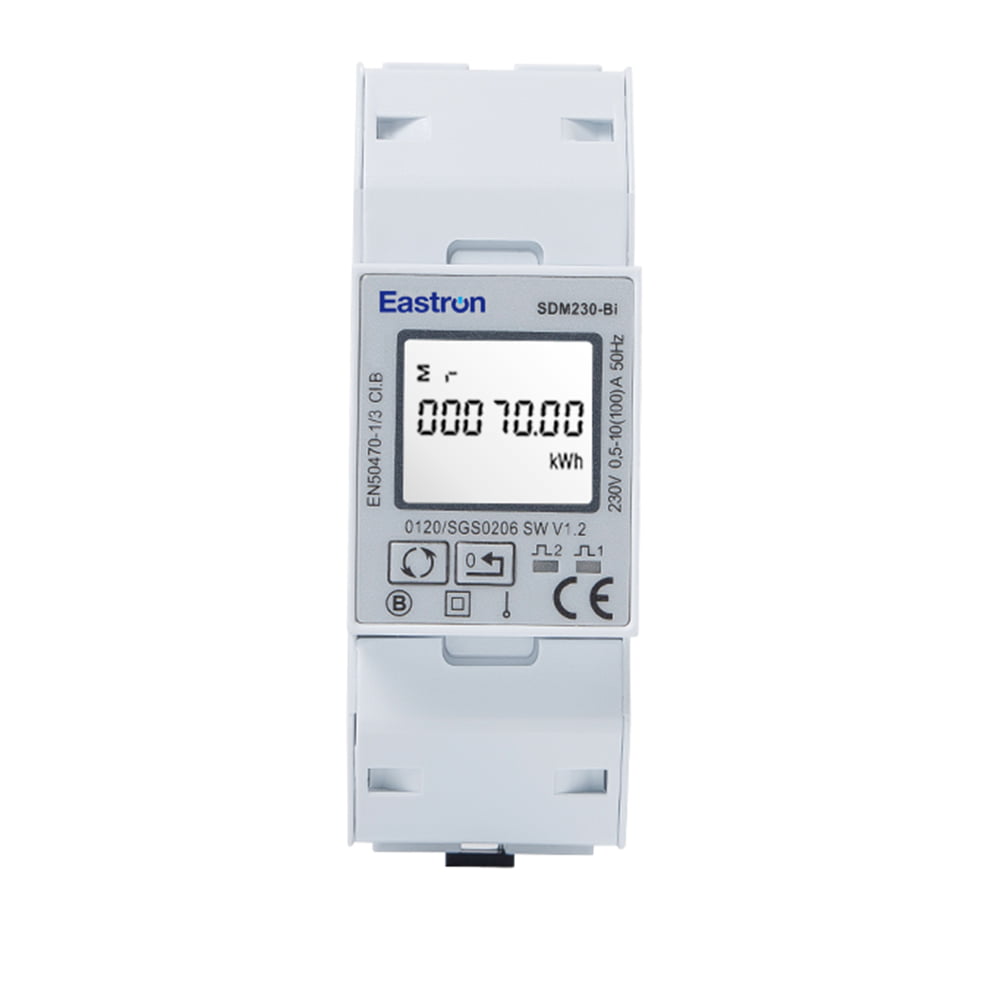

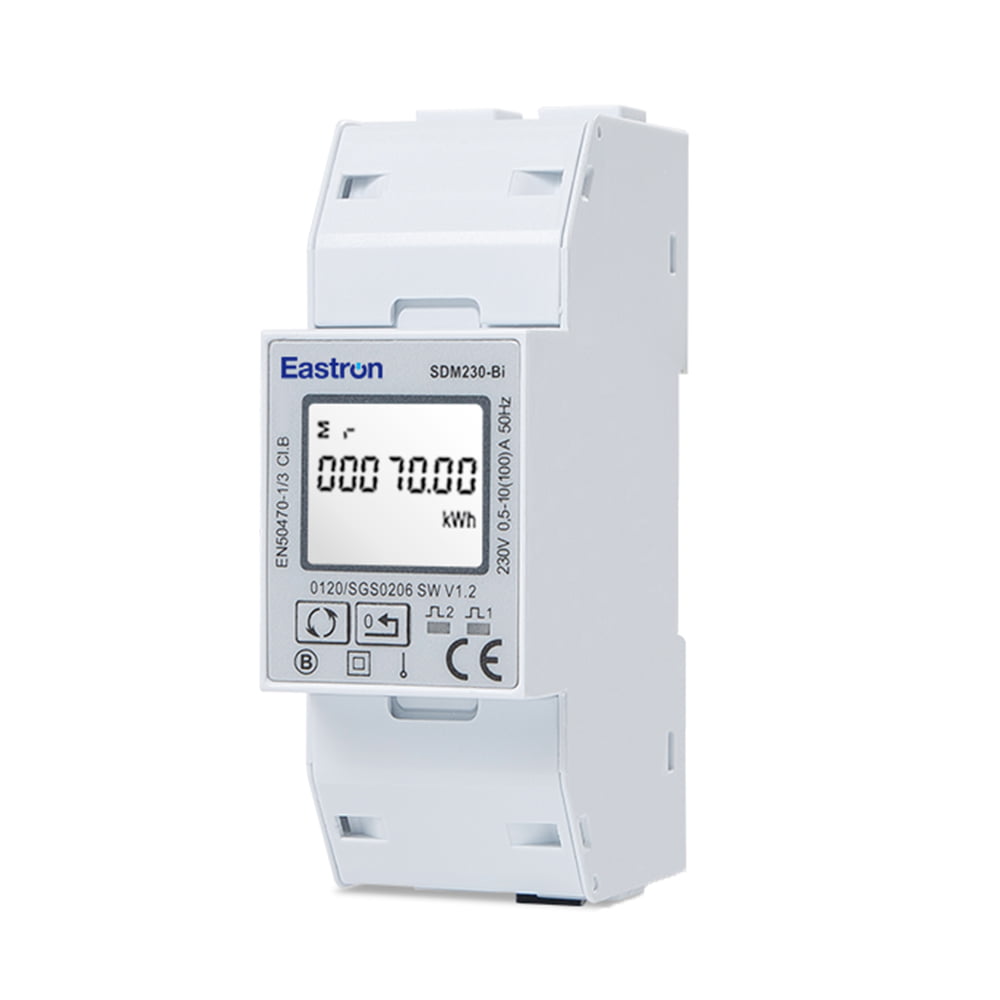

The SDM230Bi is a Bi-directional Din Rail Single Phase ETL energy Meter with Pulse Output and LCD Display. It is a 2-DIN （2 module 36mm width) kWh meter with Max.65A direct input. It provides a partial energy which is resettable. It also provides Bi-directional energy measurement for Imp. and Exp, which is widely used in solar generation energy measurement.
The unit has been ETL listed by intertek.
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on single phase AC system (1P+N) |
|
|
Measurement Accuracy |
Power |
1% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0/ EN50470-1/3 Class B |
|
|
Input & Output |
||||
|
Input |
Current |
Rated Current (Ib) |
10A |
|
|
Max Current (Imax.) |
65A |
|||
|
Min Current (Imin.) |
0.5A |
|||
|
Starting Current |
40mA |
|||
|
Voltage |
Operation Voltage |
100-240V |
||
|
Output |

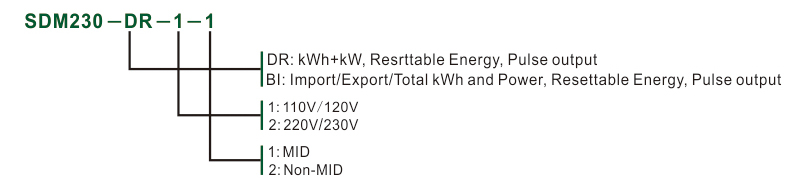

SDM230DR/ SDM230BI |
Pulse Output for active energy |
||
