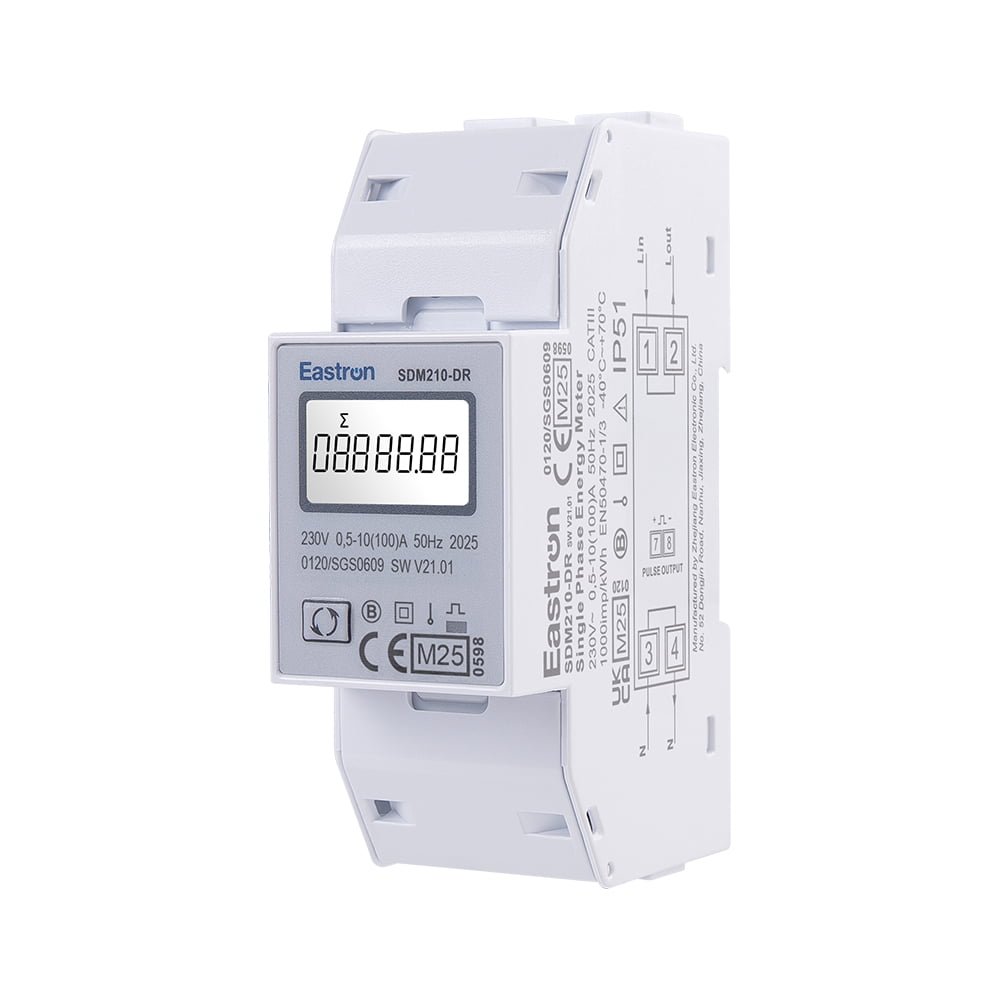

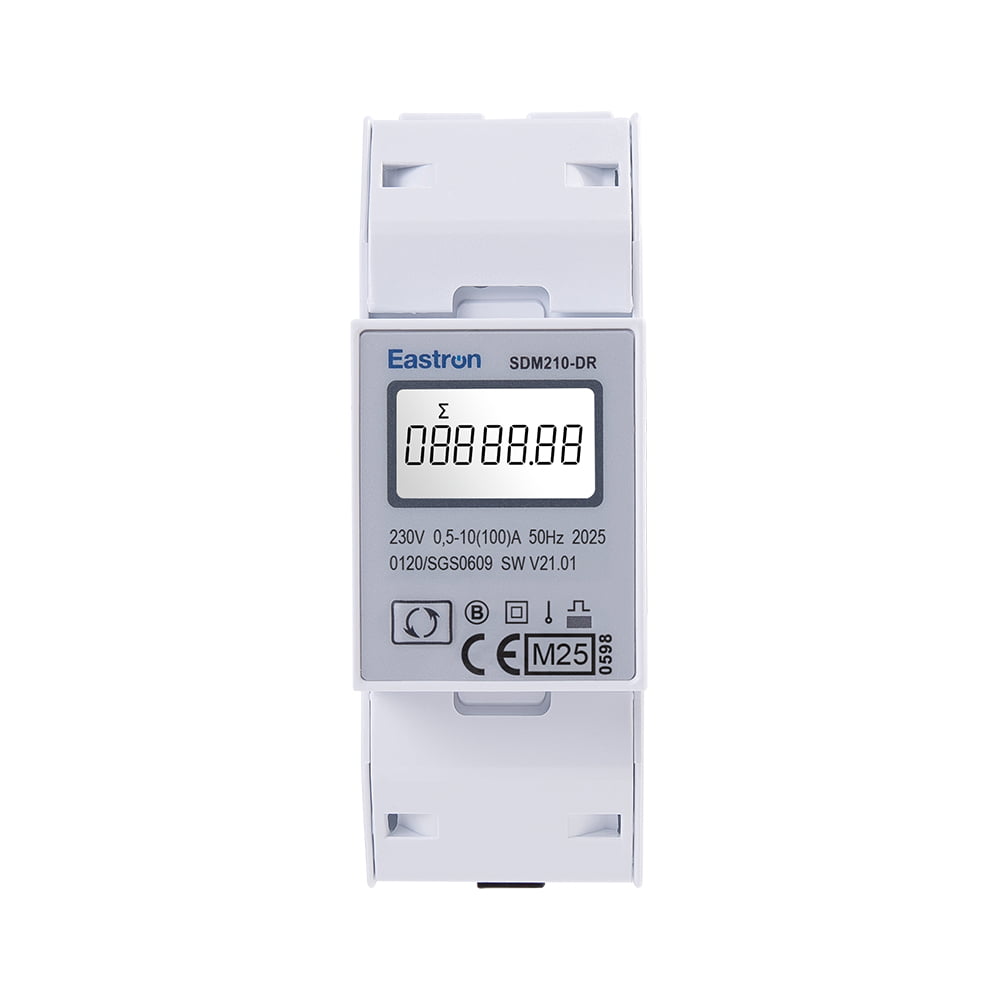

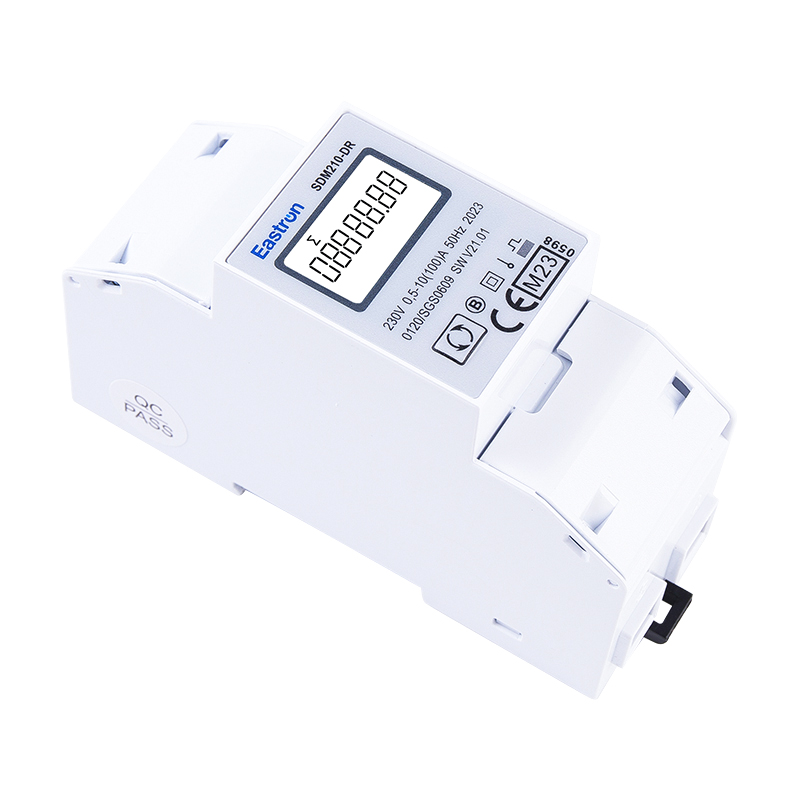

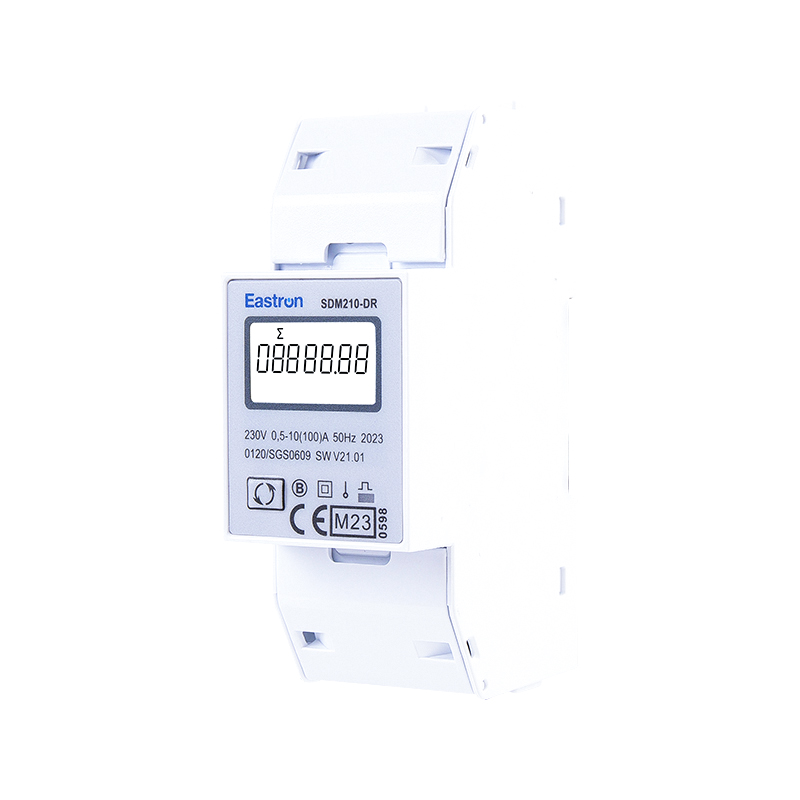

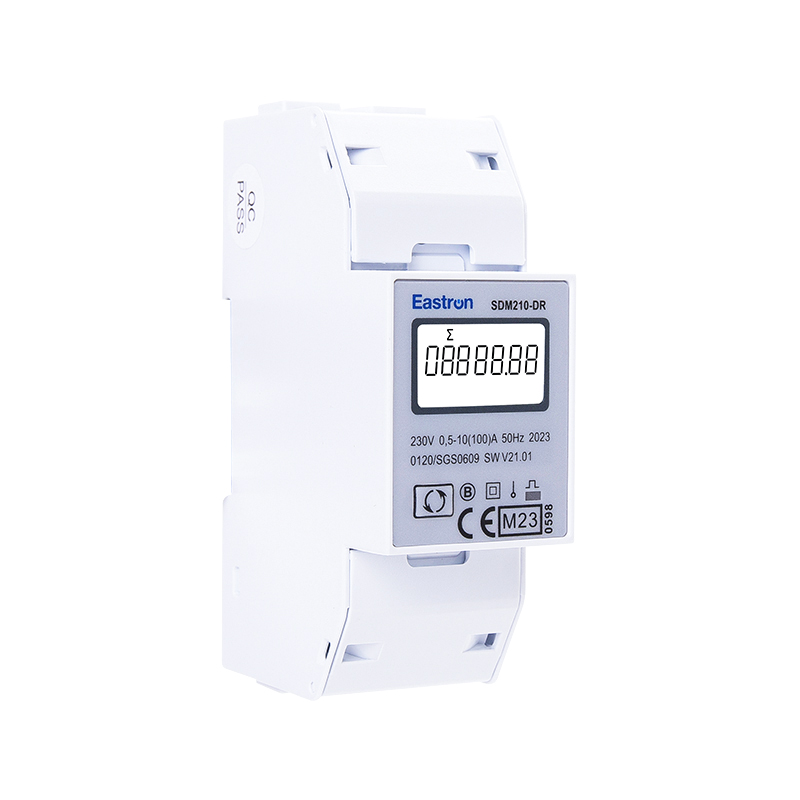

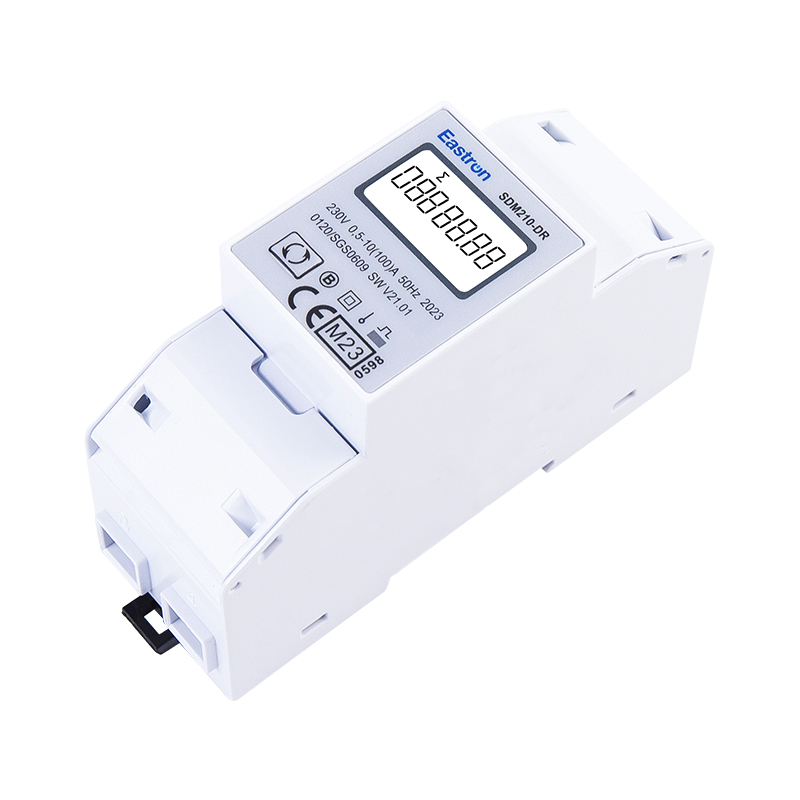

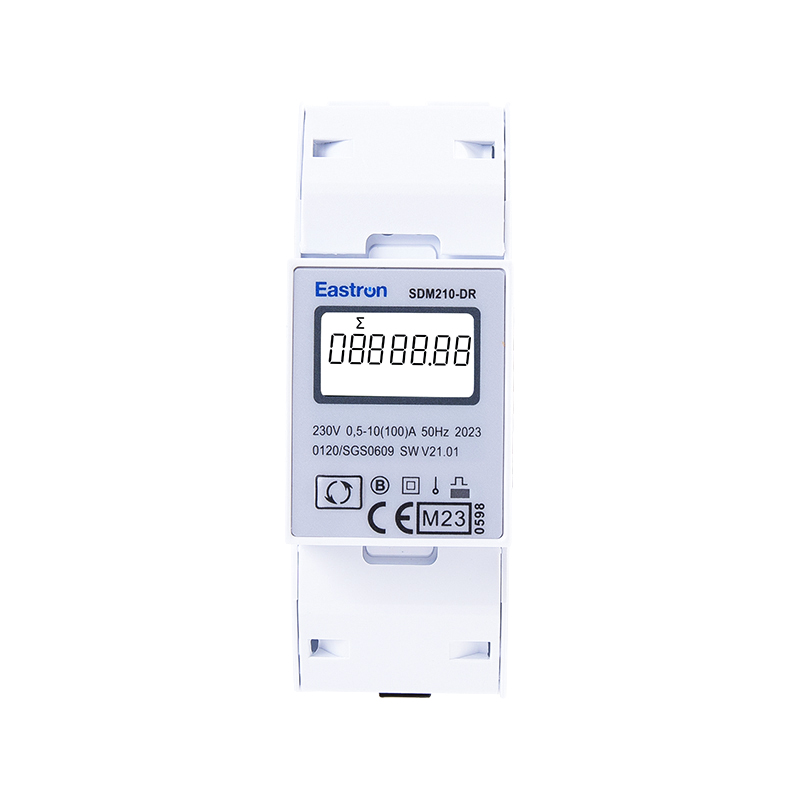

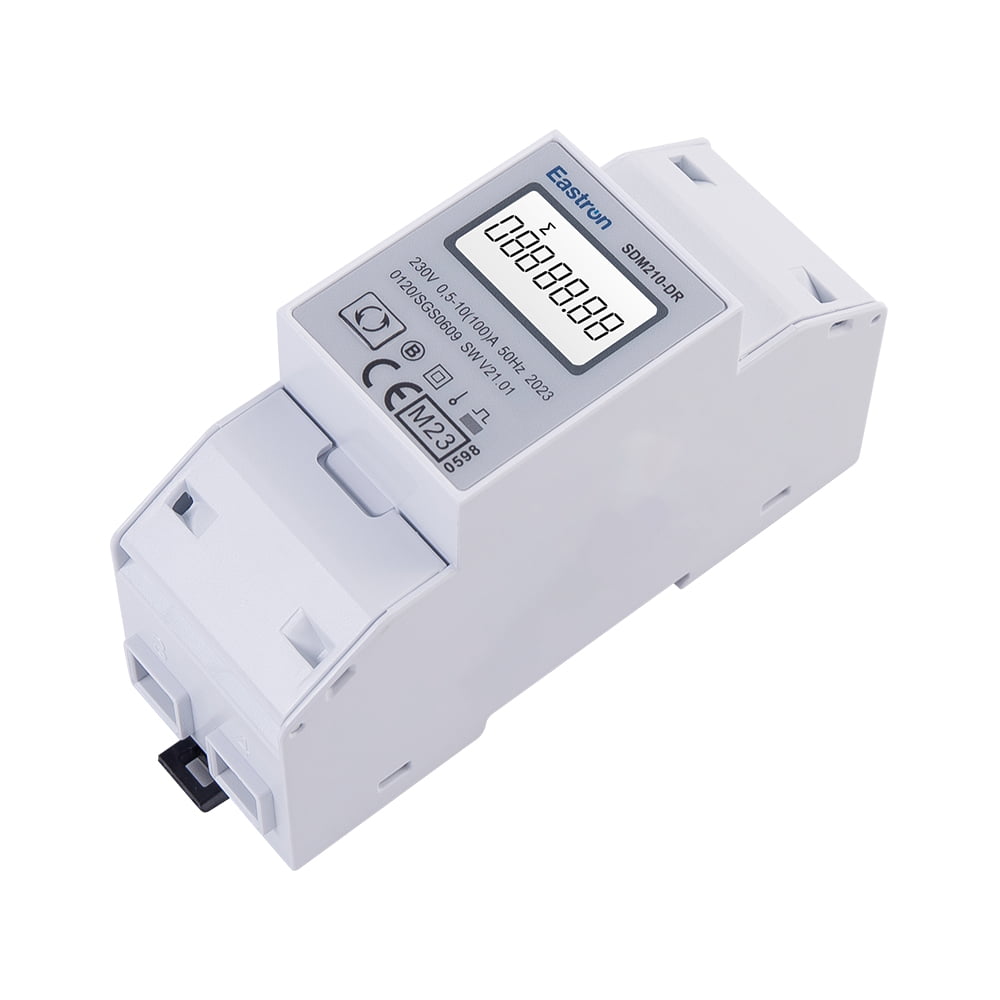

SDM210-DR

Resettable Din Rail Single Phase Electronic Energy meter with Pulse Output

  • Active Energy + Power measured
  • LCD display with backlit
  • Pulse Output
  • Max. 100A Direct Load
  • Partial Energy resettable
  • 2 Module 36mm Width
  • 1P2W

The SDM210DR is a Resettable Din Rail Single Phase Electronic Energy meter with Pulse Output and LCD Display. It is a 2 DIN module 36mm width kWh meter with Max.100A direct input. Besides kWh, the meter also measures voltage, current and power.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B





Input & Output

Input

Current



Rated Current (Ib)

10A

Max Current (Imax.)

100A

Min Current (Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operation Voltage

80% ~120% of Un

Output

SDM230DR/ SDM230BI

Pulse Output for active energy

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

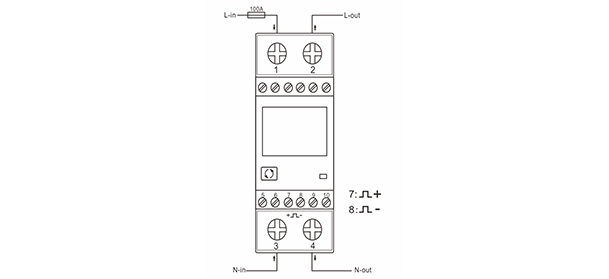

Wiring diagram

Wiring and Dimension [mm:]

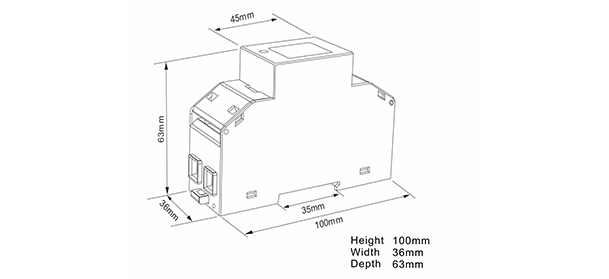

Dimensions
